H80D00X2CS01, Huawei CE8800 Switch Card, 2x10GE Uplink/SyncE

Name: H80D00X2CS01, Huawei CE8800 Switch Card, 2x10GE Uplink/SyncE
SKU: H80D00X2CS01
Rating: 4.5 (2 reviews)

Brand: Huawei
Model: H80D00X2CS01

Rating:

90%

4.5/5.0

2 Reviews

11 Questions

100% Genuine

Original, factory-verified

3-Year Warranty

Extended, enterprise-grade

24 Years Expertise

Proven, deployment-focused

Condition

Original New

Express Shipping to United States
Estimated shipping time: 2–6 business days via DHL, FedEx, UPS and more

Certified Expertise Builds Trust

CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert

Talk to an Expert

Faster Delivery, Globally Ready
20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.
48H Worldwide Shipping
10+ Global Warehouses
Keep Projects On Time
Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.
Track Your Order

Leading Global Distributor
Since 2002
A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

Worry-Free Coverage with RSCare
3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.
Cisco SmartNet
HPE Foundation Care
Dell ProSupport
Juniper Care
Fortinet Support
Your Trusted Genuine Source
Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.
100% Authentic Products
100,000+ Multi-Brand SKUs Available

H80D00X2CS01, Huawei CE8800 Switch Card, 2x10GE Uplink/SyncE

100% Genuine Ready to Ship

Overview

Huawei H80D00X2CS01 Overview

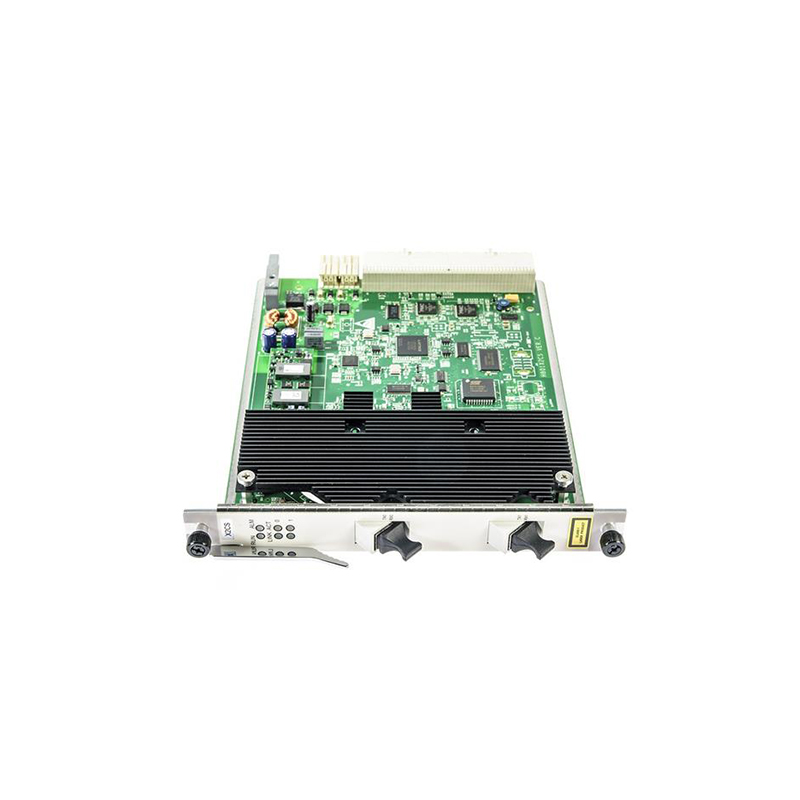

The Huawei H80D00X2CS01 is a carrier-grade CE8800 switch card designed to deliver resilient 2×10GE uplink connectivity with SyncE timing for metro and aggregation networks. It integrates smoothly into MA5600T and MA5603T platforms, leveraging a 3.2 Tbit/s backplane switching capacity and rich access capabilities including ADSL2+, VDSL2, SHDSL, GPON, 10G GPON, and P2P GE. With extended-temperature operation from –25°C to 55°C and advanced Layer 2/Layer 3 forwarding, it suits service providers and enterprise edge deployments across Asia, Europe, Africa, and North America.

Product Highlights

3.2 Tbit/s

Backplane Cap

1,024 ADSL

High Access

128 10G

10G PON Cap

Product Applications Scenarios

Service Providers

The 2×10GE Uplink/SyncE card aggregates multi-service access, improving backhaul efficiency and cutting TCO by up to 30% in metro and last-mile broadband networks.

Enterprise Network

Layer 2/3 line-rate forwarding with MPLS and OSPF enables scalable campus aggregation, simplifying routing and reducing upgrade complexity for IT teams.

Edge & IoT

Robust temperature tolerance and SyncE clocking support stable, low-jitter edge transport for IoT gateways and industrial sites in harsh outdoor environments.

Product Features Comparison


Model	H80D00X2CS01, Huawei CE8800 Switch Card, 2×10GE Uplink/SyncE	H83DVCPE, Huawei H83DVCPE Board, 64 VDSL2 ports/600Ω Splitter/Service Board	LE0MSRUA, Huawei S9300 Switch, Main Control Unit A/High reliability/Hot swappable	CR5DL2XEIG7L, Huawei CR5 Series Line Processing Unit, 2×10G SFP+ / 32×1G SFP / Integrated LPUI
Brand	Huawei	Huawei	Huawei	Huawei
Module Type	n/a	Service Board	Main Control Unit	Line Processing Unit
Port Configuration	Upstream: 10GE / GE; Service: ADSL2+, VDSL2, SHDSL, POTS, ISDN, GPON, 10G GPON, P2P FE/GE	64-port VDSL2 with 600 ohm splitter	Multiple GE/10GE ports	2×10GBase LAN/WAN-SFP+ + 32×100/1000Base-X-SFP
Supported Speed	10GE, GE, 10G GPON, GPON, FE	VDSL2 profiles 8a/8b/8c/8d/12a/12b/17a	n/a	10Gbps (SFP+), 100/1000Mbps (SFP)
Compatible Platform	MA5600T(ETSI), MA5600T(IEC), MA5603T	MA5616	S9306/S9312	CR5 / NetEngine NE40E platform
Installation Type	Plug-in module	Plug-in module	Plug-in module	Slot-based card

Optional Add-ons

Model Number	Description
H806CCPE	Huawei SmartAX MA5600T VDSL2 & POTS combo service board complementing H80D00X2CS01 in access networks
H83DVCPE	Huawei MA5616 64-port VDSL2 service board for extended copper access with H80D00X2CS01 uplinks
PDC-650WA-BE	Huawei 650W DC power module with PoE support to power CE and access shelves using H80D00X2CS01

Quality Certifications

Specification

Huawei H80D00X2CS01 Specification

Model

H80D00X2CS01

Brand

Huawei

Specifications

MA5600T(ETSI)

MA5600T(IEC)

MA5603T

Dimensions (H x W x D)

490mm x 275.8mm x 447.2mm

442 mm x 275.8 mm x 441.7 mm

442mm x 283.2mm x 263.9mm

Operating Environment

–25°C to 55°C 5% RH to 95% RH

–40°C to 65°C 5% RH to 95% RH

Switching Capacity — Backplane Bus

3.2 Tbit/s

1.5 Tbit/s (H801MABO) 2 Tbit/s (H802MABO)

720 Gbit/s

Access Capacity

1,024 x ADSL2+ 1,024 x VDSL2 512 x EFM SHDSL 256 x TDM SHDSL 1,024 x POTS 512 x ISDN BRA 64 x ISDN PRA 128 x 10G GPON 256 x GPON 768 x P2P FE 768 x P2P GE

896 x ADSL2+ 896 x VDSL2 448 x EFM SHDSL 224 x TDM SHDSL 896 x POTS 448 x ISDN BRA 56 x ISDN PRA 112 x 10G GPON 224 x GPON 672 x P2P FE 672 x P2P GE

384 x ADSL2+ 384 x VDSL2 192 x EFM SHDSL 96 x TDM SHDSL 384 x POTS 192 x ISDN BRA 64 x ISDN PRA 96 x 10G GPON 48 x GPON 288 x P2P FE 288 x P2P GE

Port Types

Upstream ports: 10 GE optical and GE optical/electrical ports Service ports: 10G GPON optical port, GPON optical port, P2P FE optical port, P2P GE optical port, and Ethernet optical port, ADSL2+ port, VDSL2 port, SHDSL port, POTS port, and ISDN port

System Performance

Layer 2/Layer 3 line-rate forwarding Static route, RIP, OSPF, and MPLS Clock synchronization schemes: BITS, E1, STM-1, Ethernet clock synchronization, 1588v2, and 1PPS + ToD GPON maximum split ratio of 1:128 10G PON maximum split ratio of 1:256 GPON maximum logical distance between devices: 60 km XG PON maximum logical distance between devices: 100 km

Get more information

Discover unbeatable prices and fast shipping for the H80D00X2CS01, Huawei CE8800 Switch Card, 2×10GE Uplink/SyncE . Access the detailed H80D00X2CS01, Huawei CE8800 Switch Card, 2×10GE Uplink/SyncE datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

Quality Certifications

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

How does the H80D00X2CS01 compare to other uplink interface cards?

The H80D00X2CS01 stands out due to its SyncE support and high reliability, ensuring minimal downtime and precise data transfer.

Is upgrading necessary for the H80D00X2CS01?

Ensure your firmware is up-to-date for optimal performance; consult Huawei's support for any available upgrades.

What are common troubleshooting steps for the H80D00X2CS01?

Ensure the card is properly seated, check for firmware updates, and verify all connections to troubleshoot the H80D00X2CS01.

Are the products sold on router-switch.com authentic?

Yes, router-switch.com only sells 100% genuine products from authorized brands. As a multi-brand authorized distributor, all items are sourced through official channels and include valid manufacturer warranties. Customers may verify authorization via brand websites or request certification documents.

Learn More

What are the key features of the H80D00X2CS01?

The H80D00X2CS01 is a 2-port 10GE uplink interface card that supports Synchronous Ethernet (SyncE), ideal for high-speed data transfers.

How cost-effective is the H80D00X2CS01 for system integrators?

The H80D00X2CS01 offers excellent performance for its price, making it a cost-effective option for high-capacity network solutions.

What are the typical application scenarios for this product?

The H80D00X2CS01 is ideal for data centers, enterprise networks, and environments requiring high-speed and reliable data uplinks.

How do I install the Huawei H80D00X2CS01 in my network setup?

To install the H80D00X2CS01, power down your network device, insert the card into an available slot, and secure it firmly before powering back up.

Does the H80D00X2CS01 support SyncE for precise timing?

Yes, the H80D00X2CS01 supports Synchronous Ethernet (SyncE) for precise timing requirements in your network.

Are there any alternatives to the Huawei H80D00X2CS01?

Alternatives include other 10GE uplink cards from Huawei and similar high-performance cards from other top manufacturers.

What accessories are available for the H80D00X2CS01?

Accessories for the H80D00X2CS01 typically include compatible SFP+ modules and necessary cables for connectivity.
