H80D00GPFD51, Huawei OLT Interface Board, 16xGPON/with Class B+ SFP

100% Genuine Ready to Ship

Overview

Huawei H80D00GPFD51 Overview

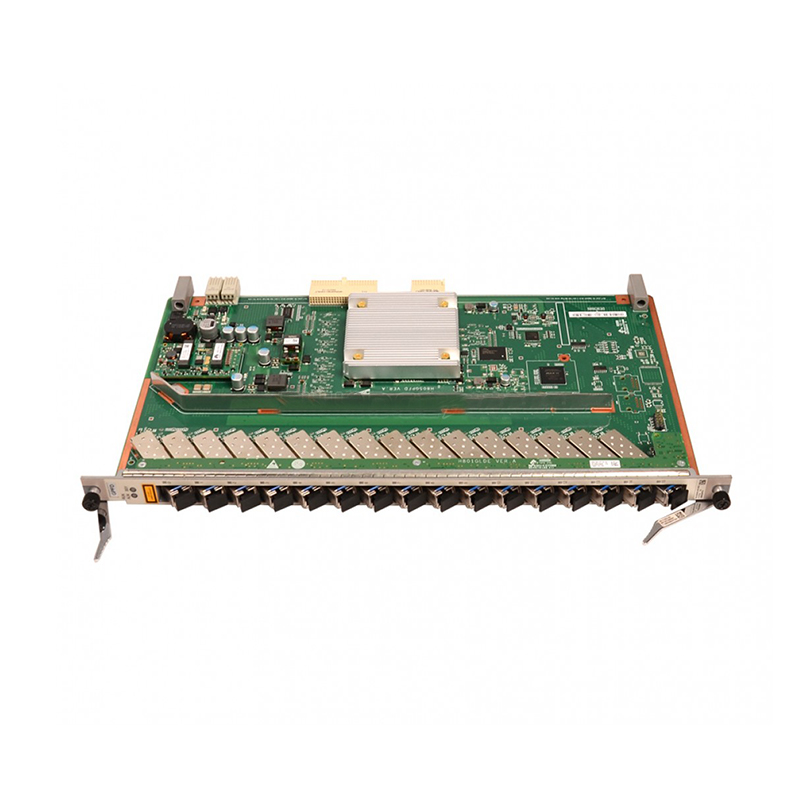

The Huawei H80D00GPFD51 is an operator-grade OLT interface board designed for MA5600T and MA5603T access platforms, providing high-density GPON aggregation for FTTx deployments. This module supports up to 16 GPON interfaces with Class B+ SFP optics, leveraging a 3.2 Tbit/s backplane switching capacity to deliver reliable Layer 2/Layer 3 line-rate forwarding. With wide temperature and humidity tolerance and rich upstream 10 GE options, it is ideal for carriers and ISPs building scalable fiber access networks.

Product Highlights

3.2 Tbit/s

Backplane

16 GPON

High Density

1:128

Split Ratio

Product Applications Scenarios

Service Providers

Enables high-density GPON aggregation for fiber broadband, helping carriers deliver triple-play and business access while reducing per-subscriber port cost.

Public Infrastructure

Provides resilient GPON connectivity for smart city, transport, and utility networks, improving uptime and simplifying large-scale fiber access management.

Enterprise Network

Supports enterprise PON access and campus FTTx, consolidating multiple services on one optical platform to lower OPEX and simplify edge aggregation.

Product Features Comparison


Model	H80D00GPFD51, Huawei OLT Interface Board, 16×GPON/with Class B+ SFP	H83M00XPON01, Huawei CloudEngine 8800 Switch, 1-port GPON uplink/Module	NEDD00EM4T01, Huawei Switch Module, 4×GE/FE, Electrical Interface, Board	CR5D00EFGF60, Huawei Router Flexible Card, 24×100/1000Base-SFP/CP100/2 sub-slots
Brand	Huawei	Huawei	Huawei	Huawei
Module Type	n/a	Network module	n/a	Flexible Card
Port Configuration	n/a	1-port GPON uplink	Channels: 4; Port Type: GE/FE	Ports: 24; Port Type: 100/1000Base-SFP
Supported Speed	n/a	n/a	Port Speed: 1000Mbps / 100Mbps	Data Transfer Rate: 100Mbps and 1Gbps
Compatible Platform	Specifications: MA5600T(ETSI); MA5600T(IEC); MA5603T	n/a	n/a	Compatibility: CP100
Installation Type	n/a	Plug-in module	Installation: Rack-mounted	n/a

Optional Add-ons

Model Number	Description
TNF1DFIU02	Huawei TNF1DFIU02 single FIU fiber interface subcard, 1510nm, for optical transport integration
TN12D4001	Huawei TN12D4001 40-channel 100GHz demultiplexing board for high-capacity WDM backhaul
TN96WSD9	Huawei TN96WSD9 9-port wavelength selective demultiplexing board for extended C-band DWDM

Quality Certifications

Specification

Huawei H80D00GPFD51 Specification

Model

H80D00GPFD51

Brand

Huawei

Specifications

MA5600T(ETSI)

MA5600T(IEC)

MA5603T

Dimensions (H x W x D)

490mm x 275.8mm x 447.2mm

442 mm x 275.8 mm x 441.7 mm

442mm x 283.2mm x 263.9mm

Operating Environment

–25°C to 55°C 5% RH to 95% RH

–40°C to 65°C 5% RH to 95% RH

Switching Capacity — Backplane Bus

3.2 Tbit/s

1.5 Tbit/s (H801MABO) 2 Tbit/s (H802MABO)

720 Gbit/s

Access Capacity

1,024 x ADSL2+ 1,024 x VDSL2 512 x EFM SHDSL 256 x TDM SHDSL 1,024 x POTS 512 x ISDN BRA 64 x ISDN PRA 128 x 10G GPON 256 x GPON 768 x P2P FE 768 x P2P GE

896 x ADSL2+ 896 x VDSL2 448 x EFM SHDSL 224 x TDM SHDSL 896 x POTS 448 x ISDN BRA 56 x ISDN PRA 112 x 10G GPON 224 x GPON 672 x P2P FE 672 x P2P GE

384 x ADSL2+ 384 x VDSL2 192 x EFM SHDSL 96 x TDM SHDSL 384 x POTS 192 x ISDN BRA 64 x ISDN PRA 96 x 10G GPON 48 x GPON 288 x P2P FE 288 x P2P GE

Port Types

Upstream ports: 10 GE optical and GE optical/electrical ports Service ports: 10G GPON optical port, GPON optical port, P2P FE optical port, P2P GE optical port, and Ethernet optical port, ADSL2+ port, VDSL2 port, SHDSL port, POTS port, and ISDN port

System Performance

Layer 2/Layer 3 line-rate forwarding Static route, RIP, OSPF, and MPLS Clock synchronization schemes: BITS, E1, STM-1, Ethernet clock synchronization, 1588v2, and 1PPS + ToD GPON maximum split ratio of 1:128 10G PON maximum split ratio of 1:256 GPON maximum logical distance between devices: 60 km XG PON maximum logical distance between devices: 100 km

Get more information

Discover unbeatable prices and fast shipping for the H80D00GPFD51, Huawei OLT Interface Board, 16×GPON/with Class B+ SFP . Access the detailed H80D00GPFD51, Huawei OLT Interface Board, 16×GPON/with Class B+ SFP datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

Quality Certifications

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What accessories are available for the H80D00GPFD51?

Accessories include additional Class B+ SFP Optical Modules, power supplies, and fiber cables.

How does the H80D00GPFD51 compare with other GPON OLT boards?

The H80D00GPFD51 offers high reliability and performance at a competitive price, making it a preferred choice for high-density GPON networks.

How can I get technical support for the H80D00GPFD51?

Technical support for the H80D00GPFD51 is available through Huawei's official support channels and their extensive online resources.

Are the products sold on router-switch.com authentic?

Yes, router-switch.com only sells 100% genuine products from authorized brands. As a multi-brand authorized distributor, all items are sourced through official channels and include valid manufacturer warranties. Customers may verify authorization via brand websites or request certification documents.

Learn More

How cost-effective is the H80D00GPFD51?

The H80D00GPFD51 is designed for high performance and scalability, offering exceptional value for large-scale GPON deployments.

What are the main features of H80D00GPFD51?

The H80D00GPFD51 has 16 GPON ports and includes Class B+ SFP Optical Modules, ensuring reliable and high-speed data transmission.

In what scenarios is the H80D00GPFD51 typically used?

The H80D00GPFD51 is ideal for ISPs and enterprises that require high-capacity GPON service, such as FTTH deployments and campus networks.

How do you install the H80D00GPFD51?

The H80D00GPFD51 can be installed in a compatible Huawei OLT chassis. It slides into the designated slot and requires SFP module connections to optical fiber cables.

Does the H80D00GPFD51 require upgrading?

Regular firmware updates from Huawei ensure the H80D00GPFD51 operates optimally and supports new features and security enhancements.

Are there alternative products to H80D00GPFD51?

Alternatives include other GPON OLT interface boards from Huawei, such as the H80D00GPFD52, depending on specific needs and compatibility.

What are some common issues with the H80D00GPFD51?

Common issues include port connectivity problems, which can often be resolved by checking SFP modules and fiber connections.
