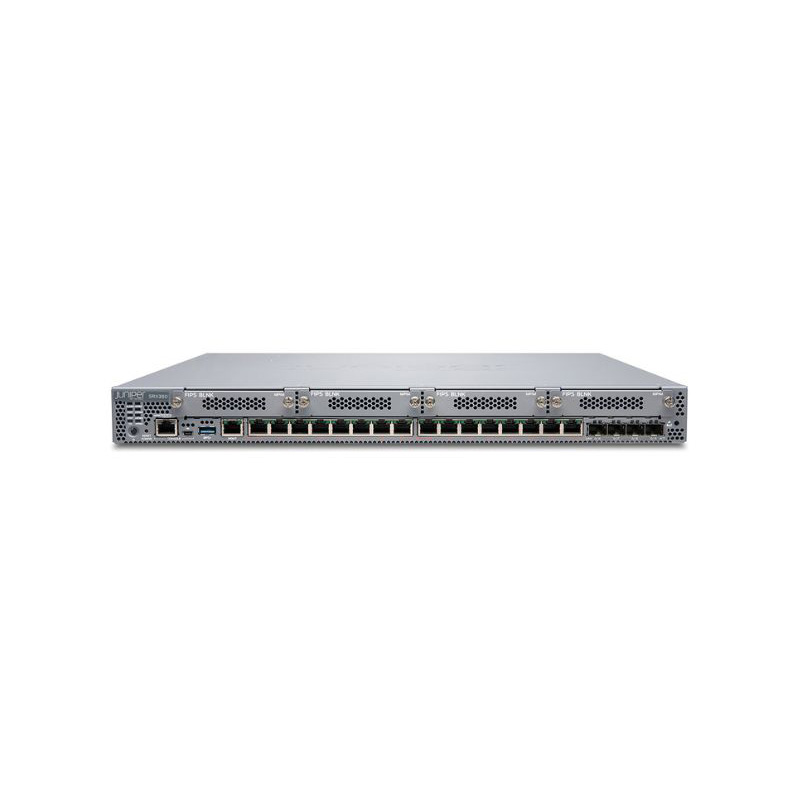

SRX380-P-SYS-JB-AC, Juniper SRX380 Services Gateway, 16x1GbE PoE+/4x10GbE SFP+/4x MPIM Slots

Brand: Juniper
Model: SRX380-P-SYS-JB-AC
In Stock
- United States
- United Kingdom
- Germany
- United Arab Emirates
- Singapore
- India
- Hong Kong

List Price: $18,500.00

57% OFF

$7,983.00

100% Genuine

Original, factory-verified

3-Year Warranty

Extended, enterprise-grade

24 Years Expertise

Proven, deployment-focused

Condition

Original New

Express Shipping to United States
Estimated shipping time: 2–6 business days via DHL, FedEx, UPS and more

Certified Expertise Builds Trust

CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert

Faster Delivery, Globally Ready
20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.
48H Worldwide Shipping
10+ Global Warehouses
Keep Projects On Time
Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.
Track Your Order

Leading Global Distributor
Since 2002
A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

Worry-Free Coverage with RSCare
3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.
Cisco SmartNet
HPE Foundation Care
Dell ProSupport
Juniper Care
Fortinet Support
Your Trusted Genuine Source
Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.
100% Authentic Products
100,000+ Multi-Brand SKUs Available

SRX380-P-SYS-JB-AC, Juniper SRX380 Services Gateway, 16x1GbE PoE+/4x10GbE SFP+/4x MPIM Slots

100% Genuine Ready to Ship

$18,500.00

57% OFF

$7,983.00

Overview

Juniper SRX380-P-SYS-JB-AC Overview

The SRX380-P-SYS-JB-AC is a Juniper SRX380 1U services gateway for large enterprise branch offices, small campus networks, secure SD-WAN, and managed WAN deployments, featuring 16 x 1GbE PoE+ ports, 4 x 10GbE SFP+ ports, 4 Mini-PIM slots, 4GB RAM, and a 100GB SSD.

Key Specifications

PoE+ Access Ports

16 x 1GbE RJ-45 PoE+ ports

10GbE Uplinks

4 x 10GbE SFP+ ports

WAN Expansion

4 Mini-PIM slots

Memory and Storage

4GB RAM and 100GB SSD

Firewall Performance

Up to 20Gbps

IPsec VPN Performance

Up to 4.4Gbps

Best Fit Applications

Large Enterprise Branch Offices

Sixteen PoE+ access ports, 10GbE uplinks, and high-performance security support demanding branch deployments.

Small Campus Networks

PoE+ access connectivity and high-speed SFP+ uplinks support campus aggregation and device connectivity.

Secure SD-WAN

Junos security, IPsec VPN, and Mini-PIM expansion support secure and flexible WAN deployments.

Managed WAN CPE

Rack-mount deployment, flexible WAN interfaces, and redundant power capability support managed network services.

Why SRX380-P-SYS-JB-AC

High-Density PoE+ Access

Sixteen 1GbE PoE+ ports provide direct connectivity and power delivery for branch and campus devices.

10GbE Uplink Capacity

Four 10GbE SFP+ ports provide high-speed uplink capacity for campus aggregation and WAN connectivity.

Flexible WAN Expansion

Four Mini-PIM slots support compatible serial, T1/E1, VDSL2, LTE, and WLAN interface options.

Redundant Power Capability

One 600W AC power supply is installed, while a second compatible PSU can be added for 1+1 redundancy.

Compare Related Models

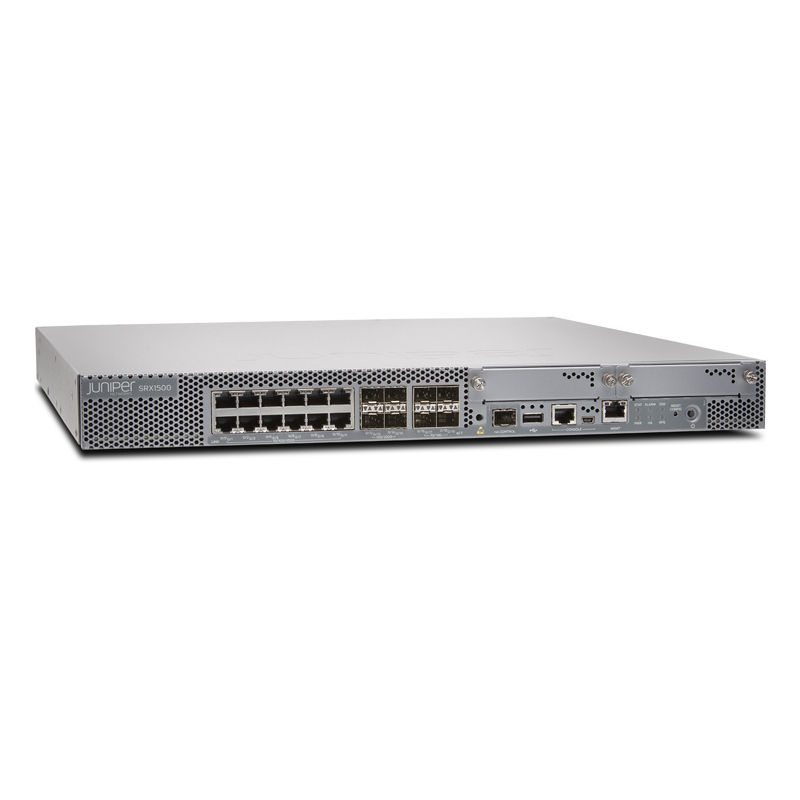

	SRX380-P-SYS-JB-AC	SRX320-SYS-JB	SRX345-SYS-JB	SRX1500-SYS-JB-AC
Form Factor	1U rack-mount	Desktop	1U rack-mount	1U rack-mount
Firewall Performance	20Gbps	1.9Gbps	5Gbps	9.2Gbps
IPS Performance	2Gbps	200Mbps	600Mbps	3.3Gbps
IPsec VPN Performance	4.4Gbps	336Mbps	977Mbps	4.5Gbps
Maximum Sessions	380K	64K	375K	2M
Ethernet Ports	16 x 1GbE PoE+ and 4 x 10GbE SFP+	8 x 1GbE	16 x 1GbE	16 x 1GbE and 4 x 10GbE SFP+
Mini-PIM Slots	4	2	4	0
Best Fit Applications	Large enterprise branch offices, small campus networks, secure SD-WAN, and managed WAN CPE	Small branches, small offices, and lower-bandwidth secure WAN deployments	Mid-sized branch offices, campus edge networks, and enterprise security gateways	Large enterprise campuses, high-throughput branch aggregation, and high-session security deployments
Not Recommended For	Small office deployments that do not require PoE+, 10GbE uplinks, or high security throughput	High-density PoE+ access, 10GbE uplinks, or high-throughput enterprise deployments	Deployments requiring integrated PoE+ access ports or 10GbE SFP+ uplinks	Small branch deployments where PoE+ access ports and compact power requirements are priorities

Connectivity Options

Interface Type	Quantity	Description
1GbE PoE+ RJ-45	16	Integrated copper access ports with PoE+ support and up to 30W per port.
10GbE SFP+	4	High-speed uplink ports for compatible 10GbE optical transceivers.
Mini-PIM Slots	4	Supports compatible serial, T1/E1, VDSL2, LTE, and WLAN Mini-PIM modules.
Console Ports	2	One RJ-45 console port and one Mini-USB Type-B console port.
Management Port	1	Dedicated RJ-45 management interface.
USB Port	1	USB 3.0 Type-A port for supported system operations.
AC Power	1 installed PSU	Supports an optional second 600W AC PSU for 1+1 redundancy.

System Compatible Components

Type	Model / Part Number	Description
Power Supplies	JPSU-600-AC-AFO	600W AC power supply with front-to-back airflow; a second PSU can be added for 1+1 redundancy.

Type	Model / Part Number	Description
Mini-PIM Modules	SRX-MP-1SERIAL-R	Serial Mini-PIM for supported serial WAN connectivity.
	SRX-MP-1T1E1-R	T1/E1 Mini-PIM for supported WAN circuit connectivity.
	SRX-MP-1VDSL2-R	VDSL2 Mini-PIM for broadband WAN access.
	SRX-MP-LTE-AE	LTE Mini-PIM for supported cellular WAN deployments.
	SRX-MP-LTE-AA	LTE Mini-PIM for supported cellular WAN deployments.
	SRX-MP-WLAN-US	WLAN Mini-PIM for the United States regulatory domain.
	SRX-MP-WLAN-IL	WLAN Mini-PIM for the Israel regulatory domain.
	SRX-MP-WLAN-WW	WLAN Mini-PIM for worldwide regulatory domains.

Type	Model / Part Number	Description
10GbE Optics	SRX-SFP-10GE-SR	10GbE SFP+ SR transceiver for multimode fiber connections.
	SRX-SFP-10GE-ER	10GbE SFP+ ER transceiver for extended-distance optical connections.
	SRX-SFPP-10G-LR	10GbE SFP+ LR transceiver for long-distance single-mode fiber connections.
	SFPP-10G-SR-C	10GbE SR SFP+ transceiver for multimode fiber connections.
	SFPP-10G-LRT2-C	10GbE LR Type 2 SFP+ transceiver for long-distance fiber connections.
	SFPP-10GE-LR	10GbE LR SFP+ transceiver for single-mode fiber connections.
	SFPP-10GE-SR	10GbE SR SFP+ transceiver for multimode fiber connections.

Compatibility Check

Check Item	Confirmed Requirement	Selection Note
PoE Power	16 PoE+ ports with up to 30W per port	PoE budget is 300W with one PSU and up to 480W with two PSUs.
Power Configuration	One installed 600W AC PSU with a second PSU option	Add a compatible second PSU when 1+1 power redundancy or higher PoE capacity is required.
Uplink Speed	4 x 10GbE SFP+ ports	Match the selected optical module or DAC to the intended port speed and transmission distance.
Airflow Match	Front-to-back airflow with AFO components	Use matching AFO power and cooling components. Do not mix incompatible airflow directions.
Mini-PIM Installation	Four Mini-PIM slots	Mini-PIM modules are not hot-swappable. Power off the device before installation or removal.
Storage	100GB onboard SSD with support for a second SSD slot	Confirm the exact SSD spare part before ordering or replacement.
Transceivers and Cables	Exact compatibility is determined by the Juniper Hardware Compatibility Tool	Do not infer compatibility from the SFP+ form factor alone.

Quality Certifications

Specification

Juniper SRX380-P-SYS-JB-AC Specification

Product Information
Part Number	SRX380-P-SYS-JB-AC
Product Type	SRX380 Services Gateway
Form Factor	1U rack-mount chassis
Operating System	Junos OS
First Supported Junos Release	20.1R1
Physical Specifications
Dimensions	1.72 x 17.36 x 18.7 in. (H x W x D); 20.47 in. maximum depth with FRUs
Chassis Weight	15 lb (6.8 kg) as shipped; 16.76 lb (7.6 kg) fully configured without line cards
Packaging Weight (User-confirmed)	11 kg
Interfaces and Expansion
Built-in Ethernet Ports	16 x RJ-45 1GbE PoE+ ports and 4 x 10GbE SFP+ ports
Console Ports	1 x RJ-45 console port and 1 x Mini-USB Type-B console port
Management Port	1 x RJ-45 management port
USB Port	1 x USB 3.0 Type-A port
Mini-PIM Slots	4
MACsec Support	Supported on all built-in Ethernet ports
Memory and Storage
DRAM	4GB
Internal Storage	100GB SSD
Additional SSD Slot	Supported
Performance
Firewall Performance	20Gbps; 1700Kpps at 64-byte packets
Recommended IPS Performance	2Gbps
IPsec VPN Performance	4.4Gbps with 1400-byte packets; 1.4Gbps with IMIX traffic
Maximum Concurrent Sessions	380,000
IPv4 RIB / FIB	1,000K / 600K
IPv6 RIB / FIB	1,000K / 600K
IPsec Tunnels	2,048
Security and Routing
MAC Address Table	16,000
VLAN IDs	3,000
Maximum Security Policies	4,000
Security Zones	128
Virtual Routers	128
NAT Rules	3,000
GRE Tunnels	2,048
SSL VPN Users	500
Power and Cooling
Power Supply	One installed 600W AC power supply; chassis supports two power supplies
Power Redundancy	1+1 redundancy supported with a second compatible AC power supply
AC Input	100–240VAC, 50/60Hz
Maximum Power Consumption	172W without PoE; up to 738.04W with PoE devices and two power supplies
PoE Power Budget	300W with one power supply; up to 480W with two power supplies
Maximum PoE Power per Port	30W
Airflow	Front-to-back, AFO
Fan Modules	3 fixed fan modules
Environmental Specifications
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
Operating Humidity	10% to 90% relative humidity
Nonoperating Humidity	5% to 95% relative humidity
Maximum Operating Altitude	6,561 ft (2,000 m)
Maximum Acoustic Noise	50 dB
Required Clearance	24 in. (60.96 cm)
