Name:

US-16-150W

Model:US-16-150W - Ubiquiti Unifi Switch 16 PoE 150W
Brand: Ubiquiti
Detail:

The US-16-150W delivers robust performance over its 18 independent switching ports. Two SFP ports offer optical connectivity, and 16 Gigabit Ethernet ports offer 802.3af/at PoE+ or 24V passive PoE sharing a total of 150W PoE.

Rating:
97%
4.9/5.0
146/mo Sold
Price:US$532.00
Coupon
Up to $80 Coupons
Get Now
$10.00
Order Over $100
RS10
$20.00
Order Over $2000
RSTW
$50.00
Order Over $5000
RSFI
$80.00
Order Over $8000
RSEI
Availability: Item Backordered
Condition:New Factory Sealed
Replacement: ES-16-150W
Warranty:3 years warranty
Shipping:
Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.
Ships to:
United States
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your webmoney.
  • Pay with your onafriq.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Support:
TZS, XAF, TZS payment.
  • Safe, Fast, 100% Genuine. Your Reliable IT Partner.
    Safe, Fast, 100% Genuine. Your Reliable IT Partner.
  • Best Price Assurance, Bulk Savings, Trusted Worldwide.
    Best Price Assurance, Bulk Savings, Trusted Worldwide.

You may also be interested in the following product(s)

US-16-150W

The US-16-150W delivers robust performance over its 18 independent switching ports. Two SFP ports offer optical connectivity, and 16 Gigabit Ethernet ports offer 802.3af/at PoE+ or 24V passive PoE sharing a total of 150W PoE.

Price: US$532.00
Stable Global Supply Chain for Thriving Businesses.
  • $4,000,000 Inventory
  • 500+ Reliable Vendors
  • Certified Partnerships
  • Collaborating with FedEx, UPS, DHL
100,000+ Diverse Products for All Your Needs
Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.
Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.
  • Projects and Technical Support
  • Easy Purchasing Supply
  • Product Lifecycle Protection
  • Exclusive F4 Team Support
Overview

US-16-150W Overview

The US-16-150W delivers robust performance over its 18 independent switching ports. Two SFP ports offer optical connectivity, and 16 Gigabit Ethernet ports offer 802.3af/at PoE+ or 24V passive PoE sharing a total of 150W PoE.


Quick Specs

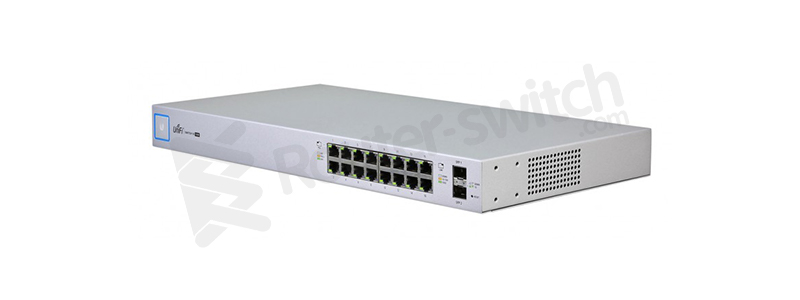

Figure 1 shows the appearance of US-16-150W.


Table 1 shows the Quick Specs.

Product Code

US-16-150W

Dimensions

443 x 43 x 221 mm (17.44 x 1.69 x 8.70")

Networking Interfaces

(16) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports

Total Non-Blocking Throughput

18 Gbps

Switching Capacity

36 Gbps

Forwarding Rate

26.78 Mpps


Product Details

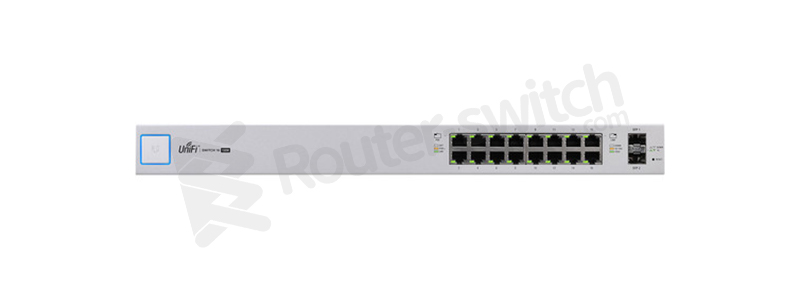

Figure 2 shows the front panel of US-16-150W.

Note:

①

16 Poe Gigabit RJ45 Ports

②

2 SFP Ports

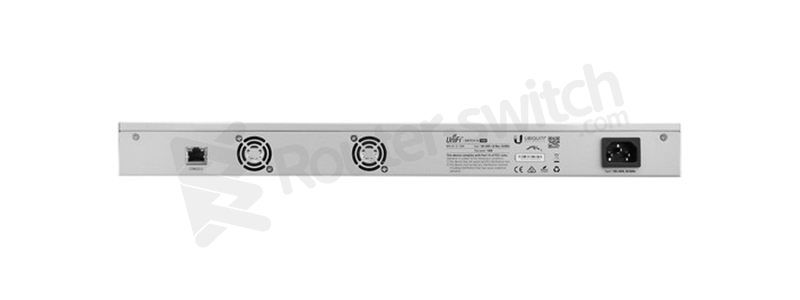

Figure 3 shows the back panel of US-16-150W.


Features

①Versatile Mounting Options

The UniFi Switch can be placed on a desktop or mounted on a wall or in a rack.

②Versatile Port Configuration

Sixteen Gigabit RJ45 ports offer different power output options: auto-sensing IEEE 802.3af/at PoE/PoE+ and 24V passive PoE, and two SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.

③Integration with UniFi Controller

The UniFi Switch integrates with the UniFi Controller software for centralized management of your UniFi devices.

④Advanced Enterprise Switching

The UniFi Switch supports 802.1X authentication, dynamic and static VLAN tagging, port isolation, storm control, and guest control.


Compare to Similar Items

Table 2 shows the comparison of US-16-150W.

Model

US-16-150W

US-24-250W

Dimensions

443 x 43 x 221 mm (17.44 x 1.69 x 8.70")

485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24")

Networking Interfaces

(16) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports

(24) 10/100/1000 Mbps RJ45 Ethernet Ports

(2) 1 Gbps SFP Ethernet Ports

Total Non-Blocking Throughput

18 Gbps

26 Gbps



Switching Capacity

36 Gbps

52 Gbps

Forwarding Rate

26.78 Mpps

38.69 Mpps

ESD/EMP Protection

Air: ± 24 kV, Contact: ± 24 kV

Air: ± 24 kV, Contact: ± 24 kV


Get More Information

Do you have any question about the  US-16-150W

Contact us now via Live Chat or [email protected].

Quality Certifications

  • ISO 14001
  • ISO 9001
  • RoHS
  • REACH
  • CE
  • FCC
Specification

US-16-150W Specification

US-16-150W Specification

Dimensions

443 x 43 x 221 mm (17.44 x 1.69 x 8.70")

Networking Interfaces

(16) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports

Management Interface

Ethernet In-Band

Total Non-Blocking Throughput

18 Gbps

Switching Capacity

36 Gbps

Forwarding Rate

26.78 Mpps

MAC Address Table

16384

Maximum Aggregations

6

Monitoring Sessions

1

Maximum VLANs

255

Power Method

100-240VAC/50-60 Hz, Universal Input

Power Supply

AC/DC, Internal, 150W DC

Max. Power Consumption

Including PoE Output

t Excluding PoE Output

150W

28W

LEDs Per Port

RJ45 Data Ports

SFP Data Ports

PoE, Speed/Link/Activity

Speed/Link/Activity

ESD/EMP Protection

Air: ± 24 kV, Contact: ± 24 kV

Shock and Vibration

ETSI300-019-1.4 Standard

Operating Temperature

-5 to 40° C (23 to 104° F)

Operating Humidity

5 to 95% Noncondensing

Quality Certifications
