Name:

USW-Pro-48-PoE

Model:UBNT USW-Pro-48-PoE - Ubiquiti Enterprise Switches
Brand: Ubiquiti
Detail:

Ubiquiti Networks UniFi Pro 48-Port PoE Managed L2/L3 Gigabit Ethernet (10/100/1000) Silver 1U Power over Ethernet (PoE)

Rating:
90%
4.5/5.0
100/mo Sold
Price:US$1,147.00
Coupon
Up to $80 Coupons
Get Now
$10.00
Order Over $100
RS10
$20.00
Order Over $2000
RSTW
$50.00
Order Over $5000
RSFI
$80.00
Order Over $8000
RSEI
Availability: Item Backordered
Condition:New Factory Sealed
Warranty:3 years warranty
Shipping:
Express Shipping to Fiji
2-6 Days, via DHL, FedEx, UPS, etc.
Ships to:
Fiji
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your webmoney.
  • Pay with your onafriq.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Support:
TZS, XAF, TZS payment.
  • Safe, Fast, 100% Genuine. Your Reliable IT Partner.
    Safe, Fast, 100% Genuine. Your Reliable IT Partner.
  • Best Price Assurance, Bulk Savings, Trusted Worldwide.
    Best Price Assurance, Bulk Savings, Trusted Worldwide.

You may also be interested in the following product(s)

USW-Pro-48-PoE

Ubiquiti Networks UniFi Pro 48-Port PoE Managed L2/L3 Gigabit Ethernet (10/100/1000) Silver 1U Power over Ethernet (PoE)

Price: US$1,147.00
Stable Global Supply Chain for Thriving Businesses.
  • $4,000,000 Inventory
  • 500+ Reliable Vendors
  • Certified Partnerships
  • Collaborating with FedEx, UPS, DHL
100,000+ Diverse Products for All Your Needs
Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.
Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.
  • Projects and Technical Support
  • Easy Purchasing Supply
  • Product Lifecycle Protection
  • Exclusive F4 Team Support
Overview

USW-Pro-48-PoE Overview

Layer 3, PoE switch with (48) GbE RJ45 ports, including (40) 802.3at PoE+ ports and (8) 802.3bt PoE++ ports, and (4) 10G SFP+ ports.


Quick Specs

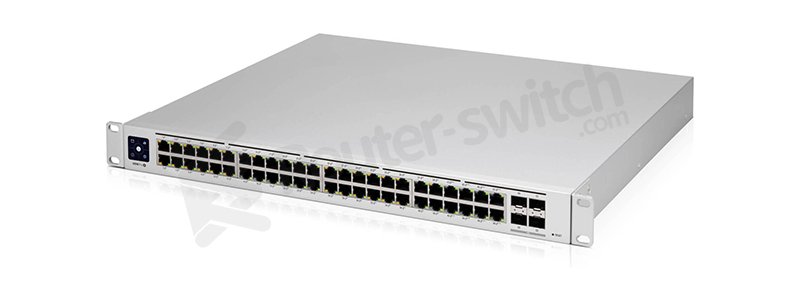

Figure 1 shows the appearance of USW-PRO-48-POE.

Table 1 shows the Quick Specs.

Product Code

USW-PRO-48-POE

Power Supply

AC/DC, Internal, 660W

Supported Voltage Range

100 to 240VAC

Max. Power Consumption (Excluding PoE Output)

60W

Total Available PoE

600W


Product Details

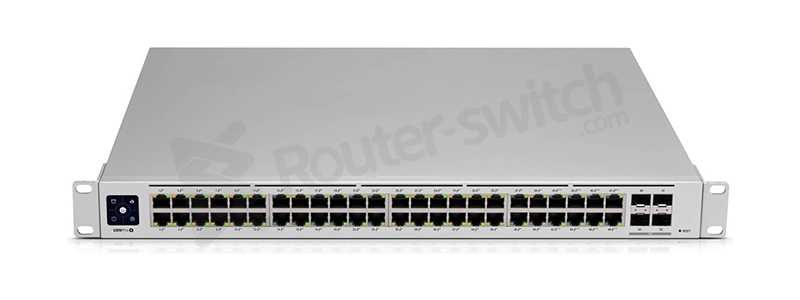

Figure 2 shows the front panel of USW-PRO-48-POE.

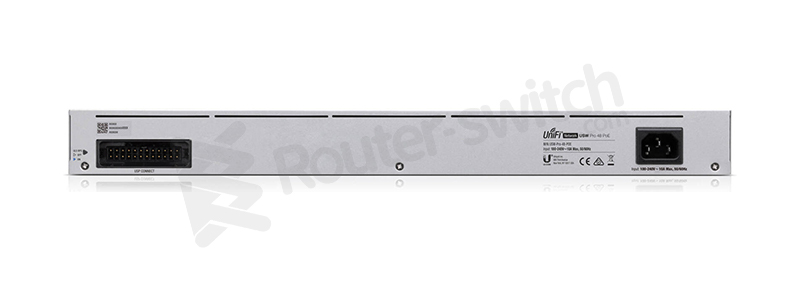

Figure 3 shows the back panel of USW-PRO-48-POE.



Features

  • 3" LCM color touchscreen with AR switch management
  • (40) GbE, 802.3at PoE+ RJ45 ports
  • (8) GbE, 802.3bt PoE++ RJ45 ports
  • (4) 10G SFP+ ports
  • USP RPS DC input
  • 600W total PoE supply
  • Near-silent cooling
  • Layer 3 switching features


Compare to Similar Items

Table 2 shows the comparison of USW-PRO-48-POE.

Module

USW-48

USW-Pro-48-PoE

Total Non-Blocking Line Rate

52 Gbps

88 Gbps

Max. Power Consumption

40W

60W (Excluding PoE Output)

Forwarding Rate

77.376 Mpps

130.944 Mpps

Power Method

Universal AC Input: 100-240VAC, 50/60 Hz

Universal Input:100-240VAC/50-60 Hz

USP RPS DC Input:52VDC, 11.54A; 11.5VDC, 5.22A

Power Supply

AC/DC, Internal, 60W

AC/DC, Internal, 660W


Get More Information

Do you have any question about the USW-PRO-48-POE ?

Contact us now via Live Chat or [email protected].

Quality Certifications

  • ISO 14001
  • ISO 9001
  • RoHS
  • REACH
  • CE
  • FCC
Specification

USW-Pro-48-PoE Specification

USW-Pro-48-PoE specification

Mechanical

Dimensions

442.4 x 399.6 x 43.7 mm
(17.42 x 15.73 x 1.72")

Interfaces
Networking

Management


(48) 10/100/1000 RJ45 Ports
(4) 1/10G SFP+ Ethernet Ports
Ethernet In-Band

Total Non‑Blocking Throughput

88 Gbps

Switching Capacity

176 Gbps

Forwarding Rate

130.944 Mpps

Power Method
Universal Input
USP RPS DC Input


100-240VAC/50-60 Hz
52VDC, 11.54A; 11.5VDC, 5.22A

Power Supply

AC/DC, Internal, 660W

Supported Voltage Range

100 to 240VAC

Max. Power Consumption (Excluding PoE Output)

60W

LEDs
System
RJ45 Data Ports
SFP+ Data Ports


Status
PoE; Speed/Link/Activity
Link/Activity

ESD/EMP Protection

Air: ± 16 kV, Contact: ± 12 kV

Shock and Vibration

ETSI300-019-1.4 Standard

Operating Temperature

-5 to 40° C (23 to 104° F)

Operating Humidity

10 to 90% Noncondensing

Certifications

CE, FCC, IC

PoE

Total Available PoE

600W

PoE Interfaces
Ports 1-40
Ports 41-48


POE+ IEEE 802.3af/at, (pins 1, 2+; 3, 6-)
60W PoE++ IEEE 802.3bt, (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)

Max. PoE Wattage per Port by PSE
802.3at
802.3bt


32W
64W

Voltage Range 802.3af Mode

44-57V

Voltage Range 802.3at Mode

50-57V

Quality Certifications
