UniFi UAP-LR is an integrated solution for building WLAN / Wi-Fi networks operating in 2.4 GHz band with the use of 802.11n MIMO 2x2 standard. Thanks to a unique construction, the UniFi UAP offers unparalleled performance in such a compact device. UniFi UAP-LR is an easy to use and manage Access Point.

Why should I buy from router-switch.com?

As an authorized distributor for 20+ top brands, router-switch.com offers: - Genuine products with full warranties. - Competitive pricing and bulk order discounts. - Professional pre-sales and after-sales support.

UAP-AC-LR

Name: UAP-AC-LR
SKU: UAP-AC-LR
Price: 126 USD
Availability: OutOfStock
Rating: 4.7 (6 reviews)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Name:	UAP-AC-LR
Model:	UAP-AC-LR - Ubiquiti Ceiling Access Points Series
Brand:	Ubiquiti
Detail:	Ubiquiti / UBNT Long Range Indoor Access Point, 1 Gigabit Ethernet, POE PD , Wi-Fi coverage
	Rating: 93% 4.7/5.0 6 Reviews 2 Questions 4/mo Sold
Price:	USD AUD BRL GBP CAD CNY EUR HKD MXN RUB SGD CHF AED US$126.00
Coupon	Up to $80 Coupons Get Now $10.00 Order Over $100 RS10 $20.00 Order Over $2000 RSTW $50.00 Order Over $5000 RSFI $80.00 Order Over $8000 RSEI
Availability:	Item Backordered
Condition:	New Factory Sealed

Shipping:

Express Shipping to United Kingdom
2-6 Days, via DHL, FedEx, UPS, etc.

Ships to:

Payment:

Pay by wire transfer.
Pay with your paypal.
Pay with your webmoney.
Pay with your onafriq.
Pay with your Visa credit card.
Pay with your Mastercard credit card.
Pay with your Discover Card.
Pay by Western Union.

Support:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

UAP-AC-LR

Ubiquiti / UBNT Long Range Indoor Access Point, 1 Gigabit Ethernet, POE PD , Wi-Fi coverage

Price: US$126.00

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

UAP-AC-LR Overview

Ideal for long-range deployments, the UniFi AC LR AP offers simultaneous, dual-band operation with 3x3 MIMO in the 2.4 GHz band and 2x2 MIMO in the 5 GHz band. The innovative antenna design provides a long-range, symmetrical-link coverage area, and the antenna gain of the UniFi AC LR AP performs better than one-way, high transmit power does for connecting distant clients. It is available in single- and five‑packs².

Quick Specs

Figure 1 shows the appearance of UAP-AC-LR.

Table 1 shows the Quick Specs.

SKU	UAP-AC-LR
Dimensions	175.7 X 175.7 X 43.2 MM (6.92 X 6.92 X 1.70")
Networking interface	(1) 10/100/1000 ETHERNET PORT
Ports	NO
Buttons	RESET
Wi-fi standards	802.11 A/B/G/N/AC
Power method	PASSIVE POWER OVER ETHERNET (24V), (PAIRS 4, 5+; 7, 8 RETURN)
Power supply	24V, 0.5A GIGABIT POE ADAPTER
Maximum power consumption	6.5W
Max tx power	24 DBM

Product Details

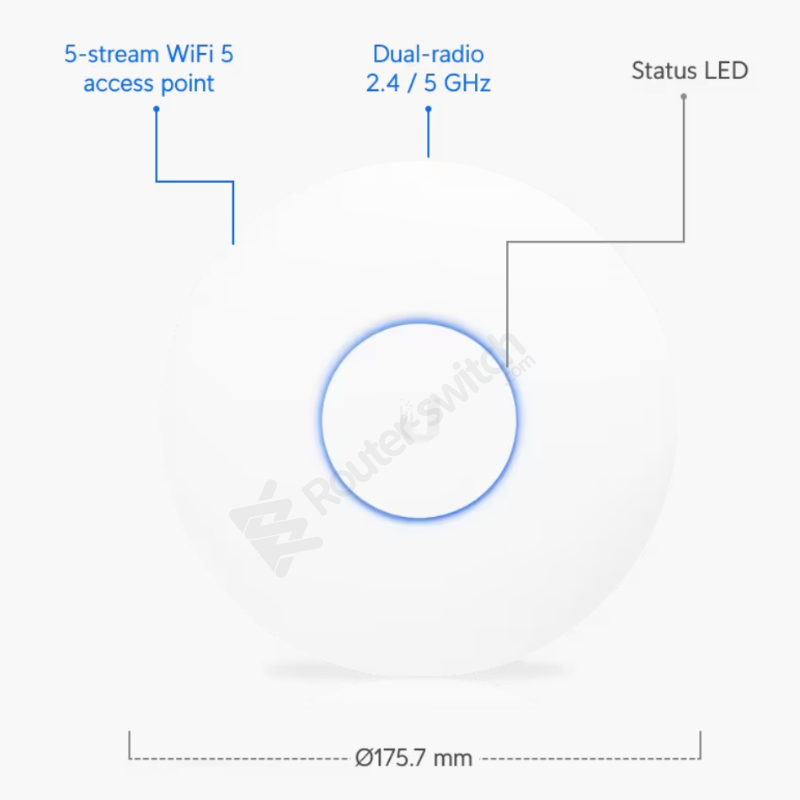

Figure 2 shows the front panel of UAP-AC-LR.

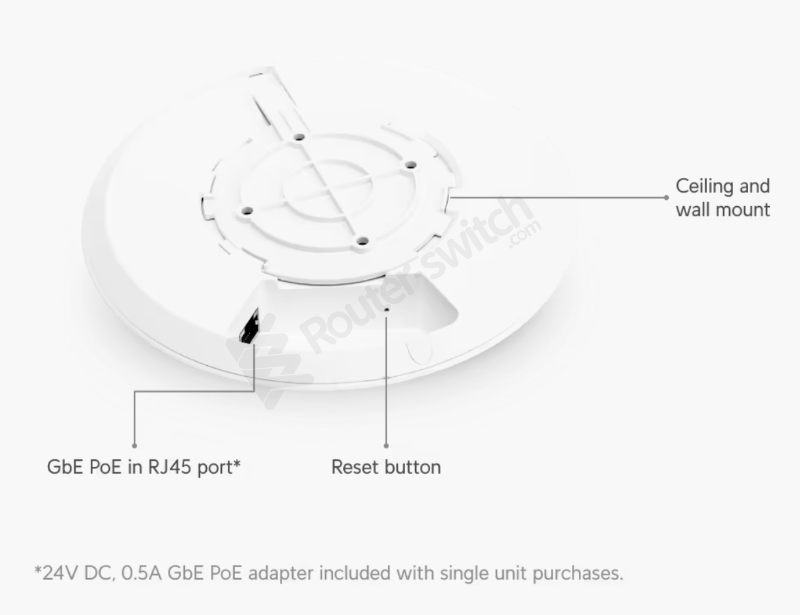

Figure 3 shows the back panel of UAP-AC-LR.

UAP-AC-LR shows the following features:

①Simultaneous Dual-Band Operation

②5 GHz Band with Speeds of up to 867 Mbps

③2.4 GHz Band with Speeds of up to 450 Mbps

④Range up to 183 meters (600 feet)

Table 2 shows the supported switches.

Product Name	Details
US-8	UBNT UniFi US-8 Enterprise PoE 8-Port Managed PoE Gigabit Switch
US-8-60W	UBNT US-8-60W UniFi 8-Port Gigabit PoE Compliant Managed Switch, Enterprise
US-8-150W	UBNT UniFi US-8-150W Enterprise PoE 8-Port Managed PoE Gigabit Switch
US-16-150W	UBNT UniFi US-16-150W Enterprise PoE 16-Port Managed PoE Gigabit Switch
US-24	UBNT US-24 UniFi 24-Port Gigabit PoE Compliant Managed Switch, Enterprise
US-24-250W	UBNT UniFi US-24-250W Enterprise PoE 24-Port Managed PoE Gigabit Switch

Compare to Similar Items

Table 3 shows the comparison.

Product Name	UAP-AC-LR	UAP-AC-LITE	UAP-AC-IW with Gigabit PoE Power Supply
Dimensions	175.7 x 43.2 mm	160 x 31.45 mm	139.7 x 86.7 mm
Environment	Indoor	Indoor	Indoor
2.4 GHz Radio Rate	450 Mbps	300 Mbps	300 Mbps
5 GHz Radio Rate	867 Mbps	867 Mbps	867 Mbps
PoE Mode	802.3af/A PoE & 24V PoE	802.3af/A PoE & 24V PoE	802.3at PoE+
Ports	(1)10/100/1000 Ethernet	(1)10/100/1000 Ethernet	(3)10/100/1000 Ethernet

Get More Information

Do you have any question about the UAP-AC-LR

Quality Certifications

Specification

UAP-AC-LR Specification

UAP-AC-LR Specification
Dimensions	175.7 X 175.7 X 43.2 MM (6.92 X 6.92 X 1.70")
Networking interface	(1) 10/100/1000 ETHERNET PORT
Ports	NO
Buttons	RESET
Antennas	(1) DUAL-BAND ANTENNA, TRI-POLARITY, 2.4 GHZ: 3 DBI, 5 GHZ: 3 DBI
Wi-fi standards	802.11 A/B/G/N/AC
Power method	PASSIVE POWER OVER ETHERNET (24V), (PAIRS 4, 5+; 7, 8 RETURN)
Power supply	24V, 0.5A GIGABIT POE ADAPTER
Maximum power consumption	6.5W
Max tx power	24 DBM
Bssid	UP TO FOUR PER RADIO
Power save	SUPPORTED
Wireless security	WEP, WPA-PSK, WPA-ENTERPRISE (WPA/WPA2, TKIP/AES)
Certifications	CE, FCC, IC
Mounting	WALL/CEILING (KITS INCLUDED)
Operating temperature	-10 TO 70° C (14 TO 158° F)
Operating humidity	5 TO 95% NONCONDENSING
ADVANCED TRAFFIC MANAGEMENT
Vlan	802.1Q
Advanced qos	PER-USER RATE LIMITING
Guest traffic isolation	SUPPORTED
Wmm	VOICE, VIDEO, BEST EFFORT, AND BACKGROUND
Concurrent clients	200+
SUPPORTED DATA RATES (MBPS)
802.11a	6, 9, 12, 18, 24, 36, 48, 54 MBPS
802.11n	6.5 MBPS TO 450 MBPS (MCS0 - MCS23, HT 20/40)
802.11ac	6.5 MBPS TO 867 MBPS (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11b	1, 2, 5.5, 11 MBPS
802.11g	6, 9, 12, 18, 24, 36, 48, 54 MBPS
