H80D00GPBH52, Huawei MA5800 OLT Board, 8-port GPON/Class C+ SFP/Enhanced board

100% Genuine Ready to Ship

Overview

Huawei H80D00GPBH52 Overview

The Huawei H80D00GPBH52 is a carrier-grade MA5800 OLT service board designed for high-density GPON access in FTTx and multi-service aggregation networks. This 8-port GPON/Class C+ SFP enhanced board leverages the MA5600T and MA5603T platforms to deliver large-scale broadband, voice, and TDM access for operators and ISPs across Asia, Europe, Africa, and North America. With strong Layer 2/Layer 3 capabilities, rich upstream and service port options, and long-distance PON support, it suits distributors, integrators, and demanding end users building scalable fiber infrastructure.

Product Highlights

3.2 Tbit/s

Backplane Cap

1,024 GPON

Access Ports

60 /100 km

PON Reach

Product Applications Scenarios

Service Providers

Enables high-density GPON aggregation, supporting large subscriber bases while simplifying backhaul and reducing per-subscriber CAPEX for regional and national carriers.

Enterprise Network

Delivers converged voice, data, and video over fiber, helping enterprises build resilient campus backbones and cut access-layer complexity and maintenance costs.

Public Infrastructure

Supports municipal FTTx, smart city backbones, and utility networks, providing long-reach GPON coverage and stable services in harsh outdoor environments.

Product Features Comparison

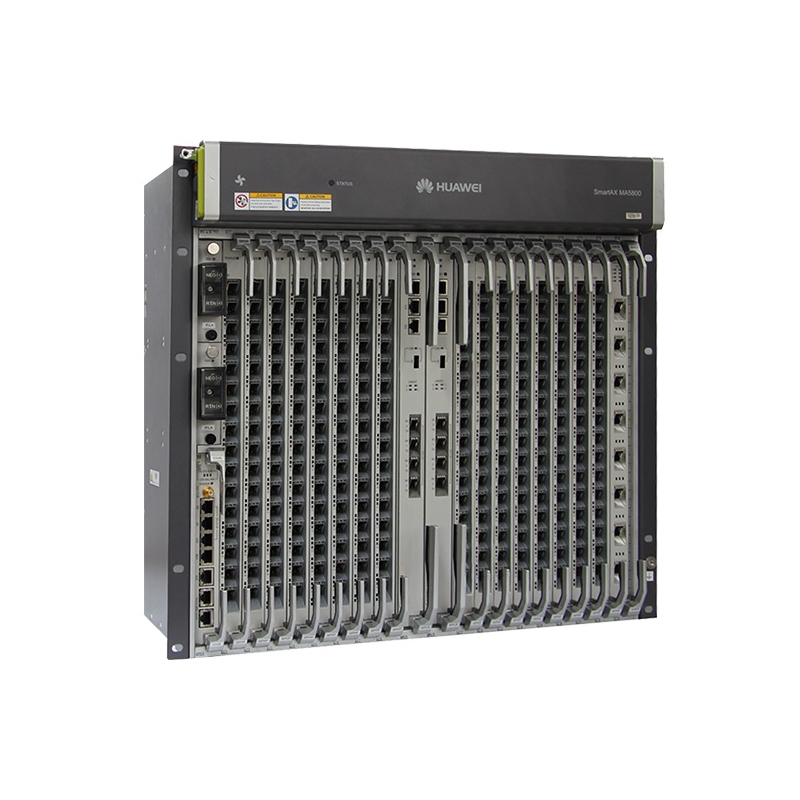

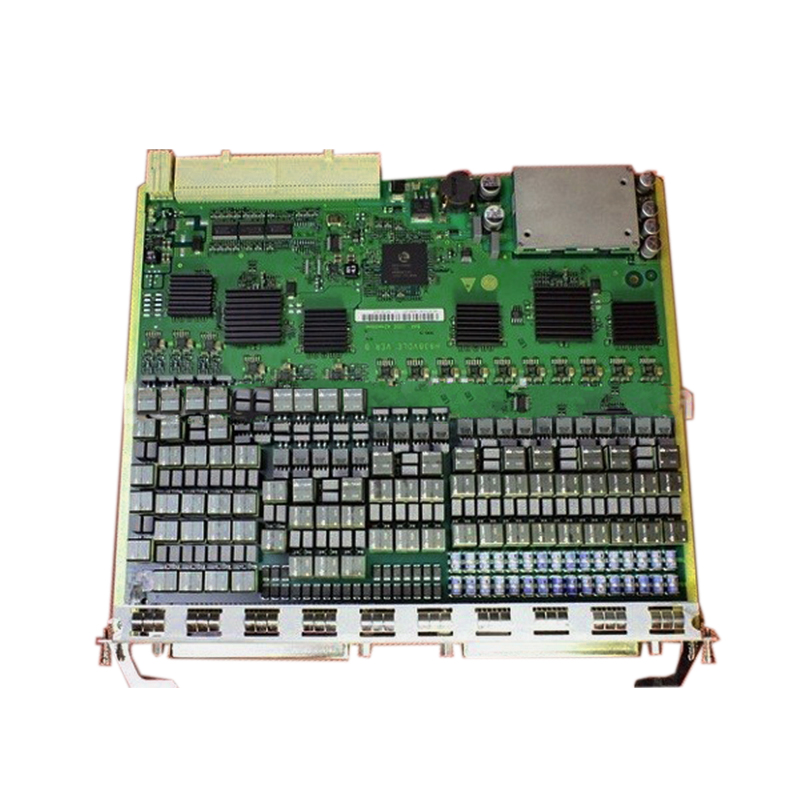

Model	H80D00GPBH52, Huawei MA5800 OLT Board, 8-port GPON/Class C+ SFP/Enhanced board	H805GPFD, Huawei SmartAX MA5600T OLT Interface Board, 16-port GPON, Hot-swappable, MA5600T Series	H901XEHD, Huawei H901XEHD, 8×10G EPON/OLT Board	H80D00VDQM01, Huawei MA5800 Board, 64×VDSL2/ISDN/Hot-swappable
Brand	Huawei	Huawei	Huawei	Huawei
Module Type	n/a	n/a	n/a	n/a
Port Configuration	n/a	16-port GPON	8-port 10G EPON	64×VDSL2/ISDN
Supported Speed	n/a	40 Gbit/s forwarding	10G EPON	n/a
Compatible Platform	MA5600T / MA5603T	MA5600T Series	MA5800-X7	MA5800
Installation Type	n/a	Hot-swappable board	OLT interface board	Hot-swappable board

Optional Add-ons

Model Number	Description
XFP-STM64-SM1550-80km	Huawei 10G XFP optical module, 1550nm 80km, ideal for MA5800 uplink and aggregation links.
SLESSFPK01	Huawei single-mode eSFP optical module, GE/1.25G 10km, for OLT uplink or aggregation ports.
ET1D2L08QSC0	Huawei 8×40G QSFP+ interface card, expanding high-capacity uplink for MA5800-based networks.

Quality Certifications

Specification

Huawei H80D00GPBH52 Specification

Model

H80D00GPBH52

Brand

Huawei

Specifications

MA5600T(ETSI)

MA5600T(IEC)

MA5603T

Dimensions (H x W x D)

490mm x 275.8mm x 447.2mm

442 mm x 275.8 mm x 441.7 mm

442mm x 283.2mm x 263.9mm

Operating Environment

–25°C to 55°C 5% RH to 95% RH

–40°C to 65°C 5% RH to 95% RH

Switching Capacity — Backplane Bus

3.2 Tbit/s

1.5 Tbit/s (H801MABO) 2 Tbit/s (H802MABO)

720 Gbit/s

Access Capacity

1,024 x ADSL2+ 1,024 x VDSL2 512 x EFM SHDSL 256 x TDM SHDSL 1,024 x POTS 512 x ISDN BRA 64 x ISDN PRA 128 x 10G GPON 256 x GPON 768 x P2P FE 768 x P2P GE

896 x ADSL2+ 896 x VDSL2 448 x EFM SHDSL 224 x TDM SHDSL 896 x POTS 448 x ISDN BRA 56 x ISDN PRA 112 x 10G GPON 224 x GPON 672 x P2P FE 672 x P2P GE

384 x ADSL2+ 384 x VDSL2 192 x EFM SHDSL 96 x TDM SHDSL 384 x POTS 192 x ISDN BRA 64 x ISDN PRA 96 x 10G GPON 48 x GPON 288 x P2P FE 288 x P2P GE

Port Types

Upstream ports: 10 GE optical and GE optical/electrical ports Service ports: 10G GPON optical port, GPON optical port, P2P FE optical port, P2P GE optical port, and Ethernet optical port, ADSL2+ port, VDSL2 port, SHDSL port, POTS port, and ISDN port

System Performance

Layer 2/Layer 3 line-rate forwarding Static route, RIP, OSPF, and MPLS Clock synchronization schemes: BITS, E1, STM-1, Ethernet clock synchronization, 1588v2, and 1PPS + ToD GPON maximum split ratio of 1:128 10G PON maximum split ratio of 1:256 GPON maximum logical distance between devices: 60 km XG PON maximum logical distance between devices: 100 km

Get more information

Discover unbeatable prices and fast shipping for the H80D00GPBH52, Huawei MA5800 OLT Board, 8-port GPON/Class C+ SFP/Enhanced board . Access the detailed H80D00GPBH52, Huawei MA5800 OLT Board, 8-port GPON/Class C+ SFP/Enhanced board datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

Quality Certifications

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What accessories are available for the H80D00GPBH52?

Accessories for the H80D00GPBH52 include spare Class C+ SFP optical modules, fiber optic cables, and OLT chassis for installation.

How does the H80D00GPBH52 compare with similar products?

The H80D00GPBH52 stands out due to its 8-port configuration, enhanced performance, and inclusion of Class C+ SFP modules, offering better value and reliability compared to standard models.

What is the maximum reach of the Class C+ SFP optical modules included with the H80D00GPBH52?

The Class C+ SFP optical modules included with the H80D00GPBH52 can achieve a maximum reach of 60 km, making it suitable for long-distance fiber connections.

Are the products sold on router-switch.com authentic?

Yes, router-switch.com only sells 100% genuine products from authorized brands. As a multi-brand authorized distributor, all items are sourced through official channels and include valid manufacturer warranties. Customers may verify authorization via brand websites or request certification documents.

Learn More

How cost-effective is the H80D00GPBH52 8-port Enhanced GPON OLT Interface Board?

The H80D00GPBH52 offers exceptional cost-effectiveness with its 8-port GPON interface and Class C+ SFP optical modules, providing high performance at a competitive price point in the market.

What are the key features of the H80D00GPBH52 board?

The H80D00GPBH52 features 8 GPON ports, high density, enhanced performance, and includes Class C+ SFP optical modules for extended reach and reliability.

In what scenarios can the H80D00GPBH52 be used?

The H80D00GPBH52 is ideal for FTTH (Fiber to the Home) deployments, enabling ISPs to provide high-speed broadband services to residential and business customers.

How do I install the H80D00GPBH52 GPON OLT Interface Board?

To install the H80D00GPBH52, insert the board into the correct slot of the OLT chassis, secure it, and connect the fiber cables to the appropriate GPON ports. Follow the manual for detailed instructions.

Does the H80D00GPBH52 require software upgrades?

The H80D00GPBH52 may require firmware or software upgrades for optimal performance. It's recommended to check for updates regularly and install them as per the manufacturer's guidelines.

Are there alternative products to the H80D00GPBH52?

Yes, alternatives include other Huawei GPON OLT interface boards, but the H80D00GPBH52's enhanced features and Class C+ SFP modules make it a superior choice.

What common issues might I encounter with the H80D00GPBH52?

Common issues include signal loss or degradation, which can often be resolved by checking fiber connections and ensuring the optical modules are properly seated.
