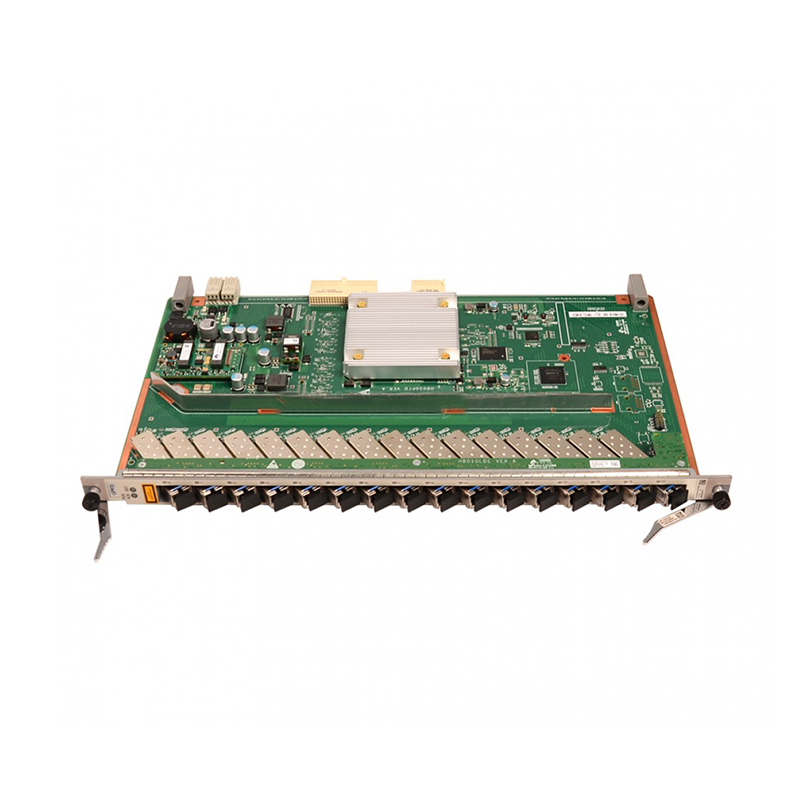

H80D00GPFD52, Huawei OLT Interface Board, 16xGPON/with Class C+ SFP/Hot-swappable

Name: H80D00GPFD52, Huawei OLT Interface Board, 16xGPON/with Class C+ SFP/Hot-swappable
SKU: H80D00GPFD52
Rating: 4.8 (5 reviews)

Brand: Huawei
Model: H80D00GPFD52

Rating:

96%

4.8/5.0

5 Reviews

11 Questions

100% Genuine

Original, factory-verified

3-Year Warranty

Extended, enterprise-grade

24 Years Expertise

Proven, deployment-focused

Condition

Original New

Certified Expertise Builds Trust

CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert

Talk to an Expert

Faster Delivery, Globally Ready
20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.
48H Worldwide Shipping
10+ Global Warehouses
Keep Projects On Time
Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.
Track Your Order

Leading Global Distributor
Since 2002
A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

Worry-Free Coverage with RSCare
3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.
Cisco SmartNet
HPE Foundation Care
Dell ProSupport
Juniper Care
Fortinet Support
Your Trusted Genuine Source
Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.
100% Authentic Products
100,000+ Multi-Brand SKUs Available

H80D00GPFD52, Huawei OLT Interface Board, 16xGPON/with Class C+ SFP/Hot-swappable

100% Genuine Ready to Ship

Overview

Huawei H80D00GPFD52 Overview

The Huawei H80D00GPFD52 is a carrier-grade OLT interface board designed for high-density GPON access in fixed broadband networks. Supporting MA5600T and MA5603T platforms, it delivers robust Layer 2/Layer 3 line-rate forwarding and flexible upstream 10 GE and GE interfaces. With a switching capacity up to 3.2 Tbit/s and diverse ADSL2+, VDSL2, SHDSL, POTS, ISDN, GPON, and 10G GPON access, this hot-swappable module is ideal for telecom operators and ISPs building scalable FTTx infrastructure.

Product Highlights

3.2 Tbit/s

Backplane Cap

1,024 x

ADSL2+ Lines

128 x

10G GPON

Product Applications Scenarios

Service Providers

The H80D00GPFD52 aggregates large-scale GPON and xDSL users on MA5600T OLTs, enabling operators to deliver triple-play services while reducing per-subscriber CAPEX by supporting high split ratios and mixed access on one platform.

Public Infrastructure

Deployed in municipal or campus fiber networks, the board’s robust temperature and humidity tolerance ensures reliable broadband, voice, and Ethernet access for surveillance, Wi-Fi backhaul, and smart city terminals.

Enterprise Network

Enterprises and integrators can use this OLT interface board to build scalable FTTx-based LANs, consolidating voice, data, and VPN services on one access layer and cutting cabling complexity by up to 30% versus copper-only designs.

Product Features Comparison


Model	H80D00GPFD52, Huawei OLT Interface Board, 16×GPON/with Class C+ SFP/Hot-swappable	NIM-2FXS/4FXO, Cisco Analog Voice Network Interface Card, 2 FXS/4 FXO, Voice Interface, High Reliability	NIM-SSD, Cisco NIM Carrier Card, Router Module, SSD Support, Hot Swap, Plug-and-Play	NIM-2GE-CU-SFP, Cisco 4000 Series Router Module, 2xGE WAN Ports/Copper & SFP/Hot Swappable
Brand	Huawei	Cisco	Cisco	Cisco
Module Type	n/a	2-Port FXS/FXS-E/DID and 4-Port FXO Network Interface Module	NIM module	Network Module
Port Configuration	Upstream ports: 10 GE optical and GE optical/electrical ports; Service ports: 10G GPON, GPON, P2P FE, P2P GE, Ethernet, ADSL2+, VDSL2, SHDSL, POTS, ISDN	Number of Ports: 6	Drive Support: Supports 2.5" SSDs	Number of Ports: 2
Supported Speed	10G GPON, GPON, FE, GE	n/a	Interface: PCIe	Port Speed: 10/100/1000Mbps
Compatible Platform	MA5600T(ETSI); MA5600T(IEC); MA5603T	Cisco IOS XE Routers	Cisco ISR 4000 Series Routers	Cisco ISR 4000 Series
Installation Type	Hot-swappable	n/a	Tool-less installation	Via Router Chassis

Optional Add-ons

Model Number	Description
ESFP-GPON-C+	Huawei Class C+ GPON SFP optical module for high-split H80D00GPFD52 OLT ports
ESFP-10G-GPON	Huawei 10G GPON SFP+ transceiver for 10G PON service ports on MA5600T
H901BOMU	Huawei MA5600T control and uplink board providing 10GE uplinks for OLT interface cards

Quality Certifications

Specification

Huawei H80D00GPFD52 Specification

Model

H80D00GPFD52

Brand

Huawei

Specifications

MA5600T(ETSI)

MA5600T(IEC)

MA5603T

Dimensions (H x W x D)

490mm x 275.8mm x 447.2mm

442 mm x 275.8 mm x 441.7 mm

442mm x 283.2mm x 263.9mm

Operating Environment

–25°C to 55°C 5% RH to 95% RH

–40°C to 65°C 5% RH to 95% RH

Switching Capacity — Backplane Bus

3.2 Tbit/s

1.5 Tbit/s (H801MABO) 2 Tbit/s (H802MABO)

720 Gbit/s

Access Capacity

1,024 x ADSL2+ 1,024 x VDSL2 512 x EFM SHDSL 256 x TDM SHDSL 1,024 x POTS 512 x ISDN BRA 64 x ISDN PRA 128 x 10G GPON 256 x GPON 768 x P2P FE 768 x P2P GE

896 x ADSL2+ 896 x VDSL2 448 x EFM SHDSL 224 x TDM SHDSL 896 x POTS 448 x ISDN BRA 56 x ISDN PRA 112 x 10G GPON 224 x GPON 672 x P2P FE 672 x P2P GE

384 x ADSL2+ 384 x VDSL2 192 x EFM SHDSL 96 x TDM SHDSL 384 x POTS 192 x ISDN BRA 64 x ISDN PRA 96 x 10G GPON 48 x GPON 288 x P2P FE 288 x P2P GE

Port Types

Upstream ports: 10 GE optical and GE optical/electrical ports Service ports: 10G GPON optical port, GPON optical port, P2P FE optical port, P2P GE optical port, and Ethernet optical port, ADSL2+ port, VDSL2 port, SHDSL port, POTS port, and ISDN port

System Performance

Layer 2/Layer 3 line-rate forwarding Static route, RIP, OSPF, and MPLS Clock synchronization schemes: BITS, E1, STM-1, Ethernet clock synchronization, 1588v2, and 1PPS + ToD GPON maximum split ratio of 1:128 10G PON maximum split ratio of 1:256 GPON maximum logical distance between devices: 60 km XG PON maximum logical distance between devices: 100 km

Get more information

Discover unbeatable prices and fast shipping for the H80D00GPFD52, Huawei OLT Interface Board, 16×GPON/with Class C+ SFP/Hot-swappable . Access the detailed H80D00GPFD52, Huawei OLT Interface Board, 16×GPON/with Class C+ SFP/Hot-swappable datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

Quality Certifications

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What accessories are compatible with the H80D00GPFD52?

Compatible accessories include additional Class C+ SFP optical modules and dedicated power supplies for the OLT chassis.

How does the H80D00GPFD52 compare to other OLT boards?

The H80D00GPFD52 provides a balanced mix of port density and performance, making it suitable for large-scale deployments compared to entry-level boards.

How do I use the H80D00GPFD52 effectively?

Ensure proper configuration through Huawei's management software and regular maintenance to maximize the longevity and performance of your H80D00GPFD52.

Are the products sold on router-switch.com authentic?

Yes, router-switch.com only sells 100% genuine products from authorized brands. As a multi-brand authorized distributor, all items are sourced through official channels and include valid manufacturer warranties. Customers may verify authorization via brand websites or request certification documents.

Learn More

Is the Huawei H80D00GPFD52 cost-effective?

Yes, the H80D00GPFD52 is known for its high cost-efficiency, providing robust GPON interface capabilities at a competitive price.

What are the key features of the H80D00GPFD52?

The Huawei H80D00GPFD52 features 16 GPON ports and includes Class C+ SFP optical modules, ensuring high performance and reliability.

Where can the H80D00GPFD52 be used?

The H80D00GPFD52 is ideal for fiber-to-the-home (FTTH) deployments and other large-scale broadband network expansions.

How do I install the H80D00GPFD52?

The H80D00GPFD52 is installed by sliding the board into the appropriate slot of the Huawei OLT chassis and securing it with screws.

Does the H80D00GPFD52 require upgrades?

The H80D00GPFD52 may require firmware updates for optimal performance, which can be done through the Huawei network management software.

Are there alternative products to the H80D00GPFD52?

Alternative products include other GPON OLT boards from Huawei, but the H80D00GPFD52 offers a unique combination of ports and performance.

What common issues might occur with the H80D00GPFD52?

Common issues include connectivity problems, often resolved by checking connections and ensuring firmware is up-to-date.
