H80MCUD01, Huawei CE9800 Switch, Main control board/GE uplink/No fan & PSU

Name: H80MCUD01, Huawei CE9800 Switch, Main control board/GE uplink/No fan & PSU
SKU: H80MCUD01
Price: 841 USD
Availability: OutOfStock
Rating: 5 (3 reviews)

Brand: Huawei
Model: H80MCUD01

Rating:

100%

5/5.0

3 Reviews

11 Questions

$841.00

Price Alert

100% Genuine

Original, factory-verified

3-Year Warranty

Extended, enterprise-grade

24 Years Expertise

Proven, deployment-focused

Condition

Original New

Express Shipping to United States
Estimated shipping time: 2–6 business days via DHL, FedEx, UPS and more

Certified Expertise Builds Trust

CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert

Talk to an Expert

Faster Delivery, Globally Ready
20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.
48H Worldwide Shipping
10+ Global Warehouses
Keep Projects On Time
Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.
Track Your Order

Leading Global Distributor
Since 2002
A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

Worry-Free Coverage with RSCare
3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.
Cisco SmartNet
HPE Foundation Care
Dell ProSupport
Juniper Care
Fortinet Support
Your Trusted Genuine Source
Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.
100% Authentic Products
100,000+ Multi-Brand SKUs Available

H80MCUD01, Huawei CE9800 Switch, Main control board/GE uplink/No fan & PSU

100% Genuine Ready to Ship

$841.00

Overview

Huawei H80MCUD01 Overview

The Huawei H80MCUD01 is an enterprise-class CE9800 switch main control board designed for high-density fiber access and carrier-grade aggregation. It integrates 10 GE uplink ports and versatile GPON, 10G GPON, and P2P optical interfaces, delivering Layer 2/Layer 3 line-rate forwarding for demanding metro, campus, and data center networks. With dual-power protection, a 720 Gbit/s backplane bus, and extended temperature operation, this control board ensures reliable performance across Asia, Europe, Africa, and North America.

Product Highlights

720Gbit/s

Core Fabric

16×10G

10G GPON

1:256

PON Split

Product Applications Scenarios

Data Center

The H80MCUD01 aggregates high-density GPON and 10G uplinks, simplifying spine-leaf designs and reducing cabling costs by up to 30% in modern data centers.

Service Providers

With flexible GPON and XG PON access plus 1:256 split support, it enables cost-efficient FTTx rollouts while maintaining carrier-grade clock sync and reliability.

Enterprise Network

Enterprises use the board as a central aggregation node, combining FE/GE optical access and MPLS routing to cut multi-site WAN complexity by around 25%.

Product Features Comparison

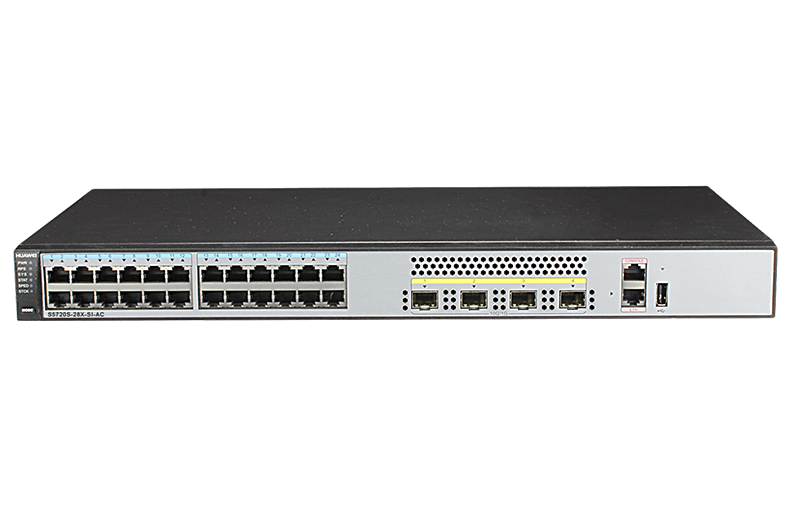

Model	H80MCUD01, Huawei CE9800 Switch, Main control board/GE uplink/No fan & PSU	S5320-32X-EI-AC, Huawei S5320 Switch, 24×GE/4×SFP/4×10GE SFP+	S5720S-28X-SI-DC, Huawei S5720S Switch, 24×GE/4×10GE SFP+/DC -48V	S5320-52X-SI-DC, Huawei S5320 Switch, 48×GE/4×10GE SFP+/150W DC PSU
Brand	Huawei	Huawei	Huawei	Huawei
Port Configuration	n/a	24 Ethernet 10/100/1000 ports, 4 Gigabit SFP ports, 4 10 Gigabit SFP+ ports	24 Ethernet 10/100/1,000 ports P series: 4 Gig SFP X series: 4 x 10 Gig SFP+	48 Ethernet 10/100/1000 ports, 4 10 Gig SFP+
Switching Capacity	720 Gbit/s	256Gbps	336 Gbit/s	TBD
Forwarding Rate	n/a	190.48Mpps	78Mpps	TBD
PoE Budget	n/a	n/a	n/a	n/a
Stacking Capability	n/a	Stackable	iStack	n/a

Optional Add-ons

Model Number	Description
H80FAB01	Huawei CE9800 switch fabric unit for scalable backplane performance with H80MCUD01.
CE-AC-3000W	3000W AC power supply module for Huawei CE9800 series chassis deployments.
CE-FAN-9800	Huawei CE9800 fan tray providing front-to-back cooling for high-density configurations.

Quality Certifications

Specification

Huawei H80MCUD01 Specification

Model

H80MCUD01

Brand

Huawei

Dimensions (H x W x D)

442mm x 244.5mm x 88.1mm

Operating Environment

–40°C to 65°C 5% RH to 95% RH

Power Supply

Dual-power supply protection DC power supply: -38.4V to -72V AC power supply: 100V to 240V

Switching Capacity — Backplane Bus

720 Gbit/s

Access Capacity

16 x 10G GPON 48 x GPON 96 x P2P FE 96 x P2P GE

Port Types

Upstream ports: 10 GE optical and GE optical/electrical ports Service ports: 10G GPON optical port, GPON optical port, P2P FE optical port, P2P GE optical port, and Ethernet optical port, ADSL2+ port, VDSL2 port, SHDSL port, POTS port, and ISDN port

System Performance

Layer 2/Layer 3 line-rate forwarding Static route, RIP, OSPF, and MPLS Clock synchronization schemes: BITS, E1, STM-1, Ethernet clock synchronization, 1588v2, and 1PPS + ToD GPON maximum split ratio of 1:128 10G PON maximum split ratio of 1:256 GPON maximum logical distance between devices: 60 km XG PON maximum logical distance between devices: 100 km

Get more information

Discover unbeatable prices and fast shipping for the H80MCUD01, Huawei CE9800 Switch, Main control board/GE uplink/No fan & PSU . Access the detailed H80MCUD01, Huawei CE9800 Switch, Main control board/GE uplink/No fan & PSU datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

Quality Certifications

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What accessories are available for the H80MCUD01?

Accessories for the H80MCUD01 include compatible cables, brackets, and optional expansion modules for enhanced functionality.

How does the H80MCUD01 compare with similar products?

The H80MCUD01 stands out with its GE uplink feature and efficient control capabilities, offering superior performance over similar products in its category.

Can the H80MCUD01 be used in a mixed-brand network environment?

Yes, the H80MCUD01 is designed for compatibility with various network infrastructures, providing flexible integration capabilities.

Are the products sold on router-switch.com authentic?

Yes, router-switch.com only sells 100% genuine products from authorized brands. As a multi-brand authorized distributor, all items are sourced through official channels and include valid manufacturer warranties. Customers may verify authorization via brand websites or request certification documents.

Learn More

How cost-effective is the H80MCUD01?

The H80MCUD01 offers high performance at a competitive price, making it a cost-effective choice for system integrators and distributors.

What are the main features of the H80MCUD01?

The H80MCUD01 features a GE uplink and advanced control capabilities, ensuring efficient and reliable network management.

What application scenarios is the H80MCUD01 suitable for?

The H80MCUD01 is ideal for enterprise network infrastructures, data centers, and high-performance computing environments.

How do I install the H80MCUD01?

The H80MCUD01 can be installed by following the detailed guidance in the user manual, ensuring proper placement and connectivity in the network.

Does the H80MCUD01 need frequent upgrades?

The H80MCUD01 is designed for longevity and may require periodic firmware updates to maintain optimal performance and security.

Are there alternative products to the H80MCUD01?

Huawei offers various alternative control unit boards, but the H80MCUD01 is specifically optimized for GE uplink applications.

What common troubleshooting steps are there for the H80MCUD01?

Common troubleshooting includes verifying power connections, checking GE uplink status, and ensuring firmware is up to date.
