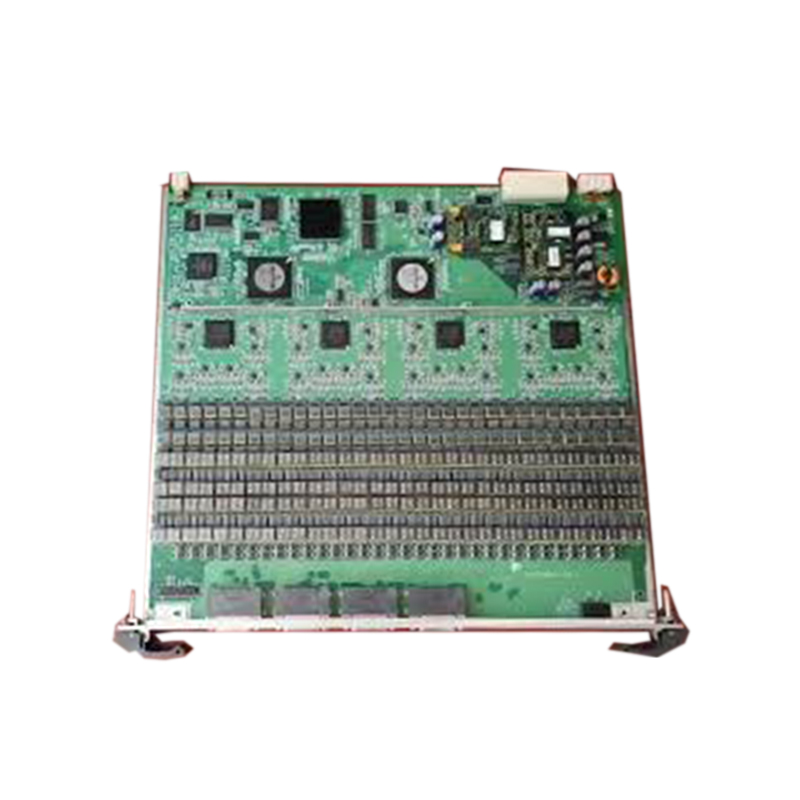

H80D00VDPE01, Huawei H80D00 Series VDSL2 Service Board, 64xVDSL2 Ports/600Ω Splitter

Name: H80D00VDPE01, Huawei H80D00 Series VDSL2 Service Board, 64xVDSL2 Ports/600Ω Splitter
SKU: H80D00VDPE01
Rating: 5 (3 reviews)

Brand: Huawei
Model: H80D00VDPE01

Rating:

100%

5/5.0

3 Reviews

11 Questions

100% Genuine

Original, factory-verified

3-Year Warranty

Extended, enterprise-grade

24 Years Expertise

Proven, deployment-focused

Condition

Original New

Certified Expertise Builds Trust

CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert

Talk to an Expert

Faster Delivery, Globally Ready
20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.
48H Worldwide Shipping
10+ Global Warehouses
Keep Projects On Time
Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.
Track Your Order

Leading Global Distributor
Since 2002
A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

Worry-Free Coverage with RSCare
3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.
Cisco SmartNet
HPE Foundation Care
Dell ProSupport
Juniper Care
Fortinet Support
Your Trusted Genuine Source
Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.
100% Authentic Products
100,000+ Multi-Brand SKUs Available

H80D00VDPE01, Huawei H80D00 Series VDSL2 Service Board, 64xVDSL2 Ports/600Ω Splitter

100% Genuine Ready to Ship

Overview

Huawei H80D00VDPE01 Overview

The Huawei H80D00VDPE01 is a carrier-grade VDSL2 service board designed for multiservice access in MA5600T and MA5603T platforms. It provides 64 VDSL2 ports with integrated 600Ω splitter, supporting high-density broadband over existing copper alongside POTS and ISDN services. With robust Layer 2/Layer 3 forwarding, rich clock synchronization options, and compatibility with large GPON and Ethernet access capacities, this module helps service providers and enterprises modernize last‑mile connectivity efficiently.

Product Highlights

3.2Tbit/s

Backplane

1,024

VDSL2 Cap

1:256

10G PON

Product Applications Scenarios

Service Providers

The board enables carriers to deliver high-speed VDSL2 and legacy voice over existing copper, cutting last-mile upgrade costs by up to 40% while extending network life.

Enterprise Network

Enterprises can aggregate branch VDSL2, POTS, and ISDN into MA5600T platforms, simplifying access management and improving service uptime in campus networks.

Public Infrastructure

Ideal for municipalities and utilities modernizing copper plants, combining broadband, telemetry, and voice services over one access platform with unified control.

Product Features Comparison


Model	H80D00VDPE01, Huawei H80D00 Series VDSL2 Service Board, 64×VDSL2 Ports/600Ω Splitter	LE0DG48SFA00, Huawei CloudEngine Series Switch Interface Card, 48×100/1000BASE-X SFP, FA, Hot-swappable	H80D00M2XA00, Huawei CE8800 Switch, 2×XAUI ports/Multifunctional Board/No Fan & PSU	EH1D2L02QFC0, Huawei EH1D2 Series Interface Card, 2×40G QSFP+ FC
Brand	Huawei	Huawei	Huawei	Huawei
Module Type	n/a	Interface Card	Multifunctional 2 XAUI Board	Interface Card
Port Configuration	n/a	Port Count: 48	Max Number of Boards Per Chassis: 4	Port Count: 2
Supported Speed	n/a	Interface Type: 100/1000BASE-X	Data Transfer Rate: 10Gbps	Transmission Rate: 40Gbps
Compatible Platform	n/a	Compatibility: Huawei switches	Type: Multifunctional 2 XAUI Board	Compatibility: Compatible with Huawei networking equipment
Installation Type	n/a	Form Factor: Interface Card	Cooling Method: Air-cooled	Form Factor: Plug-in module

Optional Add-ons

Model Number	Description
LE0DG48SFA00	Huawei 48×100/1000BASE-X SFP interface card to expand optical uplinks for MA5600T aggregation.
H80D00M2XA00	Huawei 2×XAUI multifunctional board for high-speed interconnection with core switches.
SSN2EGT219	Huawei 2-port Gigabit Ethernet transmission board for carrier backhaul from MA5600T platforms.

Quality Certifications

Specification

Huawei H80D00VDPE01 Specification

Model

H80D00VDPE01

Brand

Huawei

Specifications

MA5600T(ETSI)

MA5600T(IEC)

MA5603T

Dimensions (H x W x D)

490mm x 275.8mm x 447.2mm

442 mm x 275.8 mm x 441.7 mm

442mm x 283.2mm x 263.9mm

Operating Environment

–25°C to 55°C 5% RH to 95% RH

–40°C to 65°C 5% RH to 95% RH

Switching Capacity — Backplane Bus

3.2 Tbit/s

1.5 Tbit/s (H801MABO) 2 Tbit/s (H802MABO)

720 Gbit/s

Access Capacity

1,024 x ADSL2+ 1,024 x VDSL2 512 x EFM SHDSL 256 x TDM SHDSL 1,024 x POTS 512 x ISDN BRA 64 x ISDN PRA 128 x 10G GPON 256 x GPON 768 x P2P FE 768 x P2P GE

896 x ADSL2+ 896 x VDSL2 448 x EFM SHDSL 224 x TDM SHDSL 896 x POTS 448 x ISDN BRA 56 x ISDN PRA 112 x 10G GPON 224 x GPON 672 x P2P FE 672 x P2P GE

384 x ADSL2+ 384 x VDSL2 192 x EFM SHDSL 96 x TDM SHDSL 384 x POTS 192 x ISDN BRA 64 x ISDN PRA 96 x 10G GPON 48 x GPON 288 x P2P FE 288 x P2P GE

Port Types

Upstream ports: 10 GE optical and GE optical/electrical ports Service ports: 10G GPON optical port, GPON optical port, P2P FE optical port, P2P GE optical port, and Ethernet optical port, ADSL2+ port, VDSL2 port, SHDSL port, POTS port, and ISDN port

System Performance

Layer 2/Layer 3 line-rate forwarding Static route, RIP, OSPF, and MPLS Clock synchronization schemes: BITS, E1, STM-1, Ethernet clock synchronization, 1588v2, and 1PPS + ToD GPON maximum split ratio of 1:128 10G PON maximum split ratio of 1:256 GPON maximum logical distance between devices: 60 km XG PON maximum logical distance between devices: 100 km

Get more information

Discover unbeatable prices and fast shipping for the H80D00VDPE01, Huawei H80D00 Series VDSL2 Service Board, 64×VDSL2 Ports/600Ω Splitter . Access the detailed H80D00VDPE01, Huawei H80D00 Series VDSL2 Service Board, 64×VDSL2 Ports/600Ω Splitter datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

Quality Certifications

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What accessories are available for the H80D00VDPE01?

Common accessories include VDSL2 splitters, connection cables, and mounting brackets.

How does the H80D00VDPE01 compare to similar products?

The H80D00VDPE01 provides enhanced performance with its 600 ohm real impedance splitter, making it superior in signal quality compared to many competitors.

Is the H80D00VDPE01 compatible with all Huawei DSLAMs?

While designed to be compatible with most Huawei DSLAMs, verify specific model compatibility in the product manual.

Are the products sold on router-switch.com authentic?

Yes, router-switch.com only sells 100% genuine products from authorized brands. As a multi-brand authorized distributor, all items are sourced through official channels and include valid manufacturer warranties. Customers may verify authorization via brand websites or request certification documents.

Learn More

How cost-effective is the H80D00VDPE01?

The H80D00VDPE01 offers a cost-effective solution by supporting 64 VDSL2 ports, reducing the need for multiple boards.

What are the main features of the H80D00VDPE01?

This service board features 64 VDSL2 ports and a 600 ohm real impedance splitter for optimal performance.

In what scenarios can the H80D00VDPE01 be used?

The H80D00VDPE01 is ideal for high-density broadband access scenarios, such as ISPs and large enterprises.

How do I install the H80D00VDPE01?

Simply insert the H80D00VDPE01 into the appropriate slot on your Huawei DSLAM chassis and secure it with screws.

Does the H80D00VDPE01 need to be upgraded?

Firmware upgrades for the H80D00VDPE01 may be needed for optimal performance and security, which are available on Huawei's support site.

Are there alternative products to the H80D00VDPE01?

Alternatives include other Huawei VDSL2 service boards like the H80D00VDPB01, but check specifications for compatibility.

What troubleshooting steps are common for the H80D00VDPE01?

Ensure connections are secure, check for firmware updates, and confirm the power supply. Consult Huawei's support for detailed troubleshooting.
