Buy & Sell Huawei S5300 Series Switch LS-S5348TP-SI-AC Mainframe

Name: LS-S5348TP-SI-AC
SKU: LS-S5348TP-SI-AC
Rating: 4 (2 reviews)

End of Life

Skip to the beginning of the images gallery

Name:	LS-S5348TP-SI-AC
Model:	LS-S5348TP-SI-AC Huawei S5300 Series Switch
Brand:	Huawei
Detail:	S5348TP-SI-AC Mainframe(48 10/100/1000Base-T,4 100/1000Base-X Combo,AC 110/220V)
	Rating: 80% 4/5.0 2 Reviews 10 Questions
Availability:	Item Backordered
Condition:	New Factory Sealed

Shipping:

Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.

Ships to:

Payment:

Pay by wire transfer.
Pay with your paypal.
Pay with your webmoney.
Pay with your onafriq.
Pay with your Visa credit card.
Pay with your Mastercard credit card.
Pay with your Discover Card.
Pay by Western Union.

Support:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

LS-S5348TP-SI-AC

S5348TP-SI-AC Mainframe(48 10/100/1000Base-T,4 100/1000Base-X Combo,AC 110/220V)

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

LS-S5348TP-SI-AC Overview

Huawei S5300 Series Switch S5348TP-SI-AC Mainframe 48 10/100/1000 RJ-45, 4 100/1000 SFP Combo, AC 110/220V, Basic layer 3 Features. It is one of the Quidway S5300 series gigabit switches. The Quidway S5300 series gigabit switches (hereinafter referred to as the S5300s) are new generation Ethernet gigabit switches developed by Huawei to meet the requirements for high-bandwidth access and Ethernet multiservice convergence, providing powerful Ethernet functions for carriers and enterprise customers. Based on the new generation high-performance hardware and Huawei Versatile Routing Platform (VRP) software, the S5300 features large capacity and gigabit interfaces of high density, provides 10G uplinks, meeting customers' requirements for the 1G and 10G uplink devices of high density. The S5300 can meet the requirements of multiple scenarios such as service convergence on campus networks and intranets, the access to the IDC at a rate of 1000 Mbit/s, and the access to computers at a rate of 1000 Mbit/s on intranets.

Quick Specs

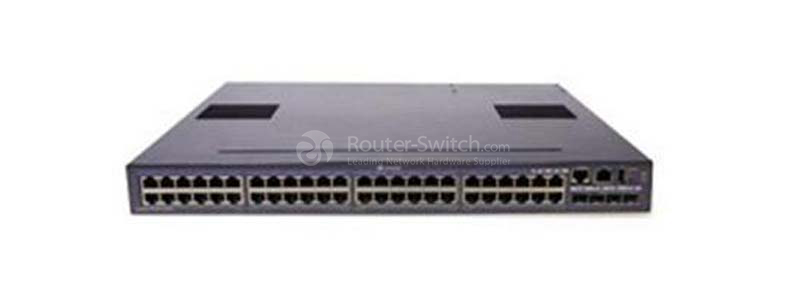

Figure 1 shows the appearance of LS-S5348TP-SI-AC.

Table 1 shows the Quick Specs.

Product Code	LS-S5348TP-SI-AC
Fixed Port	4810/100/ 1000Base-TX, 4100/1000 Base-X Combo
Extended slot	One extended slot
Port switching capacity (bit/s)	96 Gbit/s
Board switching capacity	256 Gbit/s
Forwarding Performance	72 Mpps
Maximum stack bandwidth (bidirectional)	48 Gbit/s
RPS	Not supported
PoE	No
Mean time between failures (MTBF)	34 years
Memory	256 MB
Flash	32 MB
Input voltage	AC: Rated voltage: 100 V to 240 V AC, 50/60 Hz Maximum voltage: 90 to 264 V AC, 50/60 Hz
Power consumption	< 64 W
Dimensions (W x D x H)	442.0 mm x 420.0 mm x 43.6 mm
Weight	Fully loaded ≤ 8.5 kg Empty loaded ≤ 5 kg

Product Details

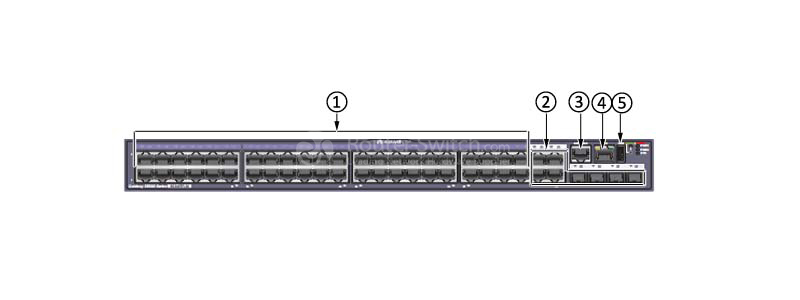

Figure 2 shows the front panel of LS-S5348TP-SI-AC.

Note:

①	Forty-four 10/100/1000BASE-T Ethernet electrical ports
②	Four combo ports (10/100/1000BASE-T + 100/1000BASE-X)
③	One console port
④	One ETH management port
⑤	One USB port

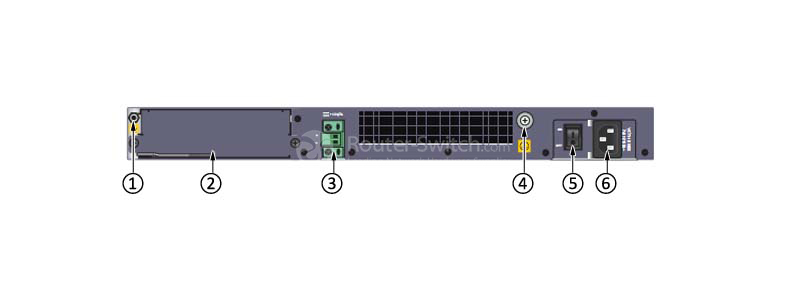

Figure 3 shows the back panel of LS-S5348TP-SI-AC.

Note:

①	ESD jack
②	Rear card slot
③	Backup power socket
④	Ground screw
⑤	Power switch
⑥	AC socket

The Modules

Table 2 shows the recommended elements for the LS-S5348TP-SI-AC.

Model	Description
FE-SFP Optical Transceiver
SFP-FE-SX-MM1310	Optical Transceiver, SFP, 100M/155M, Multi-mode Module(1310nm, 2km, LC)
eSFP-FE-LX-SM1310	Optical Transceiver, eSFP, 100M/155M, Single-mode Module(1310nm, 15km, LC)
S-SFP-FE-LH40-SM1310	Optical Transceiver, eSFP, FE, Single-mode Module(1310nm, 40km, LC)
GE-SFP Optical Transceiver
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC)
10G-SFP+ Optical Transceiver
SFP-10G-USR	10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC)
OMXD30000	Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC)
OSX010000	Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm, 10km, LC)

Compare to Similar Items

Table 3 shows the comparison of LS-S5348TP-SI-AC, LS-S5324TP-SI-AC and LS-S5324TP-SI-DC.

Product Code	LS-S5348TP-SI-AC	LS-S5324TP-SI-AC	LS-S5324TP-SI-DC
Fixed Port	4810/100/ 1000Base-TX, 4100/1000 Base-X Combo	2410/100/1000Base-TX, 4100/1000Base-X Combo	2410/100/1000Base-TX, 4100/1000Base-X Combo
Port switching capacity (bit/s)	96 Gbit/s	48 Gbit/s	48 Gbit/s
Board switching capacity	256 Gbit/s	256 Gbit/s	256 Gbit/s
Forwarding Performance	72 Mpps	36 Mpps	36 Mpps
Mean time between failures (MTBF)	34 years	37 years	37 years
Memory	256 MB	256 MB	256 MB
Flash	32 MB	32 MB	32 MB
Power consumption	< 64 W	< 40 W	< 40 W

Get more information

Do you have any question about the LS-S5348TP-SI-AC?

Quality Certifications

Specification

LS-S5348TP-SI-AC Specification

LS-S5348TP-SI-AC Specifications
Memory (RAM)	256 MB
Flash	32 MB
Mean time between failures (MTBF)	34 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	±2 kV in common mode
Power supply surge protection	±6 kV in differential mode; ±6 kV in common mode
Dimensions (W x D x H)	442.0 mm x 420.0 mm x 43.6 mm
Weight	Fully loaded:≤ 8.5 kg Empty loaded:≤ 5 kg
Stack ports	Two stack ports available on each stack card
Maximum stack bandwidth (bidirectional)	48 Gbit/s
RPS	Not supported
PoE	No
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum system power consumption (100% throughput, 100% PoE loads, full speed of fans)	64 W
Operating temperature	0°C to 50°C
Storage temperature	-40°C to +70°C
Noise under normal temperature (27°C, sound power)	0
Relative humidity	5% RH to 95% RH, noncondensing
Operating altitude	0 m to 5000 m
EMC	CISPR22 Class A CISPR24 EN55022 Class A EN50024 ETSI EN 300 386 Class A CFR 47 FCC Part 15 Class A ICES 003 Class A AS/NZS CISPR22 Class A IEC61000-4-2 ITU-T K 20 ITU-T K 44
Environmental standards	RoHS REACH WEEE
Security	IEC 60950-1 EN 60950-1/A11/A12 UL 60950-1 CSA C22.2 No 60950-1 AS/NZS 60950.1
Laser safety	IEC60825-1 IEC60825-2 EN60825-1 EN60825-2

Quality Certifications

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What are common troubleshooting steps for the LS-S5348TP-SI-AC switch?

Common troubleshooting steps include checking cable connections, verifying power supply, and using diagnostic tools available in the Huawei management software.

What accessories are available for the LS-S5348TP-SI-AC switch?

Available accessories include additional power supplies, SFP transceivers, and mounting kits to enhance the installation and operation of the LS-S5348TP-SI-AC.

How does the LS-S5348TP-SI-AC compare to similar products in the market?

The LS-S5348TP-Si-AC offers a competitive edge with its high port density and reliable performance, often at a lower cost than comparable models from other brands.

Can the LS-S5348TP-SI-AC switch be integrated with existing network infrastructure?

Yes, the LS-S5348TP-SI-AC is designed to integrate seamlessly with existing network infrastructure, providing flexible connectivity options and ease of management.

Learn More

How cost-effective is the LS-S5348TP-SI-AC switch for system integrators?

The LS-S5348TP-SI-AC offers a balanced mix of performance and value, making it a cost-effective choice for mid-sized networks looking to upgrade or expand.

What are the key features of the LS-S5348TP-SI-AC switch?

The key features of the LS-S5348TP-SI-AC include 48 Gigabit Ethernet ports, 4 Combo ports, and dual AC power supply support, enhancing connectivity and power redundancy.

What are the ideal application scenarios for the LS-S5348TP-SI-AC switch?

The LS-S5348TP-SI-AC is ideal for small to medium enterprises (SMEs) that require robust network performance and scalability in their infrastructure.

How should I install the LS-S5348TP-SI-AC switch?

To install the LS-S5348TP-SI-AC, mount it in a standard 19-inch rack, connect the power supply, and configure the network settings via the web-based interface.

Does the LS-S5348TP-SI-AC switch need to be upgraded frequently?

The LS-S5348TP-SI-AC may require periodic firmware updates to ensure optimal performance and security; check Huawei's website for the latest updates.

Are there alternative products to the LS-S5348TP-SI-AC switch?

Alternatives to the LS-S5348TP-SI-AC could include other Huawei switches like the S5720 series, depending on specific network requirements.

What are common troubleshooting steps for the LS-S5348TP-SI-AC switch?

Common troubleshooting steps include checking cable connections, verifying power supply, and using diagnostic tools available in the Huawei management software.

What accessories are available for the LS-S5348TP-SI-AC switch?

Available accessories include additional power supplies, SFP transceivers, and mounting kits to enhance the installation and operation of the LS-S5348TP-SI-AC.

How does the LS-S5348TP-SI-AC compare to similar products in the market?

The LS-S5348TP-Si-AC offers a competitive edge with its high port density and reliable performance, often at a lower cost than comparable models from other brands.

Can the LS-S5348TP-SI-AC switch be integrated with existing network infrastructure?

Yes, the LS-S5348TP-SI-AC is designed to integrate seamlessly with existing network infrastructure, providing flexible connectivity options and ease of management.

Warranty

Standard Services

Warehouse

Customer Service

Packaging

Branch Offices : Hong Kong | USA | UK

Quality Checking

Shipping

Trusted by over 18,000 customers globally

Warranty

100% Low Price Guarantee:

Router-switch.com provides high-quality products at low wholesale prices

All items are ORIGINAL and GENUINE only:

Item conditions are all "New Sealed".
All items are fully tested with working conditions by Huawei certified engineer under customers' permission.

100% Money Back Guarantee:

If your returns meet our relevent standards,you can contact our customer service team to exchange or return any product that you bought from us.

Professional Technical Support:

Router-switch.com experienced technical team can provide support over the phone, by chat, by email or by remotely login.

Flexible Secure Payment & Shipment:

Verified authorization: Mcafee Secure, VeriSign Secured

Return Material Authorization (RMA) Process

Standard Warranty Policy:

Original New Sealed Enterprise Hardware: 3 Years

Original New Sealed Consumer Devices: 1 Year

The Support Contacts:

If your Huawei products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Download

Model Datasheet

LS-S5348TP-SI-AC Datasheet
