How cost-effective is the LS-S5348TP-PWR-SI switch?

The LS-S5348TP-PWR-SI offers excellent cost-efficiency with its high port density and PoE capabilities, making it ideal for growing networks.

What are the main features of the LS-S5348TP-PWR-SI switch?

The switch includes 48 10/100/1000Base-T ports, 4 100/1000Base-X Combo ports, PoE support, and dual power module slots.

What application scenarios is the LS-S5348TP-PWR-SI suitable for?

The LS-S5348TP-PWR-SI is perfect for enterprise networking, particularly in environments requiring high port counts and PoE for IP devices.

How do I install the LS-S5348TP-PWR-SI switch?

The LS-S5348TP-PWR-SI can be rack-mounted or placed on a shelf. Follow the installation guide for detailed steps, including connections and initial configuration.

Does the LS-S5348TP-PWR-SI require upgrades?

Regular firmware updates are recommended to ensure optimal performance and security. Check Huawei's support site for updates.

Are there alternative products to LS-S5348TP-PWR-SI?

Alternatives include other Huawei switches like the S5735 series, which offer similar features and performance.

Huawei S5300 Series PoE Switch LS-S5348TP-PWR-SI Mainframe

Name: LS-S5348TP-PWR-SI
SKU: LS-S5348TP-PWR-SI
Rating: 4 (1 reviews)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Name:	LS-S5348TP-PWR-SI
Model:	LS-S5348TP-PWR-SI Huawei S5300 Series Switch
Brand:	Huawei
Detail:	S5348TP-PWR-SI Mainframe(48 10/100/1000Base-T,4 100/1000Base-X Combo,PoE,Chassis,Dual Slots of power,Without Power Module)
	Rating: 80% 4/5.0 1 Review 10 Questions
Availability:	Item Backordered
Condition:	New Factory Sealed

Shipping:

Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.

Ships to:

Payment:

Pay by wire transfer.
Pay with your paypal.
Pay with your webmoney.
Pay with your onafriq.
Pay with your Visa credit card.
Pay with your Mastercard credit card.
Pay with your Discover Card.
Pay by Western Union.

Support:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

LS-S5348TP-PWR-SI

S5348TP-PWR-SI Mainframe(48 10/100/1000Base-T,4 100/1000Base-X Combo,PoE,Chassis,Dual Slots of power,Without Power Module)

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

LS-S5348TP-PWR-SI Overview

Huawei S5300 Series Switch S5348TP-PWR-SI Mainframe 48 10/100/1000 Gigabit Ethernet Rj-45, 4 100/1000 SFP Combo, PoE, Chassis, Dual Slots of power, power redundancy, Without Power Module, Basic layer 3 Features. It is one of the Quidway S5300 series gigabit switches. The Quidway S5300 series gigabit switches (hereinafter referred to as the S5300s) are new generation Ethernet gigabit switches developed by Huawei to meet the requirements for high-bandwidth access and Ethernet multiservice convergence, providing powerful Ethernet functions for carriers and enterprise customers. Based on the new generation high-performance hardware and Huawei Versatile Routing Platform (VRP) software, the S5300 features large capacity and gigabit interfaces of high density, provides 10G uplinks, meeting customers' requirements for the 1G and 10G uplink devices of high density. The S5300 can meet the requirements of multiple scenarios such as service convergence on campus networks and intranets, the access to the IDC at a rate of 1000 Mbit/s, and the access to computers at a rate of 1000 Mbit/s on intranets.

Quick Specs

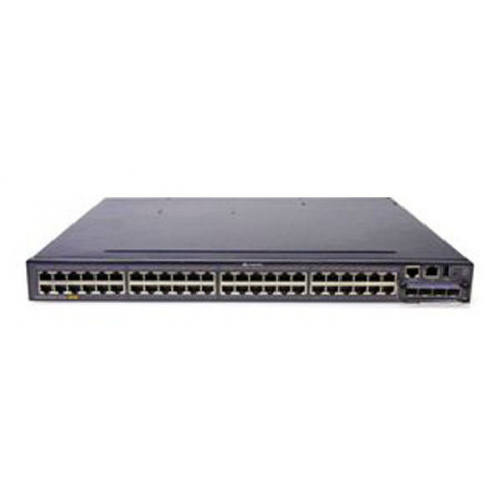

Figure 1 shows the appearance of LS-S5348TP-PWR-SI.

Table 1 shows the Quick Specs.

Product Code	LS-S5348TP-PWR-SI
Fixed Port	4810/100/ 1000Base-TX, 4100/1000 Base-X Combo
Extended slot	One extended slot
Port switching capacity (bit/s)	96 Gbit/s
Board switching capacity	256 Gbit/s
Forwarding Performance	72 Mpps
Maximum stack bandwidth (bidirectional)	48 Gbit/s
RPS	Not supported
PoE	Yes
Mean time between failures (MTBF)	71.7 years
Memory	256 MB
Flash	32 MB
Input voltage	AC: Rated voltage: 100 V to 240 V AC, 50/60 Hz Maximum voltage: 90 to 264 V AC, 50/60 Hz
Power consumption	Max: 907 W (PoE: 740 W)
Dimensions (W x D x H)	442.0 mm x 420.0 mm x 43.6 mm
Weight	Fully loaded ≤ 8.5 kg Empty loaded ≤ 5 kg

Product Details

Figure 2 shows the front panel of LS-S5348TP-PWR-SI.

Note:

①	Forty-four PoE+ 10/100/1000BASE-T Ethernet electrical ports
②	Four combo ports (10/100/1000BASE-T (PoE+) + 100/1000BASE-X)
③	One console port
④	One ETH management port
⑤	One USB port

Figure 3 shows the back panel of LS-S5348TP-PWR-SI.

Note:

①	ESD jack
②	Rear card slot
③	Fan module slot
④	Power module slot 2
⑤	Power module slot 1

The Modules

Table 2 shows the recommended elements for the LS-S5348TP-PWR-SI.

Model	Description
FE-SFP Optical Transceiver
SFP-FE-SX-MM1310	Optical Transceiver, SFP, 100M/155M, Multi-mode Module(1310nm, 2km, LC)
eSFP-FE-LX-SM1310	Optical Transceiver, eSFP, 100M/155M, Single-mode Module(1310nm, 15km, LC)
S-SFP-FE-LH40-SM1310	Optical Transceiver, eSFP, FE, Single-mode Module(1310nm, 40km, LC)
GE-SFP Optical Transceiver
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC)
10G-SFP+ Optical Transceiver
SFP-10G-USR	10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC)
OMXD30000	Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC)
OSX010000	Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm, 10km, LC)

Compare to Similar Items

Table 3 shows the comparison of LS-S5348TP-PWR-SI and LS-S5324TP-PWR-SI.

Product Code	LS-S5348TP-PWR-SI	LS-S5324TP-PWR-SI
Fixed Port	4810/100/ 1000Base-TX, 4100/1000 Base-X Combo	2410/100/1000Base-TX, 4100/1000Base-X Combo
Extended slot	One extended slot	One extended slot
Port switching capacity (bit/s)	96 Gbit/s	48 Gbit/s
Board switching capacity	256 Gbit/s	256 Gbit/s
Forwarding Performance	72 Mpps	36 Mpps
RPS	Not supported	Not supported
PoE	Yes	Yes
Mean time between failures (MTBF)	71.7 years	84.3 years
Memory	256 MB	256 MB
Flash	32 MB	32 MB
Power consumption	Max: 907 W (PoE: 740 W)	Max: 455 W (PoE: 370 W)

Get more information

Do you have any question about the LS-S5348TP-PWR-SI?

Quality Certifications

Specification

LS-S5348TP-PWR-SI Specification

LS-S5348TP-PWR-SI Specifications
Memory (RAM)	256 MB
Flash	32 MB
Mean time between failures (MTBF)	71.7 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	±1 kV in common mode
Power supply surge protection	±2 kV in differential mode; ±4 kV in common mode
Dimensions (W x D x H)	442.0 mm x 420.0 mm x 43.6 mm
Weight	Fully loaded:≤ 8.5 kg Empty loaded:≤ 5 kg
Stack ports	Two stack ports available on each stack card
Maximum stack bandwidth (bidirectional)	48 Gbit/s
RPS	Not supported
PoE	Yes
Rated voltage range	-48 V DC to -60 V DC 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range	-36 V DC to -72 V DC 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum system power consumption (100% throughput, 100% PoE loads, full speed of fans)	907 W (system power consumption: 167 W; PoE: 740 W)
Operating temperature	0°C to 50°C
Storage temperature	-40°C to +70°C
Noise under normal temperature (27°C, sound power)	less than 51 dBA
Relative humidity	5% RH to 95% RH, noncondensing
Operating altitude	AC: 0 m to 5000 m DC: 0 m to 2000 m
EMC	CISPR22 Class A CISPR24 EN55022 Class A EN50024 ETSI EN 300 386 Class A CFR 47 FCC Part 15 Class A ICES 003 Class A AS/NZS CISPR22 Class A IEC61000-4-2 ITU-T K 20 ITU-T K 44
Environmental standards	RoHS REACH WEEE
Security	IEC 60950-1 EN 60950-1/A11/A12 UL 60950-1 CSA C22.2 No 60950-1 AS/NZS 60950.1
Laser safety	IEC60825-1 IEC60825-2 EN60825-1 EN60825-2

Quality Certifications

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What are common troubleshooting steps for the LS-S5348TP-PWR-SI?

Common steps include checking power connections, verifying port configurations, and ensuring firmware is up to date. Refer to the troubleshooting manual for detailed guidance.

What accessories are available for the LS-S5348TP-PWR-SI?

Accessories include additional power modules, rack mounting kits, and cables compatible with the switch ports.

How does the LS-S5348TP-PWR-SI compare to other similar products?

The LS-S5348TP-PWR-SI offers competitive PoE port management and flexibility with dual power slots, making it a robust option compared to similar switches.

Can the LS-S5348TP-PWR-SI support redundancy?

Yes, the dual power module slots in the LS-S5348TP-PWR-SI support power redundancy, ensuring network reliability.
