How cost-effective is the LS-S5352C-EI?

The LS-S5352C-EI offers a high port density and dual power slots at an affordable price, providing excellent value for enterprise networks.

What are the key features of the LS-S5352C-EI?

The LS-S5352C-EI features 48 10/100/1000Base-T ports and dual power slots, ensuring reliable performance and scalability.

What application scenarios suit the LS-S5352C-EI?

The LS-S5352C-EI is ideal for enterprise core and aggregation layers requiring high-density Gigabit Ethernet ports.

How to install the LS-S5352C-EI?

Installation involves rack mounting the chassis, connecting network cables to the 48 ports, and ensuring dual power modules are attached.

Does the LS-S5352C-EI require software upgrades?

Yes, occasional software upgrades may be necessary to utilize the latest features and security updates.

What are the alternative products for LS-S5352C-EI?

Alternatives include other Huawei S5300 series switches depending on specific network needs and budget.

Buy & Sell Huawei S5300 Series Switch LS-S5352C-EI Mainframe

Name: LS-S5352C-EI
SKU: LS-S5352C-EI
Price: 1828 USD
Availability: OutOfStock
Rating: 4 (1 reviews)

Skip to the end of the images gallery

End of Life

Skip to the beginning of the images gallery

Name:	LS-S5352C-EI
Model:	LS-S5352C-EI Huawei S5300 Series Switch
Brand:	Huawei
Detail:	S5352C-EI Mainframe(48 10/100/1000Base-T,Chassis,Dual Slots of power,Without Flexible Card and Power Module)
	Rating: 80% 4/5.0 1 Review 10 Questions
Price:	USD AUD BRL GBP CAD CNY EUR HKD MXN RUB SGD CHF AED US$1,828.00
Coupon	Up to $80 Coupons Get Now $10.00 Order Over $100 RS10 $20.00 Order Over $2000 RSTW $50.00 Order Over $5000 RSFI $80.00 Order Over $8000 RSEI
Availability:	Item Backordered
Condition:	New Factory Sealed

Shipping:

Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.

Ships to:

Payment:

Pay by wire transfer.
Pay with your paypal.
Pay with your webmoney.
Pay with your onafriq.
Pay with your Visa credit card.
Pay with your Mastercard credit card.
Pay with your Discover Card.
Pay by Western Union.

Support:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

LS-S5352C-EI

S5352C-EI Mainframe(48 10/100/1000Base-T,Chassis,Dual Slots of power,Without Flexible Card and Power Module)

Price: US$1,828.00

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

LS-S5352C-EI Overview

Huawei S5300 Series Switch S5352C-EI Mainframe 48 10/100/1000 RJ-45, Chassis, Dual Slots of power, Without Flexible Card and Power Module, Basic layer 3 Features. It is one of the Quidway S5300 series gigabit switches. The Quidway S5300 series gigabit switches (hereinafter referred to as the S5300s) are new generation Ethernet gigabit switches developed by Huawei to meet the requirements for high-bandwidth access and Ethernet multiservice convergence, providing powerful Ethernet functions for carriers and enterprise customers. Based on the new generation high-performance hardware and Huawei Versatile Routing Platform (VRP) software, the S5300 features large capacity and gigabit interfaces of high density, provides 10G uplinks, meeting customers' requirements for the 1G and 10G uplink devices of high density. The S5300 can meet the requirements of multiple scenarios such as service convergence on campus networks and intranets, the access to the IDC at a rate of 1000 Mbit/s, and the access to computers at a rate of 1000 Mbit/s on intranets.

Quick Specs

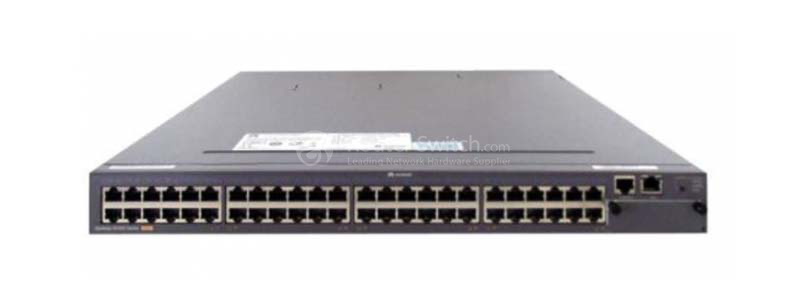

Figure 1 shows the appearance of LS-S5352C-EI.

Table 1 shows the Quick Specs.

Product Code	LS-S5352C-EI
Fixed Port	48*10/100 /1000 Base-TX
Extended slot	Two extended slots，which can be installed with uplink subcard and stacking card respectively
Port switching capacity (bit/s)	176 Gbit/s
Board switching capacity	256 Gbit/s
Forwarding Performance	132 Mpps
RPS	Not supported
PoE	No
Mean time between failures (MTBF)	46.05 years when a 2x10GE card is configured; 57.08 years when a 4xGE front card is configured; 25.58 years when a 4x10GE front card is configured
Memory	256 MB
Flash	32 MB
Input voltage	AC: Rated voltage: 100 V to 240 V AC, 50/60 Hz Maximum voltage: 90 to 264 V AC, 50/60 Hz DC: Rated voltage range: –48 V to –60 V, DC Maximum voltage: –36 to –72 V DC Note: POE hosts do not support DC power modules.
Power consumption	< 88 W
Dimensions (W x D x H)	442.0 mm x 420.0 mm x 43.6 mm
Weight	Fully loaded ≤ 8.5 kg Empty loaded ≤ 5 kg

Product Details

Figure 2 shows the front panel of LS-S5352C-EI.

Note:

①	Forty-eight 10/100/1000BASE-T Ethernet electrical ports
②	One console port
③	One ETH management port
④	Front card slot

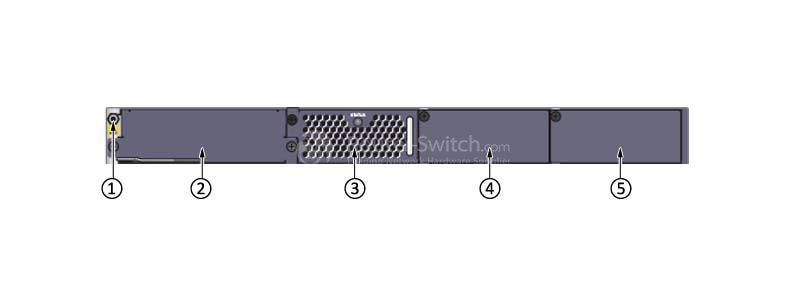

Figure 3 shows the back panel of LS-S5352C-EI.

Note:

①	ESD jack
②	Rear card slot
③	Fan module slot
④	Power module slot 2
⑤	Power module slot 1

The Modules

Table 2 shows the recommended elements for the LS-S5352C-EI.

Model	Description
FE-SFP Optical Transceiver
SFP-FE-SX-MM1310	Optical Transceiver, SFP, 100M/155M, Multi-mode Module(1310nm, 2km, LC)
eSFP-FE-LX-SM1310	Optical Transceiver, eSFP, 100M/155M, Single-mode Module(1310nm, 15km, LC)
S-SFP-FE-LH40-SM1310	Optical Transceiver, eSFP, FE, Single-mode Module(1310nm, 40km, LC)
GE-SFP Optical Transceiver
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC)
10G-SFP+ Optical Transceiver
SFP-10G-USR	10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC)
OMXD30000	Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC)
OSX010000	Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm, 10km, LC)

Compare to Similar Items

Table 3 shows the comparison of LS-S5352C-EI, LS-S5328C-PWR-EI and LS-S5328C-EI-24S.

Product Code	LS-S5352C-EI	LS-S5328C-PWR-EI	LS-S5328C-EI-24S
Fixed Port	48*10/100 /1000 Base-TX	24*10/100 /1000 Base-TX	24*10/100 /1000 Base-TX
Port switching capacity (bit/s)	176 Gbit/s	128 Gbit/s	128 Gbit/s
Board switching capacity	256 Gbit/s	256 Gbit/s	256 Gbit/s
Forwarding Performance	132 Mpps	96 Mpps	96 Mpps
RPS	Not supported	Not supported	Not supported
PoE	No	Yes	No
Mean time between failures (MTBF)	46.05 years when a 2x10GE card is configured; 57.08 years when a 4xGE front card is configured; 25.58 years when a 4x10GE front card is configured	52 years when a 2x10GE card is configured; 55.4 years when a 4xGE front card is configured	41.33 years when a 2x10GE card is configured; 50.00 years when a 4xGE front card is configured; 26.52 years when a 4x10GE front card is configured
Memory	256 MB	256 MB	256 MB
Flash	32 MB	32 MB	32 MB
Power consumption	< 88 W	Max: 472 W (PoE: 370 W)	< 60 W

Get more information

Do you have any question about the LS-S5352C-EI?

Quality Certifications

Specification

LS-S5352C-EI Specification

LS-S5352C-EI Specifications
Memory (RAM)	256 MB
Flash	32 MB
Mean time between failures (MTBF)	46.05 years when a 2x10GE card is configured; 57.08 years when a 4xGE front card is configured; 25.58 years when a 4x10GE front card is configured
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port protectio n	±2 kV in common mode
Power supply protection	Non-PoE switch: – AC: ±6 kV in differential mode; ±6 kV in common mode – DC: ±1 kV in differential mode; ±2 kV in common mode
Dimensions (W x D x H)	442.0 mm x 420.0 mm x 43.6 mm
Weight	Fully loaded:≤ 8.5 kg Empty loaded:≤ 5 kg
Stack ports	Two stack ports available on each stack card
Maximum stack bandwidth (bidirectional)	48 Gbit/s
RPS	Not supported
PoE	Yes
Rated voltage range	-48 V DC to -60 V DC 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range	-36 V DC to -72 V DC 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum system power consumption (100% throughput, 100% PoE loads, full speed of fans)	88 W
Operating temperature	0°C to 50°C
Storage temperature	-40°C to +70°C
Noise under normal temperature (27°C, sound power)	less than 41 dBA
Relative humidity	5% RH to 95% RH, noncondensing
Operating altitude	Non-PoE switch: – AC: 0 m to 5000 m – DC: 0 m to 2000 m
EMC	CISPR22 Class A CISPR24 EN55022 Class A EN50024 ETSI EN 300 386 Class A CFR 47 FCC Part 15 Class A ICES 003 Class A AS/NZS CISPR22 Class A IEC61000-4-2 ITU-T K 20 ITU-T K 44
Environmental standards	RoHS REACH WEEE
Security	IEC 60950-1 EN 60950-1/A11/A12 UL 60950-1 CSA C22.2 No 60950-1 AS/NZS 60950.1
Laser safety	IEC60825-1 IEC60825-2 EN60825-1 EN60825-2
