End of Life
main product photo

S5700-28P-LI-BAT, Huawei S5700 Switch, 24xGE/4xGE SFP/Battery

  • Brand: Huawei
  • Model: S5700-28P-LI-BAT
Rating:
80%
4/5.0
2 Reviews
  • 100% Genuine
    100% Genuine
    Original, factory-verified
    3-Year Warranty
    3-Year Warranty
    Extended, enterprise-grade
    Years Expertise
    24 Years Expertise
    Proven, deployment-focused
    • Condition
    • Original New
    Express Shipping to United States Get Shipping Estimate
    Estimated shipping time: 2–6 business days via DHL, FedEx, UPS and more
    expert
    Certified Expertise Builds Trust
    CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert
    Talk to an Expert
    • Faster Delivery, Globally Ready

      Faster Delivery, Globally Ready

      20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.

      48H Worldwide Shipping
      10+ Global Warehouses
    • Keep Projects On Time

      Keep Projects On Time

      Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.

      Track Your Order
    • Leading Global Distributor Since 2002

      Leading Global Distributor
      Since 2002

      A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

        21500+ Enterprise Clients Served200+ Countries & Regions Covered
    • Worry-Free Coverage with RSCare

      Worry-Free Coverage with RSCare

      3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.

      Cisco SmartNet
      HPE Foundation Care
      Dell ProSupport
      Juniper Care
      Fortinet Support
    • Your Trusted Genuine Source

      Your Trusted Genuine Source

      Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.

      100% Authentic Products
      100,000+ Multi-Brand SKUs Available
    S5700-28P-LI-BAT, Huawei S5700 Switch, 24xGE/4xGE SFP/Battery

    S5700-28P-LI-BAT, Huawei S5700 Switch, 24xGE/4xGE SFP/Battery

    100% Genuine Ready to Ship
    Overview
    Specification
    Reviews
    Q&A
    Warranty
    Download
    Overview

    Huawei S5700-28P-LI-BAT Overview

    The Huawei S5700-28P-LI-BAT is an enterprise-class Gigabit Ethernet switch designed for reliable campus and branch aggregation. It provides 24 GE copper ports and 4 GE SFP uplinks, combined with rich Layer 2 and basic Layer 3 features such as static routing, RIP and RIPng for flexible enterprise network deployment. With advanced VLAN capabilities, comprehensive QoS/ACL, and strong security including 802.1X, AAA and SSH, this switch helps protect services and prioritize critical traffic. Built-in SVF client support, eSight/web management, and robust Ethernet OAM simplify operations for distributors, SMB integrators and end users across Asia, Europe, Africa and North America.

    Product Highlights

    24+4
    Ge Uplinks
    4,000
    Vlan Scale
    10,000B
    Jumbo Fram

    Product Components Breakdown

    Front Panel of the Product:

    S5700-28P-LI-BAT front Panel
    ①
    Twenty-four 10/100/1000BASE-T ports
    ②
    Four 1000BASE-X ports
    ③
    One console port

    Rear Panel of the Product:

    S5700-28P-LI-BAT Back Panel
    ①
    Ground screw
    ②
    AC socket
    ③
    Jack for AC terminal locking latch
    ④
    Battery slot

    Product Applications Scenarios

    Enterprise Network
    The switch delivers secure VLAN segmentation, QoS and multicast, ideal for midsize enterprise cores, reducing downtime and simplifying access expansion by up to 30%.
    Cloud Services
    GE copper and SFP uplinks provide stable connectivity for private cloud pods, improving east–west traffic efficiency and lowering aggregation costs for integrators.
    Public Infrastructure
    Robust L2/L3 features, ERPS and 6 kV surge protection suit government, education and healthcare networks requiring high reliability and simplified operations.

    Product Features Comparison

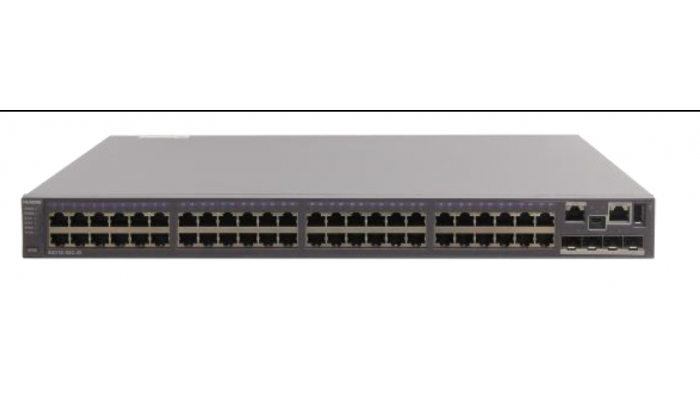

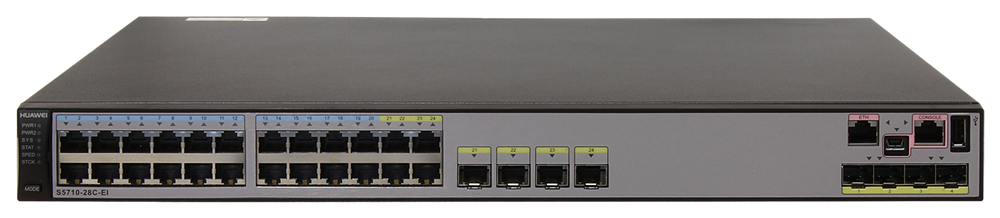

      Huawei S5700-28P-LI-BAT Huawei S5710-28C-EI Huawei S5310-52C-EI Huawei S5700-24TP-PWR-SI
    Model S5700-28P-LI-BAT, Huawei S5700 Switch, 24×GE/4×GE SFP/Battery S5710-28C-EI, Huawei S5700 Switch, 24×GE/4×GE SFP/4×10GE SFP+/No PSU S5310-52C-EI, Huawei S5310 Switch, 48×GE RJ45/4×10GE SFP+/Dual Power Slots S5700-24TP-PWR-SI, Huawei S5700 Switch, 20×GE PoE/4×GE Combo/Dual PSU Slots
    Brand Huawei Huawei Huawei Huawei
    Port Configuration n/a 24 Ethernet 10/100/1000 ports, 4 of which are dual-purpose 10/100/1000 or SFP, 4 10 Gig SFP+ n/a n/a
    Switching Capacity n/a n/a n/a 216 Gbps (full-duplex)
    Forwarding Rate n/a n/a n/a 130.9 Mpps (64-byte packets)
    PoE Budget n/a n/a n/a 370 W (IEEE 802.3at/af)
    Stacking Capability n/a n/a Stack ports: Four fixed 10GE SFP+ ports on the front panel or ports on the 2-port 10GE rear card Provides an extended slot for a stack card; Max Stack bandwidth 48Gbps

    Optional Add-ons

    Model Number Description
    SFP-GE-LX-SM1310 Huawei 1000BASE-LX GE SFP module, single-mode, 1310nm, for long-distance uplinks on S5700-28P-LI-BAT
    SFP-GE-SX-MM850 Huawei 1000BASE-SX GE SFP module, multimode, 850nm, ideal for short-reach campus fiber connections
    RJ45-GE-COPPER Huawei 1000BASE-T RJ45 copper SFP, enabling flexible copper uplink deployment on S5700 series switches

    Quality Certifications

    • ISO 14001
    • ISO 9001
    • RoHS
    • REACH
    • CE
    • FCC
    Specification

    Huawei S5700-28P-LI-BAT Specification

    Model
    S5700-28P-LI-BAT
    Brand
    Huawei
    Fixed Ports
    24 x 10/100/1,000 Base-T Ethernet ports, 4 x GE SFP ports
    MAC Address Table
    16K MAC address entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses Interface-based MAC learning limiting
    VLAN Features
    4K VLANs Guest VLAN and voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and interfaces 1:1 and N:1 VLAN mapping
    Jumbo frame
    10K
    Reliability
    RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover SEP ERPS (G.8032) STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) BPDU protection, root protection, and loop protection BPDU tunnel
    IP Routing
    Static route, RIP, RIPng
    IPv6 Features
    Neighbor Discovery (ND) Path MTU (PMTU) IPv6 ping, IPv6 tracert, and IPv6 Telnet ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, and protocol type MLD v1/v2 snooping
    Multicast
    IGMP v1/v2/v3 snooping and IGMP fast leave Multicast forwarding in a VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Interface-based multicast traffic statistics
    QoS/ACL
    Rate limiting on packets sent and received by an interface Packet redirection Interface-based traffic policing and two-rate and three-color CAR Eight queues on each interface WRR, DRR, SP, WRR + SP, and DRR + SP queue scheduling algorithms Re-marking of the 802.1p priority and DSCP priority Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID Rate limiting in each queue and traffic shaping on interfaces
    Security
    Hierarchical user management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, interface number, and VLAN ID Port isolation, port security, and sticky MAC MFF Blackhole MAC address entries Limit on the number of learned MAC addresses IEEE 802.1x authentication and limit on the number of users on an interface AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC SSH V2.0 Hypertext Transfer Protocol Secure (HTTPS) CPU defense Blacklist and whitelist
    Access Security
    DHCP relay, DHCP server, DHCP snooping, and DHCP security
    Lightning Protection
    Service interface: 6 kV
    Super Virtual Fabric (SVF)
    Working as an SVF client that is plug-and-play with zero configuration Automatically loading the system software package and patches of clients One-click and automatic delivery of service configurations Supports independent running client
    Management and Maintenance
    Virtual Cable Test (VCT) Remote configuration and maintenance using Telnet SNMP v1/v2c/v3 RMON eSight and web-based NMS HTTPS LLDP/LLDP-MED System logs and multi-level alarms 802.3az EEE
    Interoperability
    Supports VBST (Compatible with PVST/PVST+/RPVST) Supports LNP (Similar to DTP) Supports VCMP (Similar to VTP)
    Operating Environment
    Long-term operating temperature: 0°C to 45°C Relative humidity: 5% to 95% (non-condensing)
    Input Voltage
    AC: Rated voltage range: 100V to 240V, 50 Hz/60 Hz, Maximum voltage range: 90V to 264V, 47 Hz/63 Hz DC: Rated voltage range: –48V to –60V, Maximum voltage range: –36V to –72V Note: Models supporting PoE do not use DC power supplies.
    Power Socket Position
    rear power sockets
    Battery
    One slot for lead-acid battery charger module (supported by battery LAN switches)
    Dimensions (W x D x H)
    442mm x 310mm x 43.6mm
    Power Consumption
    < 23W
    Weight
    8.19 kg

    Get more information

    Discover unbeatable prices and fast shipping for the S5700-28P-LI-BAT, Huawei S5700 Switch, 24×GE/4×GE SFP/Battery . Access the detailed S5700-28P-LI-BAT, Huawei S5700 Switch, 24×GE/4×GE SFP/Battery datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].
