S5720-32X-EI-AC

Name: S5720-32X-EI-AC
SKU: S5720-32X-EI-AC
Price: 1609 USD
Availability: InStock
Rating: 4.9 (12 reviews)

Skip to the end of the images gallery

End of Life

Skip to the beginning of the images gallery

Name:	S5720-32X-EI-AC
Model:	S5720-32X-EI-AC Huawei S5720 Series Switch
Brand:	Huawei
Detail:	S5720-32X-EI-AC(24 Ethernet 10/100/1000 ports,4 Gig SFP,4 10 Gig SFP+,AC 110/220V,front access)
	Rating: 98% 4.9/5.0 12 Reviews 15 Questions 30/mo Sold
Price:	USD AUD BRL GBP CAD CNY EUR HKD MXN RUB SGD CHF AED US$1,609.00
Coupon	Up to $80 Coupons Get Now $10.00 Order Over $100 RS10 $20.00 Order Over $2000 RSTW $50.00 Order Over $5000 RSFI $80.00 Order Over $8000 RSEI
Availability:	In Stock at Global Warehouses. United States United Kingdom Germany United Arab Emirates Singapore India Hong Kong
Condition:	New Factory Sealed
Replacement:	S5735S-L24T4X-A S5735S-L24P4X-A

Shipping:

Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.

Ships to:

Payment:

Pay by wire transfer.
Pay with your paypal.
Pay with your webmoney.
Pay with your onafriq.
Pay with your Visa credit card.
Pay with your Mastercard credit card.
Pay with your Discover Card.
Pay by Western Union.

Support:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

Shop Bundles or Accessories Recommended by Experts

Transceiver

S5720-32X-EI-AC

S5720-32X-EI-AC(24 Ethernet 10/100/1000 ports,4 Gig SFP,4 10 Gig SFP+,AC 110/220V,front access)

US$1,609.00

SFP-1000BaseT

1000BASE-T (RJ45) SFP Electrical Module,Auto Negotiate,100m

US$49.00

eSFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module (850nm,0.5km, LC)

US$41.00

SFP-GE-LX-SM1310

Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,10km,LC)

US$40.00

OSX010000

Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC)

US$40.00

OMXD30000

Huawei Optical Transceiver OMXD30000,SFP+,10G,Multi-mode Module(850nm,0.3km,LC)

US$59.00

Selected Combo Price

S5720-32X-EI-AC

S5720-32X-EI-AC(24 Ethernet 10/100/1000 ports,4 Gig SFP,4 10 Gig SFP+,AC 110/220V,front access)

Price: US$1,609.00

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

S5720-32X-EI-AC Overview

Huawei S5720-32X-EI-AC Gigabit Switch provides resilient, energy-efficient GE ports for access switching in data centers, and aggregation switching in enterprise campus networks. With four 1,000 Base-X SFP ports?and four 10G SFP+ ports,?its performance enhancements include advanced processing hardware, 10 Gbit/s uplink ports, and large MAC address and routing tables; Super Virtual Fabric (SVF) support enables intelligent virtualization, iStack clustering, and operation in N + 1 backup mode for simplified O&M and high availability. Mature IPv6 features ensure smooth migration to next-generation IP networking.?

Quick Specs

Figure 1 shows the appearance of Huawei?S5720-32X-EI-AC?switch.

Table 1 shows the Quick Specs.

Product Code	S5720-32X-EI-AC
Fixed Ports	24 x 10/100/1,000 Base-T, 4 x 100/1,000 Base-X SFP, 4 x 10 Gig SFP+
Extended Slots	Not supported
Memory (RAM)	2 GB
Flash	340 MB
MAC Address Table Size Forwarding Performance	64 MAC
Forwarding Performance	102?Mpps
Switching Capacity	598 Gbit/s
Power Supply	AC power supply, supporting RPS
Voltage Required	AC Rated voltage range: 100V to 240V AC, 50/60 Hz Maximum voltage range: 90V to 264V AC, 47 Hz/63 Hz
Front Power Input	Yes
Typical Power Consumption	40.9W
Dimensions (W x D x H)	442 mm x 220 mm x 43.6 mm
Weight	4.44 kg

Product Details

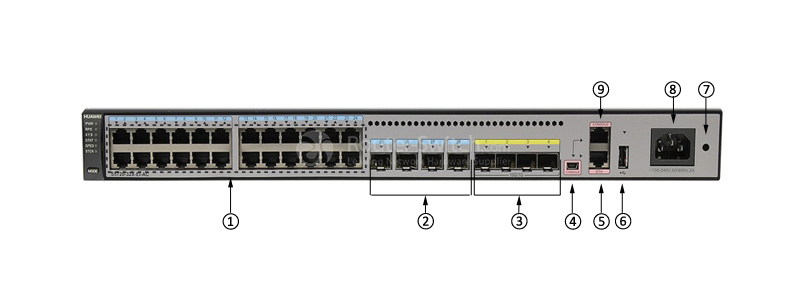

Figure 2 shows the front panel of Huawei?S5720-32X-EI-AC?switch.

?Note:

①	Twenty-four 10/100/1000BASE-T ports	②	Four 1000BASE-X ports
③	Four 10GE SFP+ ports	④	One mini USB port
⑤	One ETH management port	⑥	One USB port
⑦	Jack for AC terminal locking latch	⑧	AC socket
⑨	One console port	?	?

*?The AC terminal locking latch is not delivered with the switch.

*AC socket?is used with an?AC power cable.

*The console port?is used with a console cable. The console cable is not delivered with the switch and needs to be separately purchased if needed.?

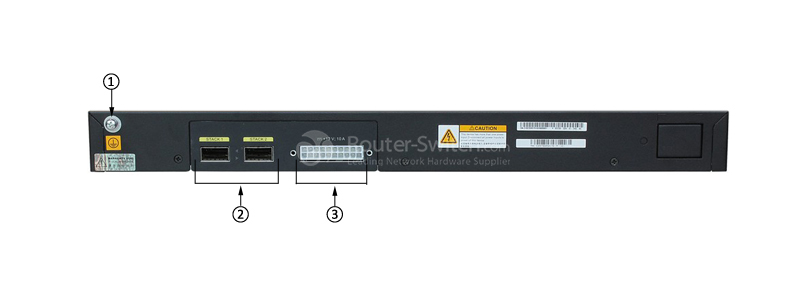

Figure 3 shows the back panel of Huawei S5720-32X-EI-AC?switch.

Note:

①	Ground screw	②	Two QSFP+ stack optical ports
③	RPS socket	?	?

*The ground screw?is used with a?ground cable.

* The RPS socket?is used with an?RPS cable, which is not hot swappable.

Optical Modules

Table 2 shows the recommended optical modules.

?	Model	Description
GE-SFP Optical Transceiver	eSFP-GE-SX-MM850	Optical?Transceiver,?eSFP,?GE,?Multi-mode Module(850nm,0.55km,LC)
	SFP-GE-LX-SM1310	Optical?Transceiver,?eSFP,?GE,?Single-mode Module(1310nm,10km,LC)
	S-SFP-GE-LH40-SM1310	Optical Transceiver,?eSFP,?GE,?Single-mode Module(1310nm,40km,LC)
	S-SFP-GE-LH40-SM1550	Optical Transceiver,?eSFP,?GE,?Single-mode Module(1550nm,40km,LC)
	SFP-1000BaseT	Electrical?Transceiver,?SFP?,?GE?,Electrical Interface Module(100m,RJ45)
FE-SFP Optical Transceiver	SFP-FE-SX-MM1310	Optical Transceiver,?SFP,?100M/155M,?Multi-mode Module(1310nm,2km,LC)
	eSFP-FE-LX-SM1310	Optical Transceiver,?eSFP,?100M/155M,?Single-mode Module(1310nm,15km,LC)
	eSFP-FE-LX-SM1310	Optical Transceiver,?eSFP,?FE,?Single-mode Module(1310nm,40km,LC)
10G-SFP+ Optical Transceiver	SFP-10G-USR	10GBase-USR Optical Transceiver,?SFP+,?10G,?Multi-mode Module(850nm,0.1km,LC)
	OMXD30000	Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC)
	OSX010000	Optical Transceiver,?SFP+,?10G,?Single-mode Module(1310nm,10km,LC)

Compare with Similar Item

Table 3?shows the comparison of Huawei?S5720-32P-EI-AC,?S5720-32X-EI-AC?and S5720-32X-EI-24S-AC.

Models	S5720-32P-EI-AC	S5720-32X-EI-AC	S5720-32X-EI-24S-AC
Fixed Ports	24 x 10/100/1,000 Base-T, 4 x 100/1,000 Base-X SFP, 4 Gig SFP	24 x 10/100/1,000 Base-T Ethernet ports, 4 x 100/1,000 Base-X SFP ports, ?4 x 10G SFP+ ports	24 x 100/1,000 Base-X SFP ports, 4 x 10/100/1,000 Base-T Ethernet ports, 4 x 10G SFP+ ports
Extended Slots	NA	NA	NA
Power Supply	AC power supply, supporting RPS, power socket on the front panel	AC power supply, supporting RPS, power socket on the front panel	?AC power supply, supporting RPS, power socket on the front panel
Forwarding Performance	48 Mpps	102 Mpps	102 Mpps
Switching Capacity	598 Gbit/s	598 Gbit/s	598 Gbit/s
Front?Power Input	AC: Yes	AC: Yes	AC: Yes
Power Consumption	39.8W	40.9W ?	55.5W ?

Comparison between LI, SI, EI and HI

Huawei S5720 Series Enterprise Switches provides LI (Lite), SI (Standard), EI (Enhanced) and HI (Hyper) models for users. There are some differences among these four versions.

Click this PDF to know more.

Comparison of Huawei S5720-LI, SI, EI and HI Series Switches.pdf

Get more information

Do you have any?question?about?the?Huawei S5720-32X-EI-AC?switch

Quality Certifications

Specification

S5720-32X-EI-AC Specification

S5720-32X-EI-AC Specification
MAC address table	IEEE 802.1d compliance MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses MAC address entries: S5700S-LI series: 8K, S5700-LI/S5700-SI series: 16K, S5700-EI series: 32K, S5720-EI series: 64K, S5700-HI series: S5700-HI: 32K, S5710-HI: 456K, S5720-HI: 128K
VLAN	4K VLANs Guest VLAN and voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN Mapping SuperVLAN(supported by the S5700-SI/S5700-EI/S5700-HI series)
Ring protection	RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover SEP ERPS(G.8032)(supported by the S5700-LI/S5700-SI/S5700-EI/S5700-HI series) STP, RSTP, and MSTP BPDU protection, root protection, and loop protection BPDU Tunnel
Reliability	Ethernet OAM (IEEE 802.3ah and 802.1ag) ITU-Y.1731 DLDP LACP E-Trunk(supported by the S5700-SI/S5700-EI/S5700-HI series) BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM (supported by the S5700-EI/S5700-HI series)
MPLS features	MPLS L3VPN MPLS L2VPN(VPWS/VPLS) MPLS-TE MPLS QoS Notes: supported by S5710-EI, S5700-HI and S5710-HI
IP routing	Static routing RIPv1, RIPv2 and RIPng,ECMP(supported by the S5700-SI/S5700-EI/S5700-HI series) OSPF, OSPFv3, IS-IS, IS-ISv6, BGP and BGP4+ (supported by the S5700-EI/S5700-HI series)
IPv6 features	Neighbor Discovery (ND) Path MTU (PMTU) IPv6 ping, IPv6 tracert, and IPv6 Telnet ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type MLD v1/v2 snooping 6to4 tunnel, ISATAP tunnel, and manually configured tunnel(supported by the S5700-SI/S5700-EI/S5700-HI series)
Multicast	IGMP v1/v2/v3 snooping and IGMP fast leave Multicast forwarding in a VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Port-based multicast traffic statistics IGMP v1/v2/v3, PIM-SM, PIM-DM, PIM-SSM, MSDP (supported by the S5700-EI/S5700-HI series)
QoS/ACL	Rate limiting on packets sent and received by an interface Packet redirection Port-based traffic policing and two-rate three-color CAR Eight queues on each port WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms WRED (supported by the S5710-EI and S5700-HI) Re-marking of the 802.1p priority and DSCP priority Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID Rate limiting in each queue and traffic shaping on ports
Security	User privilege management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, interface, and VLAN Port isolation, port security, and sticky MAC MFF Blackhole MAC address entries Limit on the number of learned MAC addresses 802.1x authentication and limit on the number of users on an interface AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC SSH v2.0 Hypertext Transfer Protocol Secure (HTTPS) CPU defense Blacklist and whitelist
Access Security	DHCP Relay, DHCP Server, DHCP Snooping, DHCP Security
Management and maintenance	Virtual cable test Port mirroring and RSPAN (remote port mirroring) Remote configuration and maintenance using Telnet SNMP v1/v2c/v3 RMON Web NMS HGMP System logs and alarms of different levels 802.3az EEE (supported by the S5700(S)-LI, S5710-EI, S5700-HI and S5710-HI) Dying gasp (supported by the S5700-HI, S5710-HI and S5700(S)-LI(except battery LAN switches) NetStream (supported by the S5710-EI, S5700-HI and S5710-HI) sFlow(supported by the S5700(S)-LI/S5700-EI/S5700-HI series)
Interoperability	Supports VBST (Compatible with PVST/PVST+/RPVST) Supports LNP (Similar to DTP) Supports VCMP (Similar to VTP)
Operating environment	Operating temperature: 0℃–50℃ Relative humidity: 10%–90% (non-condensing)
Input voltage	AC: Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage range: 90 V to 264 V AC, 47/63 Hz DC: Rated voltage range: –48 V to –60 V, DC Maximum voltage range: –36 V to –72 V DC Note: PoE-support switches do not use DC power supplies.
MAC address table	IEEE 802.1d compliance MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses MAC address entries: S5700S-LI series: 8K, S5700-LI/S5700-SI series: 16K, S5700-EI series: 32K, S5720-EI series: 64K, S5700-HI series: S5700-HI: 32K, S5710-HI: 456K, S5720-HI: 128K
VLAN	4K VLANs Guest VLAN and voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN Mapping SuperVLAN(supported by the S5700-SI/S5700-EI/S5700-HI series)
Ring protection	RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover SEP ERPS(G.8032)(supported by the S5700-LI/S5700-SI/S5700-EI/S5700-HI series) STP, RSTP, and MSTP BPDU protection, root protection, and loop protection BPDU Tunnel
Reliability	Ethernet OAM (IEEE 802.3ah and 802.1ag) ITU-Y.1731 DLDP LACP E-Trunk(supported by the S5700-SI/S5700-EI/S5700-HI series) BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM (supported by the S5700-EI/S5700-HI series)
MPLS features	MPLS L3VPN MPLS L2VPN(VPWS/VPLS) MPLS-TE MPLS QoS Notes: supported by S5710-EI, S5700-HI and S5710-HI
IP routing	Static routing RIPv1, RIPv2 and RIPng,ECMP(supported by the S5700-SI/S5700-EI/S5700-HI series) OSPF, OSPFv3, IS-IS, IS-ISv6, BGP and BGP4+ (supported by the S5700-EI/S5700-HI series)
IPv6 features	Neighbor Discovery (ND) Path MTU (PMTU) IPv6 ping, IPv6 tracert, and IPv6 Telnet ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type MLD v1/v2 snooping 6to4 tunnel, ISATAP tunnel, and manually configured tunnel(supported by the S5700-SI/S5700-EI/S5700-HI series)
Multicast	IGMP v1/v2/v3 snooping and IGMP fast leave Multicast forwarding in a VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Port-based multicast traffic statistics IGMP v1/v2/v3, PIM-SM, PIM-DM, PIM-SSM, MSDP (supported by the S5700-EI/S5700-HI series)
QoS/ACL	Rate limiting on packets sent and received by an interface Packet redirection Port-based traffic policing and two-rate three-color CAR Eight queues on each port WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms WRED (supported by the S5710-EI and S5700-HI) Re-marking of the 802.1p priority and DSCP priority Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID Rate limiting in each queue and traffic shaping on ports
Security	User privilege management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, interface, and VLAN Port isolation, port security, and sticky MAC MFF Blackhole MAC address entries Limit on the number of learned MAC addresses 802.1x authentication and limit on the number of users on an interface AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC SSH v2.0 Hypertext Transfer Protocol Secure (HTTPS) CPU defense Blacklist and whitelist
Access Security	DHCP Relay, DHCP Server, DHCP Snooping, DHCP Security
Management and maintenance	Virtual cable test Port mirroring and RSPAN (remote port mirroring) Remote configuration and maintenance using Telnet SNMP v1/v2c/v3 RMON Web NMS HGMP System logs and alarms of different levels 802.3az EEE (supported by the S5700(S)-LI, S5710-EI, S5700-HI and S5710-HI) Dying gasp (supported by the S5700-HI, S5710-HI and S5700(S)-LI(except battery LAN switches) NetStream (supported by the S5710-EI, S5700-HI and S5710-HI) sFlow(supported by the S5700(S)-LI/S5700-EI/S5700-HI series)
Interoperability	Supports VBST (Compatible with PVST/PVST+/RPVST) Supports LNP (Similar to DTP) Supports VCMP (Similar to VTP)
Operating environment	Operating temperature: 0℃–50℃ Relative humidity: 10%–90% (non-condensing)
Input voltage	AC: Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage range: 90 V to 264 V AC, 47/63 Hz
Dimensions (W x D x H)	442 x 420 x 43.6 mm

Quality Certifications

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What is included with the S5720-32X-EI-AC?

The package includes the switch unit, power cords, mounting brackets, and a user guide.

How does the S5720-32X-EI-AC compare to similar products?

It competes well with its extensive port options and excellent performance-to-cost ratio in the mid-size network segment.

What common troubleshooting steps should I follow?

Check power connections, verify Ethernet cables, ensure proper configurations, and consult the user manual for detailed troubleshooting.

Does the S5720-32X-EI-AC support front access?

Yes, the S5720-32X-EI-AC supports front access, making it convenient for maintenance and cabling.

Learn More

How to order your products? Can I order online directly?

Of course you can order online.Let me tell you how to order:Step 1: Open our website and Find your item. Step 2: Learn about the item you found. Step 3: Add Items to the cart. Step 4: No matter you are a New or Existing Customer, you need to log in. Step 5: Write down your Shipping & Billing Address, Shipping Method and Payment Method Step 6: Track and Receive Your Goods.

How about the warranty policy?

Original new sealed Huawei product: 1 Year warranty.

Does it support PoE?

Yes. 370W PoE.

What is it ideal for?

Huawei’s S5720-EI Series Gigabit Switches provide resilient, energy-efficient GE ports for access switching in data centers, and aggregation switching in enterprise campus networks.

How many ports does it provide?

It provides 48 Ethernet 10/100/1000 ports, and 4 10 Gig SFP+.

How cost-effective is the S5720-32X-EI-AC?

The S5720-32X-EI-AC offers excellent value with its 24 Ethernet 10/100/1000 ports, 4 Gig SFP, and 4 10 Gig SFP+ ports, making it suitable for mid-size networks at a competitive price.

What are the main features of S5720-32X-EI-AC?

Key features include 24 Ethernet 10/100/1000 ports, 4 Gig SFP and 4 10 Gig SFP+ ports, ensuring high-speed connectivity and scalability.

What are the typical application scenarios?

Ideal for enterprise campus networks, data centers, and core networks requiring high-density 10 Gigabit Ethernet and reliable AC power.

How do I install the S5720-32X-EI-AC?

Mount on a standard 19-inch rack, connect to the power supply, plug in Ethernet cables, and configure the device using the web interface.

Does the S5720-32X-EI-AC require firmware upgrades?

Yes, regular firmware updates are recommended to ensure optimal performance and security.

Are there alternative products to the S5720-32X-Ei-AC?

Alternatives include the Cisco Catalyst 9300 Series and Juniper EX4300 Series, depending on specific needs and budget.

What is included with the S5720-32X-EI-AC?

The package includes the switch unit, power cords, mounting brackets, and a user guide.

How does the S5720-32X-EI-AC compare to similar products?

It competes well with its extensive port options and excellent performance-to-cost ratio in the mid-size network segment.

What common troubleshooting steps should I follow?

Check power connections, verify Ethernet cables, ensure proper configurations, and consult the user manual for detailed troubleshooting.

Does the S5720-32X-EI-AC support front access?

Yes, the S5720-32X-EI-AC supports front access, making it convenient for maintenance and cabling.

Warranty

Standard Services

Warehouse

Customer Service

Packaging

Branch Offices : Hong Kong | USA | UK

Quality Checking

Shipping

Trusted by over 18,000 customers globally

Warranty

100% Low Price Guarantee:

Router-switch.com provides high-quality products at low wholesale prices

All items are ORIGINAL and GENUINE only:

Item conditions are all "New Sealed".
All items are fully tested with working conditions by Huawei certified engineer under customers' permission.

100% Money Back Guarantee:

If your returns meet our relevent standards,you can contact our customer service team to exchange or return any product that you bought from us.

Professional Technical Support:

Router-switch.com experienced technical team can provide support over the phone, by chat, by email or by remotely login.

Flexible Secure Payment & Shipment:

Verified authorization: Mcafee Secure, VeriSign Secured

Return Material Authorization (RMA) Process

Standard Warranty Policy:

Original New Sealed Enterprise Hardware: 3 Years

Original New Sealed Consumer Devices: 1 Year

The Support Contacts:

If your Huawei products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Download

Resources Downloads

Support and Resources

Quick Check of Huawei S5700 Enterprise Switches

Model Datasheet

S5720-32X-EI-AC Datasheet

S5720-32X-EI-AC

Shop Bundles or Accessories Recommended by Experts

S5720-32X-EI-AC

S5720-32X-EI-AC Overview

Quick Specs

Product Details

Optical Modules

Compare with Similar Item

Comparison between LI, SI, EI and HI

Get more information

Quality Certifications

S5720-32X-EI-AC Specification

S5720-32X-EI-AC Specification

Quality Certifications

Questions & Answers

What is included with the S5720-32X-EI-AC?

How does the S5720-32X-EI-AC compare to similar products?

What common troubleshooting steps should I follow?

Does the S5720-32X-EI-AC support front access?

How to order your products? Can I order online directly?

How about the warranty policy?

Does it support PoE?

What is it ideal for?

How many ports does it provide?

How cost-effective is the S5720-32X-EI-AC?

What are the main features of S5720-32X-EI-AC?

What are the typical application scenarios?

How do I install the S5720-32X-EI-AC?

Does the S5720-32X-EI-AC require firmware upgrades?

Are there alternative products to the S5720-32X-Ei-AC?

What is included with the S5720-32X-EI-AC?

How does the S5720-32X-EI-AC compare to similar products?

What common troubleshooting steps should I follow?

Does the S5720-32X-EI-AC support front access?

Standard Services

Warranty

Resources Downloads

Product Tags
