HG8M028045A, Huawei HG8045A GPON Terminal, SC/APC, EU Power Adapter, English

Name: HG8M028045A, Huawei HG8045A GPON Terminal, SC/APC, EU Power Adapter, English
SKU: HG8M028045A
Rating: 4 (1 reviews)

Brand: Huawei
Model: HG8M028045A

Rating:

80%

4/5.0

1 Review

11 Questions

100% Genuine

Original, factory-verified

3-Year Warranty

Extended, enterprise-grade

24 Years Expertise

Proven, deployment-focused

Condition

Original New

Certified Expertise Builds Trust

CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert

Talk to an Expert

Faster Delivery, Globally Ready
20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.
48H Worldwide Shipping
10+ Global Warehouses
Keep Projects On Time
Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.
Track Your Order

Leading Global Distributor
Since 2002
A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

Worry-Free Coverage with RSCare
3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.
Cisco SmartNet
HPE Foundation Care
Dell ProSupport
Juniper Care
Fortinet Support
Your Trusted Genuine Source
Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.
100% Authentic Products
100,000+ Multi-Brand SKUs Available

HG8M028045A, Huawei HG8045A GPON Terminal, SC/APC, EU Power Adapter, English

100% Genuine Ready to Ship

Overview

Huawei HG8M028045A Overview

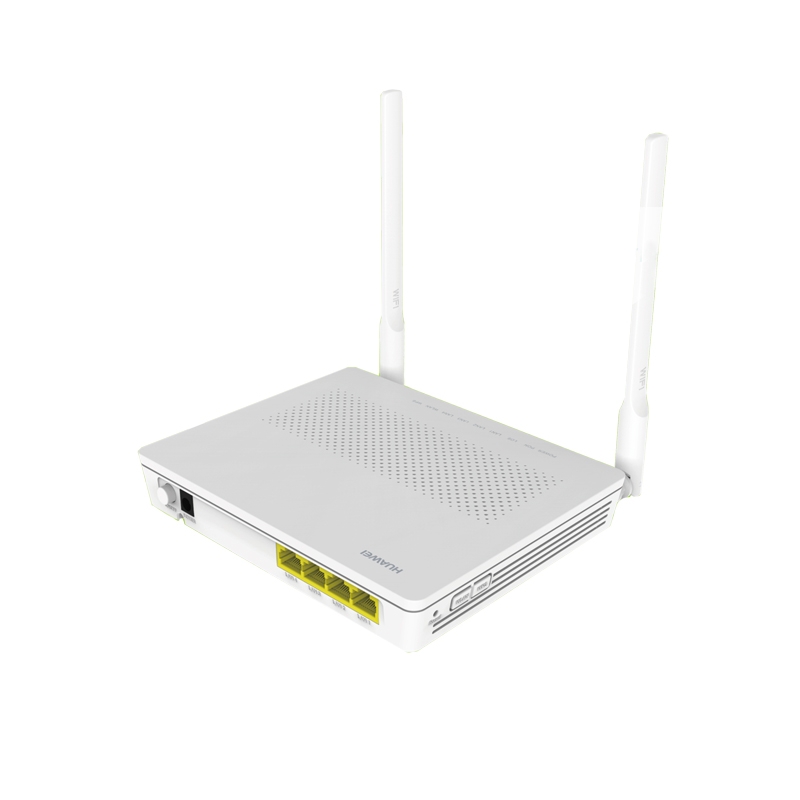

Huawei HG8M028045A is a residential GPON terminal designed to deliver high-speed fiber access with integrated Wi-Fi for FTTH deployments in Europe and other regions. Featuring a Class B+ GPON port, 4FE + Wi-Fi LAN interfaces, and IEEE 802.11 b/g/n 2x2 MIMO, it supports IPTV, internet, and voice services with low 7W maximum power consumption. Advanced QoS, SPI firewall, and TR069/OMCI remote management make it ideal for ISPs, small integrators, and end users seeking reliable broadband.

Product Highlights

4FE+WiFi

Access Ports

7W Max

Low Power

-27dBm

GPON Optics

Product Applications Scenarios

Service Providers

For fiber ISPs, the GPON and 4FE + Wi-Fi design simplifies CPE rollout, cuts truck rolls via TR069, and can reduce last-mile deployment OPEX by up to 20%.

Enterprise Network

In small branch offices, Layer 3 features, QoS, and VLAN options ensure stable VPN, VoIP, and data access while keeping power and space usage minimal.

Edge & IoT

As an FTTH edge gateway, it aggregates sensors, cameras, and terminals over Ethernet and Wi-Fi, improving service reliability without costly upgrades.

Product Features Comparison


Model	HG8M028045A, Huawei HG8045A GPON Terminal, SC/APC, EU Power Adapter, English	H35M8045AEU2, Huawei EchoLife HG8045A GPON Terminal, SC/APC, EU Power Adapter, 5dBi Antenna	H35M8045AVV2, Huawei HG8045A GPON Terminal, SC/APC, European Power Adapter, English	H35M8045ATL1, Huawei EchoLife HG8045A Broadband Network Terminal, GPON, SC/APC, 5dBi Antenna
Brand	Huawei	Huawei	Huawei	Huawei
Port Configuration	n/a	n/a	n/a	n/a
Switching Capacity	n/a	n/a	n/a	n/a
Forwarding Rate	n/a	n/a	n/a	n/a
PoE Budget	n/a	n/a	n/a	n/a
Stacking Capability	n/a	n/a	n/a	n/a

Optional Add-ons

Model Number	Description
HUAWEI-SC-APC-PATCH	Huawei SC/APC single-mode patch cord for connecting HG8045A GPON terminals to ODF or wall outlets
HUAWEI-EU-12V1A-PSU	Huawei 12V 1A EU power adapter, replacement PSU for HG8045A and compatible GPON ONTs
HUAWEI-WALL-MOUNT-KIT	Huawei wall-mount bracket kit for compact GPON terminals, simplifying FTTH CPE installation

Quality Certifications

Specification

Huawei HG8M028045A Specification

Model

HG8M028045A

Brand

Huawei

Dimensions (H x W x D)

176mm x 138mm x 28mm

Operating temperature

0°C to +40°C

Operating humidity

5% RH to 95% RH (non-condensing)

Power adapter input

100–240 V AC, 50–60 Hz

System power supply

11–14 V DC, 1 A

Static power consumption

Maximum power consumption

Ports

4FE + Wi-Fi

Indicators

POWER/PON/LOS/LAN/WLAN/WPS

GPON Port

• Class B+ • Receiver sensitivity: -27 dBm • Wavelengths: US 1310 nm, DS 1490 nm • Wavelength blocking filter (WBF) • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA and NSR-DBA

Ethernet Port

·Ethernet port-based VLAN tags and tag removal ·1:1 VLAN, N:1 VLAN, or VLAN transparent transmission ·QinQ VLAN ·Limit on the number of learned MAC addresses ·MAC address learning

WLAN

• IEEE 802.11 b/g/n • 2 x 2 MIMO • Antenna gain: 5 dBi • WMM • Multiple SSIDs • WPS

Smart interconnection

·Smart Wi-Fi coverage (V300R015C10) ·Any port any service ·Parental control (V300R015C00)

Smart Service

·Smart Wi-Fi sharing: 802.1x authentication (V300R015C10)/ Portal SoftGRE-based sharing (V300R015C10)

QoS

·Ethernet port rate limitation ·802.1p priority ·SP/WRR/SP+WRR ·Broadcast packet rate limitation

Security

·SPI firewall ·Anti-DoS attack ·Filtering based on MAC/IP/URL addresses

Smart O&M

• Variable-length OMCI messages • Active/Passive rogue ONT detection and isolation • PPPoE/DHCP simulation testing • Call emulation, and circuit test and loop-line test

Common O&M

·OMCI/Web UI/TR069 ·Dual-system software backup and rollback

Layer 3 Features

·PPPoE/Static IP/DHCP ·NAT/NAPT ·Port forwarding ·ALG, UPnP ·DDNS/DNS server/DNS client ·IPv6/IPv4 dual stack, and DS-Lite ·Static/Default routes ·Multiple services on one WAN port

Multicast

·IGMP v2/v3 snooping ·IGMP v2 proxy ·IGMP v3 proxy (V300R015C00) ·MLD v1/v2 snooping ·Multicast services through Wi-Fi

Power Saving

·Dynamic power saving ·Indicator power saving ·Scheduled Wi-Fi shutdown (V300R015C00) ·COCV4

Weight

500 kg

Get more information

Discover unbeatable prices and fast shipping for the HG8M028045A, Huawei HG8045A GPON Terminal, SC/APC, EU Power Adapter, English . Access the detailed HG8M028045A, Huawei HG8045A GPON Terminal, SC/APC, EU Power Adapter, English datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

Quality Certifications

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What accessories are available for the HG8045A?

The HG8045A comes with an SC/APC cable and a European power adapter as accessories.

How does the HG8045A compare to similar products?

Compared to similar products, the HG8045A offers a balance of performance, reliability, and cost, making it a preferred choice for many users.

Is the HG8045A compatible with VIETTEL in Vietnam?

Yes, the HG8045A is designed to be compatible with VIETTEL's network in Vietnam.

Are the products sold on router-switch.com authentic?

Yes, router-switch.com only sells 100% genuine products from authorized brands. As a multi-brand authorized distributor, all items are sourced through official channels and include valid manufacturer warranties. Customers may verify authorization via brand websites or request certification documents.

Learn More

Is the HG8045A GPON Terminal cost-effective?

Yes, the HG8045A GPON Terminal provides high-speed internet connectivity at an affordable price, making it a cost-effective solution.

What are the main features of the HG8045A?

The HG8045A features high-speed data transfer, reliable connectivity, and is equipped with an SC/APC interface and European power adapter.

What is the ideal application scenario for the HG8045A?

The HG8045A is ideal for residential and small business environments requiring dependable internet access.

How do I install the HG8045A GPON Terminal?

Installation of the HG8045A involves connecting the SC/APC cable to the terminal, plugging in the European power adapter, and following the setup guide included.

Does the HG8045A need regular firmware upgrades?

Yes, to maintain performance and security, the HG8045A should receive regular firmware updates as advised by Huawei.

Are there alternative products to the HG8045A?

Yes, alternatives include other GPON terminals within the Huawei product line such as the HG8245H for different requirements.

What should I do if the HG8045A is not connecting?

Ensure all connections are secure, reboot the terminal, and check for firmware updates. If issues persist, contact Huawei support.
