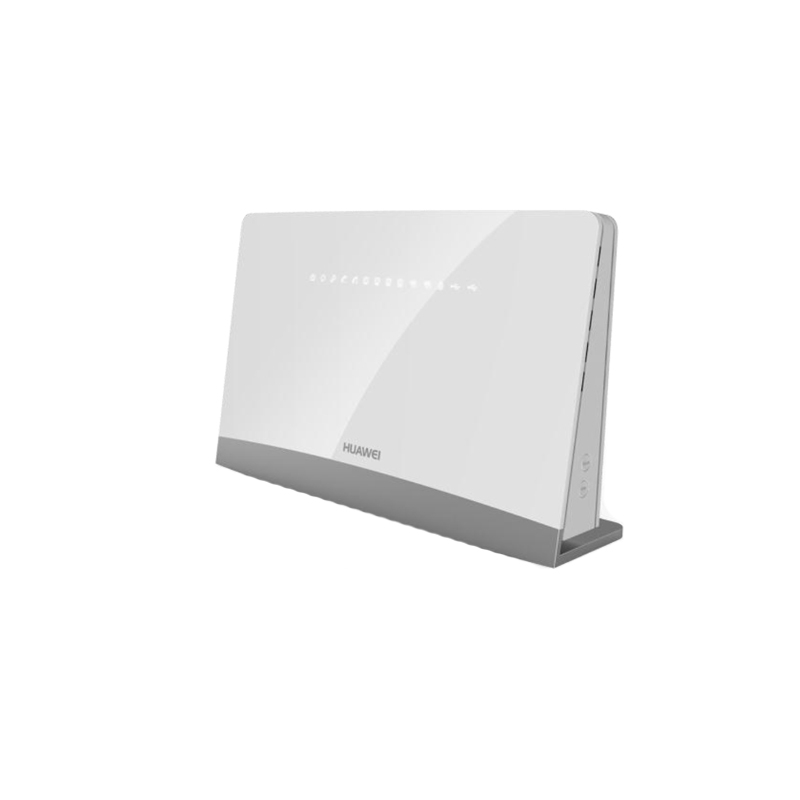

H35M8245QSTC

HG8245Q Specification

Dimensions (H x W x D)

70 mm x 285 mm x 174 mm

Weight

about 1000 g

Operating temperature

0°C to +40°C

Operating humidity

5% RH to 95% RH (non-condensing)

Power adapter input

100–240 V AC, 50–60 Hz

System power supply

11–14 V DC, 3 A

Static power consumption

6.5 W

Maximum power consumption

26 W

Ports

2POTS+4GE+2.4G/5G Wi-Fi +2USB

Interface Parameters

GPON Port

• Class B+
• Receiver sensitivity: -27 dBm
• Wavelengths: US 1310 nm, DS 1490 nm
• WBF
• Flexible mapping between GEM Port and TCONT
• GPON: consistent with the SN or password
authentication defined in G.984.3
• Bi-directional FEC
• SR-DBA and NSR-DBA

Ethernet Port

• Ethernet port-based VLAN tags and tag removal
• 1:1 VLAN, N:1 VLAN, or VLAN transparent
transmission
• QinQ VLAN
• Limit on the number of learned MAC addresses
• MAC address learning

WLAN

• IEEE 802.11 b/g/n (2.4G)
• IEEE 802.11 a/n/ac (5G)
• 3 × 3 MIMO
• Antenna gain: 2 dBi
• WMM
• Multiple SSIDs
• WPS
• 2.4G/5G concurrent

Ethernet Port

• Ethernet port-based VLAN tags and tag removal
• 1:1 VLAN, N:1 VLAN, or VLAN transparent
transmission
• QinQ VLAN
• Limit on the number of learned MAC addresses
• MAC address learning

POTS Port

• Maximum REN: 4
• G.711A/μ, G.729a/b and G.722
encoding/decoding
• T.30/T.38/G.711 fax mode
• DTMF
• Emergency calls (with the SIP protocol)

USB Port

• USB2.0
• FTP-based network storage
• File/Print sharing based on SAMBA
• DLNA DMS/UPnP AV (media server)

Product Function

Smart interconnection

• Smart Wi-Fi coverage (V300R015C10)
• SIP/H.248 auto-negotiation
• Any port any service
• Parental control (V300R015C00)
• L2/L3(IPv4) forwarding: 1G uplink, 2G downlink

Smart service

• Smart Wi-Fi sharing:
Portal/802.1x authentication (V300R015C10)
SoftGRE-based sharing (V300R015C10)
• Association of one account with two POTS ports

Smart O&M

• IPTV video quality diagnosis (V300R015C10)
• Variable-length OMCI messages
• Active/Passive rogue ONT detection and isolation
• Call emulation, and circuit test and loop-line test
• PPPoE/DHCP simulation testing
• WLAN emulation

Layer 3 Features

• PPPoE/Static IP/DHCP
• NAT/NAPT
• Port forwarding
• ALG, UPnP
• DDNS/DNS server/DNS client
• IPv6/IPv4 dual stack, and DS-Lite
• Static/Default routes
• Multiple services on one WAN port

Multicast

• IGMP v2/v3 proxy(V300R015C00)/snooping
• MLD v1/v2 snooping
• Multicast services through Wi-Fi

QoS

• Ethernet port rate
limitation
• 802.1p priority
• SP/WRR/SP+WRR
• Broadcast packet rate
limitation

Security

• SPI firewall
• Filtering based on
MAC/IP/URL addresses

Common O&M

• OMCI/Web UI/TR069
• Dual-system software
backup and rollback

Power Saving

• Dynamic power saving
• Indicator power saving
• Scheduled Wi-Fi shutdown
(V300R015C00)
