H35M8245HUS1, Huawei HG8245H GPON Terminal, American Standard Adapter/SC APC/English

Brand: Huawei
Model: H35M8245HUS1

$511.00

100% Genuine

Original, factory-verified

3-Year Warranty

Extended, enterprise-grade

24 Years Expertise

Proven, deployment-focused

Condition

Original New

Certified Expertise Builds Trust

CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert

Faster Delivery, Globally Ready
20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.
48H Worldwide Shipping
10+ Global Warehouses
Keep Projects On Time
Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.
Track Your Order

Leading Global Distributor
Since 2002
A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

Worry-Free Coverage with RSCare
3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.
Cisco SmartNet
HPE Foundation Care
Dell ProSupport
Juniper Care
Fortinet Support
Your Trusted Genuine Source
Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.
100% Authentic Products
100,000+ Multi-Brand SKUs Available

H35M8245HUS1, Huawei HG8245H GPON Terminal, American Standard Adapter/SC APC/English

100% Genuine Ready to Ship

$511.00

Overview

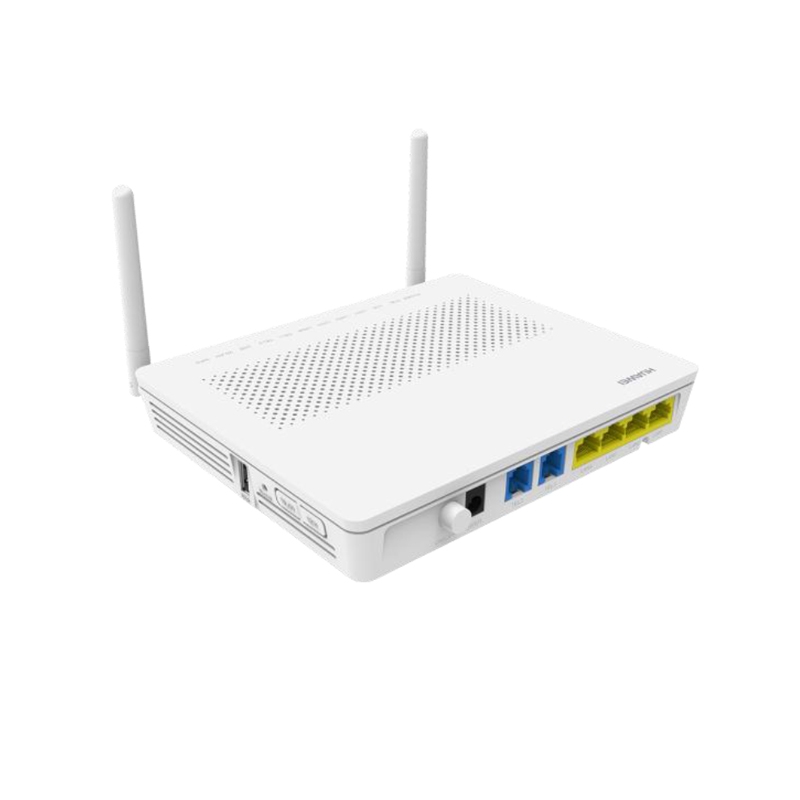

Huawei H35M8245HUS1 Overview

The Huawei H35M8245HUS1 is a GPON terminal designed for residential and small business fiber access in North America. It combines a Class B+ GPON uplink with 2POTS+4GE+Wi-Fi+USB, supporting voice, data, and IPTV over a single fiber. With IEEE 802.11 b/g/n 2 x 2 MIMO WLAN, smart Wi-Fi coverage, and parental control, this ONT simplifies deployment for ISPs and integrators. Features like OMCI/TR069, IPTV video quality diagnosis, and dual-system software backup streamline remote operations and maintenance.

Product Highlights

4GE

GE Ports

2POTS

Voice FXS

15.5W

Max Power

Product Applications Scenarios

Service Providers

Delivers GPON last-mile access with integrated voice, data, and Wi-Fi, cutting truck rolls and enabling centralized TR069-based O&M.

Enterprise Network

Supports small office fiber access, providing 4GE and POTS with IPv4/IPv6 and QoS for stable VPN, VoIP, and IPTV services.

Edge & IoT

Combines GPON uplink and multiple GE ports for CPE or IoT aggregation, while smart O&M reduces field maintenance effort.

Product Features Comparison


Model	H35M8245HUS1, Huawei HG8245H GPON Terminal, American Standard Adapter/SC APC/English	NDVDRWU01, Huawei eSpace VCN3000 Accessory, DVDRW-CD 24X/DVD 8X/USB 2.0/External	TN8PHOST0202, Huawei PTN3900 Transmission System, 320G Capacity/No Protection/Enhanced Control	H83MMA5821E1, Huawei H83MMA Series Remote Optical Access Equipment, 24×FE/10G GPON uplink/Europe power cable
Brand	Huawei	Huawei	Huawei	Huawei
Compatible Models	n/a	eSpace VCN3000	PTN3900 320G System	MA5820
Accessory Type	GPON Terminal	DVDRW-CD/DVD External Drive	Transmission System Host	Remote Optical Access Equipment
Connector Type	SC APC	USB2.0	n/a	SFP optical, FE/GE
Mounting Method	Desktop	External	Rack-mounted	Rack-mounted
Certification	n/a	n/a	CE, FCC	n/a

Optional Add-ons

Model Number	Description
FBBMHSSCBC02	Huawei closure with 16 SC/APC ports for wall-mounted fiber distribution alongside HG8245H GPON terminals.
SLCCCC4P0100	Huawei 100m 8-core signal cable for power and external alarm or auxiliary connections in access deployments.
CR5XTC12004E0	Huawei 1m 4E1 120 ohm trunk cable for interfacing access equipment with legacy E1 transmission gear.

Quality Certifications

Specification

Huawei H35M8245HUS1 Specification

Model

H35M8245HUS1

Brand

Huawei

Dimensions (H x W x D)

176mm x 138.5mm x 28mm (without an external antenna)

Operating temperature

0°C to +40°C

Operating humidity

5% RH to 95% RH (non-condensing)

Power adapter input

100–240 V AC, 50–60 Hz

System power supply

11–14 V DC, 2 A

Static power consumption

Maximum power consumption

15.5W

Ports

2POTS+4GE+Wi-Fi+USB

Indicators

POWER/PON/LOS/LAN/TEL/USB /WLAN/WPS

GPON Port

· Class B+ · Receiver sensitivity: -27 dBm · Wavelengths: US 1310 nm, DS 1490 nm · WBF · Flexible mapping between GEM Port and TCONT · GPON: consistent with the SN or password authentication defined in G.984.3 · Bi-directional FEC · SR-DBA and NSR-DBA

Ethernet Port

· Ethernet port-based VLAN tags and tag removal · 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission · QinQ VLAN · Limit on the number of learned MAC addresses · MAC address learning

POTS Port

· Maximum REN: 4 · G.711A/μ, G.729a/b and G.722 encoding/decoding · T.30/T.38/G.711 fax mode · DTMF · Emergency calls (with the SIP protocol)

USB Port

· USB2.0 · FTP-based network storage

WLAN

•IEEE 802.11 b/g/n · 2 x 2 MIMO · Antenna gain: 2 dBi · WMM · Multiple SSIDs · WPS

Smart interconnection

· Smart Wi-Fi coverage (V300R015C10) · SIP/H.248 auto-negotiation · Any port any service · Parental control (V300R015C00) · L2/L3(IPv4) forwarding: 1G uplink, 2G downlink

Smart service

· Smart Wi-Fi sharing: Portal/802.1x authentication (V300R015C10) SoftGRE-based sharing (V300R015C10) · Association of one account with two POTS ports

Smart O&M

· IPTV video quality diagnosis (V300R015C10) · Variable-length OMCI messages · Active/Passive rogue ONT detection and isolation · Call emulation, and circuit test and loop-line test · PPPoE/DHCP simulation testing · WLAN emulation

Layer 3 Features

· PPPoE/Static IP/DHCP · NAT/NAPT · Port forwarding · ALG, UPnP · DDNS/DNS server/DNS client · IPv6/IPv4 dual stack, and DS-Lite · Static/Default routes · Multiple services on one WAN port

Multicast

· IGMP v2/v3 proxy(V300R015C00)/snooping · MLD v1/v2 snooping · Multicast services through Wi-Fi

QoS

· Ethernet port rate limitation · 802.1p priority · SP/WRR/SP+WRR · Broadcast packet rate limitation

Security

· SPI firewall · Filtering based on MAC/IP/URL addresses

Common O&M

· OMCI/Web UI/TR069 · Dual-system software backup and rollback

Power Saving

· Dynamic power saving · Indicator power saving · Scheduled Wi-Fi shutdown (V300R015C00)

Weight

500 kg

Get more information

Discover unbeatable prices and fast shipping for the H35M8245HUS1, Huawei HG8245H GPON Terminal, American Standard Adapter/SC APC/English . Access the detailed H35M8245HUS1, Huawei HG8245H GPON Terminal, American Standard Adapter/SC APC/English datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

Quality Certifications

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What accessories come with the HG8245H GPON Terminal?

The HG8245H comes with an American Standard Adapter, Ethernet cable, and a User Manual for easy installation and setup.

How does the HG8245H compare with similar products?

The HG8245H offers comparable features to other GPON terminals but stands out with Huawei's reliable technology and better integration with Huawei ecosystem products.

What are the connectivity options available on the HG8245H?

The HG8245H has multiple gigabit Ethernet ports, Wi-Fi capabilities, and SC/APC connector for fiber optic network, providing versatile connectivity.

Are the products sold on router-switch.com authentic?

Yes, router-switch.com only sells 100% genuine products from authorized brands. As a multi-brand authorized distributor, all items are sourced through official channels and include valid manufacturer warranties. Customers may verify authorization via brand websites or request certification documents.

Learn More

How cost-effective is the HG8245H GPON Terminal?

The HG8245H GPON Terminal offers high performance and reliability at a competitive price, making it cost-effective for both small and large deployments.

What are the main features of the HG8245H GPON Terminal?

The HG8245H includes powerful processing capabilities, multiple ports, and SC/APC connectors, optimized for high-speed internet and seamless video streaming.

What application scenarios is the HG8245H suitable for?

The HG8245H GPON Terminal is ideal for FTTH (Fiber to the Home) deployments, serving residential and small business internet needs.

How do I install the HG8245H GPON Terminal?

The HG8245H can be installed by connecting it to an optical fiber network through its SC/APC port, followed by connecting end devices to its Ethernet and Wi-Fi interfaces.

Does the HG8245H GPON Terminal need frequent upgrades?

The HG8245H firmware is stable and receives periodic updates for enhanced performance and security; check manufacturer's site for latest updates.

Are there alternative products to the HG8245H?

Alternatives include other Huawei GPON terminals like the HG8247H, providing similar functionalities with slight feature differences.

What should I do if the HG8245H GPON Terminal malfunctions?

For common troubleshooting, check connections, restart the device, and consult the user manual; contact support for persistent issues.
