H35M8245HAR1, Huawei HG8245H GPON Terminal, SC/APC, Argentina Adapter, English

100% Genuine Ready to Ship

Overview

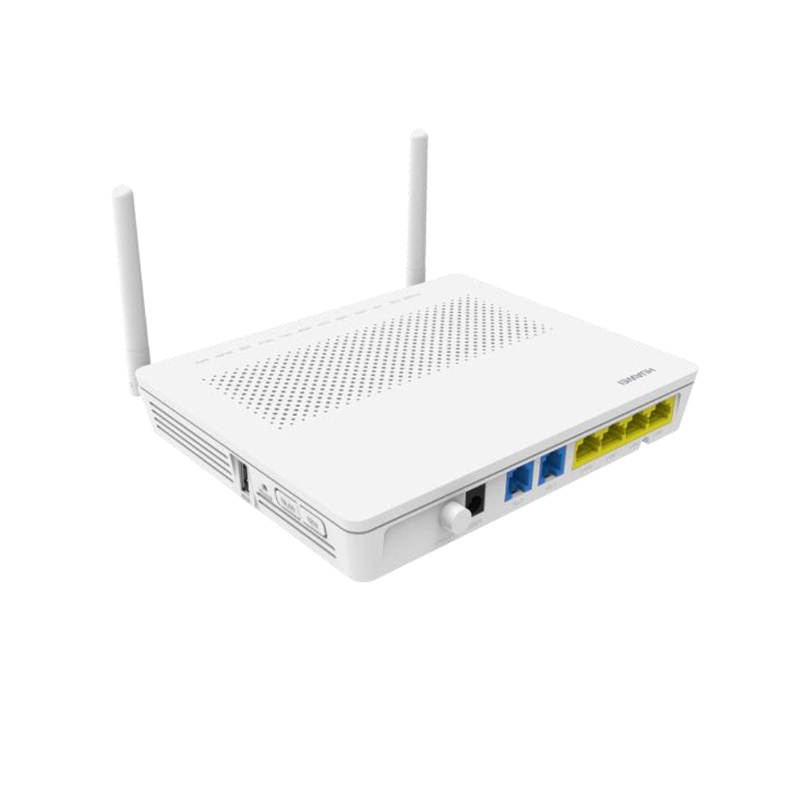

Huawei H35M8245HAR1 Overview

The Huawei H35M8245HAR1 is a residential GPON terminal designed for high-speed fiber access and triple-play services. With a Class B+ GPON port, 2POTS+4GE+Wi-Fi+USB interfaces, and integrated IEEE 802.11 b/g/n 2x2 MIMO WLAN, it delivers stable broadband, voice, and IPTV for home and SOHO users. The device supports advanced Layer 3 features, multicast, QoS, and security, while smart Wi-Fi coverage, parental control, and rich O&M tools simplify deployment and daily operation for ISPs and integrators.

Product Highlights

2POTS+4GE

Multi Ports

802.11n

Wi-Fi LAN

15.5W

Max Power

Product Applications Scenarios

Service Providers

Ideal for ISPs delivering GPON-based triple-play, this ONT simplifies mass deployment, reduces truck rolls by remote O&M, and cuts overall access costs by consolidating voice, data, and IPTV.

Enterprise Network

Used as a GPON CPE for branch offices, it offers 4GE LAN, robust NAT and IPv6, securing VPN uplinks while lowering CAPEX versus traditional router plus modem solutions.

Edge & IoT

Its GPON uplink and 4GE ports backhaul IoT gateways and surveillance, while QoS and multicast keep latency low and video streams stable in smart building deployments.

Product Features Comparison


Model	H35M8245HAR1, Huawei HG8245H GPON Terminal, SC/APC, Argentina Adapter, English	T-120-16-HM3X4X6-40, Huawei T-120 Series Trunk Cable, 40m/16E1/120ohm	AIR-CONCAB1200, Cisco AP Accessory, Console cable/For 1130AG/For 1200/For 1230AG	RFS-18G-Single-Compact -1.2m, Huawei Microwave Antenna, 18GHz/1200mm/44.5dBi
Brand	Huawei	Huawei	Cisco	Huawei
Compatible Models	n/a	n/a	1130AG, 1200, 1230AG, 1240 Platform	n/a
Accessory Type	GPON Terminal	Trunk Cable	Console Cable	Microwave Antenna
Connector Type	SC/APC GPON, 2POTS+4GE+Wi-Fi+USB	HM3X4X6	RJ45 to DB-9	n/a
Mounting Method	Desktop	Indoor	Indoor use	Compact Mount
Certification	n/a	CE, RoHS	RoHS	n/a

Optional Add-ons

Model Number	Description
OSPL54200	Huawei OSPL5400 Series 2:4 SC/APC PLC optical splitter with 1.5m G.657A1 pigtail for GPON distribution.
OSPL55101	Huawei OSPL Series 1:8 SC/UPC PLC optical splitter, 2.5m pigtail, ideal for FTTH branching from HG8245H.
CHDMIEC01	Huawei 2m DVI-to-HDMI cable for HD endpoint or IPTV STB connection to displays in GPON deployments.

Quality Certifications

Specification

Huawei H35M8245HAR1 Specification

Model

H35M8245HAR1

Brand

Huawei

Dimensions (H x W x D)

176mm x 138.5mm x 28mm (without an external antenna)

Operating temperature

0°C to +40°C

Operating humidity

5% RH to 95% RH (non-condensing)

Power adapter input

100–240 V AC, 50–60 Hz

System power supply

11–14 V DC, 2 A

Static power consumption

Maximum power consumption

15.5W

Ports

2POTS+4GE+Wi-Fi+USB

Indicators

POWER/PON/LOS/LAN/TEL/USB /WLAN/WPS

GPON Port

· Class B+ · Receiver sensitivity: -27 dBm · Wavelengths: US 1310 nm, DS 1490 nm · WBF · Flexible mapping between GEM Port and TCONT · GPON: consistent with the SN or password authentication defined in G.984.3 · Bi-directional FEC · SR-DBA and NSR-DBA

Ethernet Port

· Ethernet port-based VLAN tags and tag removal · 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission · QinQ VLAN · Limit on the number of learned MAC addresses · MAC address learning

POTS Port

· Maximum REN: 4 · G.711A/μ, G.729a/b and G.722 encoding/decoding · T.30/T.38/G.711 fax mode · DTMF · Emergency calls (with the SIP protocol)

USB Port

· USB2.0 · FTP-based network storage

WLAN

•IEEE 802.11 b/g/n · 2 x 2 MIMO · Antenna gain: 2 dBi · WMM · Multiple SSIDs · WPS

Smart interconnection

· Smart Wi-Fi coverage (V300R015C10) · SIP/H.248 auto-negotiation · Any port any service · Parental control (V300R015C00) · L2/L3(IPv4) forwarding: 1G uplink, 2G downlink

Smart service

· Smart Wi-Fi sharing: Portal/802.1x authentication (V300R015C10) SoftGRE-based sharing (V300R015C10) · Association of one account with two POTS ports

Smart O&M

· IPTV video quality diagnosis (V300R015C10) · Variable-length OMCI messages · Active/Passive rogue ONT detection and isolation · Call emulation, and circuit test and loop-line test · PPPoE/DHCP simulation testing · WLAN emulation

Layer 3 Features

· PPPoE/Static IP/DHCP · NAT/NAPT · Port forwarding · ALG, UPnP · DDNS/DNS server/DNS client · IPv6/IPv4 dual stack, and DS-Lite · Static/Default routes · Multiple services on one WAN port

Multicast

· IGMP v2/v3 proxy(V300R015C00)/snooping · MLD v1/v2 snooping · Multicast services through Wi-Fi

QoS

· Ethernet port rate limitation · 802.1p priority · SP/WRR/SP+WRR · Broadcast packet rate limitation

Security

· SPI firewall · Filtering based on MAC/IP/URL addresses

Common O&M

· OMCI/Web UI/TR069 · Dual-system software backup and rollback

Power Saving

· Dynamic power saving · Indicator power saving · Scheduled Wi-Fi shutdown (V300R015C00)

Weight

500 kg

Get more information

Discover unbeatable prices and fast shipping for the H35M8245HAR1, Huawei HG8245H GPON Terminal, SC/APC, Argentina Adapter, English . Access the detailed H35M8245HAR1, Huawei HG8245H GPON Terminal, SC/APC, Argentina Adapter, English datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

Quality Certifications

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What accessories come with the HG8245H GPON Terminal?

The HG8245H GPON Terminal includes an Argentina Standard Adapter and a user manual in English.

How does the HG8245H GPON Terminal compare to similar products?

The HG8245H offers superior connectivity and reliability compared to other entry-level GPON terminals, particularly in terms of SC/APC compatibility.

Is the HG8245H GPON Terminal compatible with all ISPs?

The HG8245H GPON Terminal is compatible with most ISPs that support GPON technology. Always confirm with your provider.

Are the products sold on router-switch.com authentic?

Yes, router-switch.com only sells 100% genuine products from authorized brands. As a multi-brand authorized distributor, all items are sourced through official channels and include valid manufacturer warranties. Customers may verify authorization via brand websites or request certification documents.

Learn More

How cost-effective is the HG8245H GPON Terminal?

The HG8245H GPON Terminal offers a high performance-to-cost ratio, providing fast and reliable internet access at a competitive price.

What are the key features of the HG8245H GPON Terminal?

The HG8245H GPON Terminal features high-speed internet access, reliable SC/APC connectivity, and compatibility with the Argentina Standard Adapter.

What are the common application scenarios for the HG8245H GPON Terminal?

The HG8245H GPON Terminal is ideal for residential and small business broadband connections.

How do I install the HG8245H GPON Terminal?

Connect the terminal to your fiber optic cable via the SC/APC port and power it using the Argentina Standard Adapter.

Does the HG8245H GPON Terminal need frequent upgrades?

Firmware upgrades for the HG8245H GPON Terminal are not frequent but are recommended when available to ensure optimal performance.

Are there alternative products to the HG8245H GPON Terminal?

Yes, alternatives include other models in the Huawei GPON Terminal series such as the HG8240 and HG8247H.

What should I do if the HG8245H GPON Terminal doesn't work?

Check the SC/APC connection, ensure the power adapter is plugged in properly, and consult the user manual for troubleshooting steps.
