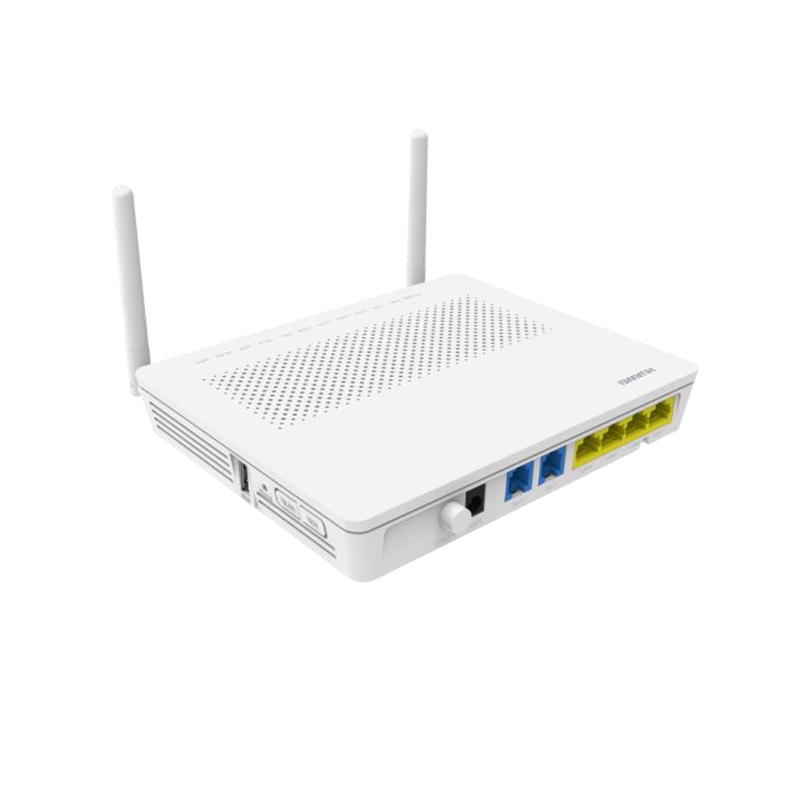

H35M8245HCB1, Huawei HG8245H GPON Terminal, SC/APC, European Adapter, English

Name: H35M8245HCB1, Huawei HG8245H GPON Terminal, SC/APC, European Adapter, English
SKU: H35M8245HCB1
Rating: 4 (1 reviews)

Brand: Huawei
Model: H35M8245HCB1

Rating:

80%

4/5.0

1 Review

11 Questions

100% Genuine

Original, factory-verified

3-Year Warranty

Extended, enterprise-grade

24 Years Expertise

Proven, deployment-focused

Condition

Original New

Certified Expertise Builds Trust

CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert

Talk to an Expert

Faster Delivery, Globally Ready
20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.
48H Worldwide Shipping
10+ Global Warehouses
Keep Projects On Time
Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.
Track Your Order

Leading Global Distributor
Since 2002
A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

Worry-Free Coverage with RSCare
3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.
Cisco SmartNet
HPE Foundation Care
Dell ProSupport
Juniper Care
Fortinet Support
Your Trusted Genuine Source
Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.
100% Authentic Products
100,000+ Multi-Brand SKUs Available

H35M8245HCB1, Huawei HG8245H GPON Terminal, SC/APC, European Adapter, English

100% Genuine Ready to Ship

Overview

Huawei H35M8245HCB1 Overview

The Huawei H35M8245HCB1 is a GPON terminal designed for European fiber-to-the-home deployments, integrating routing, voice, and Wi-Fi in a single compact unit. With 2POTS+4GE+Wi-Fi+USB interfaces, it simplifies triple-play service delivery for ISPs and small integrators across Europe. Support for advanced GPON features such as bi-directional FEC, SR-DBA/NSR-DBA and flexible GEM Port–TCONT mapping ensures stable, high-throughput broadband for residential and SOHO users, while smart Wi-Fi coverage and TR069/OMCI enable efficient remote operations.

Product Highlights

15.5W

Low Power

2+4GE

Voice & GE

2x2N

MIMO WiFi

Product Applications Scenarios

Service Providers

GPON access with 2POTS+4GE lets carriers bundle voice, data, and IPTV, cutting CPE complexity and reducing truck rolls by up to 30% via TR069 and OMCI remote management.

Enterprise Network

As a small branch ONT, it delivers secure NAT, IPv4/IPv6 dual stack and QoS, improving SaaS and VoIP performance while minimizing capital outlay for distributed offices.

Edge & IoT

4GE ports and Wi-Fi connect local controllers, cameras and sensors, using multicast and VLAN features to segregate traffic and lower edge backhaul congestion by around 20%.

Product Features Comparison


Model	H35M8245HCB1, Huawei HG8245H GPON Terminal, SC/APC, European Adapter, English	H35M8245HUS3, Huawei HG8245H GPON Terminal, SC/APC, American Adapter, English	H35M8245HEU1, Huawei HG8245H GPON Terminal, European Standard Adapter/English/SC APC	H35M8245HEU3, Huawei HG8245H GPON Terminal, European Standard Adapter/English/SC/APC
Brand	Huawei	Huawei	Huawei	Huawei
Routing Throughput	n/a	n/a	n/a	n/a
Interface Configuration	2POTS+4GE+Wi-Fi+USB	2POTS+4GE+Wi-Fi+USB	2POTS+4GE+Wi-Fi+USB	2POTS+4GE+Wi-Fi+USB
Supported Protocol	PPPoE/Static IP/DHCP; IPv6/IPv4 dual stack; NAT/NAPT; ALG, UPnP; DDNS/DNS server/DNS client; DS-Lite	PPPoE/Static IP/DHCP; IPv6/IPv4 dual stack; NAT/NAPT; ALG, UPnP; DDNS/DNS server/DNS client; DS-Lite	PPPoE/Static IP/DHCP; IPv6/IPv4 dual stack; NAT/NAPT; ALG, UPnP; DDNS/DNS server/DNS client; DS-Lite	PPPoE/Static IP/DHCP; IPv6/IPv4 dual stack; NAT/NAPT; ALG, UPnP; DDNS/DNS server/DNS client; DS-Lite
VPN Capability	n/a	n/a	n/a	n/a
Integrated Features	Wi-Fi; 2POTS voice; USB2.0 storage; Smart Wi-Fi coverage; IPTV diagnosis; TR069/OMCI/Web UI O&M	Wi-Fi; 2POTS voice; USB2.0 storage; Smart Wi-Fi coverage; IPTV diagnosis; TR069/OMCI/Web UI O&M	Wi-Fi; 2POTS voice; USB2.0 storage; Smart Wi-Fi coverage; IPTV diagnosis; TR069/OMCI/Web UI O&M	Wi-Fi; 2POTS voice; USB2.0 storage; Smart Wi-Fi coverage; IPTV diagnosis; TR069/OMCI/Web UI O&M

Optional Add-ons

Model Number	Description
HUAWEI-SC-APC-PATCH	Huawei SC/APC single-mode patch cord for connecting HG8245H GPON terminals to ODN outlets
HW-ADAPTER-12V2A-EU	Huawei 12V 2A European AC power adapter for HG8245H series GPON ONTs
HW-WALL-MOUNT-KIT-HG82	Huawei wall-mount bracket kit for HG82xx GPON terminal indoor installations

Quality Certifications

Specification

Huawei H35M8245HCB1 Specification

Model

H35M8245HCB1

Brand

Huawei

Dimensions (H x W x D)

176mm x 138.5mm x 28mm (without an external antenna)

Operating temperature

0°C to +40°C

Operating humidity

5% RH to 95% RH (non-condensing)

Power adapter input

100–240 V AC, 50–60 Hz

System power supply

11–14 V DC, 2 A

Static power consumption

Maximum power consumption

15.5W

Ports

2POTS+4GE+Wi-Fi+USB

Indicators

POWER/PON/LOS/LAN/TEL/USB /WLAN/WPS

GPON Port

· Class B+ · Receiver sensitivity: -27 dBm · Wavelengths: US 1310 nm, DS 1490 nm · WBF · Flexible mapping between GEM Port and TCONT · GPON: consistent with the SN or password authentication defined in G.984.3 · Bi-directional FEC · SR-DBA and NSR-DBA

Ethernet Port

· Ethernet port-based VLAN tags and tag removal · 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission · QinQ VLAN · Limit on the number of learned MAC addresses · MAC address learning

POTS Port

· Maximum REN: 4 · G.711A/μ, G.729a/b and G.722 encoding/decoding · T.30/T.38/G.711 fax mode · DTMF · Emergency calls (with the SIP protocol)

USB Port

· USB2.0 · FTP-based network storage

WLAN

•IEEE 802.11 b/g/n · 2 x 2 MIMO · Antenna gain: 2 dBi · WMM · Multiple SSIDs · WPS

Smart interconnection

· Smart Wi-Fi coverage (V300R015C10) · SIP/H.248 auto-negotiation · Any port any service · Parental control (V300R015C00) · L2/L3(IPv4) forwarding: 1G uplink, 2G downlink

Smart service

· Smart Wi-Fi sharing: Portal/802.1x authentication (V300R015C10) SoftGRE-based sharing (V300R015C10) · Association of one account with two POTS ports

Smart O&M

· IPTV video quality diagnosis (V300R015C10) · Variable-length OMCI messages · Active/Passive rogue ONT detection and isolation · Call emulation, and circuit test and loop-line test · PPPoE/DHCP simulation testing · WLAN emulation

Layer 3 Features

· PPPoE/Static IP/DHCP · NAT/NAPT · Port forwarding · ALG, UPnP · DDNS/DNS server/DNS client · IPv6/IPv4 dual stack, and DS-Lite · Static/Default routes · Multiple services on one WAN port

Multicast

· IGMP v2/v3 proxy(V300R015C00)/snooping · MLD v1/v2 snooping · Multicast services through Wi-Fi

QoS

· Ethernet port rate limitation · 802.1p priority · SP/WRR/SP+WRR · Broadcast packet rate limitation

Security

· SPI firewall · Filtering based on MAC/IP/URL addresses

Common O&M

· OMCI/Web UI/TR069 · Dual-system software backup and rollback

Power Saving

· Dynamic power saving · Indicator power saving · Scheduled Wi-Fi shutdown (V300R015C00)

Weight

500 kg
