main product photo

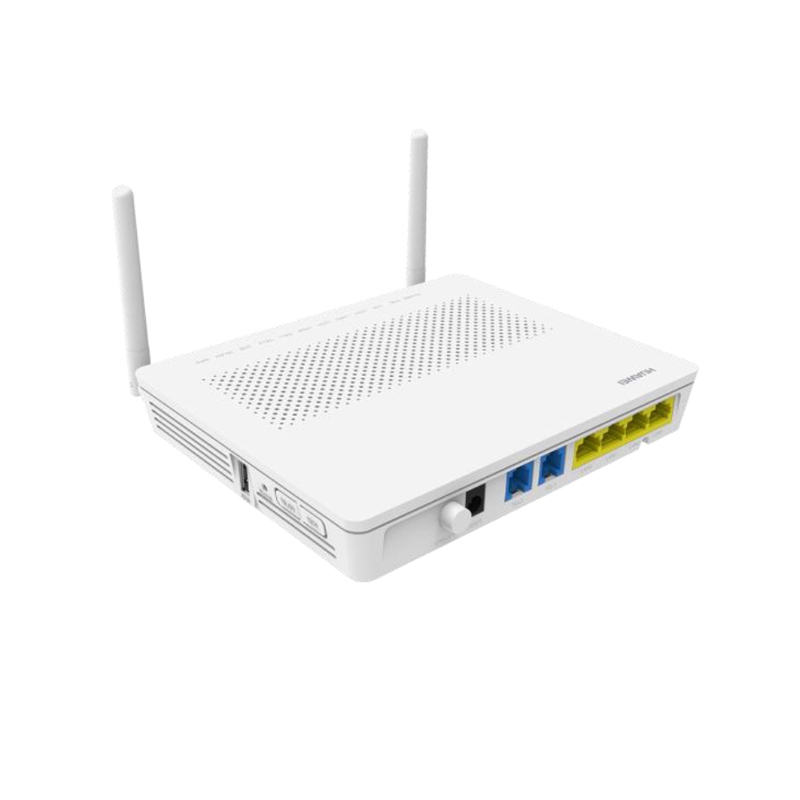

H35M8245HUK1, Huawei HG8245H GPON Terminal, SC/APC, UK Adapter, English

  • Brand: Huawei
  • Model: H35M8245HUK1
Rating:
95%
4.8/5.0
4 Reviews
$511.00
Price Alert ×
H35M8245HUK1, Huawei HG8245H GPON Terminal, SC/APC, UK Adapter, English
H35M8245HUK1, Huawei HG8245H GPON Terminal, SC/APC, UK Adapter, English US$511.00
If you see a better price elsewhere, please let us know and we will work hard to find the product at the better price. We will notify you if the price drops.
Please enter a valid email address.
Please enter your name.
  • 100% Genuine
    100% Genuine
    Original, factory-verified
    3-Year Warranty
    3-Year Warranty
    Extended, enterprise-grade
    23 Years Expertise
    24 Years Expertise
    Proven, deployment-focused
    • Condition
    • Original New
    expert
    Certified Expertise Builds Trust
    CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert
    Talk to an Expert
    • Faster Delivery, Globally Ready

      Faster Delivery, Globally Ready

      20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.

      48H Worldwide Shipping
      10+ Global Warehouses
    • Keep Projects On Time

      Keep Projects On Time

      Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.

      Track Your Order
    • Leading Global Distributor Since 2002

      Leading Global Distributor
      Since 2002

      A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

        21500+ Enterprise Clients Served200+ Countries & Regions Covered
    • Worry-Free Coverage with RSCare

      Worry-Free Coverage with RSCare

      3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.

      Cisco SmartNet
      HPE Foundation Care
      Dell ProSupport
      Juniper Care
      Fortinet Support
    • Your Trusted Genuine Source

      Your Trusted Genuine Source

      Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.

      100% Authentic Products
      100,000+ Multi-Brand SKUs Available
    H35M8245HUK1, Huawei HG8245H GPON Terminal, SC/APC, UK Adapter, English

    H35M8245HUK1, Huawei HG8245H GPON Terminal, SC/APC, UK Adapter, English

    100% Genuine Ready to Ship
    $511.00
    Overview
    Specification
    Reviews
    Q&A
    Warranty
    Download
    Overview

    Huawei H35M8245HUK1 Overview

    Huawei H35M8245HUK1 is a GPON home gateway designed for triple-play broadband access in FTTH deployments. It integrates a Class B+ GPON uplink, four GE LAN ports, dual POTS voice interfaces, 2.4G IEEE 802.11 b/g/n Wi‑Fi, and a USB2.0 port in a compact chassis. Smart Wi‑Fi coverage, any port any service, and rich Layer 3 features such as PPPoE, NAT/NAPT, and IPv6/IPv4 dual stack simplify provisioning for ISPs and integrators while ensuring reliable high-speed access for residential and SOHO users.

    Product Highlights

    4GE
    Gig Ports
    15.5W
    Max Power
    2.4G
    Wi-Fi Band

    Product Applications Scenarios

    Service Providers
    Ideal as a CPE for GPON-based fiber broadband, enabling bundled internet, VoIP, and Wi-Fi while reducing truck rolls through OMCI/TR069 remote management and diagnostics.
    Enterprise Network
    Used as an ONT in branch or campus buildings, it delivers secure VLAN-based segmentation, QoS, and IPv6 routing for IP phones, PCs, and Wi-Fi clients over fiber access.
    Edge & IoT
    Provides low-power GPON backhaul and 4GE downlink for IoT gateways, cameras, and controllers, using VLAN and multicast to optimize bandwidth at the network edge.

    Product Features Comparison

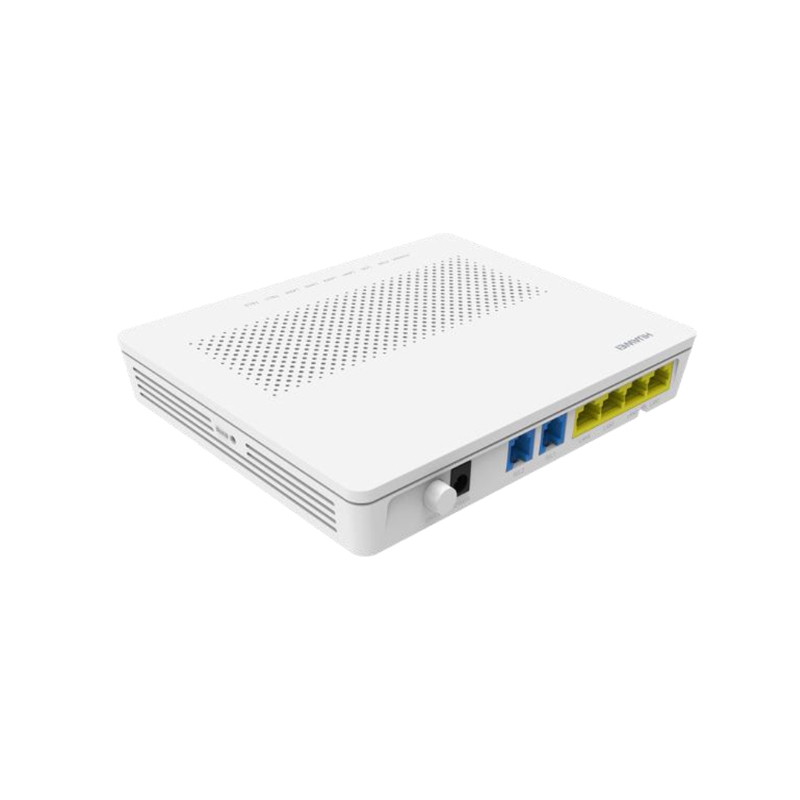

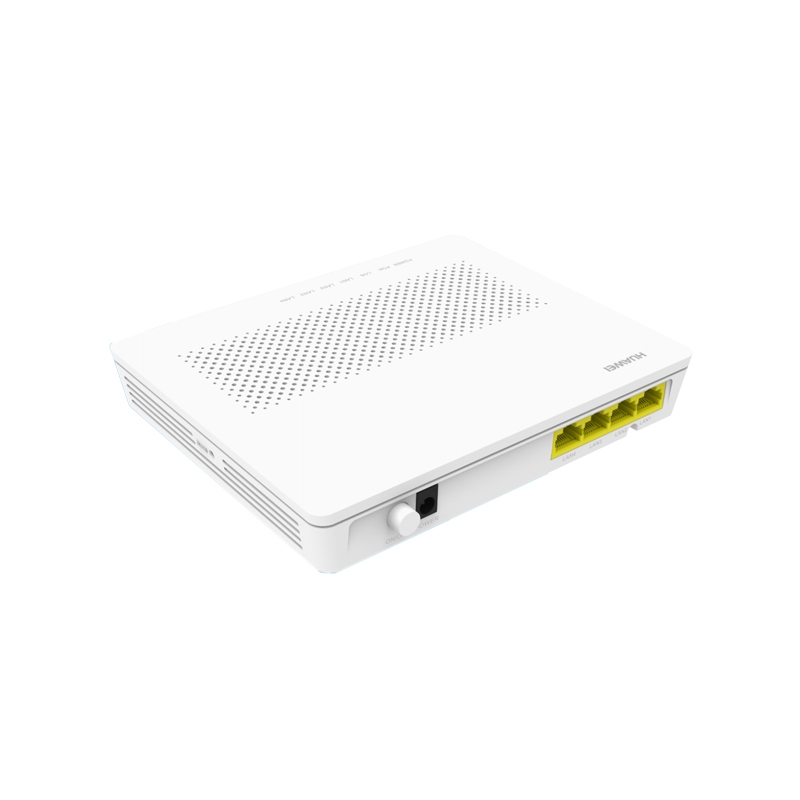

    Huawei Huawei Huawei Huawei
    Model H35M8245HUK1, Huawei HG8245H GPON Terminal, SC/APC, UK Adapter, English H35M8245HEU3, Huawei HG8245H GPON Terminal, European Standard Adapter/English/SC/APC H35M8240HST1, Huawei HG8240H GPON Terminal, SC/APC, South African plug, English H35M8040HMC1, Huawei HG8040H GPON Terminal, SC/APC, UK Adapter, English
    Brand Huawei Huawei Huawei Huawei
    Dimensions (H x W x D) 176mm x 138.5mm x 28mm (without an external antenna) 176mm x 138.5mm x 28mm (without an external antenna) 176mm x 138.5mm x 28mm 176mm x 138.5mm x 28mm
    Operating temperature 0°C to +40°C 0°C to +40°C 0°C to +40°C 0°C to +40°C
    Operating humidity 5% RH to 95% RH (non-condensing) 5% RH to 95% RH (non-condensing) 5% RH to 95% RH (non-condensing) 5% RH to 95% RH (non-condensing)
    Power adapter input 100–240 V AC, 50–60 Hz 100–240 V AC, 50–60 Hz 100–240 V AC, 50–60 Hz 100–240 V AC, 50–60 Hz
    System power supply 11–14 V DC, 2 A 11–14 V DC, 2 A 11–14 V DC, 0.5 A 11–14 V DC, 1 A
    Static power consumption 5W 5W 4W 4W
    Maximum power consumption 15.5W 15.5W 10W 7.5W
    Ports 2POTS+4GE+Wi-Fi+USB 2POTS+4GE+Wi-Fi+USB 4GE + 2POTS 4GE
    Indicators POWER/PON/LOS/LAN/TEL/USB /WLAN/WPS POWER/PON/LOS/LAN/TEL/USB /WLAN/WPS POWER/PON/LOS/LAN/TEL POWER/PON/LOS/LAN
    GPON Port · Class B+ · Receiver sensitivity: -27 dBm · Wavelengths: US 1310 nm, DS 1490 nm · WBF · Flexible mapping between GEM Port and TCONT · GPON: consistent with the SN or password authentication defined in G.984.3 · Bi-directional FEC · SR-DBA and NSR-DBA · Class B+ · Receiver sensitivity: -27 dBm · Wavelengths: US 1310 nm, DS 1490 nm · WBF · Flexible mapping between GEM Port and TCONT · GPON: consistent with the SN or password authentication defined in G.984.3 · Bi-directional FEC · SR-DBA and NSR-DBA • Class B+ • Receiver sensitivity: -27dBm • Wavelengths: US 1310 nm, DS 1490 nm • Wavelength blocking filter (WBF) • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA and NSR-DBA • Class B+ • Receiver sensitivity: -27dBm • Wavelengths: US 1310 nm, DS 1490 nm • Wavelength blocking filter (WBF) • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA and NSR-DBA
    Ethernet Port · Ethernet port-based VLAN tags and tag removal · 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission · QinQ VLAN · Limit on the number of learned MAC addresses · MAC address learning · Ethernet port-based VLAN tags and tag removal · 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission · QinQ VLAN · Limit on the number of learned MAC addresses · MAC address learning • Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit on the number of learned MAC addresses • MAC address learning • Local switching/isolation based on Ethernet ports • Transparent transmission of IPv6 packets at Layer 2 • Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit on the number of learned MAC addresses • MAC address learning • Local switching/isolation based on Ethernet ports • Transparent transmission of IPv6 packets at Layer 2
    POTS Port · Maximum REN: 4 · G.711A/μ, G.729a/b and G.722 encoding/decoding · T.30/T.38/G.711 fax mode · DTMF · Emergency calls (with the SIP protocol) · Maximum REN: 4 · G.711A/μ, G.729a/b and G.722 encoding/decoding · T.30/T.38/G.711 fax mode · DTMF · Emergency calls (with the SIP protocol) • Maximum REN: 4 • G.711A/μ, G.729a/b, and G.722 encoding/decoding • T.30/T.38/G.711 fax mode • DTMF • Emergency calls (with the SIP protocol) n/a
    USB Port · USB2.0 · FTP-based network storage · USB2.0 · FTP-based network storage n/a n/a
    WLAN •IEEE 802.11 b/g/n · 2 x 2 MIMO · Antenna gain: 2 dBi · WMM · Multiple SSIDs · WPS •IEEE 802.11 b/g/n · 2 x 2 MIMO · Antenna gain: 2 dBi · WMM · Multiple SSIDs · WPS n/a n/a
    Smart interconnection · Smart Wi-Fi coverage (V300R015C10) · SIP/H.248 auto-negotiation · Any port any service · Parental control (V300R015C00) · L2/L3(IPv4) forwarding: 1G uplink, 2G downlink · Smart Wi-Fi coverage (V300R015C10) · SIP/H.248 auto-negotiation · Any port any service · Parental control (V300R015C00) · L2/L3(IPv4) forwarding: 1G uplink, 2G downlink • SIP/H.248 auto-negotiation • L2 forwarding: 1G uplink, 2G downlink
    Smart service · Smart Wi-Fi sharing: Portal/802.1x authentication (V300R015C10) SoftGRE-based sharing (V300R015C10) · Association of one account with two POTS ports · Smart Wi-Fi sharing: Portal/802.1x authentication (V300R015C10) SoftGRE-based sharing (V300R015C10) · Association of one account with two POTS ports • Association of one account with two POTS ports • L2 forwarding: 1G uplink, 2G downlink n/a
    Smart O&M · IPTV video quality diagnosis (V300R015C10) · Variable-length OMCI messages · Active/Passive rogue ONT detection and isolation · Call emulation, and circuit test and loop-line test · PPPoE/DHCP simulation testing · WLAN emulation · IPTV video quality diagnosis (V300R015C10) · Variable-length OMCI messages · Active/Passive rogue ONT detection and isolation · Call emulation, and circuit test and loop-line test · PPPoE/DHCP simulation testing · WLAN emulation • Variable-length OMCI messages • Active/Passive rogue ONT detection and isolation • PPPoE/DHCP simulation testing • Call emulation, and circuit test and loop-line test • Variable-length OMCI messages • Active/Passive rogue ONT detection and isolation • PPPoE/DHCP simulation testing
    Layer 3 Features · PPPoE/Static IP/DHCP · NAT/NAPT · Port forwarding · ALG, UPnP · DDNS/DNS server/DNS client · IPv6/IPv4 dual stack, and DS-Lite · Static/Default routes · Multiple services on one WAN port · PPPoE/Static IP/DHCP · NAT/NAPT · Port forwarding · ALG, UPnP · DDNS/DNS server/DNS client · IPv6/IPv4 dual stack, and DS-Lite · Static/Default routes · Multiple services on one WAN port n/a n/a
    Multicast · IGMP v2/v3 proxy(V300R015C00)/snooping · MLD v1/v2 snooping · Multicast services through Wi-Fi · IGMP v2/v3 proxy(V300R015C00)/snooping · MLD v1/v2 snooping · Multicast services through Wi-Fi • IGMP v2/v3 snooping • MLD v1/v2 snooping • Fast leave • VLAN tag translation, transparent transmission, and removal for downstream multicast packets • IGMP/MLD protocol packet rate limitation • IGMP v2/v3 snooping • MLD v1/v2 snooping • Fast leave • VLAN tag translation, transparent transmission, and removal for downstream multicast packets • IGMP/MLD protocol packet rate limitation
    QoS · Ethernet port rate limitation · 802.1p priority · SP/WRR/SP+WRR · Broadcast packet rate limitation · Ethernet port rate limitation · 802.1p priority · SP/WRR/SP+WRR · Broadcast packet rate limitation • Ethernet port rate limitation • 802.1p priority • SP/WRR/SP+WRR • Broadcast packet rate limitation • Flow mapping based on the VLAN ID, port ID, or/and 802.1p • Ethernet port rate limitation • 802.1p priority • SP/WRR/SP+WRR • Broadcast packet rate limitation • Flow mapping based on the VLAN ID, port ID, or/and 802.1p
    Security · SPI firewall · Filtering based on MAC/IP/URL addresses · SPI firewall · Filtering based on MAC/IP/URL addresses • MAC address filtering • MAC address filtering
    Common O&M · OMCI/Web UI/TR069 · Dual-system software backup and rollback · OMCI/Web UI/TR069 · Dual-system software backup and rollback • OMCI/Web UI • Dual-system software backup and rollback • 802.1ag Ethernet OAM • Optical link measurement and diagnosis • Loopback check • OMCI/Web UI • Dual-system software backup and rollback • 802.1ag Ethernet OAM • Optical link measurement and diagnosis • Loopback check
    Power Saving · Dynamic power saving · Indicator power saving · Scheduled Wi-Fi shutdown (V300R015C00) · Dynamic power saving · Indicator power saving · Scheduled Wi-Fi shutdown (V300R015C00) • Indicator power saving • Power consumption reduction of idle components in power-saving state • COCv4 • Indicator power saving • Power consumption reduction of idle components in power-saving state • COCv4
    Weight 500 kg 500 kg n/a n/a

    Optional Add-ons

    Model Number Description
    HUAWEI-SC-APC-PATCH1M Huawei SC/APC single-mode patch cord, 1 m, for connecting HG8245H GPON terminals to ODF sockets
    HW-ONT-WALLBRKT Huawei wall-mount bracket kit for HG824xH series GPON ONT installations
    HW-12V2A-UK-ADPT Huawei 12V 2A UK power adapter compatible with HG8245H home gateway

    Quality Certifications

    • ISO 14001
    • ISO 9001
    • RoHS
    • REACH
    • CE
    • FCC
    Specification

    Huawei H35M8245HUK1 Specification

    Model
    H35M8245HUK1
    Brand
    Huawei
    Dimensions (H x W x D)
    176mm x 138.5mm x 28mm (without an external antenna)
    Operating temperature
    0°C to +40°C
    Operating humidity
    5% RH to 95% RH (non-condensing)
    Power adapter input
    100–240 V AC, 50–60 Hz
    System power supply
    11–14 V DC, 2 A
    Static power consumption
    5W
    Maximum power consumption
    15.5W
    Ports
    2POTS+4GE+Wi-Fi+USB
    Indicators
    POWER/PON/LOS/LAN/TEL/USB /WLAN/WPS
    GPON Port
    · Class B+ · Receiver sensitivity: -27 dBm · Wavelengths: US 1310 nm, DS 1490 nm · WBF · Flexible mapping between GEM Port and TCONT · GPON: consistent with the SN or password authentication defined in G.984.3 · Bi-directional FEC · SR-DBA and NSR-DBA
    Ethernet Port
    · Ethernet port-based VLAN tags and tag removal · 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission · QinQ VLAN · Limit on the number of learned MAC addresses · MAC address learning
    POTS Port
    · Maximum REN: 4 · G.711A/μ, G.729a/b and G.722 encoding/decoding · T.30/T.38/G.711 fax mode · DTMF · Emergency calls (with the SIP protocol)
    USB Port
    · USB2.0 · FTP-based network storage
    WLAN
    •IEEE 802.11 b/g/n · 2 x 2 MIMO · Antenna gain: 2 dBi · WMM · Multiple SSIDs · WPS
    Smart interconnection
    · Smart Wi-Fi coverage (V300R015C10) · SIP/H.248 auto-negotiation · Any port any service · Parental control (V300R015C00) · L2/L3(IPv4) forwarding: 1G uplink, 2G downlink
    Smart service
    · Smart Wi-Fi sharing: Portal/802.1x authentication (V300R015C10) SoftGRE-based sharing (V300R015C10) · Association of one account with two POTS ports
    Smart O&M
    · IPTV video quality diagnosis (V300R015C10) · Variable-length OMCI messages · Active/Passive rogue ONT detection and isolation · Call emulation, and circuit test and loop-line test · PPPoE/DHCP simulation testing · WLAN emulation
    Layer 3 Features
    · PPPoE/Static IP/DHCP · NAT/NAPT · Port forwarding · ALG, UPnP · DDNS/DNS server/DNS client · IPv6/IPv4 dual stack, and DS-Lite · Static/Default routes · Multiple services on one WAN port
    Multicast
    · IGMP v2/v3 proxy(V300R015C00)/snooping · MLD v1/v2 snooping · Multicast services through Wi-Fi
    QoS
    · Ethernet port rate limitation · 802.1p priority · SP/WRR/SP+WRR · Broadcast packet rate limitation
    Security
    · SPI firewall · Filtering based on MAC/IP/URL addresses
    Common O&M
    · OMCI/Web UI/TR069 · Dual-system software backup and rollback
    Power Saving
    · Dynamic power saving · Indicator power saving · Scheduled Wi-Fi shutdown (V300R015C00)
    Weight
    500 kg

    Get more information

    Discover unbeatable prices and fast shipping for the H35M8245HUK1, Huawei HG8245H GPON Terminal, SC/APC, UK Adapter, English . Access the detailed H35M8245HUK1, Huawei HG8245H GPON Terminal, SC/APC, UK Adapter, English datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

    Quality Certifications

    Need Help? Technical Experts Available Now.

    • +1-626-655-0998 (USA)
      UTC 15:00-00:00
    • +852-2592-5389 (HK)
      UTC 00:00-09:00
    • +852-2592-5411 (HK)
      UTC 06:00-15:00
    Get a Quote
    Live Chat
    Need Help? Technical Experts Available Now.
    Q&A

    Questions & Answers

    Are there any additional accessories available for the HG8245H?

    Accessories like additional power adapters, fiber optic cables, and wall-mount kits are available for purchase to enhance installation.

    How does the HG8245H compare with similar products in its category?

    The HG8245H stands out with its robust performance, easy installation, and cost-effectiveness compared to other GPON terminals in the same category.

    Is the HG8245H suitable for both residential and small business applications?

    Yes, the HG8245H is designed to cater to both residential and small business needs with high-speed internet and reliable VoIP services.
