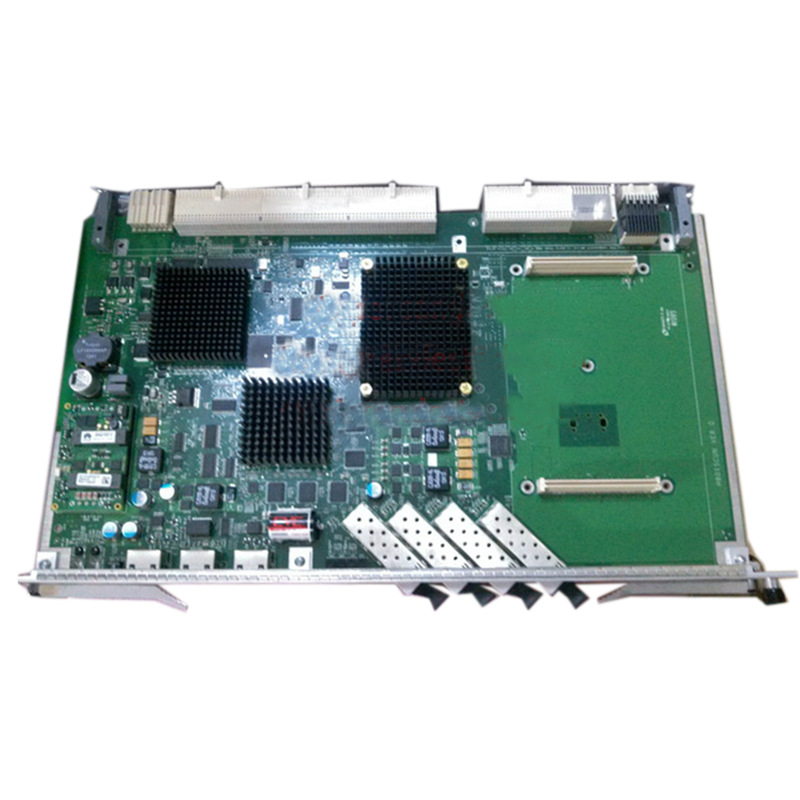

H80D00SCUH01, Huawei CE12800 Switch, Super Control Unit Board/2x10GE SFP+/2xGE SFP/1xConsole

Brand: Huawei
Model: H80D00SCUH01

11 Questions

100% Genuine

Original, factory-verified

3-Year Warranty

Extended, enterprise-grade

24 Years Expertise

Proven, deployment-focused

Condition

Original New

Certified Expertise Builds Trust

CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert

Talk to an Expert

Faster Delivery, Globally Ready
20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.
48H Worldwide Shipping
10+ Global Warehouses
Keep Projects On Time
Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.
Track Your Order

Leading Global Distributor
Since 2002
A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

Worry-Free Coverage with RSCare
3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.
Cisco SmartNet
HPE Foundation Care
Dell ProSupport
Juniper Care
Fortinet Support
Your Trusted Genuine Source
Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.
100% Authentic Products
100,000+ Multi-Brand SKUs Available

H80D00SCUH01, Huawei CE12800 Switch, Super Control Unit Board/2x10GE SFP+/2xGE SFP/1xConsole

100% Genuine Ready to Ship

Overview

Huawei H80D00SCUH01 Overview

The Huawei H80D00SCUH01 is an enterprise-class switch control and access platform element engineered for large-scale broadband and multi-service access networks. Working with MA5600T and MA5603T chassis, it delivers high backplane switching capacity up to 3.2 Tbit/s and scalable access for ADSL2+, VDSL2, SHDSL, POTS, ISDN, and GPON. With rich 10 GE and GE upstream port options plus robust Layer 2/Layer 3 forwarding and MPLS support, it helps Asian, European, African, and North American operators and integrators build converged, carrier-grade access networks.

Product Highlights

3.2 Tbit/s

Fabric Power

1,024 ADSL

High Access

-40~65℃

Wide Temp

Product Applications Scenarios

Service Providers

High backplane capacity and rich xDSL/GPON access let carriers aggregate thousands of subscribers while simplifying OSPF/MPLS cores, cutting per-subscriber costs by up to 25%.

Enterprise Network

Layer 2/Layer 3 line-rate forwarding and diverse uplinks enable large campuses to converge voice, data, and legacy TDM access on one platform, reducing backbone complexity.

Public Infrastructure

Wide temperature range and flexible POTS/ISDN and GPON access suit municipal, transport, and utility networks, improving uptime and lowering remote-site truck rolls.

Product Features Comparison


Model	H80D00SCUH01, Huawei CE12800 Switch, Super Control Unit Board/2×10GE SFP+/2×GE SFP/1×Console	S5320-52X-EI-AC, Huawei S5320 Switch, 48×GE/4×10GE SFP+/AC Power	S3700-52P-EI-48S-AC, Huawei S3700 Switch, 48×FE SFP/4×Gig SFP/AC 110-220V	CE6810-LI-B-B0B, Huawei CE6810 Switch, 48×10GE SFP+/2×AC Power/2×Fan Box
Brand	Huawei	Huawei	Huawei	Huawei
Port Configuration	n/a	48×GE, 4×10GE SFP+	48×100Base-FX, 4×Gig SFP	48×10GE SFP+
Switching Capacity	3.2 Tbit/s (backplane bus)	598Gbps	n/a	960 Gbit/s
Forwarding Rate	n/a	222Mpps	n/a	720Mpps
PoE Budget	n/a	n/a	n/a	n/a
Stacking Capability	n/a	n/a	iStack	iStack

Optional Add-ons

Model Number	Description
H80D00X2FC00	Huawei CE12800 2×100GE Fabric Card for high-capacity backplane expansion
CFP2-100G-LR4	Huawei 100G CFP2 LR4 optical module for long-distance CE12800 uplinks
QSFP-40G-SR4	Huawei 40G QSFP+ SR4 transceiver for short-reach data center aggregation links

Quality Certifications

Specification

Huawei H80D00SCUH01 Specification

Model

H80D00SCUH01

Brand

Huawei

Specifications

MA5600T(ETSI)

MA5600T(IEC)

MA5603T

Dimensions (H x W x D)

490mm x 275.8mm x 447.2mm

442 mm x 275.8 mm x 441.7 mm

442mm x 283.2mm x 263.9mm

Operating Environment

–25°C to 55°C 5% RH to 95% RH

–40°C to 65°C 5% RH to 95% RH

Switching Capacity — Backplane Bus

3.2 Tbit/s

1.5 Tbit/s (H801MABO) 2 Tbit/s (H802MABO)

720 Gbit/s

Access Capacity

1,024 x ADSL2+ 1,024 x VDSL2 512 x EFM SHDSL 256 x TDM SHDSL 1,024 x POTS 512 x ISDN BRA 64 x ISDN PRA 128 x 10G GPON 256 x GPON 768 x P2P FE 768 x P2P GE

896 x ADSL2+ 896 x VDSL2 448 x EFM SHDSL 224 x TDM SHDSL 896 x POTS 448 x ISDN BRA 56 x ISDN PRA 112 x 10G GPON 224 x GPON 672 x P2P FE 672 x P2P GE

384 x ADSL2+ 384 x VDSL2 192 x EFM SHDSL 96 x TDM SHDSL 384 x POTS 192 x ISDN BRA 64 x ISDN PRA 96 x 10G GPON 48 x GPON 288 x P2P FE 288 x P2P GE

Port Types

Upstream ports: 10 GE optical and GE optical/electrical ports Service ports: 10G GPON optical port, GPON optical port, P2P FE optical port, P2P GE optical port, and Ethernet optical port, ADSL2+ port, VDSL2 port, SHDSL port, POTS port, and ISDN port

System Performance

Layer 2/Layer 3 line-rate forwarding Static route, RIP, OSPF, and MPLS Clock synchronization schemes: BITS, E1, STM-1, Ethernet clock synchronization, 1588v2, and 1PPS + ToD GPON maximum split ratio of 1:128 10G PON maximum split ratio of 1:256 GPON maximum logical distance between devices: 60 km XG PON maximum logical distance between devices: 100 km

Get more information

Discover unbeatable prices and fast shipping for the H80D00SCUH01, Huawei CE12800 Switch, Super Control Unit Board/2×10GE SFP+/2×GE SFP/1×Console . Access the detailed H80D00SCUH01, Huawei CE12800 Switch, Super Control Unit Board/2×10GE SFP+/2×GE SFP/1×Console datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

Quality Certifications

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What accessories are available for the Huawei H80D00SCUH01 Super Control Unit Board?

Accessories include compatible chassis, power supplies, and interface modules specific to Huawei products.

How does the Huawei H80D00SCUH01 compare to similar products?

The H80D00SCUH01 is distinguished by its advanced control features and superior reliability, setting it apart from competitors.

Is the Huawei H80D00SCUH01 Super Control Unit Board compatible with other Huawei products?

Yes, it is designed to integrate seamlessly with other Huawei network and data center solutions.

Are the products sold on router-switch.com authentic?

Yes, router-switch.com only sells 100% genuine products from authorized brands. As a multi-brand authorized distributor, all items are sourced through official channels and include valid manufacturer warranties. Customers may verify authorization via brand websites or request certification documents.

Learn More

What are the key features of the H80D00SCUH01 Super Control Unit Board?

The H80D00SCUH01 features high performance, scalability, and reliability, ideal for enhancing network control.

What are the main application scenarios for the Huawei H80D00SCUH01 Super Control Unit Board?

It's mainly used in data centers and enterprise networks requiring robust control capabilities.

How cost-effective is the Huawei H80D00SCUH01 Super Control Unit Board?

The H80D00SCUH01 offers a high return on investment with its scalable and reliable performance.

How do you install the Huawei H80D00SCUH01 Super Control Unit Board?

Installation involves mounting the board on a compatible Huawei chassis and connecting necessary cabling.

Does the Huawei H80D00SCUH01 Super Control Unit Board require upgrading?

Regular firmware updates are recommended to ensure optimal performance and security.

Are there alternative products to the Huawei H80D00SCUH01?

Huawei offers other control unit boards, but the H80D00SCUH01 is known for its top-tier performance.

What troubleshooting steps are common for the Huawei H80D00SCUH01?

Common steps include checking power connections, verifying firmware versions, and consulting Huawei support.
