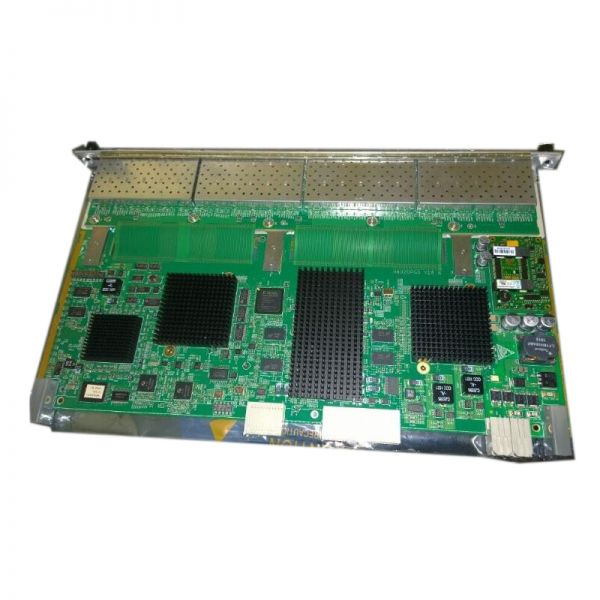

H80BVCMM1, Huawei H80B Series VDSL2 Service Board, 48 VDSL2 ports/Line protection/Vector

100% Genuine Ready to Ship

Overview

Huawei H80BVCMM1 Overview

The Huawei H80BVCMM1 is a carrier-grade VDSL2 service board for MA5600T/MA5800 access platforms, delivering high-density copper broadband for telecom operators and ISPs. Supporting up to 384 x VDSL2 and multiple legacy interfaces, it enables smooth migration from ADSL2+ and SHDSL to advanced VDSL2 services. With a robust –40°C to 65°C operating range, dual-power supply protection, and up to 2 Tbit/s backplane switching capacity, this module ensures reliable triple-play and business access across Asia, Europe, Africa, and North America.

Product Highlights

384 VDSL2

VDSL2 Ports

2 Tbit/s

Backplane

-40~65°C

Wide Temp

Product Applications Scenarios

Service Providers

The H80BVCMM1 lets carriers deliver high-density VDSL2 and POTS over existing copper, cutting last-mile upgrade costs by up to 40% while ensuring stable triple-play access.

Enterprise Network

Enterprises and campus networks can aggregate multiple VDSL2, SHDSL, and POTS lines on one board, simplifying backhaul and reducing rack space in central rooms.

Public Infrastructure

Ideal for municipalities and utilities modernizing legacy copper, it supports mixed VDSL2, ISDN, and POTS services with extended temperature tolerance for field cabinets.

Product Features Comparison


Model	H80BVCMM1, Huawei H80B Series VDSL2 Service Board, 48 VDSL2 ports/Line protection/Vector	H80D00GPFD22, Huawei OLT Board, 16×GPON ports	H901GPHF03, Huawei OLT Interface Board, 16-port GPON, Class B+ SFP, Advanced Module	ES5D00X2SA00, Huawei S5700HI Switch, 2×10GE SFP+, Interface Card
Brand	Huawei	Huawei	Huawei	Huawei
Module Type	n/a	n/a	Interface Card	Interface Card
Port Configuration	384 x ADSL2+ 384 x VDSL2 192 x EFM SHDSL 96 x TDM SHDSL 384 x POTS 192 x ISDN BRA 64 x ISDN PRA 96 x 10G GPON 48 x GPON 288 x P2P FE 288 x P2P GE	1,024 x ADSL2+ 1,024 x VDSL2 512 x EFM SHDSL 256 x TDM SHDSL 1,024 x POTS 512 x ISDN BRA 64 x ISDN PRA 128 x 10G GPON 256 x GPON 768 x P2P FE 768 x P2P GE	112 x GPON/EPON 336 x GE/FE 56 x 10G GPON/10G EPON 56 x 10G GE 224 x E1	Ports 2 Port Type 10 Gig SFP+
Supported Speed	n/a	n/a	Maximum Number of Ports in a Subrack 56 x 10G GPON/10G EPON 56 x 10G GE	Maximum Data Transfer Rate 10Gbps
Compatible Platform	n/a	Specifications MA5600T(ETSI) MA5600T(IEC) MA5603T	Product Series MA5800-X7	Compatible Series S5700HI Series
Installation Type	n/a	n/a	n/a	Mount Type Hot swappable

Optional Add-ons

Model Number	Description
H80D00GPFD22	Huawei GPON OLT board for MA5600T, complements H80BVCMM1 in fiber access deployments.
H901GPHF03	Huawei 16-port advanced GPON OLT interface board, used with MA5800 to extend fiber access.
ES0W2PSA0150	Huawei 150W AC power module for S5700 and related access infrastructure power redundancy.

Quality Certifications

Specification

Huawei H80BVCMM1 Specification

Model

H80BVCMM1

Brand

Huawei

Dimensions (H x W x D)

442mm x 283.2mm x 263.9mm

Operating Environment

–40°C to 65°C 5% RH to 95% RH

Power Supply

Dual-power supply protection Operating voltage range of –38.4V to –72V

Switching Capacity — Backplane Bus

1.5 Tbit/s (H801MABO) 2 Tbit/s (H802MABO)

Access Capacity

384 x ADSL2+ 384 x VDSL2 192 x EFM SHDSL 96 x TDM SHDSL 384 x POTS 192 x ISDN BRA 64 x ISDN PRA 96 x 10G GPON 48 x GPON 288 x P2P FE 288 x P2P GE

Port Types

Upstream ports: 10 GE optical and GE optical/electrical ports Service ports: 10G GPON optical port, GPON optical port, P2P FE optical port, P2P GE optical port, and Ethernet optical port, ADSL2+ port, VDSL2 port, SHDSL port, POTS port, and ISDN port

System Performance

Layer 2/Layer 3 line-rate forwarding Static route, RIP, OSPF, and MPLS Clock synchronization schemes: BITS, E1, STM-1, Ethernet clock synchronization, 1588v2, and 1PPS + ToD GPON maximum split ratio of 1:128 10G PON maximum split ratio of 1:256 GPON maximum logical distance between devices: 60 km XG PON maximum logical distance between devices: 100 km

Get more information

Discover unbeatable prices and fast shipping for the H80BVCMM1, Huawei H80B Series VDSL2 Service Board, 48 VDSL2 ports/Line protection/Vector . Access the detailed H80BVCMM1, Huawei H80B Series VDSL2 Service Board, 48 VDSL2 ports/Line protection/Vector datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

Quality Certifications

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What accessories are available for the H80BVCMM1?

Accessories may include additional line protection modules, cable management kits, and mounting hardware specific to Huawei service boards.

How does the H80BVCMM1 compare to other similar products?

The H80BVCMM1 stands out for its high port density, integrated vectoring, and reliable line protection, offering superior performance compared to basic VDSL2 boards.

How can I optimize the performance of the H80BVCMM1?

To optimize performance, ensure proper line conditions, regular maintenance, and firmware updates, and utilize vectoring to reduce noise and increase speeds.

Are the products sold on router-switch.com authentic?

Yes, router-switch.com only sells 100% genuine products from authorized brands. As a multi-brand authorized distributor, all items are sourced through official channels and include valid manufacturer warranties. Customers may verify authorization via brand websites or request certification documents.

Learn More

What is the application scenario of the H80BVCMM1?

The H80BVCMM1 48-Port VDSL2 Service Board is ideal for deployment in dense urban areas where high-speed internet and strong line protection are crucial.

How cost-effective is the H80BVCMM1 48-Port VDSL2 Service Board?

The H80BVCMM1 combines high port density with advanced vectoring technology, providing excellent cost-efficiency for large-scale deployments.

What are the key features of the H80BVCMM1?

The H80BVCMM1 features 48 VDSL2 ports, built-in line protection, and Vectoring technology to minimize crosstalk and optimize bandwidth.

How do I install the H80BVCMM1 VDSL2 Service Board?

Installation involves mounting the service board in a compatible Huawei chassis, connecting the VDSL2 lines, and configuring through the network management system.

Does the H80BVCMM1 require any software upgrades?

Yes, to ensure optimal performance and security, regularly check for firmware updates for the H80BVCMM1 through the Huawei support portal.

Are there alternative products to the H80BVCMM1?

Alternatives might include other Huawei service boards like the 48-Port G.Fast Service Board, depending on specific bandwidth and deployment needs.

What common troubleshooting steps are recommended for the H80BVCMM1?

Common troubleshooting includes checking physical connections, verifying firmware versions, and resetting the board to factory settings if issues persist.
