H809EPBD01, Huawei OLT Board, 8xEPON ports/PX20+/Interface board

100% Genuine Ready to Ship

Overview

Huawei H809EPBD01 Overview

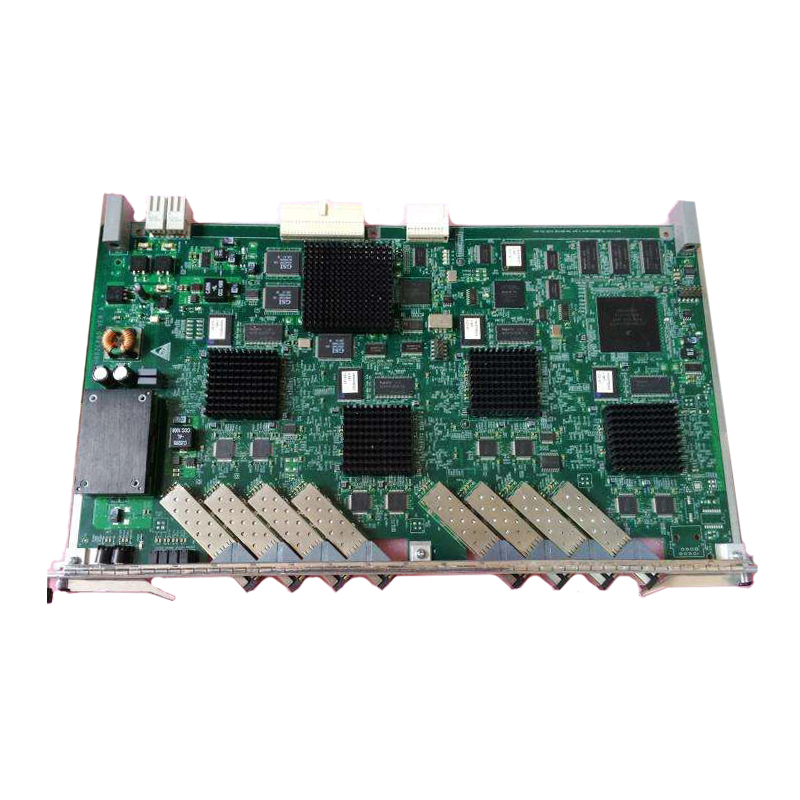

The Huawei H809EPBD01 is a carrier-grade OLT interface board designed for high-density EPON and GPON access in fiber broadband networks. It delivers up to 720 Gbit/s backplane switching capacity and supports rich access capacity including 10G GPON, GPON, P2P FE, and P2P GE, ideal for Asian, European, African, and North American service providers. With dual-power protection, wide temperature tolerance, and full Layer 2/Layer 3 line-rate forwarding, this Huawei module enables scalable FTTx deployments for ISPs, distributors, and enterprise integrators.

Product Highlights

720Gbit/s

Backplane

1:256

PON Split

-40~65℃

Outdoor Fit

Product Applications Scenarios

Service Providers

High-density EPON and GPON ports let carriers aggregate thousands of subscribers on one OLT, cutting central office footprint and reducing per-line deployment costs by up to 30% in FTTx rollouts.

Enterprise Network

Layer 2/Layer 3 line-rate forwarding and rich P2P GE access enable large campuses to consolidate fiber access, simplify aggregation, and improve uptime for critical business services.

Public Infrastructure

Wide temperature range and dual-power inputs make it suitable for metro, municipal, and utility networks, ensuring resilient broadband backhaul in harsh outdoor cabinets.

Product Features Comparison

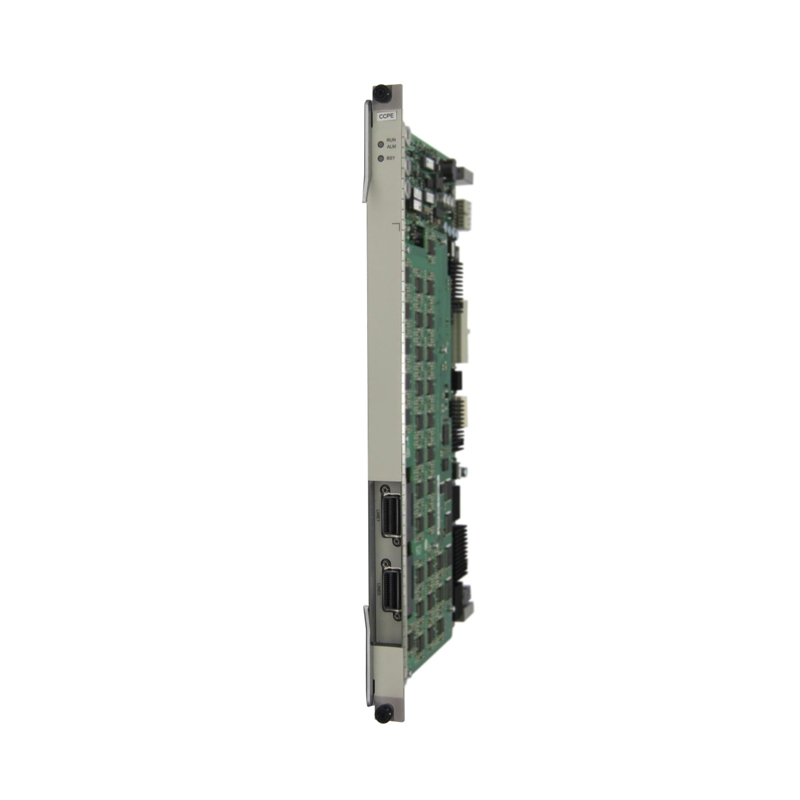

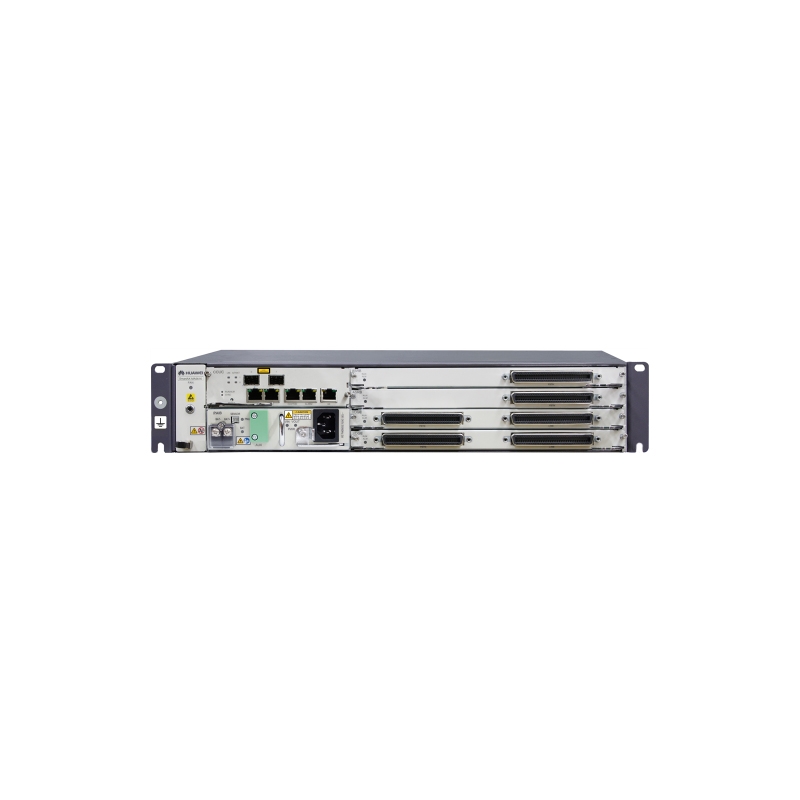

Model	H809EPBD01, Huawei OLT Board, 8×EPON ports/PX20+/Interface board	H80D00GPFD03, Huawei OLT Interface Board, 16×GPON ports/ClassC++ SFP/Optical Module Included	H80DCCPE, Huawei SmartAX MA5600T Series, 64-port VDSL2&POTS Combo Board	H83D07ASPB01, Huawei ZALINK Subscriber Board, 64 POTS ports/High density/Voice access
Brand	Huawei	Huawei	Huawei	Huawei
Module Type	Module	Module	Module	Module
Port Configuration	n/a	n/a	n/a	Network-side Ports / User-side Ports
Supported Speed	720 Gbit/s Switching Capacity — Backplane Bus	3.2 Tbit/s Switching Capacity — Backplane Bus	3.2 Tbit/s Switching Capacity — Backplane Bus	n/a
Compatible Platform	n/a	MA5600T(ETSI) / MA5600T(IEC) / MA5603T	MA5600T(ETSI) / MA5600T(IEC) / MA5603T	MA5616
Installation Type	n/a	n/a	n/a	n/a

Optional Add-ons

Model Number	Description
H80D00GPFD03	Huawei GPON OLT interface board, ideal as additional GPON uplink for MA5600T platforms alongside H809EPBD01.
H83D07ASPB01	Huawei 64-port POTS subscriber board providing high-density voice access to complement EPON broadband services.
AR0MPSAR15A	Huawei 150W RPS power module delivering redundant AC power for routers and access equipment in the same network.

Quality Certifications

Specification

Huawei H809EPBD01 Specification

Model

H809EPBD01

Brand

Huawei

Dimensions (H x W x D)

442mm x 244.5mm x 88.1mm

Operating Environment

–40°C to 65°C 5% RH to 95% RH

Power Supply

Dual-power supply protection DC power supply: -38.4V to -72V AC power supply: 100V to 240V

Switching Capacity — Backplane Bus

720 Gbit/s

Access Capacity

16 x 10G GPON 48 x GPON 96 x P2P FE 96 x P2P GE

Port Types

Upstream ports: 10 GE optical and GE optical/electrical ports Service ports: 10G GPON optical port, GPON optical port, P2P FE optical port, P2P GE optical port, and Ethernet optical port, ADSL2+ port, VDSL2 port, SHDSL port, POTS port, and ISDN port

System Performance

Layer 2/Layer 3 line-rate forwarding Static route, RIP, OSPF, and MPLS Clock synchronization schemes: BITS, E1, STM-1, Ethernet clock synchronization, 1588v2, and 1PPS + ToD GPON maximum split ratio of 1:128 10G PON maximum split ratio of 1:256 GPON maximum logical distance between devices: 60 km XG PON maximum logical distance between devices: 100 km

Get more information

Discover unbeatable prices and fast shipping for the H809EPBD01, Huawei OLT Board, 8×EPON ports/PX20+/Interface board . Access the detailed H809EPBD01, Huawei OLT Board, 8×EPON ports/PX20+/Interface board datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].
