WS-C4500X-F-32SFP+

5 4
5/5.0
4 Review(s)
Model: WS-C4500X-F-32SFP+ - Cisco Catalyst 4500-X Series Switch
Detail: Catalyst 4500-X 32 Port 10GE IP Base, Back-to-Front Cooling, No P/S
List Price: US$29,400.00
Price: $9,408.00
You save: US$19,992.00 (68% OFF)
Condition: Brand New Sealed
Availability: In stock
Shipping:
Express Shipping to Ashburn, VA, United States
2-6 Days, via DHL, FedEx, EMS, etc. ?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
US$ 9,408.00 In stock Brand New Sealed
OR

WS-C4500X-F-32SFP+ SMARTnet Service Tool

Order Cisco SMARTnet Warranty? Fast Quote Now

Ask Our Experts

Live Chat | Email

  • +1-626-239-8066 (USA)
  • +852-3174-6166 (HK)
  • +852-3050-1066 (Fax)
Get Quotes up to
2x Faster
Project Inquiry
Overview

Overview (WS-C4500X-F-32SFP+)

WS-C4500X-F-32SFP+ is one of the Catalyst 4500-X series switches. The Catalyst 4500-X series switch is a fixed aggregation switch that delivers best-in-class scalability, simplified network virtualization, and integrated network services for space-constrained environments in campus networks.

Quick Specs

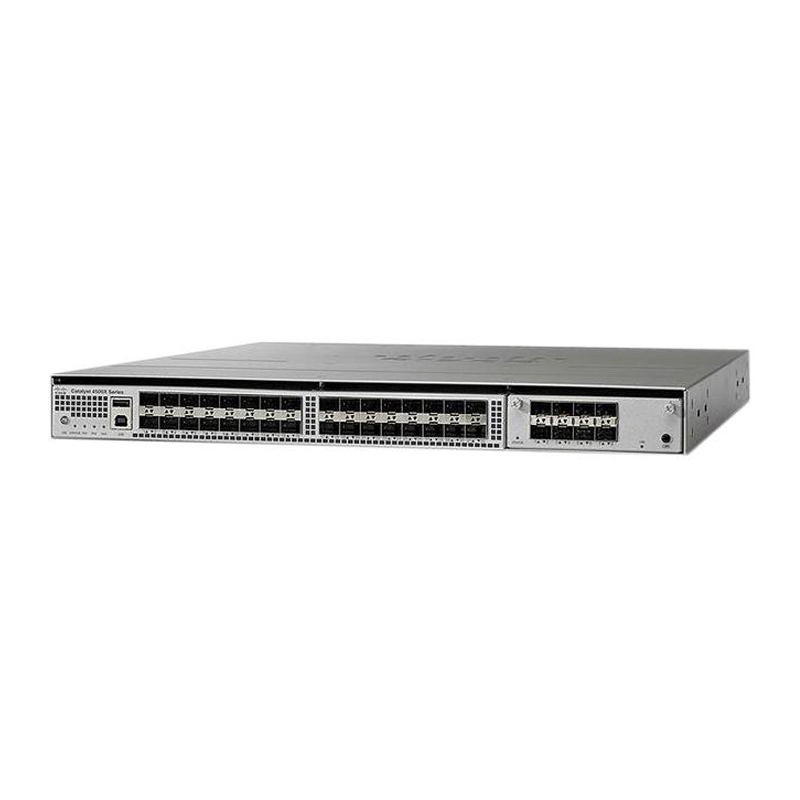

Figure 1 shows the appearance of WS-C4500X-F-32SFP+.

WS-C4500X-F-32SFP+ Appearance

Table 1 shows the Quick Specs.

Product Code

WS-C4500X-F-32SFP+

Ports

32 × 1G or 10G Ethernet ports (requires either SFP or SFP+ transceivers)

Uplink Module Slot

1Expansion Module (Optional): 8x10 GE SFP+/SFP - C4KX-NM-8SFP+

Management Port

10/100/1000 Base-T

USB Port

Type A (storage and boot) up-to 4 GB

Dual Power Supply

Yes

Field Replaceable Fans

Yes (5 fans)

Fan Redundancy

No performance impact with single fan failure

System Throughput

Up to 800 Gbps

Forwarding Entries

32x10 GE Port Base SKU: IPv4: 256K, IPv6: 128K

Flexible Netflow Entries

128K

Onboard Memory (SRAM DDR-II)

4 GB

Port Buffers

32-MB Shared Memory

CPU

Dual Core 1.5 GHz

NVRAM

2 GB

Optional External Memory (SD Card)

2 GB

System Power Consumption

330W nominal/400W max

·Power supplies, either AC-input or DC-input, are not included in the basic configuration; they are ordered separately

Airflow

Back-to-front airflow (fan assemblies and the power supplies are color coded blue)

Chassis dimensions (H x W x D)

1.75 x 17.25 x 21 in. (4.4 x 43.8 x 53.3 cm) (H x W x D)

Chassis weight

19 lb (8.62 kg) (without power supplies)
21 lb (9.53 kg) (with one power supply installed)
23 lb (10.43 kg) (with two power supplies installed)

Product Details

Figure 2 shows the front panel of WS-C4500X-F-32SFP+.

WS-C4500X-F-32SFP+ Front Panel

Note:

UID LED and switch combination

STATUS LED

PS1 LED

PS2 LED

FAN LED

USB ports (2 ports) Top port is a Type A connector; bottom port is a Type B connector

Ethernet ports (32 port version shown)

Note The 16 port version of the chassis does not have the block of 16 ports on the right side of the front panel. Ethernet ports require either an SFP or an SFP+ transceiver to operate.

Port status LEDs (1 LED per port)

8-port uplink module (part no. C4KX-NM-8SFP+) (Included as part of the WS-C4500X-24ES and WS-C4500X-40ES chassis; available as an optional upgrade on the other Catalyst 4500-X series chassis)

Figure 3 shows the back panel of WS-C4500X-F-32SFP+ with installed AC-input power supply. No power supply is included in this product. Need to order a power supply in addition.

WS-C4500X-F-32SFP+ Back Panel

Note:

SECURE DIGITAL  port

CONSOLE  port

10/100/1000 MGT port

Fan assemblies (5 assemblies)

Chassis ground pad

Power supply bay (AC-input power supply shown installed)

Power supply bay (AC-input power supply shown installed)



The Accessories

Table 2 shows the recommended elements for the WS-C4500X-F-32SFP+.

Category

Model

Description

Power Supplies



C4KX-PWR-750AC-F/2

Catalyst 4500X 750W AC back to front cooling 2nd power supply

License



C4500X-IP-ES

IP Base to Ent. Services license for 32 Port Catalyst 4500-X

CARD



C4KX-NM-8SFP+

Catalyst 4500X 8 Port 10G Network Module

Console Cable

CAB-CONSOLE-RJ45

Console Cable 6ft with RJ45 and DB9F

1G SFP



GLC-SX-MMD

1000BASE-SX SFP transceiver module, MMF, 850nm, DOM

GLC-LH-SMD

1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM



GLC-T

1000BASE-T SFP



GLC-BX-U

1000BASE-BX SFP, 1310NM



GLC-BX-D

1000BASE-BX SFP, 1490NM

GLC-ZX-SMD

1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM

10G SFP



SFP-10G-SR

10GBASE-SR SFP Module

SFP-10G-LRM

10GBASE-LRM SFP Module

SFP-H10GB-CU3M

10GBASE-CU SFP+ Cable 3 Meter



Compare to Similar Items

Table 3 shows the comparison of WS-C4500X-F-32SFP+ and WS-C4500X-16SFP+.

Model

WS-C4500X-F-32SFP+

WS-C4500X-16SFP+

Ports

32 × 1G or 10G Ethernet ports (requires either SFP or SFP+ transceivers)

16 × 1G or 10G Ethernet ports (requires either SFP or SFP+ transceivers)

Base System

Back to Front Airflow

Front to Back Airflow

MTBF Information

199,720 h

209,330 h

Fan assemblies

5 assemblies

(fan assemblies and the power supplies are color coded blue)

5 assemblies

(fan assemblies and the power supplies are color coded burgundy)

Get More Information

Do you have any question about the WS-C4500X-F-32SFP+?

Contact us now via Live Chat or sales@router-switch.com.

Specification

Specification (WS-C4500X-F-32SFP+)

WS-C4500X-F-32SFP+ Specification

System

Base System

Back to Front Airflow:

●  32x10 GE SFP+/SFP - WS-C4500X-F-32SFP+

Management Port

10/100/1000 Base-T

USB Port

Type A (storage and boot) up-to 4 GB

Dual Power Supply

Yes

Field Replaceable Fans

Yes (5 fans)

Fan Redundancy

No performance impact with single fan failure

Scalability

System Throughput

Up to 800 Gbps

IPv4 Routing in Hardware

Up to 250 Mpps

IPv6 Routing in Hardware

Up to 125 Mpps

L2 Bridging in Hardware

Up to 250 Mpps

Media Access Control (MAC) Entries

55K

Forwarding Entries

32x10 GE Port Base SKU: IPv4: 256K, IPv6: 128K

Flexible Netflow Entries

128K

Switched Port Analyzer (SPAN), Remote Switched Port Analyzer (RSPAN)

8 line rate bidirectional sessions (ingress and egress)

Total VLANs

4094

Total Switched Virtual Interfaces (SVIs)

4094

IGMP groups

32K

Multicast routes

32x10 GE Port Base SKU: IPv4: 32K, IPv6: 32K

Dynamic Host Configuration Protocol (DHCP) Snooping Entries

12K (DHCP snooping bindings)

ARP Entries

47K

Spanning Tree Protocol Instances

10K

Jumbo Frame Support for Bridged and Routed Packets

Up to 9216 bytes

High Availability and Resiliency

High Availability Solution

Virtual Switching System (VSS)

Number of stackable switches in VSS

Up to 2

VSS Throughput

Up to 1.6 Tbps

Virtual Switch Link

1GE or 10GE

Max number of Virtual Switch Links

8

In-Service Software Upgrade

Across the switches

Nonstop Forwarding with Stateful Switchover

Across the switches

CPU and Memory

Onboard Memory (SRAM DDR-II)

4 GB

Port Buffers

32-MB Shared Memory

CPU

Dual Core 1.5 GHz

NVRAM

2 GB

Optional External Memory (SD Card)

2 GB

QoS Features

Port Queues

8 Queues/Port

CPU Queues

64

QoS Entries

128K (64K ingress and 64K in egress) Shared with ACL

Aggregate Rate-Limiting

Ingress port or VLAN and egress VLAN or Layer 3 port

Rate-Limiting Level Types

Committed Information Rate (CIR), Peak Information Rate (PIR)

Aggregate Traffic Rate-Limiting Policers (1K=1024)

16K

Flow-Based Rate-Limiting Method; Number of Rates

Supported using flow-records in the classification criteria and policing action

Qos Policy Enforcement

Per Port or Per Vlan or Per Port, Per VLAN Granularity

Class of Service (CoS)

Yes

Differentiated Services Code Point (DSCP)

Yes

Security Features

Port Security

Yes

IEEE 802.1x and 802.1x Extensions

Yes

VLAN, Router, and Port ACLs

Yes

Security ACL Entries (1K=1024)

128K (64K ingress and 64K in egress) Shared with QoS

Unicast Reverse Path Forwarding (uRPF) Check in Hardware

Yes

CPU Rate Limiters (DoS Protection) Includes Control Plane Policing

Yes

Private VLANs

Yes

Micro Flow Policer

Yes. Supported using flow records in the class-map

CPU HW Rate Limiters by Packet Per Second (pps) and Bit Rate Policers (bps)

Supported in hardware control-plane policing (CoPP)

Control Plane Policing (CoPP) for Multicast

Yes

ACL Labels

Yes

Port ACL

Yes

Traffic Storm Control (formally known as Broadcast/Multicast Suppression)

Yes

Virtualization Features

VRF-Lite Scalability

64

Easy Virtual Network (EVN) Scalability

32

Environmental Conditions

Operating Temperature

0°C to 40°C (RH to 90%)

Storage Temperature

-40°C to 70°C (RH 93%)

Operating Altitude

60m below sea level to 3000m above sea level

Relative Humidity

Nonoperating Humidity: 95% RH

Acoustic Noise Measured per ISO 7779 and Declared per ISO 9296 Bystander Positions Operating to an Ambient Temperature of 25°C

Industrial Product: 65 dBA maximum

RoHS

Reduction of Hazardous Substances (ROHS) 5

Power Supply

AC Power Max Rating

750W

System Power Consumption

330W nominal/400W max

Input-Voltage Range and Frequency

AC 100 to 240 VAC 50-60 Hz/DC -72 VDC to -40 VDC

DC Power Max Rating

750W

AC to DC failover and vice versa

Yes

Total Output BTU (Note: 1000 BTU/hr = 293W)

1122 BTU/hr (330 W) nominal/1365 BTU/hr (400 W) max

Input Current

AC 11A @ 110VAC, 6 A @ 200VAC/DC 25A Max

Output Ratings

12V @ 62A & 3.3V @ 3A

Output Holdup Time

AC = 16 ms; DC = 4 ms @ maximum load

Power-Supply Input Receptacles

AC IEC 60320 C15/DC Custom detachable screw terminal (supplied)

Power Cord Rating

AC 15A/DC 25A

MTBF Information

WS-C4500X-F-32SFP+

199,720

Regulatory Standards Compliance

Regulatory Compliance

CE marking

EMI and EMC Compliance

47CFR Part 15 (CFR 47) Class A

AS/NZS CISPR22 Class A

CISPR22 Class A

EN55022 Class A

ICES003 Class A

VCCI Class A

EN61000-3-2

EN61000-3-3

KN22 Class A

CNS13438 Class A

EN55024

CISPR24

EN300386

KN24

Safety Certifications

UL 60950-1 Second Edition

CAN/CSA-C22.2 No. 60950-1 Second Edition

EN 60950-1 Second Edition

IEC 60950-1 Second Edition

AS/NZS 60950-1

Industry EMC, Safety, and Environmental Standards

GR-63-Core Network Equipment Building Systems (NEBS) Level 3

GR-1089-Core Level 3

Smartnet

WS-C4500X-F-32SFP+ SMARTnet Service Tool

Product Name Detail Price
CON-SNT-C45XF32S SMARTNET 8X5XNBD Catalyst 4500-X 32 Port 10G IP Base, Bac Inquiry
CON-3SNT-C45XF32S 3YR SMARTNET 8X5XNBD Catalyst 4500-X 32 Pt 10G IP Base, Bac Inquiry
CON-SNTE-C45XF32S SMARTNET 8X5X4 Catalyst 4500-X 32 Port 10G IP Base, Bac Inquiry
CON-SNTP-C45XF32S SMARTNET 24X7X4 Catalyst 4500-X 32 Port 10G IP Base, Bac Inquiry
CON-3SNTP-C45XF32S 3YR SMARTNET 24X7X4 Catalyst 4500-X 32 Port 10G IP Base, Bac Inquiry
CON-OS-C45XF32S ONSITE 8X5XNBD Catalyst 4500-X 32 Port 10G IP Base, Bac Inquiry
CON-OSE-C45XF32S ONSITE 8X5X4 Catalyst 4500-X 32 Port 10G IP Base, Bac Inquiry
CON-OSP-C45XF32S ONSITE 24X7X4 Catalyst 4500-X 32 Port 10G IP Base, Bac Inquiry
CON-3OSP-C45XF32S 3YR SMARTNET24X7X4OS Catalyst 4500-X 32 Pt 10G IP Base, Bac Inquiry
CON-NCD2-C45XF32S CMB SVC 24X7X2 NCD2 Catalyst 4500-X 32 Port 10G IP Base, Bac Inquiry
CON-NCD2P-C45XF32S CMBSV 24X7X2OS NCD2P Catalyst 4500-X 32 Port 10G IP Base,Bac Inquiry
CON-NCD4P-C45XF32S CMBSV 24X7X4OS NCD4P Catalyst 4500-X 32 Port 10G IP BaseBac Inquiry
CON-NCD4S-C45XF32S CMB SV 8X5X4OS NCD4S Catalyst 4500-X 32 Port 10G IP Base,Bac Inquiry
CON-NCDCS-C45XF32S CBSV 8X5XNBDOS NCDCS Catalyst 4500-X 32 Port 10G IP Base,Bac Inquiry
CON-NCDE-C45XF32S CMB SVC 8X5X4 NCDE Catalyst 4500-X 32 Port 10G IP Base, Bac Inquiry
CON-NCDP-C45XF32S CMB SVC 24X7X4 NCDP Catalyst 4500-X 32 Port 10G IP Base, Bac Inquiry
CON-NCDT-C45XF32S CMBSVC 8X5XNBD NCDT Catalyst 4500-X 32 Port 10G IP Base, Bac Inquiry
CON-NCDW-C45XF32S CMB SPT SVC SW NCDW Catalyst 4500-X 32 Port 10G IP Base,Bac Inquiry
CON-NCF2-C45XF32S CMB SVC 24X7X2 Catalyst 4500-X 32 Port 10G IP Base, Bac Inquiry
CON-NCF2P-C45XF32S CMB SVC 24X7X2OS Catalyst 4500-X 32 Port 10G IP Base, Bac Inquiry
CON-NCF4P-C45XF32S CMB SVC 24X7X4OS Catalyst 4500-X 32 Port 10G IP Base, Bac Inquiry
CON-NCF4S-C45XF32S CMB SVC 8X5X4OS Catalyst 4500-X 32 Port 10G IP Base, Bac Inquiry
CON-NCFCS-C45XF32S CMB SVC 8X5XNBDOS Catalyst 4500-X 32 Port 10G IP Base, Bac Inquiry
CON-NCFE-C45XF32S CMB SVC 8X5X4 Catalyst 4500-X 32 Port 10G IP Base, Bac Inquiry
CON-NCFP-C45XF32S CMB SVC 24X7X4 Catalyst 4500-X 32 Port 10G IP Base, Bac Inquiry
CON-NCFT-C45XF32S CMB SVC 8X5XNBD Catalyst 4500-X 32 Port 10G IP Base, Bac Inquiry
CON-NCFW-C45XF32S CMB SVC SW Catalyst 4500-X 32 Port 10G IP Base, Bac Inquiry
CON-NCH2-C45XF32S CMB SVC 24X7X2 NCH2 Catalyst 4500-X 32 Port 10G IP Base,Bac Inquiry
CON-NCH2P-C45XF32S CMBSV 24X7X2OS NCH2P Catalyst 4500-X 32 Port 10G IP Base Bac Inquiry
CON-NCH4P-C45XF32S CMBSV 24X7X4OS NCH4P Catalyst 4500-X 32 Port 10G IP BaseBac Inquiry
CON-NCH4S-C45XF32S CMB SV 8X5X4OS NCH4S Catalyst 4500-X 32 Port 10G IP Base,Bac Inquiry
CON-NCHCS-C45XF32S CBSV 8X5XNBDOS NCHCS Catalyst 4500-X 32 Port 10G IP Base,Bac Inquiry
CON-NCHE-C45XF32S CMB SVC 8X5X4 NCHE Catalyst 4500-X 32 Port 10G IP Base, Bac Inquiry
CON-NCHP-C45XF32S CMB SVC 24X7X4 NCHP Catalyst 4500-X 32 Port 10G IP Base, Bac Inquiry
CON-NCHT-C45XF32S CMBSVC 8X5XNBD NCHT Catalyst 4500-X 32 Port 10G IP Base, Bac Inquiry
CON-NCHW-C45XF32S CMB SPT SVC SW NCHW Catalyst 4500-X 32 Port 10G IP Base, Bac Inquiry
CON-NCJ2-C45XF32S CMB SVC 24X7X2 NCJ2 Catalyst 4500-X 32 Port 10G IP Base,Bac Inquiry
CON-NCJ2P-C45XF32S CMBSV 24X7X2OS NCJ2P Catalyst 4500-X 32 Port 10G IP Base Bac Inquiry
CON-NCJ4P-C45XF32S CMBSV 24X7X4OS NCJ4P Catalyst 4500-X 32 Port 10G IP BaseBac Inquiry
CON-NCJ4S-C45XF32S CMB SV 8X5X4OS NCJ4S Catalyst 4500-X 32 Port 10G IP Base,Bac Inquiry
CON-NCJCS-C45XF32S CBSV 8X5XNBDOS NCJCS Catalyst 4500-X 32 Port 10G IP Base,Bac Inquiry
CON-NCJE-C45XF32S CMB SVC 8X5X4 NCJE Catalyst 4500-X 32 Port 10G IP Base, Bac Inquiry
CON-NCJP-C45XF32S CMB SVC 24X7X4 NCJP Catalyst 4500-X 32 Port 10G IP Base, Bac Inquiry
CON-NCJT-C45XF32S CMBSVC 8X5XNBD NCJT Catalyst 4500-X 32 Port 10G IP Base, Bac Inquiry
CON-NCJW-C45XF32S CMB SPT SVC SW NCJW Catalyst 4500-X 32 Port 10G IP Base, Bac Inquiry
CON-PREM-C45XF32S ONSITE 24X7X2 Catalyst 4500-X 32 Port 10G IP Base, Bac Inquiry
CON-S2P-C45XF32S SMARTNET 24X7X2 Catalyst 4500-X 32 Port 10G IP Base, Bac Inquiry
CON-SMBS-C45XF32S SMBS 8X5XNBD Catalyst 4500-X 32 Port 10G IP Base, Bac Inquiry
CON-SSC2P-C45XF32S SOLN SUPP 24X7X2OS Catalyst 4500-X 32 Port 10G IP Base, Back Inquiry
CON-SSC4P-C45XF32S SOLN SUPP 24X7X4OS Catalyst 4500-X 32 Port 10G IP Base Back Inquiry
CON-SSC4S-C45XF32S SOLN SUPP 8X5X4OS Catalyst 4500-X 32 Port 10G IP Base, Back- Inquiry
CON-SSCS-C45XF32S SOLN SUPP 8X5XNBDOS Catalyst 4500-X 32 Port 10G IP Base, Bac Inquiry
CON-SSS2P-C45XF32S SOLN SUPP 24X7X2 Catalyst 4500-X 32 Port 10G IP Base, Back-t Inquiry
CON-SSSNE-C45XF32S SOLN SUPP 8X5X4 Catalyst 4500-X 32 Port 10G IP Base, Back-to Inquiry
CON-SSSNP-C45XF32S SOLN SUPP 24X7X4 Catalyst 3750V2 24 10 100 PoE + 2 SFP Enhan Inquiry
CON-SSSNT-C45XF32S SOLN SUPP 8X5XNBD Catalyst 4500-X 32 Port 10G IP Base, Back- Inquiry
CON-SW-C45XF32S SMARTNET NO RMA Catalyst 4500-X 32 Port 10G IP Base, Bac Inquiry
Shipping & Payment

Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

Delivery OptionsEstimated Delivery Time
DHL 2-4 business days
Fedex 2-4 business days
Hong Kong EMS 5-10 business days
Hong Kong Air Parcel 10-20 business days
By Sea 10-20 business days

Notice:

Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:

Deliver to port:

Router-switch.com is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Router-switch will recommend trustworthy local freight forwarders to you.Router-switch.com can facilitate the progress under buyer's permission and at buyer's expense.

Deliver to door:

Router-switch.com will quote all destination charge prior once we have confirmed order.
Router-switch.com is responsible for transporting goods to door after you have made the payment.

Payment Methods

Paypal Master Card Visa
Discover American
Express
JCB
Wire Transfer eCheck WestUnion
Warranty

Warranty

100% Low Price Guarantee:

Router-switch.com provides high-quality products at low wholesale prices

100% Quality Assurance:

All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed" or "Used / Refurbished".
Used & refurbished items are fully tested with good conditions by Cisco-certified Engineers.

Free CCIE Technical Support:

Our FREE Cisco CCIE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee:

You can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment:

Verified authorization: Mcafee Secure, VeriSign Secured

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed Cisco product: 1 Year
Used Cisco product: 3 Month

The Support Contacts:

If your Cisco products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Standard Services

Branch Offices : Hong Kong | USA | UK
Branch Offices : Hong Kong | USA | UK
Hong Kong Warehouse
Hong Kong Warehouse
Shenzhen Warehouse
Shenzhen Warehouse
Quality Checking
Quality Checking
Packaging
Packaging
Shipping
Shipping
Reviews

Customer Reviews

5 5
5 (4 reviews)
5 Stars
4
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
0

Share your thoughts with other customers?

Posted on 8/17/2015
Verified Buyer
55
Excellent

Right product and Right price.

Posted on 5/20/2015
Verified Buyer
55
Good price

Good price

Posted on 12/1/2014
Verified Buyer
55
Good experience

Easy to use and fast service

Posted on 1/7/2014
Verified Buyer
55
Great

It's my first time to order products from this supplier. Now I got the product. They are trustful.

Recently Viewed Products

Register now to get updates on promotions and coupons

We’ll never share your email address with a third-party.

Router-switch.com is neither a partner of nor an affiliate of Cisco Systems. Logos remain the property of the corresponding company.
Copyright @ 2002-2017 Router-switch Ltd. | HongKong Yejian Technologies Co., Ltd | All Rights Reserved.
