WS-C4500X-16SFP+

4.8 15
4.8/5.0
15 Review(s)
| 10 answered questions
Model: WS-C4500X-16SFP+ Cisco Catalyst 4500-X Switch
Detail: Catalyst 4500-X 16 Port 10G IP Base, Front-to-Back, No P/S
List Price: US$16,800.00
Price: $5,292.00
You save: US$11,508.00 (69% OFF)
Condition: Brand New Sealed
Availability: In stock
Shipping:
Express Shipping to Ashburn, VA, United States
2-6 Days, via DHL, FedEx, EMS, etc. ?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
US$ 5,292.00 In stock Brand New Sealed
OR
SMARTnet
WS-C4500X-16SFP+ SMARTnet Service Tool.

Fast Quote Now

Ask Our Experts

Live Chat | Email

  • +1-626-239-8066 (USA)
  • +852-3174-6166 (HK)
  • +852-3050-1066 (Fax)
Get Quotes up to
2x Faster
Project Inquiry
Overview

Overview (WS-C4500X-16SFP+)

WS-C4500X-16SFP+ is a Cisco Catalyst 4500-X Series Switch. It is a fixed aggregation switch that delivers best-in-class scalability, simplified network virtualization, and integrated network services for space-constrained environments in campus networks.

Quick Specs

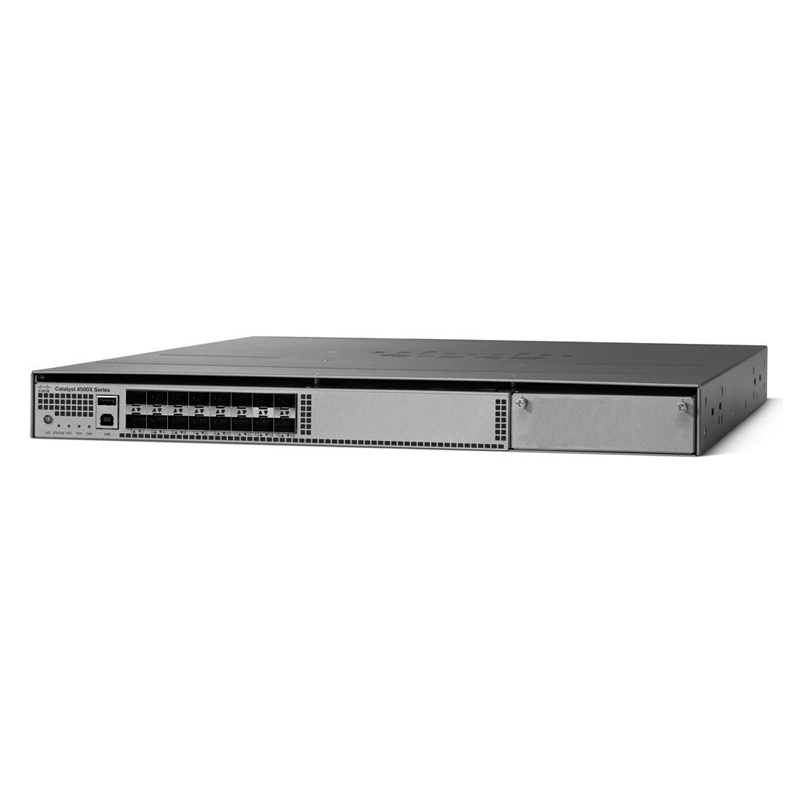

Figure 1 shows the appearance of WS-C4500X-16SFP+.

 WS-C4500X-16SFP+ Appearance

Table 1 shows the Quick Specs.

Product Code

WS-C4500X-16SFP+

Ports

16 × 1G or 10G Ethernet ports (requires either SFP or SFP+ transceivers)

Feature Set

IP Base

Uplink Module Slot

1 (8 x 10 GE SFP+/SFP - C4KX-NM-8SFP+)

Switching Capacity

Up to 800-Gbps

Onboard Memory (SRAM DDR-II)

4 GB

Port Buffers

32-MB Shared Memory

CPU

Dual Core 1.5 GHz

NVRAM

2 GB

Optional External Memory (SD Card)

2 GB

Airflow

Front-to-back cooling

Chassis dimensions (H x W x D)

4.4 x 43.8 x 53.3 cm

Package Weight

16.29 Kg

Product Details

Figure 2 shows the front panel of WS-C4500X-16SFP+.

 WS-C4500X-16SFP+ Front Panel

Note:

① LEDs Area

② USB ports (2 ports) Top port is a Type A connector; bottom port is a Type B connector

③ 16 × Ethernet ports

④ 8-port uplink module slot (Purchased alone)

· There are five LEDs in the LEDs Area: UID LED, STATUS LED, PS1 LED, PS2 LED and FAN LED.

Figure 3 shows the back panel of WS-C4500X-16SFP+ with installed AC-input power supply. No power supply is included in this product. Need to order a power supply in addition.

 WS-C4500X-16SFP+ Back Panel

Note:

①SECURE DIGITAL port

②CONSOLE port

③10/100/1000 MGT port

④Fan assemblies (5 assemblies)

⑤Chassis ground pad

⑥Power supply bay (AC-input power supply shown installed)

⑦Power supply bay (AC-input power supply shown installed)

The Accessories

Table 2 shows the recommended elements for the WS-C4500X-16SFP+.

Category

Model

Description

Uplink Module

C4KX-NM-8SFP+

Cisco Catalyst 4500-X 8 Port 10GE Ethernet port uplink Module C4KX-NM-8SFP+

Power Supply

C4KX-PWR-750AC-R=

Catalyst 4500X 750W AC front to back cooling power supply

C4KX-PWR-750AC-R/2

Catalyst 4500X 750W AC front to back cooling 2nd PWR supply

License

L-C4500X-16P-IP-ES=

Catalyst 4500-X IP BASE to Enterprise Services upgrade license (electronic delivery) for 16-port and 24-port models

Console Cable

CAB-CONSOLE-RJ45

Console Cable 6ft with RJ45 and DB9F

1G SFP

GLC-SX-MMD

1000BASE-SX SFP transceiver module, MMF, 850nm, DOM

GLC-LH-SMD

1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM

10G SFP

SFP-10G-SR

10GBASE-SR SFP Module

SFP-10G-ZR

Cisco 10GBASE-ZR SFP10G Module for SMF

Datasheet Download

Cisco Catalyst 4500-x Series Fixed 10 Gigabit Ethernet Aggregation Switch Data Sheet.pdf

Get More Information

Do you have any question about the WS-C4500X-16SFP+?

Contact us now via Live Chat or sales@router-switch.com.

Specification

Specification (WS-C4500X-16SFP+)

WS-C4500X-16SFP+ Specification

Expansion Module (Optional)

8x10 GE SFP+/SFP - C4KX-NM-8SFP+

Management Port

10/100/1000 Base-T

USB Port

Type A (storage and boot) up-to 4 GB

Dual Power Supply

Yes

Field Replaceable Fans

Yes (5 fans)

Fan Redundancy

No performance impact with single fan failure

System Throughput

Up to 800 Gbps

IPv4 Routing in Hardware

Up to 250 Mpps

IPv6 Routing in Hardware

Up to 125 Mpps

L2 Bridging in Hardware

Up to 250 Mpps

Media Access Control (MAC) Entries

55K

Forwarding Entries

16x10 GE Port Base SKU: IPv4: 64K, IPv6: 32K

Flexible Netflow Entries

128K

Switched Port Analyzer (SPAN), Remote Switched Port Analyzer (RSPAN)

8 line rate bidirectional sessions (ingress and egress)

Total VLANs

4094

Total Switched Virtual Interfaces (SVIs)

4094

IGMP groups

32K

Multicast routes

16x10 GE Port Base SKU: IPv4: 24K, IPv6: 12K

Dynamic Host Configuration Protocol (DHCP) Snooping Entries

12K (DHCP snooping bindings)

ARP Entries

47K

Spanning Tree Protocol Instances

10K

Jumbo Frame Support for Bridged and Routed Packets

Up to 9216 bytes

High Availability Solution

Virtual Switching System (VSS)

Number of stackable switches in VSS

Up to 2

VSS Throughput

Up to 1.6 Tbps

Virtual Switch Link

1GE or 10GE

Max number of Virtual Switch Links

8

In-Service Software Upgrade

Across the switches

Nonstop Forwarding with Stateful Switchover

Across the switches

Onboard Memory (SRAM DDR-II)

4 GB

Port Buffers

32-MB Shared Memory

CPU

Dual Core 1.5 GHz

NVRAM

2 GB

Optional External Memory (SD Card)

2 GB

Port Queues

8 Queues/Port

CPU Queues

64

QoS Entries

128K (64K ingress and 64K in egress) Shared with ACL

Aggregate Rate-Limiting

Ingress port or VLAN and egress VLAN or Layer 3 port

Rate-Limiting Level Types

Committed Information Rate (CIR), Peak Information Rate (PIR)

Aggregate Traffic Rate-Limiting Policers (1K=1024)

16K

Flow-Based Rate-Limiting Method; Number of Rates

Supported using flow-records in the classification criteria and policing action

Qos Policy Enforcement

Per Port or Per Vlan or Per Port, Per VLAN Granularity

Class of Service (CoS)

Yes

Differentiated Services Code Point (DSCP)

Yes

Port Security

Yes

IEEE 802.1x and 802.1x Extensions

Yes

VLAN, Router, and Port ACLs

Yes

Security ACL Entries (1K=1024)

128K (64K ingress and 64K in egress) Shared with QoS

Unicast Reverse Path Forwarding (uRPF) Check in Hardware

Yes

CPU Rate Limiters (DoS Protection) Includes Control Plane Policing

Yes

Private VLANs

Yes

Micro Flow Policer

Yes. Supported using flow records in the class-map

CPU HW Rate Limiters by Packet Per Second (pps) and Bit Rate Policers (bps)

Supported in hardware control-plane policing (CoPP)

Control Plane Policing (CoPP) for Multicast

Yes

ACL Labels

Yes

SMARTnet

SMARTnet Support Quick Guide

Cisco SMARTnet Overview - Cisco SMARTnet Service Codes - Cisco SMARTnet Types
Cisco SMARTnet F.A.Q

WS-C4500X-16SFP+ SMARTnet Service Tool

Product Name Detail Price
CON-3SNT-WSC16SFX 3YR SNTC 8X5XNBD Catalyst 4500-X 16 Pt 10G IP Base. Fro Inquiry
CON-3SNTP-WSC16SFX 3YR SNTC 24X7X4 Catalyst 4500-X 16 Port 10G IP Base. Fro Inquiry
CON-3OSP-WSC16SFX 3YR SNTC 24X7X4OS Catalyst 4500-X 16 Pt 10G IP Base. Fro Inquiry
CON-SNT-WSC16SFX SNTC-8X5XNBD Catalyst 4500-X 16 Port 10G IP Base. Fro Inquiry
CON-SNTE-WSC16SFX SNTC-8X5X4 Catalyst 4500-X 16 Port 10G IP Base. Fro Inquiry
CON-SNTP-WSC16SFX SNTC-24X7X4 Catalyst 4500-X 16 Port 10G IP Base. Fro Inquiry
CON-OS-WSC16SFX SNTC-8X5XNBDOS Catalyst 4500-X 16 Port 10G IP Base. Fro Inquiry
CON-OSE-WSC16SFX SNTC-8X5X4OS Catalyst 4500-X 16 Port 10G IP Base. Fro Inquiry
CON-OSP-WSC16SFX SNTC-24X7X4OS Catalyst 4500-X 16 Port 10G IP Base. Fro Inquiry
CON-NCD2-WSC16SFX CMB SVC 24X7X2 NCD2 Catalyst 4500-X 16 Port 10G IP Base. Fro Inquiry
CON-NCD2P-WSC16SFX CMBSV 24X7X2OS NCD2P Catalyst 4500-X 16 Port 10G IP Base.Fro Inquiry
CON-NCD4P-WSC16SFX CMBSV 24X7X4OS NCD4P Catalyst 4500-X 16 Port 10G IP BaseFro Inquiry
CON-NCD4S-WSC16SFX CMB SV 8X5X4OS NCD4S Catalyst 4500-X 16 Port 10G IP Base.Fro Inquiry
CON-NCDCS-WSC16SFX CBSV 8X5XNBDOS NCDCS Catalyst 4500-X 16 Port 10G IP Base.Fro Inquiry
CON-NCDE-WSC16SFX CMB SVC 8X5X4 NCDE Catalyst 4500-X 16 Port 10G IP Base. Fro Inquiry
CON-NCDT-WSC16SFX CMBSVC 8X5XNBD NCDT Catalyst 4500-X 16 Port 10G IP Base. Fro Inquiry
CON-NCDW-WSC16SFX CMB SPT SVC SW NCDW Catalyst 4500-X 16 Port 10G IP Base.Fro Inquiry
CON-NCF2-WSC16SFX CMB SVC 24X7X2 Catalyst 4500-X 16 Port 10G IP Base. Fro Inquiry
CON-NCF2P-WSC16SFX CMB SVC 24X7X2OS Catalyst 4500-X 16 Port 10G IP Base. Fro Inquiry
CON-NCF4P-WSC16SFX CMB SVC 24X7X4OS Catalyst 4500-X 16 Port 10G IP Base. Fro Inquiry
CON-NCF4S-WSC16SFX CMB SVC 8X5X4OS Catalyst 4500-X 16 Port 10G IP Base. Fro Inquiry
CON-NCFCS-WSC16SFX CMB SVC 8X5XNBDOS Catalyst 4500-X 16 Port 10G IP Base. Fro Inquiry
CON-NCFE-WSC16SFX CMB SVC 8X5X4 Catalyst 4500-X 16 Port 10G IP Base. Fro Inquiry
CON-NCFP-WSC16SFX CMB SVC 24X7X4 Catalyst 4500-X 16 Port 10G IP Base. Fro Inquiry
CON-NCFT-WS-C450X CMB SPT SVC 8X5XNBD Catalyst 4500-X 16 P Inquiry
CON-NCFW-WS-C450X CMB SPT SVC SW Catalyst 4500-X 16 Port 10G IP Base. Front-to Inquiry
CON-NCH2-WSC16SFX CMB SVC 24X7X2 NCH2 Catalyst 4500-X 16 Port 10G IP Base.Fro Inquiry
CON-NCH2P-WSC16SFX CMBSV 24X7X2OS NCH2P Catalyst 4500-X 16 Port 10G IP Base Fro Inquiry
CON-NCH4P-WSC16SFX CMBSV 24X7X4OS NCH4P Catalyst 4500-X 16 Port 10G IP BaseFro Inquiry
CON-NCH4S-WSC16SFX CMB SV 8X5X4OS NCH4S Catalyst 4500-X 16 Port 10G IP Base.Fro Inquiry
CON-NCHCS-WSC16SFX CBSV 8X5XNBDOS NCHCS Catalyst 4500-X 16 Port 10G IP Base.Fro Inquiry
CON-NCHE-WSC16SFX CMB SVC 8X5X4 NCHE Catalyst 4500-X 16 Port 10G IP Base. Fro Inquiry
CON-NCHP-WSC16SFX CMB SVC 24X7X4 NCHP Catalyst 4500-X 16 Port 10G IP Base. Fro Inquiry
CON-NCHT-WSC16SFX CMBSVC 8X5XNBD NCHT Catalyst 4500-X 16 Port 10G IP Base. Fro Inquiry
CON-NCHW-WSC16SFX CMB SPT SVC SW NCHW Catalyst 4500-X 16 Port 10G IP Base. Fro Inquiry
CON-NCJ2-WSC16SFX CMB SVC 24X7X2 NCJ2 Catalyst 4500-X 16 Port 10G IP Base.Fro Inquiry
CON-NCJ2P-WSC16SFX CMBSV 24X7X2OS NCJ2P Catalyst 4500-X 16 Port 10G IP Base Fro Inquiry
CON-NCJ4P-WSC16SFX CMBSV 24X7X4OS NCJ4P Catalyst 4500-X 16 Port 10G IP BaseFro Inquiry
CON-NCJ4S-WSC16SFX CMB SV 8X5X4OS NCJ4S Catalyst 4500-X 16 Port 10G IP Base.Fro Inquiry
CON-NCJCS-WSC16SFX CBSV 8X5XNBDOS NCJCS Catalyst 4500-X 16 Port 10G IP Base.Fro Inquiry
CON-NCJE-WSC16SFX CMB SVC 8X5X4 NCJE Catalyst 4500-X 16 Port 10G IP Base. Fro Inquiry
CON-NCJT-WSC16SFX CMBSVC 8X5XNBD NCJT Catalyst 4500-X 16 Port 10G IP Base. Fro Inquiry
CON-NCJW-WSC16SFX CMB SPT SVC SW NCJW Catalyst 4500-X 16 Port 10G IP Base. Fro Inquiry
CON-PREM-WSC16SFX SNTC-24X7X2OS Catalyst 4500-X 16 Port 10G IP Base. Fro Inquiry
CON-S2P-WSC16SFX SNTC-24X7X2 Catalyst 4500-X 16 Port 10G IP Base. Fro Inquiry
CON-SMBS-WSC16SFX SMBS 8X5XNBD Catalyst 4500-X 16 Port 10G IP Base. Fro Inquiry
CON-SSC2P-WSC16SFX SOLN SUPP 24X7X2OS Catalyst 4500-X 16 Port 10G IP Base. Fron Inquiry
CON-SSC4S-WSC16SFX SOLN SUPP 8X5X4OS Catalyst 4500-X 16 Port 10G IP Base. Front Inquiry
CON-SSS2P-WSC16SFX SOLN SUPP 24X7X2 Catalyst 4500-X 16 Port 10G IP Base. Front- Inquiry
CON-SSSNE-WSC16SFX SOLN SUPP 8X5X4 Catalyst 4500-X 16 Port 10G IP Base. Front-t Inquiry
CON-SSSNP-WSC16SFX SOLN SUPP 24X7X4 Catalyst 3750V2 24 10 100 + 2 SFP Enhanced Inquiry
CON-SSSNT-WSC16SFX SOLN SUPP 8X5XNBD Catalyst 4500-X 16 Port 10G IP Base. Front Inquiry
CON-SW-WSC16SFX SNTC-NO RMA Catalyst 4500-X 16 Port 10G IP Base. Fro Inquiry
Q&A

Faq (WS-C4500X-16SFP+)

Does it support AC power? If support, what's the max rated power?

Yes, it support. The max rated power is 750W.

Then how about the system power consumption?

330W nominal/400W max.

Does it suppport AC to DC failover and vice versa?

Yes, it support. The max rated power is 750W.

Are the E-Series line cards supported in non-E-Series chassis?

No. The classic Cisco Catalyst 4000 and 4500 chassis maximum per slot capacity is 6 gigabits per slot.

Is local switching supported on the E-Series line cards?

No. It is not supported on the Cisco 4500-E line cards.

Are there any visual differentiators between the E-Series line cards and the classic line cards?

Yes, of course. The E-Series line cards will have a subtle cross-hatch pattern and a yellow circle on the right end tab, visually identifying them as E-Series line cards. This will be useful in a mixed E-Series/classic line-card configuration.

What is Cisco software activation?

Cisco software activation is the mechanism used to activate software features and components on the next-generation supervisor engines for the Cisco Catalyst 4500E, the Cisco Catalyst 4500 Supervisor Engine 7-E and 7L-E, as well as on the Cisco Catalyst 4500-X Series switches. Cisco software activation is used to generate a unique license key for a feature set or technology package on a specific device, and activate that functionality on the system.

Which licenses are available for Supervisor Engine 7-E, 7L-E or a Cisco Catalyst 4500-X Series system?

See the following table for package licenses. These will be delivered with new Supervisors or available as an upgrade through Cisco software activation. The Cisco Catalyst 4500-X Series only supports IP Base (default) and Enterprise Services (as an upgrade).

Package Name

Prerequisites

License Types

LAN Base

None

Permanent

IP Base

IP Base

Permanent, temporary

Enterprise Services

IP Base

Permanent, temporary

What is a universal image?

The universal image contains all feature packages: LAN Base, IP Base, and Enterprise Services feature sets. The level of functionality available is determined by the license applied to the device. A software activation license (SAL) enables specific functionality. For example, an IP Base package license enables IP Base functionality in the Cisco IOS Software universal image.

What is a product authorization key?

A product authorization key (PAK) is an 11-digit alphanumeric key created by Cisco manufacturing which defines the feature set associated with the PAK. A PAK is not tied to a specific device until the license is created.

Shipping & Payment

Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

Delivery OptionsEstimated Delivery Time
DHL 2-4 business days
Fedex 2-4 business days
Hong Kong EMS 5-10 business days
Hong Kong Air Parcel 10-20 business days
By Sea 10-20 business days

Notice:

Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:

Deliver to port:

Router-switch.com is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Router-switch will recommend trustworthy local freight forwarders to you.Router-switch.com can facilitate the progress under buyer's permission and at buyer's expense.

Deliver to door:

Router-switch.com will quote all destination charge prior once we have confirmed order.
Router-switch.com is responsible for transporting goods to door after you have made the payment.

Payment Methods

Paypal Master Card Visa
Discover American
Express
JCB
Wire Transfer eCheck WestUnion
Warranty

Warranty

100% Low Price Guarantee:

Router-switch.com provides high-quality products at low wholesale prices

100% Quality Assurance:

All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed" or "Used / Refurbished".
Used & refurbished items are fully tested with good conditions by Cisco-certified Engineers.

Free CCIE Technical Support:

Our FREE Cisco CCIE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee:

You can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment:

Verified authorization: Mcafee Secure, VeriSign Secured

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed Cisco product: 1 Year
Used Cisco product: 3 Month

The Support Contacts:

If your Cisco products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Standard Services

Branch Offices : Hong Kong | USA | UK
Branch Offices : Hong Kong | USA | UK
Hong Kong Warehouse
Hong Kong Warehouse
Shenzhen Warehouse
Shenzhen Warehouse
Quality Checking
Quality Checking
Packaging
Packaging
Shipping
Shipping
Reviews

Customer Reviews

4.7 5
4.7 (15 reviews)
5 Stars
11
4 Stars
4
3 Stars
0
2 Stars
0
1 Stars
0

Share your thoughts with other customers?

Posted on 4/16/2017
Verified Buyer
55
delivery fast

The delivery is so fast, and I got my switch no more than 2 days.

Posted on 3/24/2017
Verified Buyer
55
WS-C4500X-16SFP+

This is a very reliable, fast, and feature packed switch from Cisco.

Posted on 3/19/2017
Verified Buyer
55
Power supply

This one doesn't include a power supply. We need a AC power supplly. Does this switch support AC? Is the AC power supply on sale?

Yes, this switch support AC power. You can order C4KX-PWR-750AC-F/2, C4KX-PWR-750AC-F=,
C4KX-PWR-750AC-R= or C4KX-PWR-750AC-R/2.

Posted on 2/13/2017
Verified Buyer
55
good

I don't like to compare one by one, and the before-service directly suggest me this model, now it works well, thank you!

Posted on 1/4/2017
Verified Buyer
45
Great company

Great company, great customer service & great products. A+++++

Posted on 11/7/2016
Verified Buyer
55
WS-C4500X-16SFP+-big discount

big discount now and fast shipping.

Posted on 10/28/2016
Verified Buyer
55
Powerful but expensive

Advantages:The Cisco Catalyst 4500-X Series Switch is a fixed-configuration switch that provides the best scalability, simplified network virtualization, and integrated networking services in a space-constrained campus environment. With unprecedented scalability, this family of switches supports one-to-many (Cisco Easy Virtual Networking [EVN]) and many-to-one (Virtual Switch System i [VSS]) virtual networks to simplify network virtualization and integrate many network services To support a variety of emerging applications, therefore, fully able to meet the needs of business growth.Disadvantage: The price is too expensive.

Posted on 9/16/2016
Verified Buyer
45
4500-X switch

No power supply is included. Need to buy a power supply in addition.

Posted on 8/15/2016
Verified Buyer
55
Good price

The price is good. Shipping is also fast.

Posted on 3/9/2016
Verified Buyer
55
Power supply

Is the power supply comes with the switch?

Hi friend, WS-C4500X-16SFP+ has no power supply by default. Suggest to buy the power C4KX-PWR-750AC-R separately.

Posted on 11/28/2015
Verified Buyer
55
WS-C4500X-16SFP+-Higher Series

the higher series of Cisco switches, not a cheap one.

Posted on 8/9/2015
Verified Buyer
45
High Availability

Engineer is professional. Great Help.

Posted on 7/6/2015
Verified Buyer
55
4500-X Series Fixed 10 Gigabit Ethernet switch

great price and prompt service

Posted on 4/26/2015
Verified Buyer
55
Price increased

The price is higher than my last order. Any more discount if I order another one later?

Posted on 3/17/2015
Verified Buyer
45
16 x 10 Gigabit Ethernet Port Switch

CCIE has fast response to choose this switch

You may also be interested in the following product(s)

Recently Viewed Products

Register now to get updates on promotions and coupons

We’ll never share your email address with a third-party.

Router-switch.com is neither a partner of nor an affiliate of Cisco Systems. Logos remain the property of the corresponding company.
Copyright @ 2002-2018 Router-switch Ltd. | HongKong Yejian Technologies Co., Ltd | All Rights Reserved.
