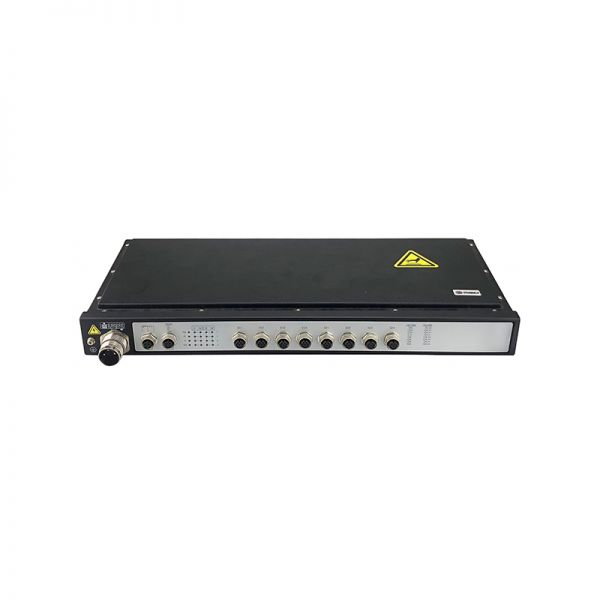

TCC4100-EHR0080I, MRD TCC4100 Series, 8xM12 A-Code 10/100/1000BaseT Ports Industrial Ethernet Switch

100% Genuine Ready to Ship

Обзор

MRD TCC4100-EHR0080I Обзор

Enhanced Layer3, 8 M12 A-Code 10/100/1000BaseT Ports (M12 connector not included). Isolated 100-240V Power Supply.

Quick Spec

Table 1 shows the quick spec of the TCC4100-EHR0080I

Model	TCC4100-EHR0080I
Interface Configuration	8 x M12 X-code 10/100/1000BaseT
Input Voltage	100-240V
Fansless	Yes
Backplane Bandwidth	68 Gbps
Installasion	Rack-Mounted
IP Rating	IP54/IP67
Conformal Coated	Optional
Dimensions (W x H x D)	440mm x 44.2mm x 200mm
Dimensions (W x H x D)	17.32 inch x 1.74 inch x 7.87 inch
Weight	2 kg
Weight	4.41 lb
MTBF	≥600,000H
Operating Temperature	-40 °C~ 85 °C
Operating Temperature	-40°F ~ 185°F
Product Safety	CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A
Hazardous Area	UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry	JT/T817-2011;
Rail Industry	EN50155; IEC/EN61373; EN50121;EN45545
Power Industry	IEC61850-3 IEEE1613 (C37.90.x)
Industrial Control Industry	UL/cUL61010
Shipbuilding Industry	GL (pending)

Product Features

● Linear switches with high performance and flexible configuration
● Support up to 68Gbps backplane bandwidth
● Support up to 8 PoE ports
● Support Power-over-Ethernet (compliant with IEEE 802.3af/at standards)
● Each PoE port provides up to 30W output power
● PoE management: PoE device detection, PoE power management
● Support MRD-Ring® network redundancy for < 50 ms recovery time
● Support Media Redundancy Protocol (compliant with IEC62439)
● Support BYPASS function for be????er network reliability

Compare to Similar Items

Table 2 shows the comparison to similar items of the TCC4100-EHR0080I

Product number	Product description
TCC4100-EMR0080I	Enhanced Layer3, 8 M12 A-Code 10/100/1000BaseT Ports (M12 connector not included). Isolated Dual 100-240V Power Supply.
TCC4100-EHR00C0IBP	Enhanced Layer3, 12 M12 A-Code 10/100/1000BaseT Ports (M12 connector not included, 4 Ports support BY-PASS Function). Isolated 100-240V Power Supply.
TCC4100-EMR00C0IBP	Enhanced Layer3, 12 M12 A-Code 10/100/1000BaseT Ports (M12 connector not included, 4 Ports support BY-PASS Function). Isolated Dual 100-240V Power Supplies.
TCC4100-EHR00C0IP130BP	Enhanced Layer3, 8 M12 A-Code 802.3af/at PoE 10/100/1000BaseT Ports (M12 connector not included) and 4 M12 A-Code 10/100/1000BaseT Ports (Support BY-PASS Function). Isolated 100-240V Power Supply with Internal 130W PoE budget.

Get More Information

Do you have any questions about the TCC4100-EHR0080I price?

Сертификаты качества

Спецификация

MRD TCC4100-EHR0080I Спецификация

TCC4100-EHR0080I Specification
Backplane Bandwidth	68 Gbps
CPU	333MHz RISC
Processing Type	Store-and-Forward
MAC Table Size	16K
Packet Buffer Size	4Mbti
Exchange Rate	148,800 pps/100M; 1,488,000 pps/1000 M
Management Mode	Web, serial port, STD-17 MIB-II, STD-58 SMIv2, STD-59 RMON, STD-62 SNMPv3, SNMPv2c, SNMPv1, RFC2925 Ping MIB, MRD Private MIBs
Diagnosis Mode	Indicator light, journal file, relay, RMON, port mirroring, TRAP
Redundancy	MRD-Ring®, MSTP, RSTP, port trunking
Time Synchronization	SNTP
Others	4K VLANS, IPv4/IPv6 multicast, storm control, MC/BC protection, support Jumbo Frame
Connection
Input Voltage
Power Consumption	35W
Overload Current Protection	Supported
Reverse Polarity Protection	Supported
Installasion	Rack-Mounted
Housing	Aluminum Alloy Housing
IP Rating	IP54/IP67
Conformal Coated	Optional
Dimensions (W x H x D)	440mm x 44.2mm x 200mm
Dimensions (W x H x D)	17.32 inch x 1.74 inch x 7.87 inch
Weight	2 kg
Weight	4.41 lb
MTBF	≥600,000H
Storage Temperature	-40 ℃ ~ 85 ℃
Storage Temperature	-40℉ ~ 185℉
Operating Temperature	-40 ℃ ~ 85 ℃
Operating Temperature	-40℉ ~ 185℉
Ambient Relative Humidity	5 % ~ 95% (non-condensing)
Vibration and Shock	IEC 60068-2-6 ， IEC 60068-2-27
Freefall	IEC 60068-2-31
Circuit Board	Approved by IPC
EMI	FCC 47 CFR Part 15 Class A EN55032 Class A EN55035 Class A
EMS	IEC (EN )61000-4-2, Class 4 IEC (EN )61000-4-3, Class 4 IEC (EN )61000-4-4, Class 4 IEC (EN )61000-4-5, Class 4 IEC (EN )61000-4-6, Class 4 IEC (EN )61000-4-9, Class 4
Product Safety	CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A
Hazardous Area	UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry	JT/T817-2011;
Rail Industry	EN50121, EN50155, IEC/EN61373
Power Industry	IEC61850-3 IEEE1613 (C37.90.x)
Industrial Control Industry	UL/cUL61010
Shipbuilding Industry	GL (pending)
