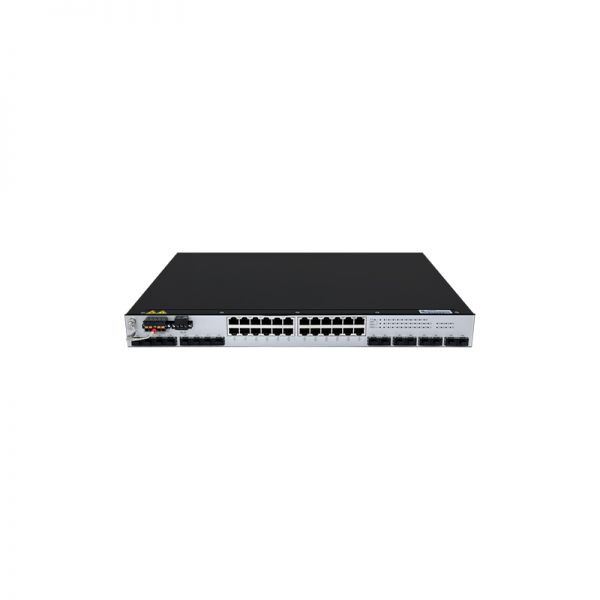

Название:	TNM4000-FAT40HH8X8G24
Модель:	MRD TNM4000-FAT40HH8X8G24
Бренд:	MRD
Detail:	TNM4000 Series 24 10/100/1000BaseT Ports, 4 100/1000/2500/1000BaseX Ports, 4 1000/2500/10000BaseX SFP ports, 8 100/1000BaseX SFP Ports With CENTAURI
	Рейтинг: 90% 4.5/5.0 2 Отзывы
Наличие:	Item Backordered
Условие:	New

Доставка:

Экспресс-доставка в Соединенные Штаты
2-6 Дней, via DHL, FedEx, UPS, etc.

Оплата:

Оплата банковским переводом.
Оплатите с помощью PayPal.
Оплачивайте своими вебмани.
Pay with your onafriq.
Оплата кредитной картой Visa.
Оплата кредитной картой Mastercard.
Платите картой Discover.
Оплатить Вестерн Юнион.

Поддержка:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

TNM4000-FAT40HH8X8G24

TNM4000 Series 24 10/100/1000BaseT Ports, 4 100/1000/2500/1000BaseX Ports, 4 1000/2500/10000BaseX SFP ports, 8 100/1000BaseX SFP Ports With CENTAURI

Стабильная глобальная цепочка поставок для процветающего бизнеса.

Инвентарь на $4 000 000
500+ надежных поставщиков
Сертифицированное партнерство
Сотрудничество с FedEx, UPS, DHL

Более 100 000 разнообразных продуктов для любых нужд

Индивидуальная поддержка для ваших нужд с помощью CCIE, HCIE, HPE ASE и т. д.

Индивидуальное обслуживание, превосходное обслуживание продукта для максимального удовлетворения.

Проекты и техническая поддержка
Простая покупка
Защита жизненного цикла продукта
Эксклюзивная поддержка команды F4

Обзор

TNM4000-FAT40HH8X8G24 Обзор

40-port Industrial Layer 3 TSN Switch made from Anti-Corrosion Aluminum Alloy and Stainless Steel. 24 10/100/1000BaseT Ports, 4 100/1000/2500/1000BaseX Ports, 4 1000/2500/10000BaseX SFP ports, 8 100/1000BaseX SFP Ports (SFP module not included). Standard 19-inch Rack Mount and 1U High, 1 Management Ethernet Port and 1 Management Serial CLI Port, 1 Alarm Relay Port (250VAC/125VDC 2A@250VAC/2A@30VDC), 1 SD slot, and 1 ZTP Button. IP40 Protection Class, Operating Temperature from -40°C to +85°C. Dual Isolated 100-240V Power Inputs. CENTAURI enabled.

Quick Spec

Table 1 shows the quick spec of the TNM4000-FAT40HH8X8G24

Model	TNM4000-FAT40HH8X8G24
Interface Configuration	8 x 100/1000BaseX SFP 4 x 1000/2500/10000BaseX SFP 4 x 100/1000/2500/10000BaseX SFP 24 x 10/100/1000BaseT
Input Voltage	100-240VAC(50-60Hz) & 100-240VDC, Dual power inputs
Fansless	Yes
Backplane Bandwidth	224 Gbps
Installasion	Rack-Mounted
IP Rating	IP40;
Conformal Coated	Optional
Dimensions (W x H x D)	442mm×43.8mm×335mm
Dimensions (W x H x D)	17.41 inch x 1.72 inch x 13.19inch
Weight	4 kg
Weight	8.82 lb
MTBF	≥600,000H
Operating Temperature	-40 °C~ 85 °C
Operating Temperature	-40°F ~ 185°F
Product Safety	CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A
Hazardous Area	UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry	JT/T817-2011; NEMA-TS2 (pending)
Rail Industry	EN50121-4
Power Industry	IEC61850-3 IEEE1613 (C37.90.x)
Industrial Control Industry	UL/cUL61010 (pending)
Shipbuilding Industry	GL (pending)

Product Features

 40GigabitEthernetports,including810GEthernetports
 Configurablebywebbrowser,Telnet,CLI
 Withfunctionsofdatapacketdropoutprotectionandquickrecoveryfromnetworkfailure  Supportvariousmulticastprotocolsandstrongsafetyprotectionmechanism
 IGMPsnoopingandGMRPforfilteringtrafficfromindustrialEthernetprotocols
 QoS(IEEE802.1p/1QandTOS/DiffServ)toincreasedeterminism
 SNMPv1/v2c/v3fordifferentlevelsofnetworkmanagement
 Bandwidthmanagementtopreventunpredictablenetworkstatus
 Portmirroringforonlinedebugging
 Isolatedredundantpowerinputs
 Fanless,-40°Cto85°Coperatingtemperaturerange
 MTBF≥600,000h

Supported Options

Table 2 shows the supported options of the TNM4000-FAT40HH8X8G24

MRD-MGIGA-GLX	Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
MRD-MGIGA-GEX	Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
MRD-MGIGA-GZX	Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM
MRD-G25-GLX	Industrial Grade 2500BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
MRD-G25-GEX	Industrial Grade 2500BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
MRD-G25-GZX	Industrial Grade 2500BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM
MRD-10GLS-LC	Industrial Grade 10000BaseX SFP+ Module, Singlemode(1310), Dual Fibers, DDM, 10KM
MRD-10GRS-LC	Industrial Grade 10000BaseX SFP+ Module, Singlemode(1310), Dual Fibers, DDM, 20KM
MRD-10GRS-LC	Industrial Grade 10000BaseX SFP+ Module, Singlemode(1550), Dual Fibers, DDM, 40KM

Get More Information

Do you have any questions about the TNM4000-FAT40HH8X8G24 price?

Сертификаты качества

Спецификация

TNM4000-FAT40HH8X8G24 Спецификация

TNM4000-FAT40HH8X8G24 Specification
Backplane Bandwidth	224 Gbps
Switch Architecture	MIPS32
Processing Type	Store-and-Forward
MAC Table Size	32K
Packet Buffer Size	32 Mbti
Exchange Rate	148, 800 pps/100M ports; 1, 488, 000 pps/1000M ports; 14, 880, 000 pps/10000M ports
Management Mode	Web, serial port, STD-17 MIB-II, STD-58 SMIv2, STD-62 SNMPv3, SNMPv2c, SNMPv1, RFC3636 MAU, RFC2925 Ping MIB, MRD Private MIBs, SSH, HTTPS, Telnet
Diagnosis Mode	Indicator light, journal file, Relay, port mirroring, TRAP
Redundancy	MSTP, RSTP, port trunking, HIPER-RING, MRP
Time Synchronization	SNTP, PTPv2
Others	IPv4/IPv6 multicast, storm control, MC/BC protection, support Jumbo Frame
Connection	5-pin terminal block
Input Voltage	100-240VAC(50-60Hz) & 100-240VDC, Dual power inputs
Power Consumption	44W（without POE）
Overload Current Protection	Supported
Reverse Polarity Protection	Supported
Installasion	Rack-Mounted
Housing	Die-casting aluminum alloy housing
IP Rating	IP40;
Conformal Coated	Optional
Dimensions (W x H x D)	442mm×43.8mm×335mm
Dimensions (W x H x D)	17.41 inch x 1.72 inch x 13.19inch
Weight	4 kg
Weight	8.82 lb
MTBF	≥600,000H
Storage Temperature	-40 ℃ ~ 85 ℃
Storage Temperature	-40℉ ~ 185℉
Operating Temperature	-40 ℃ ~ 85 ℃
Operating Temperature	-40℉ ~ 185℉
Ambient Relative Humidity	5 % ~ 95% (non-condensing)
Vibration	IEC 60068-2-6
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-31
Circuit Board	Approved by IPC
EMI	FCC 47 CFR Part 15 Class A EN55032 Class A EN55035 Class A
EMS	IEC (EN )61000-4-2, Class 4 IEC (EN )61000-4-3, Class 3 IEC (EN )61000-4-4, Class 4 IEC (EN )61000-4-5, Class 4 IEC (EN )61000-4-6, Class 3 IEC (EN )61000-4-8, Class 5
Product Safety	CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A
Hazardous Area	UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry	EN50121-4
Rail Industry	EN50121-4
Power Industry	IEC61850-3 IEEE1613 (C37.90.x)
Industrial Control Industry	UL/cUL61010(pending)
Shipbuilding Industry	DNV-GL (pending)
