TNM4000-TP28HH4X8G24T

TNM4000 Series 16 10/100/1000BaseT Ports, 8 100/1000Base(X/T) COMBO Ports, and 4 100/1000/2500/10000BaseX SFP+ Ports

Стабильная глобальная цепочка поставок для процветающего бизнеса.

Инвентарь на $4 000 000
500+ надежных поставщиков
Сертифицированное партнерство
Сотрудничество с FedEx, UPS, DHL

Более 100 000 разнообразных продуктов для любых нужд

Индивидуальная поддержка для ваших нужд с помощью CCIE, HCIE, HPE ASE и т. д.

Индивидуальное обслуживание, превосходное обслуживание продукта для максимального удовлетворения.

Проекты и техническая поддержка
Простая покупка
Защита жизненного цикла продукта
Эксклюзивная поддержка команды F4

Обзор

TNM4000-TP28HH4X8G24T Обзор

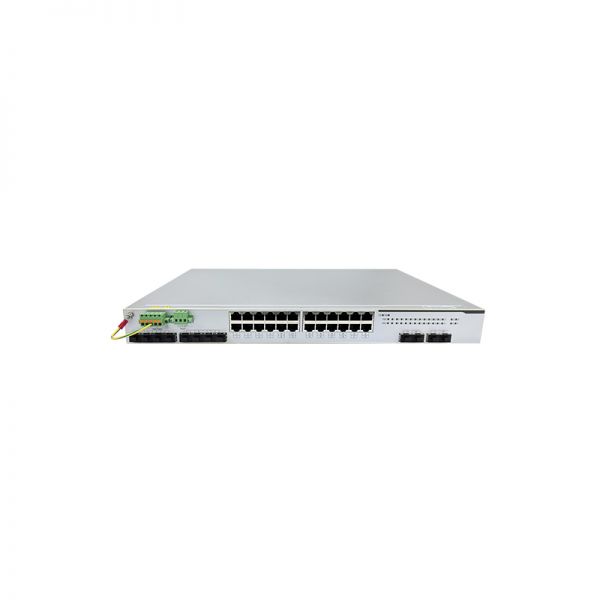

28-port Industrial Layer 3 Switch made from Anti-Corrosion Aluminum Alloy and Stainless Steel. 1610/100/1000BaseT Ports, 8100/1000Base(X/T) COMBO Ports, and 4100/1000/2500/10000BaseX SFP+ Ports (SFP module not included). Standard 19-inch Rack Mount and 1U High, 1 Management Ethernet Port and 1 Management Serial CLI Port, 1 Alarm Relay Port (250VAC/125VDC 2A 250VAC/2A 30VDC), 1 SD slot, and 1 RST Button. IP40 Protection Class, Operating Temperature from -40°C to +85°C. Dual Isolated 100-240V Power Inputs.

Quick Spec

Table 1 shows the quick spec of the TNM4000-TP28HH4X8G24T.

Model	TNM4000-TP28HH4X8G24T
Interface Configuration	MAX 28 Ports
Input Voltage	100-240VAC/DC, Dual power inputs
Fansless	Yes
Backplane Bandwidth	128 Gbps
Installasion	Rack-Mounted
IP Rating	IP40;
Conformal Coated	Optional
Dimensions (W x H x D)	442mm×43.8mm×335mm
Dimensions (W x H x D)	17.41 inch x 1.73 inch x 13.19 inch
Weight	4 kg
Weight	8.82 lb
MTBF	≥800,000H
Operating Temperature	-40 °C~ 85 °C
Operating Temperature	-40°F ~ 185°F
Product Safety	CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A
Hazardous Area	UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry	JT/T817-2011; NEMA-TS2 (pending)
Rail Industry	EN50121-4
Power Industry	IEC61850-3 IEEE1613 (C37.90.x)
Industrial Control Industry	UL/cUL61010 (pending)
Shipbuilding Industry	GL (pending)

Product Features

● EMC Class 4
● Industrial fanless design
● Dual redundancy 220V industrial power supply
● Support relay alarm
● Business port, management port, power supply and relay terminal are on the front panel, complying to industrial operation mode
● Support industrial rings, STP, EAPS, ERPS etc.
● Support CPU protection function, limiting the attack of invalid packets on the CPU
● Support ring network recovery time <50ms (typical value)
● Any two ports can be grouped into self-recovery ring, and support multiple independent self-recovery rings.
● Provides packet loss protection mechanism to quickly recover from network failures
● Support SNMP management

● MTBF ≥800,000h

Supported Options

Table 2 shows the supported options of the TNM4000-TP28HH4X8G24T.

MRD-MGIGA-GLX	Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
MRD-MGIGA-GEX	Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
MRD-MGIGA-GZX	Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM
MRD-G25-GLX	Industrial Grade 2500BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
MRD-G25-GEX	Industrial Grade 2500BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
MRD-G25-GZX	Industrial Grade 2500BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM
MRD-10GLS-LC	Industrial Grade 10000BaseX SFP+ Module, Singlemode(1310), Dual Fibers, DDM, 10KM
MRD-10GRS-LC	Industrial Grade 10000BaseX SFP+ Module, Singlemode(1310), Dual Fibers, DDM, 20KM
MRD-10GRS-LC	Industrial Grade 10000BaseX SFP+ Module, Singlemode(1550), Dual Fibers, DDM, 40KM

Compare to Similar Items

Table 3 shows the comparison to similar items of the TNM4000-TP28HH4X8G24T.

Product number	Product description
TNM4000-TP28HH4G8G24T	28-port Industrial Layer 2 Switch made from Anti-Corrosion Aluminum Alloy and Stainless Steel. 16 10/100/1000BaseT Ports, 8 100/1000Base(X/T) COMBO Ports, and 4 100/1000BaseX SFP Ports (SFP module not included). Standard 19-inch Rack Mount and 1U High, 1 Management Ethernet Port and 1 Management Serial CLI Port, 1 Alarm Relay Port (250VAC/125VDC 2A@250VAC/2A@30VDC), 1 SD slot, and 1 RST Bu????on. IP40 Protection Class, Operating Temperature from -40°C to +85°C. Dual Isolated 100-240V Power Inputs.
DS-3T3728	16 x GE + 8 x combo + 4 x 10G SFP Operating Temperature -40 °C ~ 75 °C（HIKVISION）

Get More Information

Do you have any questions about the TNM4000-TP28HH4X8G24T price?

Сертификаты качества

Спецификация

TNM4000-TP28HH4X8G24T Спецификация

TNM4000-TP28HH4X8G24T Specification
Backplane Bandwidth	128 Gbps
Processing Type	Store-and-Forward
MAC Table Size	16K
Packet Buffer Size	108 Mbti
Exchange Rate	148,800 pps/100M; 1,488,000 pps/1000 M; 14,880,000 pps/10000M
Management Mode	Browser, Console, Telnet, SSH 2.0, Syslog, NTP/SNTP, STD-62 SNMPv3, SNMPv2c, SNMPv1, FTP/TFTP
Diagnosis Mode	Indicator light, journal file, relay, RMON, port mirroring, TRAP
Redundancy	RSTP, STP, MSTP, MRD-Ring®, port trunking
Time Synchronization	NTP
Others	4K VLANS, IPv4/IPv6 multicast, storm control, support Jumbo Frame
Connection	5-pin terminal block
Input Voltage	100-240V, Dual inputs
Power Consumption	35W
Overload Current Protection	Supported
Reverse Polarity Protection	Supported
Installasion	Rack-Mounted
Housing	Aluminum Alloy Housing
IP Rating	IP40;
Conformal Coated	Optional
Dimensions (W x H x D)	442mm×43.8mm×335mm
Dimensions (W x H x D)	17.41 inch x 1.73 inch x 13.19 inch
Weight	4 kg
Weight	8.82 lb
MTBF	≥800,000H
Storage Temperature	-40 ℃ ~ 85 ℃
Storage Temperature	-40℉ ~ 185℉
Operating Temperature	-40 ℃ ~ 85 ℃
Operating Temperature	-40℉ ~ 185℉
Ambient Relative Humidity	5 % ~ 95% (non-condensing)
Vibration	IEC 60068-2-6
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-31
Circuit Board	Approved by IPC
EMI	FCC 47 CFR Part 15 Class A EN 55032 Class A EN 55035 Class A
EMS	IEC (EN )61000-4-2, Class 4 IEC (EN )61000-4-3, Class 3 IEC (EN )61000-4-4, Class 4 IEC (EN )61000-4-5, Class 4 IEC (EN )61000-4-6, Class 3 IEC (EN )61000-4-9, Class 5
Product Safety	CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A
Hazardous Area	UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry	JT/T817-2011; NEMA-TS2 (pending)
Rail Industry	EN50121-4
Power Industry	IEC61850-3 IEEE1613 (C37.90.x)
Industrial Control Industry	UL/cUL61010(pending)
Shipbuilding Industry	GL (pending)
