Network Architecture Options for Small Business
(Requires Router & Voice Module)

The following affordable, secure, and easy-to-manage network architectures are designed for the companies with approximately 60 employees who need to use IP telephony, VPN and WIFI services.

The current hot ISR4321/K9 is selected as the home router. The ISR4321/K9 performs data processing. By adding a license and voice-related module, this ISR4321/K9 router also can acts as a voice gateway and provides business support for IP Phones, video conferences, and fax machines.

The 2960X series switches can provide access to office computers, as well as POE+ power supply for IP Phones and APs.

Cisco Gigabit switches feature stable performance, fast forwarding rate, advanced QOS and convenient visual management.

Through VLAN and QOS, enterprises can achieve different access rights to different departments. Through DAI, external devices can be privately connected to the enterprise network to enhance network security and stability. The 2960X Series features lower power consumption and advanced energy management capabilities.

The AIR-AP1832i-x-K9C and AIR-AP1832i-x-K9 are chosen as the Access Points of WIFI. The AIR-AP1832i-x-K9C has the ability to manage and configure other APs. It not only realizes the unified management of the enterprise AP, but also the user's non-aware roaming, which can help us save a lot of expenses for purchasing the wireless controller.

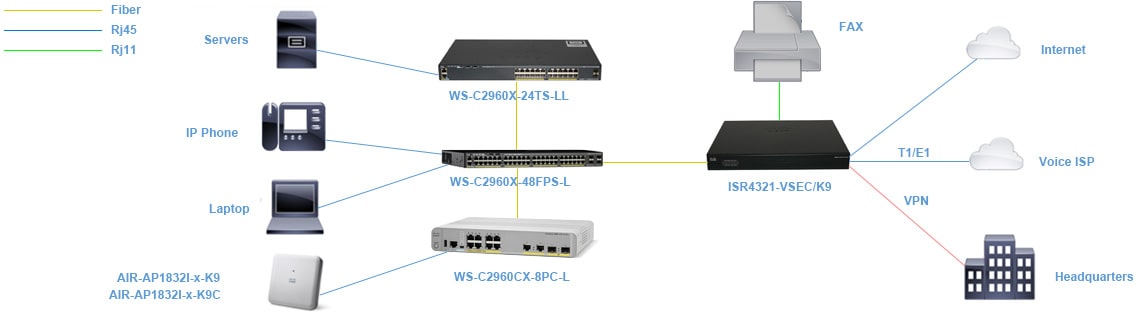

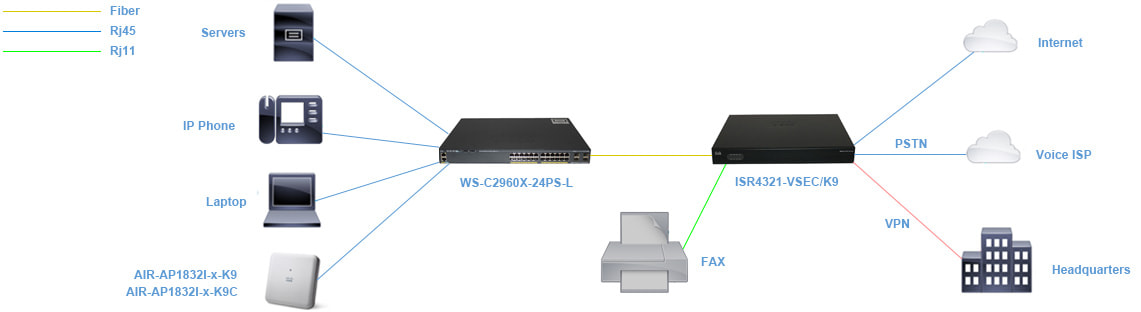

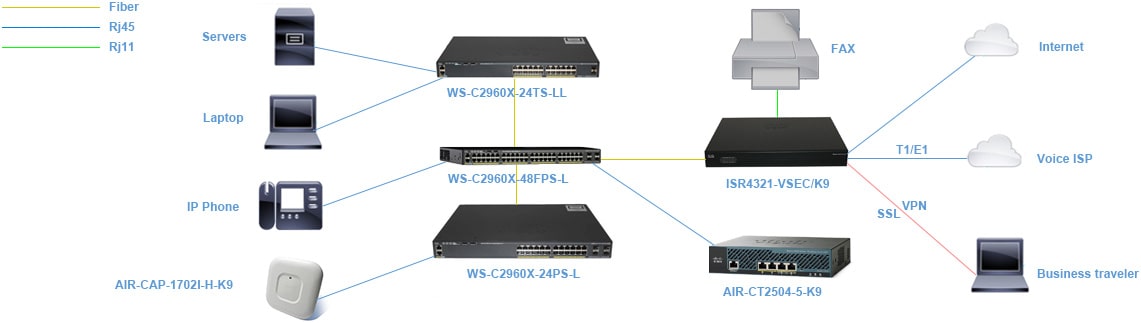

Network Architecture Options for Small Business (Requires Router & Voice Module)

Product List	Quantity Required	Product List	Quantity Required
ISR4321/K9	1	WS-C2960X-24PS-L	1
NIM-2FXS/4FXO	1	PVDM4-32	1
SL-4320-UC-K9=	1	CP-7841-K9	20
AIR-AP1832i-x-K9C	1	AIR-AP1832i-x-K9	3

Product List	Quantity Required	Product List	Quantity Required
ISR4321/K9	1	WS-C2960CX-8PC-L	1
WS-C2960X-48FPS-L	1	WS-C2960X-24TS-LL	1
NIM-2MFT-T1/E1	1	NIM-2FXS	20
PVDM4-64	1	SL-4320-UC-K9=	3
GLC-SX-MM	4	Fiber Optic Cable/ LC/LC	2
CP-7821-K9	40	AIR-AP1832i-x-K9C	2
AIR-AP1832i-x-K9	3

Product List	Quantity Required	Product List	Quantity Required
ISR4321/K9	1	WS-C2960X-48FPS-L	1
WS-C2960X-24TS-LL	1	GLC-SX-MM	4
Fiber Optic Cable/ LC/LC	2	NIM-2MFT-T1/E1	1
NIM-2FXS	1	PVDM4-64	1
SL-4320-UC-K9=	1	AIR-CT2504-5-K9	1
L-LIC-CT2504-5A	1	Air-cap1702i-h-k9	10
CP-7841-K9	30

Product List	Quantity Required	Product List	Quantity Required
ISR4321/K9	1	WS-C2960X-24PS-L	1
WS-C2960X-48FPS-L	1	WS-C2960X-24TS-LL	1
GLC-SX-MM	6	Fiber Optic Cable/ LC/LC	3
NIM-2MFT-T1/E1	1	NIM-2FXS	1
PVDM4-64	1	SL-4320-UC-K9=	1
AIR-CT2504-5-K9	1	L-LIC-CT2504-25A	1
air-cap1702i-h-k9	24	CP-7841-K9	45
