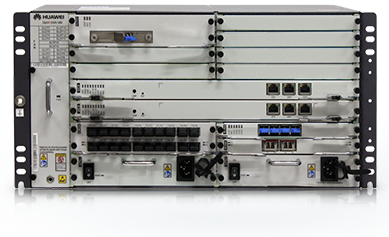

Huawei OptiX OSN 500&550&580 MSTP

Huawei OptiX OSN 500&550&580 MSTP

A next generation multi-service optical transmission platform.

See OSN 500 Models    See OSN 550 Models    See OSN 580 Models
Overview

Huawei OptiX OSN 500/550/580 Overview

Huawei OptiX OSN 500/550/580 Overview
The OptiX OSN 500 is of a pure packet architecture, and supports a variety of service access modes. It completes Huawei's optical transmission system, and sharpens the competitive edges of Huawei's optical transmission products.
The OptiX OSN 550 supports various service networking topologies in the time division multiplexing (TDM) and packet domains, applicable to a wide range of scenarios.
The OptiX OSN 580 supports a variety of service network topologies in the TDM and packet domains, able to meet customers' various service development demands.

Huawei OptiX OSN 500/550/580 Product Portfolio

OptiX OSN 500
OptiX OSN 500
Shop Quote
OptiX OSN 550
OptiX OSN 550
Shop Quote
OptiX OSN 580
OptiX OSN 580
Shop Quote

Application Scenarios

Application Scenarios
Network application of the OptiX OSN 500 / 550
Application Scenarios
Network application of the OptiX OSN 580

OptiX OSN 500/550/580 Specification

Indicator and Specifications OptiX OSN 500 Description OptiX OSN 550 Description OptiX OSN 580 Description
Appearance OptiX OSN 500 OptiX OSN 550 OptiX OSN 580
Dimensions (H x W x D) 44 mm x 442 mm x 220 mm 88 mm x 442 mm x 220 mm 221 mm x 442 mm x 224 mm
Number of valid slots 2 (excluding the slots for system control, switching, and time boards)/3 (including the slots for system control, switching, and time boards)
  • DC power-supply chassis: 6 (excluding the slots for system control, switching, and time boards)/8 (including the slots for system control, switching, and time boards)
  • AC power-supply chassis: 4 (excluding the slots for system control, switching, and time boards)/6 (including the slots for system control, switching, and time boards)
  • DC power-supply chassis: 15
  • AC power-supply chassis: 12
Equipment capacity Packet 7.2 Gbit/s 64 Gbit/s 560 Gbit/s
TDM / 20 Gbit/s higher order cross-connections and 5 Gbit/s lower order cross-connections 280 Gbit/s higher order cross-connections and 20 Gbit/s lower order cross-connections
ETH OAM (TDM) /
  • Ethernet service OAM: CC, LB, LT, and OAM_Ping
  • Ethernet port OAM: OAM auto-discovery, link performance monitoring, remote loopback, fault detection, and self-loop detection
  • Ethernet service OAM: CC, LB, LT, and OAM_Ping
  • Ethernet port OAM: OAM auto-discovery, link performance monitoring, remote loopback, fault detection, and self-loop detection
DCN Outband DCN / HWECC, IP over DCC, OSI over DCC HWECC, IP over DCC
Inband DCN HWECC, IP HWECC, IP HWECC, IP
Standard working voltage -48 V/-60 V DC power input
  • -48 V/-60 V DC power input
  • 110 V/220 V AC power input
  • -48 V/-60 V DC power input
  • 110 V/220 V AC power input
Installation method In a cabinet (including ETSI and 19-inch cabinets), on a wall or desk, or in an open rack In a cabinet (including ETSI and 19-inch cabinets), on a wall or desk, in an outdoor cabinet, or in an open rack In a cabinet (including ETSI and 19-inch cabinets), in an outdoor cabinet
Reliability specifications System availability 0.999997766 0.999996848 0.999998866
Annual average repair rate < 1.5% < 1.5% < 1.85%
Mean time to resolution (MTTR) 1 h 1 h 1 h
Mean time between failures (MTBF) 51.1 years 36.22 years 100.69 years

Huawei OptiX OSN 500/550/580 Hardware Descriptions

  • OSN 500
  • OSN 550
  • OSN 580
The OptiX OSN 500 is a 1U chassis. It can be deployed in a variety of scenarios and on several different types of cabinets and surfaces.
OptiX OSN 500 Chassis
OptiX OSN 500 Chassis Structure
OptiX OSN 500 Chassis
OptiX OSN 500 Chassis Structure and Board Area
Note: An OptiX OSN 500 NE can automatically save its NE ID, extended ID, IP address, and subnet mask to its backplane. After a new system control, switching, and timing board replaces an original one, the NE automatically uses the saved information. Therefore, you do not need to set the NE ID, extended ID, IP address, or subnet mask for the substitute board.

Installation Mode

The equipment can be deployed in a variety of scenarios and on several different types of cabinets and surfaces. such as installation in a cabinet (including ETSI and 19-inch cabinets), on a wall or desk, or in an open rack.

Technical Specifications

Item Performance
Dimensions (H x W x D) 44 mm x 442 mm x 220 mm (H x W x D)
Weight (empty chassis with a backplane) 2.6 kg (net weight of a chassis)
Power consumption · Maximum power consumption: 100 W
· Typical power consumption: 35 W
The OptiX OSN 550 is a 2U chassis. It can be deployed in a variety of scenarios and on several different types of cabinets and surfaces.
OptiX OSN 550 Chassis
OptiX OSN 550 Chassis Structure
OptiX OSN 550 Chassis
OptiX OSN 550 Chassis Structure and Board Area
Note: An OptiX OSN 550 NE can automatically save its NE ID, extended ID, IP address, and subnet mask to its backplane. After a new system control, switching, and timing board replaces an original one, the NE automatically uses the saved information. Therefore, you do not need to set the NE ID, extended ID, IP address, or subnet mask for the substitute board.

Installation Mode

The equipment can be deployed in a variety of scenarios and on several different types of cabinets and surfaces. such as in a cabinet (including ETSI and 19-inch cabinets), on a wall or desk, in an outdoor cabinet, or in an open rack.

Technical Specifications

Item Performance
Dimensions (H x W x D) 88 mm x 442 mm x 220 mm (H x W x D)
Weight (empty chassis with a backplane) 3.6 kg (net weight of a chassis)
Power consumption · Maximum power consumption: 300 W
· Typical power consumption in Hybrid mode: 132.6 W
· Typical power consumption in TDM mode: 148.7 W
An OptiX OSN 580 chassis is 5U high and case-shaped and features high integration. The chassis can be AC powered or DC powered. A DC powered chassis uses the DC power board PIU, and an AC powered chassis uses the AC power board APIU. In an AC powered chassis, an APIU board occupies two service slots. The PIU and APIU boards cannot be installed in the same chassis. Install the PIU board only in a DC powered chassis and the APIU board only in an AC powered chassis.
OptiX OSN 580 Chassis
OptiX OSN 580 Chassis Structure

Installation Mode

The OptiX OSN 580 chassis supports the following installation modes: an ETSI or 19-inch cabinet. The DC power chassis can be installed in an outdoor cabinet.

Technical Specifications

Item Performance
Dimensions (Height x Width x Depth) 221 mm x 442 mm x 224 mm
Weight (empty chassis with the backplane) 8.0 kg

Resource

Datasheet
