Название:	TCC4100-CU80G0
Модель:	MRD TCC4100-CU80G0
Бренд:	MRD
Detail:	TCC4100 Series 8 100/1000/2500BaseX SFP Ports and 16 10/100/1000BaseT Ports,
	Рейтинг: 80% 4/5.0 2 Отзывы
Цена:	USD AUD BRL GBP CAD CNY EUR HKD MXN RUB SGD CHF AED 5 429,00 US$
Купон	Up to $80 Coupons Получить сейчас $10.00 Order Over $100 RS10 $20.00 Order Over $2000 RSTW $50.00 Order Over $5000 RSFI $80.00 Order Over $8000 RSEI
Наличие:	Item Backordered
Условие:	New

Доставка:

Экспресс-доставка в Соединенные Штаты
2-6 Дней, via DHL, FedEx, UPS, etc.

Оплата:

Оплата банковским переводом.
Оплатите с помощью PayPal.
Оплачивайте своими вебмани.
Pay with your onafriq.
Оплата кредитной картой Visa.
Оплата кредитной картой Mastercard.
Платите картой Discover.
Оплатить Вестерн Юнион.

Поддержка:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

TCC4100-CU80G0

TCC4100 Series 8 100/1000/2500BaseX SFP Ports and 16 10/100/1000BaseT Ports,

Цена: 5 429,00 US$

Стабильная глобальная цепочка поставок для процветающего бизнеса.

Инвентарь на $4 000 000
500+ надежных поставщиков
Сертифицированное партнерство
Сотрудничество с FedEx, UPS, DHL

Более 100 000 разнообразных продуктов для любых нужд

Индивидуальная поддержка для ваших нужд с помощью CCIE, HCIE, HPE ASE и т. д.

Индивидуальное обслуживание, превосходное обслуживание продукта для максимального удовлетворения.

Проекты и техническая поддержка
Простая покупка
Защита жизненного цикла продукта
Эксклюзивная поддержка команды F4

Обзор

TCC4100-CU80G0 Обзор

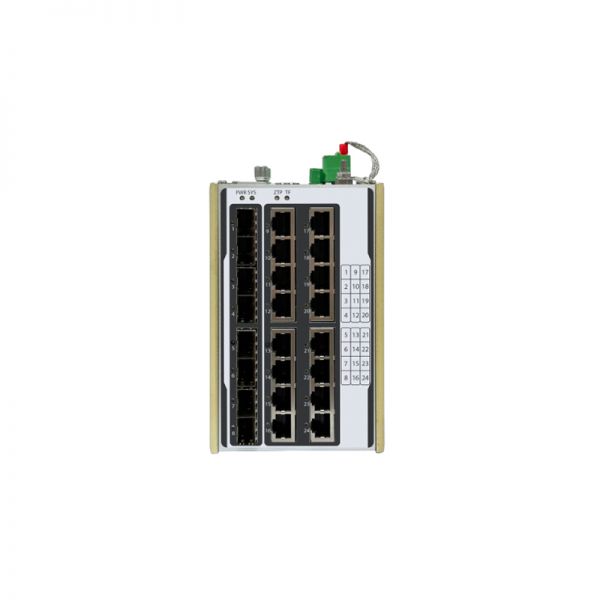

TCC4100 Layer3 Industrial Switch made from Anti-Corrosion Aluminum Alloy and Stainless Steel. 8100/1000/2500BaseX SFP Ports (SFP module not included) and 16 10/100/1000BaseT Ports, Isolated Dual Universal Power Inputs (18~300VDC or 90~264VAC ). IP40 protection class. Working Temperature –40°C ~ +85°C.

Quick Spec

Table 1 shows the quick spec of the TCC4100-CU80G0.

Model	TCC4100-CU80G0
Interface Configuration	8 x 100/1000/2500BaseX SFP Ports 16 x 10/100/1000BaseT Ports
Input Voltage	18~300VDC or 90~264VAC
Fansless	Yes
Backplane Bandwidth	72 Gbps
Installasion	DIN-Rail
IP Rating	IP40;
Conformal Coated	Optional
Dimensions (W x H x D)	88mm x 140mm x 110mm
Dimensions (W x H x D)	3.47 inch x 5.51 inch x 4.34inch
Weight	1.4 kg
Weight	3.09 lb
MTBF	≥600,000H
Operating Temperature	-40 °C~ 85 °C
Operating Temperature	-40°F ~ 185°F
Product Safety	CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A
Hazardous Area	UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry	JT/T817-2011; NEMA-TS2 (pending)
Rail Industry	EN50121-4
Power Industry	IEC61850-3 IEEE1613 (C37.90.x)
Industrial Control Industry	UL/cUL61010
Shipbuilding Industry	GL (pending)

Product Features

● Linear switches with high performance and flexible configuration
● Support MRD-Ring® network redundancy for < 50 ms recovery time
● Support Media Redundancy Protocol (compliant with IEC62439)
● Any two ports can establish a self-recovery ring and support multiple independent self-recovery rings
● Support Dying gasp function and initiatively report power-down state through SNMP protocol
● Built-in unified MicOS real-time operating systems for all MRD™ switches
● Dual redundant power inputs design
● Fanless, -40 to 85°C wide operating temperature range
● MTBF >600, 000 hours

Supported Options

Table 2 shows the supported options of the TCC4100-CU80G0.

MRD-MGIGA-GLX	Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
MRD-MGIGA-GEX	Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
MRD-MGIGA-GZX	Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM
MRD-G25-GLX	Industrial Grade 2500BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
MRD-G25-GEX	Industrial Grade 2500BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
MRD-G25-GZX	Industrial Grade 2500BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM

Compare to Similar Items

Table 3 shows the comparison to similar items of the TCC4100-CU80G0.

Product number	Product description
MDS-G4020-T	16 x FE(MOXA) +4 x GE

Get More Information

Do you have any questions about the TCC4100-CU80G0 price?

Сертификаты качества

Спецификация

TCC4100-CU80G0 Спецификация

TCC4100-CU80G0 Specification
Backplane Bandwidth	72 Gbps
CPU	333MHz RISC
Processing Type	Store-and-Forward
MAC Table Size	16K
Packet Buffer Size	4Mbit
Exchange Rate	148,800 pps/100M; 1,488,000 pps/1000 M;
Management Mode	Web, serial port, STD-17 MIB-II, STD-58 SMIv2, STD-59 RMON, STD-62 SNMPv3, SNMPv2c, SNMPv1, RFC2668 MAU, RFC2925 Ping MIB, MRD Pri- vate MIBs, SSH, HTTPS, Telnet
Diagnosis Mode	Indicator light, journal file, relay, RMON, port mirroring, TRAP
Redundancy	MRD-Ring® , MRP, RSTP, port trunking
Time Synchronization	SNTP
Others	4K VLANS, IPv4/IPv6 multi-cast, storm control, MC/BC protection, support Jumbo Frame
Connection	5-pin terminal block
Input Voltage	18~300VDC or 90~264VAC
Power Consumption	28W
Overload Current Protection	Supported
Reverse Polarity Protection	Supported
Installasion	DIN-Rail
Housing	Aluminum Alloy Housing
IP Rating	IP40;
Conformal Coated	Optional
Dimensions (W x H x D)	88mm x 140mm x 110mm
Dimensions (W x H x D)	3.47 inch x 5.51 inch x 4.34inch
Weight	1.4 kg
Weight	3.09 lb
MTBF	≥600,000H
Storage Temperature	-40 ℃ ~ 85 ℃
Storage Temperature	-40℉ ~ 185℉
Operating Temperature	-40 ℃ ~ 85 ℃
Operating Temperature	-40℉ ~ 185℉
Ambient Relative Humidity	5 % ~ 95% (non-condensing)
Vibration	IEC 60068-2-6
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-31
Circuit Board	Approved by IPC
EMI	FCC 47 CFR Part 15 Class A EN 55032 Class A EN 55035 Class A
EMS	IEC (EN)61000-4-2, Class 4 IEC (EN)61000-4-4, Class 3 IEC (EN)61000-4-5, Class 4 IEC (EN)61000-4-8, Class 5 IEC (EN)61000-4-11, Class 4 IEC (EN)61000-4-12, Class 3
Product Safety	CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A
Hazardous Area	UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry	JT/T817-2011
Rail Industry	EN50155; IEC/EN61373; EN50121
Power Industry	IEC61850-3 IEEE1613 (C37.90.x)
Industrial Control Industry	UL/cUL61010
Shipbuilding Industry	DNV-GL (pending)
