TNM4000-TP36FF4X12G24P

TNM4000 Series 8 802.3af/at PoE/PoE+/PoE++ 10/100/1000BaseT ports, 12 802.3 af/at PoE/PoE+ 10/100/1000BaseT ports, 4 802.3 af/at PoE/ PoE+ 100/1000Base(X/T) COMBO ports, 8 100/1000BaseX SFP ports, and 4 100/1000/2500/10000BaseX SFP ports

Стабильная глобальная цепочка поставок для процветающего бизнеса.

Инвентарь на $4 000 000
500+ надежных поставщиков
Сертифицированное партнерство
Сотрудничество с FedEx, UPS, DHL

Более 100 000 разнообразных продуктов для любых нужд

Индивидуальная поддержка для ваших нужд с помощью CCIE, HCIE, HPE ASE и т. д.

Индивидуальное обслуживание, превосходное обслуживание продукта для максимального удовлетворения.

Проекты и техническая поддержка
Простая покупка
Защита жизненного цикла продукта
Эксклюзивная поддержка команды F4

Обзор

TNM4000-TP36FF4X12G24P Обзор

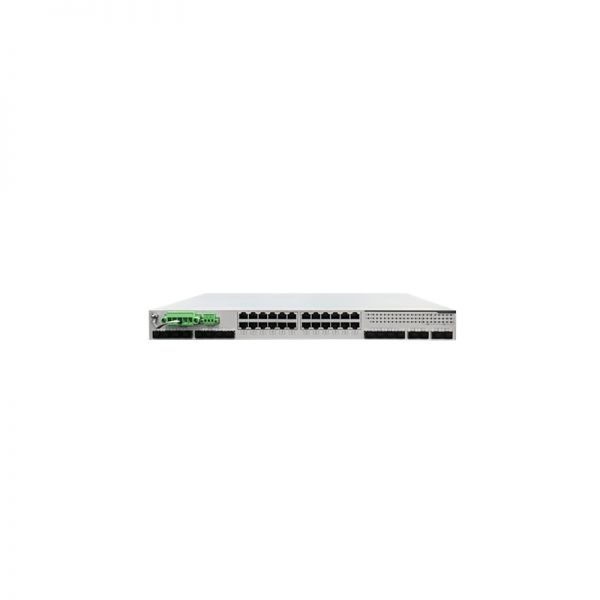

36-port Industrial Backbone Switch made from Anti-Corrosion Aluminum Alloy and Stainless Steel. 8 802.3af/at PoE/PoE+/PoE++ 10/100/1000BaseT ports, 12 802.3 af/at PoE/PoE+ 10/100/1000BaseT ports, 4 802.3 af/at PoE/ PoE+ 100/1000Base(X/T) COMBO ports, 8 100/1000BaseX SFP ports, and 4 100/1000/2500/10000BaseX SFP ports (SFP module not included). Standard 19-inch Rack-Mount and 1U high, 1 Management Ethernet Port and 1 Man- agement Serial CLI port, 1 Alarm Relay port (250VAC/125VDC,
2A@250VAC / 2A@30VDC), 1 SD slot, and 1 RST Bu????on. IP40 Protection Class, Operating temperature from -40°C to +75°C. Dual 48-54VDC power inputs.

Quick Spec

Table 1 shows the quick spec of the TNM4000-TP36FF4X12G24P.

Model	TNM4000-TP36FF4X12G24P
Interface Configuration	MAX 36 Ports
Input Voltage	48-54VDC, dual power inputs
Fansless	Yes
Backplane Bandwidth	160 Gbps
Installasion	Rack-Mounted
IP Rating	IP40;
Conformal Coated	Optional
Dimensions (W x H x D)	442mm×43.8mm×335mm
Dimensions (W x H x D)	17.41 inch x 1.73 inch x 13.19 inch
Weight	4 kg
Weight	8.82 lb
MTBF	≥800,000H
Operating Temperature	-40 °C~ 85 °C
Operating Temperature	-40°F ~ 185°F
Product Safety	CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A
Hazardous Area	UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry	JT/T817-2011; NEMA-TS2 (pending)
Rail Industry	EN50121-4
Power Industry	IEC61850-3 IEEE1613 (C37.90.x)
Industrial Control Industry	UL/cUL61010 (pending)
Shipbuilding Industry	GL (pending)

Product Features

● Configurable by web browser, Telnet, CLI
● With functions of data packet dropout protection and quick recovery from network failure
● Support various multicast protocols and strong safety protection mechanism
● IGMP snooping and GMRP for filtering traffic from industrial Ethernet protocols
● QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
● SNMPv1/v2c/v3 for different levels of network management
● RMON for proactive and efficient network monitoring
● Bandwidth management to prevent unpredictable network status
● Port mirroring for online debugging
● Support IEEE 802.3af/at compliant PoE
● Each PoE port provides up to 30W output power
● PoE management: PoE device detection, PoE power management
● Isolated redundant power inputs
● Fanless, -40°C to 75°C operating temperature range

Supported Options

Table 2 shows the supported options of the TNM4000-TP36FF4X12G24P.

MAC-M480-48	480W Industrial DIN-Rail Power Supply Input: 90~264Vac or 127~370Vdc，Output: 48Vdc/10A/480W， -25°C to +70°C
MRD-MGIGA-GLX	Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
MRD-MGIGA-GEX	Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
MRD-MGIGA-GZX	Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM
MRD-G25-GLX	Industrial Grade 2500BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
MRD-G25-GEX	Industrial Grade 2500BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
MRD-G25-GZX	Industrial Grade 2500BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM
MRD-10GLS-LC	Industrial Grade 10000BaseX SFP+ Module, Singlemode(1310), Dual Fibers, DDM, 10KM
MRD-10GRS-LC	Industrial Grade 10000BaseX SFP+ Module, Singlemode(1310), Dual Fibers, DDM, 20KM
MRD-10GRS-LC	Industrial Grade 10000BaseX SFP+ Module, Singlemode(1550), Dual Fibers, DDM, 40KM

Compare to Similar Items

Table 3 shows the comparison to similar items of the TNM4000-TP36FF4X12G24P.

Product number	Product description
TNM4000-TP36FF4M12G24P	36-port Industrial Backbone Switch made from Anti-Corrosion Aluminum Alloy and Stainless Steel. 8 802.3af/at PoE/PoE+/PoE++ 10/100/1000BaseT ports, 12 802.3 af/at PoE/PoE+ 10/100/1000BaseT ports, 4 802.3 af/at PoE/ PoE+ 100/1000Base(X/T) COMBO ports, 8 100/1000BaseX SFP ports, and 4 100/1000/2500BaseX SFP ports (SFP module not included). Standard 19- inch Rack-Mount and 1U high, 1 Management Ethernet Port and 1 Manage- ment Serial CLI port, 1 Alarm Relay port (250VAC/125VDC, 2A@250VAC / 2A@30VDC), 1 SD slot, and 1 RST Bu????on. IP40 Protection Class, Operating temperature from -40°C to +75°C. Dual 48-54VDC power inputs.
RKS-G4028-L3-PoE-4GS-HV-T	4 x GX SFP ，24 x GE (POE)，-40 to 75°C

Get More Information

Do you have any questions about the TNM4000-TP36FF4X12G24P price?

Сертификаты качества

Спецификация

TNM4000-TP36FF4X12G24P Спецификация

TNM4000-TP36FF4X12G24P Specification
Backplane Bandwidth	160 Gbps
Processing Type	Store-and-Forward
MAC Table Size	32K
Packet Buffer Size	32 Mbti
Exchange Rate	148,800 pps/100M; 1,488,000 pps/1000 M; 14,880,000 pps/10000M
Management Mode	Web, serial port, STD-17 MIB-II, STD-58 SMIv2, STD-59 RMON, STD-62 SNMPv3, SNMPv2c, SNMPv1, RFC2668 MAU, RFC2925 Ping MIB, MRD Pri- vate MIBs
Diagnosis Mode	Indicator light, journal file, relay, RMON, port mirroring, TRAP
Redundancy	MSTP, RSTP, port trunking
Time Synchronization	NTP, SNTP
Others	IPv4/IPv6 multicast, storm control, MC/BC protection, support Jumbo Frame
Connection	5-pin terminal block
Input Voltage	48-54VDC, dual power inputs
Power Consumption	35W(Without PD)
Overload Current Protection	Supported
Reverse Polarity Protection	Supported
Installasion	Rack-Mounted
Housing	Aluminum Alloy Housing
IP Rating	IP30;
Conformal Coated	Optional
Dimensions (W x H x D)	442mm×43.8mm×335mm
Dimensions (W x H x D)	17.41 inch x 1.73 inch x 13.19 inch
Weight	4 kg
Weight	8.82 lb
MTBF	≥800,000H
Storage Temperature	-40 ℃ ~ 85 ℃
Storage Temperature	-40℉ ~ 185℉
Operating Temperature	-40 ℃ ~ 85 ℃
Operating Temperature	-40℉ ~ 185℉
Ambient Relative Humidity	5 % ~ 95% (non-condensing)
Vibration	IEC 60068-2-6
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-31
Circuit Board	Approved by IPC
EMI	FCC 47 CFR Part 15 Class A EN 55032 Class A EN 55035 Class A
EMS	IEC (EN )61000-4-2, Class 4 IEC (EN )61000-4-3, Class 3 IEC (EN )61000-4-4, Class 4 IEC (EN )61000-4-5, Class 4 IEC (EN )61000-4-6, Class 3 IEC (EN )61000-4-9, Class 5
Product Safety	CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A
Hazardous Area	UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry	JT/T817-2011; NEMA-TS2 (pending)
Rail Industry	EN50121-4
Power Industry	IEC61850-3 IEEE1613 (C37.90.x)
Industrial Control Industry	UL/cUL61010(pending)
Shipbuilding Industry	GL (pending)
