Название:	TNM4000-TP36HH4X12G24T
Модель:	MRD TNM4000-TP36HH4X12G24T
Бренд:	MRD
Detail:	TNM4000 Series 20 10/100/1000BaseT Ports, 4 100/1000Base(X/T) COMBO Ports, 8 100/1000BaseX SFP Ports (SFP module not included), and 4 100/1000/2500/10000BaseX SFP Ports
	Рейтинг: 100% 5/5.0 1 Отзыв
Наличие:	Item Backordered
Условие:	New

Доставка:

Экспресс-доставка в Соединенные Штаты
2-6 Дней, via DHL, FedEx, UPS, etc.

Оплата:

Оплата банковским переводом.
Оплатите с помощью PayPal.
Оплачивайте своими вебмани.
Pay with your onafriq.
Оплата кредитной картой Visa.
Оплата кредитной картой Mastercard.
Платите картой Discover.
Оплатить Вестерн Юнион.

Поддержка:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

TNM4000-TP36HH4X12G24T

TNM4000 Series 20 10/100/1000BaseT Ports, 4 100/1000Base(X/T) COMBO Ports, 8 100/1000BaseX SFP Ports (SFP module not included), and 4 100/1000/2500/10000BaseX SFP Ports

Стабильная глобальная цепочка поставок для процветающего бизнеса.

Инвентарь на $4 000 000
500+ надежных поставщиков
Сертифицированное партнерство
Сотрудничество с FedEx, UPS, DHL

Более 100 000 разнообразных продуктов для любых нужд

Индивидуальная поддержка для ваших нужд с помощью CCIE, HCIE, HPE ASE и т. д.

Индивидуальное обслуживание, превосходное обслуживание продукта для максимального удовлетворения.

Проекты и техническая поддержка
Простая покупка
Защита жизненного цикла продукта
Эксклюзивная поддержка команды F4

Обзор

TNM4000-TP36HH4X12G24T Обзор

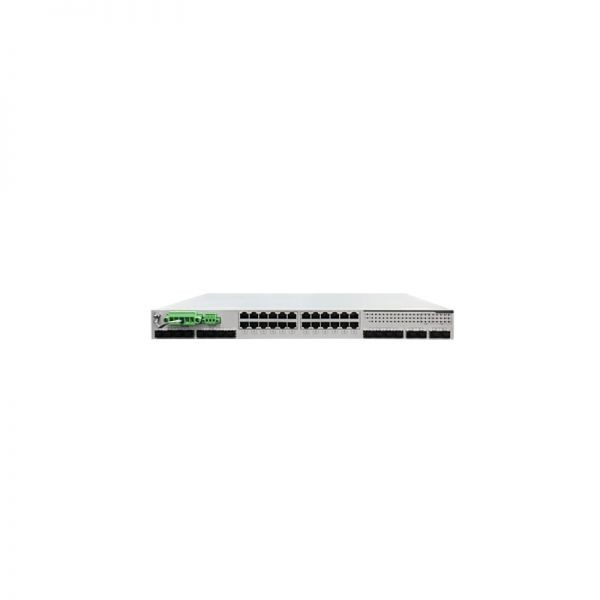

36-port Industrial Layer 3 Switch made from Anti-Corrosion Aluminum Alloy and Stainless Steel. 20 10/100/1000BaseT Ports, 4 100/1000Base(X/T) COMBO Ports, 8 100/1000BaseX SFP Ports (SFP module not included), and 4 100/1000/2500/10000BaseX SFP Ports (SFP module not included). Stand- ard 19-inch Rack Mount and 1U High, 1 Management Ethernet Port and 1 Management Serial CLI Port, 1 Alarm Relay Port (250VAC/125VDC 2A@250VAC/2A@30VDC), 1 SD slot, and 1 RST Bu????on. IP40 Protection Class, Operating Temperature from -40°C to +85°C. Dual Isolated 100-240V Power Inputs.

Quick Spec

Table 1 shows the quick spec of the TNM4000-TP36HH4X12G24T.

Model	TNM4000-TP36HH4X12G24T
Interface Configuration	MAX 36 Ports
Input Voltage	100-240VAC(50-60Hz) & 100-240VDC, Dual power inputs
Fansless	Yes
Backplane Bandwidth	160 Gbps
Installasion	Rack-Mounted
IP Rating	IP40;
Conformal Coated	Optional
Dimensions (W x H x D)	442mm×43.8mm×335mm
Dimensions (W x H x D)	17.41 inch x 1.73 inch x 13.19 inch
Weight	4 kg
Weight	8.82 lb
MTBF	≥800,000H
Operating Temperature	-40 °C~ 85 °C
Operating Temperature	-40°F ~ 185°F
Product Safety	CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A
Hazardous Area	UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry	JT/T817-2011; NEMA-TS2 (pending)
Rail Industry	EN50121-4
Power Industry	IEC61850-3 IEEE1613 (C37.90.x)
Industrial Control Industry	UL/cUL61010 (pending)
Shipbuilding Industry	GL (pending)

Product Features

● 36 Gigabit Ethernet ports, including 4 10G Ethernet ports
● Configurable by web browser, Telnet, CLI
● With functions of data packet dropout protection and quick recovery from network failure
● Support various multicast protocols and strong safety protection mechanism
● IGMP snooping and GMRP for filtering traffic from industrial Ethernet protocols
● QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
● SNMPv1/v2c/v3 for different levels of network management
● RMON for proactive and efficient network monitoring
● Bandwidth management to prevent unpredictable network status
● Port mirroring for online debugging
● Isolated redundant power inputs
● Fanless, -40°C to 85°C operating temperature range

Supported Options

Table 2 shows the supported options of the TNM4000-TP36HH4X12G24T.

MRD-MGIGA-GLX	Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
MRD-MGIGA-GEX	Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
MRD-MGIGA-GZX	Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM
MRD-G25-GLX	Industrial Grade 2500BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
MRD-G25-GEX	Industrial Grade 2500BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
MRD-G25-GZX	Industrial Grade 2500BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM
MRD-10GLS-LC	Industrial Grade 10000BaseX SFP+ Module, Singlemode(1310), Dual Fibers, DDM, 10KM
MRD-10GRS-LC	Industrial Grade 10000BaseX SFP+ Module, Singlemode(1310), Dual Fibers, DDM, 20KM
MRD-10GRS-LC	Industrial Grade 10000BaseX SFP+ Module, Singlemode(1550), Dual Fibers, DDM, 40KM

Compare to Similar Items

Table 3 shows the comparison to similar items of the TNM4000-TP36HH4X12G24T.

Product number

Product description

TNM4000-TP36HH4M12G24T

36-port Industrial Layer 3 Switch made from Anti-Corrosion Aluminum Alloy and Stainless Steel. 20 10/100/1000BaseT Ports, 4 100/1000Base(X/T) COMBO Ports, 8 100/1000BaseX SFP Ports (SFP module not included), and 4 100/1000/2500BaseX SFP Ports (SFP module not included). Standard 19- inch Rack Mount and 1U High, 1 Management Ethernet Port and 1 Manage- ment Serial CLI Port, 1 Alarm Relay Port (250VAC/125VDC 2A@250VAC/2A@30VDC), 1 SD slot, and 1 RST Bu????on. IP40 Protection Class, Operating Temperature from -40°C to +85°C. Dual Isolated 100-240V Power Inputs.

Get More Information

Do you have any questions about the TNM4000-TP36HH4X12G24T price?

Сертификаты качества

Спецификация

TNM4000-TP36HH4X12G24T Спецификация

TNM4000-TP36HH4X12G24T Specification
Backplane Bandwidth	160 Gbps
Processing Type	Store-and-Forward
MAC Table Size	32K
Packet Buffer Size	32 Mbti
Exchange Rate	148,800 pps/100M; 1,488,000 pps/1000 M; 14,880,000 pps/10000M
Management Mode	Web, serial port, STD-17 MIB-II, STD-58 SMIv2, STD-59 RMON, STD-62 SNMPv3, SNMPv2c, SNMPv1, RFC2668 MAU, RFC2925 Ping MIB, MRD Pri- vate MIBs
Diagnosis Mode	Indicator light, journal file, relay, RMON, port mirroring, TRAP
Redundancy	MSTP, RSTP, port trunking
Time Synchronization	NTP, SNTP
Others	IPv4/IPv6 multicast, storm control, MC/BC protection, support Jumbo Frame
Connection	5-pin terminal block
Input Voltage	100-240VAC(50-60Hz) & 100-240VDC, Dual power inputs
Power Consumption	35W
Overload Current Protection	Supported
Reverse Polarity Protection	Supported
Installasion	Rack-Mounted
Housing	Aluminum Alloy Housing
IP Rating	IP40;
Conformal Coated	Optional
Dimensions (W x H x D)	442mm×43.8mm×335mm
Dimensions (W x H x D)	17.41 inch x 1.73 inch x 13.19 inch
Weight	4 kg
Weight	8.82 lb
MTBF	≥800,000H
Storage Temperature	-40 ℃ ~ 85 ℃
Storage Temperature	-40℉ ~ 185℉
Operating Temperature	-40 ℃ ~ 85 ℃
Operating Temperature	-40℉ ~ 185℉
Ambient Relative Humidity	5 % ~ 95% (non-condensing)
Vibration	IEC 60068-2-6
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-31
Circuit Board	Approved by IPC
EMI	FCC 47 CFR Part 15 Class A EN 55032 Class A EN 55035 Class A
EMS	IEC (EN )61000-4-2, Class 4 IEC (EN )61000-4-3, Class 3 IEC (EN )61000-4-4, Class 4 IEC (EN )61000-4-5, Class 4 IEC (EN )61000-4-6, Class 3 IEC (EN )61000-4-9, Class 5
Product Safety	CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A
Hazardous Area	UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry	JT/T817-2011; NEMA-TS2 (pending)
Rail Industry	EN50121-4
Power Industry	IEC61850-3 IEEE1613 (C37.90.x)
Industrial Control Industry	UL/cUL61010(pending)
Shipbuilding Industry	GL (pending)
