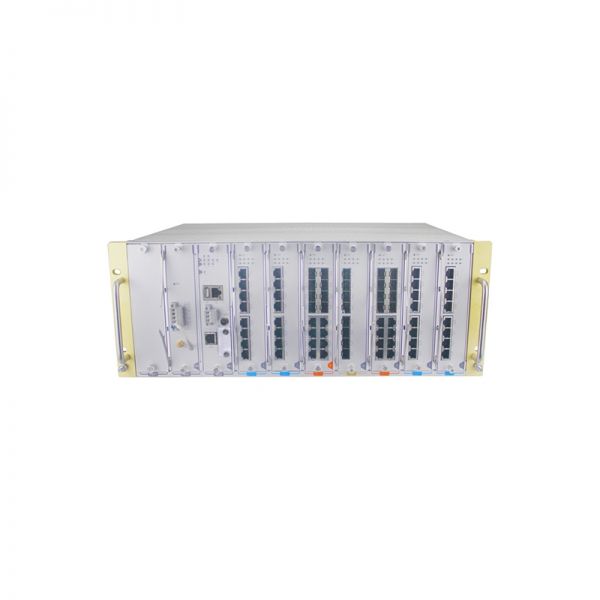

Название:	TNM4000-F-Chassis
Модель:	MRD TNM4000-F-Chassis
Бренд:	MRD
Detail:	TNM4000 Series Support up to 72 Ports. Standard 19-inch Rack Mount and 4U Height with 10 slots. 1 MSU slot (Including 1 T4K-MGT-II Module), and 7 Port Mod- ule slots (4 1.0G-slot, 2 2.5G-slot, 1 10G-slot), and 2 PSU slots (1+1 Redun- dant).
	Рейтинг: 100% 5/5.0 2 Отзывы
Наличие:	Item Backordered
Условие:	New

Доставка:

Экспресс-доставка в Соединенные Штаты
2-6 Дней, via DHL, FedEx, UPS, etc.

Оплата:

Оплата банковским переводом.
Оплатите с помощью PayPal.
Оплачивайте своими вебмани.
Pay with your onafriq.
Оплата кредитной картой Visa.
Оплата кредитной картой Mastercard.
Платите картой Discover.
Оплатить Вестерн Юнион.

Поддержка:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

TNM4000-F-Chassis

TNM4000 Series Support up to 72 Ports. Standard 19-inch Rack Mount and 4U Height with 10 slots. 1 MSU slot (Including 1 T4K-MGT-II Module), and 7 Port Mod- ule slots (4 1.0G-slot, 2 2.5G-slot, 1 10G-slot), and 2 PSU slots (1+1 Redun- dant).

Стабильная глобальная цепочка поставок для процветающего бизнеса.

Инвентарь на $4 000 000
500+ надежных поставщиков
Сертифицированное партнерство
Сотрудничество с FedEx, UPS, DHL

Более 100 000 разнообразных продуктов для любых нужд

Индивидуальная поддержка для ваших нужд с помощью CCIE, HCIE, HPE ASE и т. д.

Индивидуальное обслуживание, превосходное обслуживание продукта для максимального удовлетворения.

Проекты и техническая поддержка
Простая покупка
Защита жизненного цикла продукта
Эксклюзивная поддержка команды F4

Обзор

TNM4000-F-Chassis Обзор

Total-Fanless TNM4000 Industrial Multi-Layer Multi-Protocol BackBone Switch Mainframe made from Anti-Corrosion Aluminum Alloy and Stainless Steel. Support up to 72 Ports. Standard 19-inch Rack Mount and 4U Height with 10 slots. 1 MSU slot (Including 1 T4K-MGT-II Module), and 7 Port Mod- ule slots (4 1.0G-slot, 2 2.5G-slot, 1 10G-slot), and 2 PSU slots (1+1 Redun- dant). IP30 Protection Class.

Quick Spec

Table 1 shows the quick spec of the TNM4000-F-Chassis.

Model	TNM4000-F-Chassis
Interface Configuration	MAX 72 Ports
Fansless	Yes
Backplane Bandwidth	304 Gbps
Installasion	Rack-Mounted
IP Rating	IP30;
Conformal Coated	Optional
Dimensions (W x H x D)	440mm×177mm×343mm
Dimensions (W x H x D)	17.33 inch x 6.97 inch x 13.51 inch
Weight	12 kg
Weight	26.56 lb
MTBF	≥800,000H
Operating Temperature	-40 °C~ 85 °C
Operating Temperature	-40°F ~ 185°F
Product Safety	CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A
Hazardous Area	UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry	JT/T817-2011; NEMA-TS2 (pending)
Rail Industry	EN50121-4
Power Industry	IEC61850-3 IEEE1613 (C37.90.x)
Industrial Control Industry	UL/cUL61010
Shipbuilding Industry	GL (pending)

Product Features

● Modular industrial switches with multiple slots for flexible configuration and high performance
● Support MRD-Ring® network redundancy for < 50 ms recovery time
● Any two ports can establish a self-recovery ring and support multiple independent self-recovery rings
● Built-in unified MicOS real-time operating systems for all MRDTM switches
● With functions of data packet dropout protection and quick recovery from network failure
● Multi-Protocol layer 3 routing meets the requirement of private network and provides smooth transition
● Support various multicast protocols and strong safety protection mechanism
● Provide bandwidth service with different levels in Ethernet service by speed limiting and traffic shaping in QoS of layer 2
● Support function of the static and dynamic allocation as well as limitation of CPU and real-time monitor the key operating parameters, including CPU utilization rate, RAM, supply voltage and mainboard voltage.
● Provide a full set of professional network management, monitoring and alarm system and support OPC
● Fanless, -40 to 85°C wide operating temperature range
● MTBF >800, 000 hours

Supported Options

Table 2 shows the supported options of the TNM4000-F-Chassis.

T4K-MGT-II	TYPE-II MSU Module for TNM4000 Modular BackBone Switch with 1 Man- agement Ethernet Port and 1 Management Serial CLI Port, 1 Alarm Relay Port, 1 PPS port. 1 USB slot and 1 SD slot for ACA adaptors.
T4K-LM-I-I	1.0G-slot Port Module with 8 100/1000BaseT Ports.
T4K-LM-II-I	2.5G-slot Port Module with 8 1000/2500BaseX Port (SFP module not includ- ed).
T4K-LM-II-II	2.5G-slot Port Module with 8 100/1000Base(X/T) COMBO Ports (SFP mod- ule not included).
T4K-LM-III-IV	10G-slot Port Module with 8 1000/2500/10000BaseX Ports (SFP module not included).
T4K-120W-HV	Power Supply Unit for TNM4000 Modular Core Switch. Built to last with Passive Cooling. 120W Output with Isolated 100-240VAC Input.
T4K-PAN-BLK	Blank Panel for TNM4000 Modular Core Switch.

Get More Information

Do you have any questions about the TNM4000-F-Chassis price?

Сертификаты качества

Спецификация

TNM4000-F-Chassis Спецификация

TNM4000-F-Chassis Specification
Backplane Bandwidth	304 Gbps
CPU	MIPS32
Processing Type	Store-and-Forward
MAC Table Size	16K
Packet Buffer Size	2 Mbti
Exchange Rate	148,800 pps/100M; 1,488,000 pps/1000 M; 14,880,000 pps/10000M
Management Mode	Browser, serial port, STD-17 MIB-II, STD-58 SMIv2, STD-59 RMON, STD-62 SNMPv3, SNMPv2c, SNMPv1, RFC2668 MAU, RFC2925 Ping MIB, MRD Pri- vate MIBs
Diagnosis Mode	Indicator light, journal file, relay, RMON, port mirroring, TRAP
Redundancy	MRD-Ring®, MSTP, RSTP, port trunking
Time Synchronization	NTP, SNTP
Others	4K VLANS, IPv4/IPv6 Multicast, storm control, support Jumbo Frame
Connection
Input Voltage
Power Consumption
Overload Current Protection	Supported
Reverse Polarity Protection	Supported
Installasion	Rack-Mounted
Housing	Aluminum Alloy Housing
IP Rating	IP30;
Conformal Coated	Optional
Dimensions (W x H x D)	440mm×177mm×343mm
Dimensions (W x H x D)	17.33 inch x 6.97 inch x 13.51 inch
Weight	12 kg
Weight	26.56 lb
MTBF	≥800,000H
Storage Temperature	-40 ℃ ~ 85 ℃
Storage Temperature	-40℉ ~ 185℉
Operating Temperature	-40 ℃ ~ 85 ℃
Operating Temperature	-40℉ ~ 185℉
Ambient Relative Humidity	5 % ~ 95% (non-condensing)
Vibration	IEC 60068-2-6
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-31
Circuit Board	Approved by IPC
EMI	FCC 47 CFR Part 15 Class A EN 55032 Class A EN 55035 Class A
EMS	IEC(EN)61000-4-2, Class 4 IEC(EN)61000-4-4, Class 4 IEC(EN)61000-4-5, Class 4 IEC(EN)61000-4-11, Class 4 IEC(EN)61000-4-12, Class 4
Product Safety	CE.CB.IEC.IECEE IEC/EN60950-1 FCC Part 15 Subpart B Class A
Hazardous Area	UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry	JT/T817-2011; NEMA-TS2 (pending)
Rail Industry	EN50121-4
Power Industry	IEC61850-3 IEEE1613 (C37.90.x)
Industrial Control Industry	UL/cUL61010
Shipbuilding Industry	GL (pending)
