Название:	TCC4100-EHR0008P130
Модель:	MRD TCC4100-EHR0008P130
Бренд:	MRD
Detail:	TCC4100 Series 8 M12 D-Code 802.3af/at PoE 10/100BaseT Ports
	Рейтинг: 80% 4/5.0 2 Отзывы
Наличие:	Item Backordered
Условие:	New

Доставка:

Экспресс-доставка в Соединенные Штаты
2-6 Дней, via DHL, FedEx, UPS, etc.

Оплата:

Оплата банковским переводом.
Оплатите с помощью PayPal.
Оплачивайте своими вебмани.
Pay with your onafriq.
Оплата кредитной картой Visa.
Оплата кредитной картой Mastercard.
Платите картой Discover.
Оплатить Вестерн Юнион.

Поддержка:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

TCC4100-EHR0008P130

TCC4100 Series 8 M12 D-Code 802.3af/at PoE 10/100BaseT Ports

Стабильная глобальная цепочка поставок для процветающего бизнеса.

Инвентарь на $4 000 000
500+ надежных поставщиков
Сертифицированное партнерство
Сотрудничество с FedEx, UPS, DHL

Более 100 000 разнообразных продуктов для любых нужд

Индивидуальная поддержка для ваших нужд с помощью CCIE, HCIE, HPE ASE и т. д.

Индивидуальное обслуживание, превосходное обслуживание продукта для максимального удовлетворения.

Проекты и техническая поддержка
Простая покупка
Защита жизненного цикла продукта
Эксклюзивная поддержка команды F4

Обзор

TCC4100-EHR0008P130 Обзор

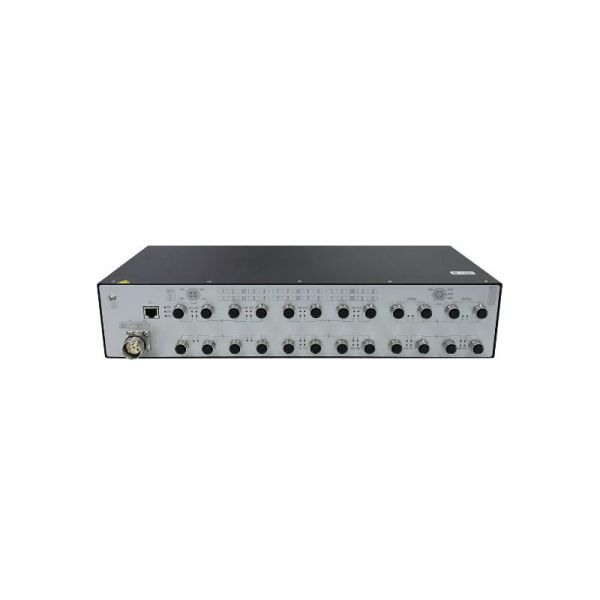

TCC4100-EHR008GP130BP Trainborne Industrial Switch is specially designed for rail transit and railway applications and compliant with EN50155/50121 standards. TCC4100-EHR008GP130BP can support 12 M12 D-code 802.3af/at PoE 10/100BaseT ports + 4 M12 D-code 10/100BaseT ports + 4 M12 A-code BY-PASS 10/100/100BaseT ports + 4 M12 A-Code 802.3af/at PoE 10/100/1000BaseT Ports at most. Any two ports can establish a self-recovery ring, meanwhile, TCC4100-EHR008GP130BP Trainborne Industrial Switch supports multiple independent self-recovery rings. With hardware-based algorithm, the patented MRD-Ring® (MRDcom Real-Time Ring) technology ensures less than 5ms self-recovery time of every node and less than 50ms self-recovery time of the network.

TCC4100-EHR008GP130BP Trainborne Industrial Switch utilizes CPLD dynamic reconfiguration and repli‐ cate programming technology for high stability and reliability, various key operating parameters can be mon‐ itored locally and remotely. Advanced solution, extended industrial design, and patented technologies make TCC4100-EHR008GP130BP Trainborne Industrial Switch one of the top choices for harsh industrial environ‐ ments.

Quick Spec

Table 1 shows the quick spec of the TCC4100-EHR008GP130BP

Model	TCC4100-EHR008GP130BP
Interface Configuration	4 M12 A-Code BY-PASS 10/100/1000BaseT Ports (M12 connector not included), 4 M12 A-Code 802.3af/at PoE 10/100/1000BaseT Ports (M12 connector not included), 12 M12 D- Code 802.3af/at PoE 10/100BaseT Ports (M12 connector not included), and 4 M12 D-Code 10/100BaseT Ports (M12 connector not included)
Input Voltage	100-240V Power Supply with Internal 130W PoE budget
Fansless	Yes
Backplane Bandwidth	14 Gbps
Installasion	Rack mount
IP Rating	IP41
Conformal Coated	Optional
Dimensions (W x H x D)	440mm x 88.2mm x 200mm
Dimensions (W x H x D)	17.32 inch x 3.47 inch x 7.87 inch
Weight	4.5 kg
Weight	9.9 lb
MTBF	≥600,000H
Operating Temperature	-10°C~ 50°C
Operating Temperature	-10℉ ~ 122℉
Product Safety	CE.CB.IEC.IECEE IEC/EN60950-1 FCC Part 15 Subpart B Class A
Rail Industry	EN50121-4
Power Industry	IEC61850-3 IEEE1613 (C37.90.x)
Industrial Control Industry	UL/cUL61010

Product Features

● Support MRD-Ring® network redundancy for < 50 ms recovery time
● Support Media Redundancy Protocol (compliant with IEC62439)
● Any two ports can establish a self-recovery ring and support multiple independent self-recovery rings
● Providing data packet loss protection mechanism for fast recovery from network failures
● Layer 3 routing multi-protocols meet dedicated network requirements, and providing smooth transition
mechanism for dedicated networks
● Support a variety of multicast protocols, with high security and prevention performance
● Providing graded bandwidth services in Ethernet services by providing rate limiting and traffic shaping
with Layer 2 QoS functions
● Providing statis and dynamic allocation and restriction functions for CPU resources, and enables real-time
monitoring of key operating parameters, including CPU usage, RAM, power supply voltage, motherboard
voltage, etc.
● With full set of professional network management and monitoring alarm tools and support OPC
● Support RIP, RIP2, OSPF, DHCP protocols, and support NAT address translation functions
● With IRIS, EN45545, IEC61373, IEC60068-2-32, EN50155, EN50121, ISO9001 and other related certifica‐
tions
● Support power-off BY-PASS functions to improve network reliability
● MTBF >600, 000 hours

Get More Information

Do you have any questions about the TCC4100-EHR008GP130BP price?

Сертификаты качества

Спецификация

TCC4100-EHR0008P130 Спецификация

MTX100-A3K0102-M-SC Specification
Backplane Bandwidth	44Gbps
Processing Type	Store-and-Forward
MAC Table Size	8K
RAM	128 MB
Exchange Rate	148,800 pps/100M ports; 1,488,000 pps/1000M ports
Management Mode	Browser, Serial Port, STD-17 MIB-II, STD-58 SMIv2, STD-59 RMON, STD-62
Management Mode	SNMPv3, SNMPv2c, SNMPv1, RFC2668 MAU, RFC2925 Ping MIB, MRD Private MIBs
Diagnosis Mode	Indicator light, journal file, RMON, port mirroring, TRAP
Redundancy	RSTP, STP, MSTP, MRD-Ring®, port trunking
Time Synchronization	NTP
Others	4K VLANS, IPv4/IPv6 multicast, storm control, support Jumbo Frame
Connection	1 removable 5-contact terminal block
Input Voltage	TOM1000-B6H/B10H: 100-240 VAC/VDC, single input TOM1000-B6W/B10W: 18-60VDC, dual inputs TOM1000-B6F/B10F: 48-54VDC, dual inputs TOM1000-B10U: 18 ~ 300VDC or 90 ~ 264VAC, dual inputs
Power Consumption	10W(Without PoE)
Overload Current Protection	Supported
Reverse Polarity Protection	Supported
Installasion	DIN-rail mounting
Housing	Die-casting aluminum alloy housing
IP Rating	IP40; IP30(PoE model);
Conformal Coated	Optional
Dimensions (W x H x D)	52mm x 140mm x 110mm
Dimensions (W x H x D)	2.04 inch x 55 inch x 43 inch
Weight	0.7kg
Weight	1.543 lb
MTBF	≥400,000H
Storage Temperature	-40 ℃ ~ 85 ℃
Storage Temperature	-40℉ ~ 185℉
Operating Temperature	-40 ℃~ 75 ℃
Operating Temperature	-40℉ ~ 167℉
Ambient Relative Humidity	5 % ~ 95% (non-condensing)
Vibration	IEC 60068-2-6
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-31
Circuit Board	Approved by IPC
EMI	FCC 47 CFR Part 15 Class A EN55032 Class A EN55035 Class A
EMS	IEC (EN )61000-4-2, Class 4 IEC (EN )61000-4-4, Class 4 IEC (EN )61000-4-5, Class 4 IEC (EN )61000-4-11, Class 4 IEC (EN )61000-4-12, Class 4
Product Safety	CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A
Hazardous Area	UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry	JT/T817-2011; NEMA-TS2 (pending)
Rail Industry	EN50121-4
Power Industry	IEC61850-3 IEEE1613(C37.90.x)
Industrial Control Industry	UL/cUL61010 (pending)
Shipbuilding Industry	GL (pending)
