OSN1800V OSN1800I E OSN1800II E OSN1800 II TP OSN 9800 M24 OSN 9800 M12

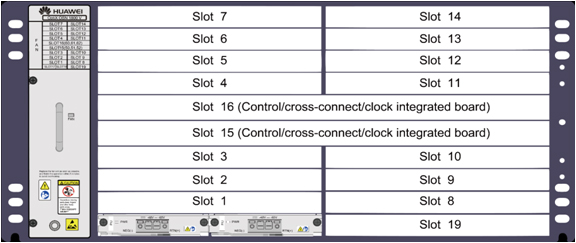

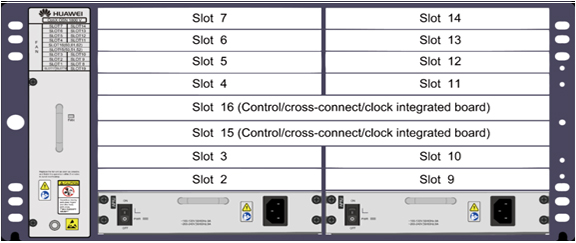

Configuration Model: OSN 1800V chassis including fan and 2pcs power boards + 2pcs control/cross boards + Variable service boards

Required Item

Subrack and chassis
Control-cross Board
SDH service Board
PDH service Board
EoS Board
Packet Service Board

Board type and description	Qty
TNFK03AFB Packet Enhanced Assembly Chassis(5U,DC,with Fiber Storage)
TNFK17AFB Packet Enhanced Assembly Chassis(5U,AC,1500W,with Fiber Storage)
TNFK01AFB Packet Enhanced Assembly Chassis(5U,DC)

Board type and description	Qty
TNZ5UXCMS Universal Cross Connect,System Control and Clock Processing Board

Board type and description	Qty
TNF1SL4D01 2xSTM-4(S-4.1,LC) Optical Interface Board-ESFP Optical Module
TNF1SL4D02 2xSTM-4(L-4.1,LC)Optical Interface Board-ESFP Optical Module
TNF1SL4D03 2xSTM-4(L-4.2,LC)Optical Interface Board-ESFP Optical Module
TNF1SL4D04 2xSTM-4Optical Interface Board(S-4.1,LC,Single Fibre Bidirectional,1490nm at TX1 & 1310nm at TX2)
TNF1SL1Q01 4xSTM-1(S-1.1,LC) Optical Interface Board-ESFP Optical Module
TNF1SL1Q02 4xSTM-1(L-1.1,LC)Optical Interface Board-ESFP Optical Module
TNF1SL1Q03 4xSTM-1(L-1.2,LC)Optical Interface Board-ESFP Optical Module
TNF1SL1Q04 4xSTM-1Optical Interface Board(S-1.1,LC,Single Fibre Bidirectional,1550nm at TX1 and TX3 & 1310nm at TX2 and TX4)
TNF1SL1Q05 4xSTM-1Optical Interface Board(L-1.1,LC,Single Fibre Bidirectional,1550nm at TX1 and TX3 & 1310nm at TX2 and TX4)
TNW1SL16Q02 4xSTM16(S-16.1,LC)Optical Interface Board
TNW1SL16Q03 4xSTM16(L-16.1,LC)Optical Interface Board
TNW1SL16Q04 4xSTM16(L-16.2,LC)Optical Interface Board
TNF8SL16Q01 4xSTM16(S-16.1LC)Optical interface board
TNF8SL16Q02 4xSTM16(L-16.1,LC)Optical interface board
TMB1SL16S01 1xSTM16(S-16.1LC)Optical interface board
TMB1SL16S02 1xSTM16(L-16.1,LC)Optical interface board
TNW1SL64S01 1xSTM-64 optical interface board(I-64.1,LC)
TNW1SL64S02 1xSTM-64 optical interface board(S-64.2b,LC)
TNW1SL64S05 1xSTM-64 optical interface board(Le-64.2,LC)
TNW1SL64S03 1xSTM-64 optical interface board(P1L1-2D2,LC)
TNF8SL64S01 1xSTM-64 Optical interface board (I-64.1,LC)
TNF8SL64S02 1xSTM-64 Optical interface board (S-64.2b,LC)
TNF8SL64D01 2xSTM-64 Optical interface board (I-64.1,LC)
TNF8SL64D02 2xSTM-64 Optical interface board (S-64.2b,LC)
TNF5SLNO01 8STM-1/4+4STM-16 optical interface board
TNF8SLNO02 8STM-1/4+4STM-16 optical interface board

Board type and description	Qty
TNF1SP3DA 42xE1/120ohm(T1/100ohm) Electrical Interface Board
TNF1SP3DB 42xE1/75ohm Electrical Interface Board
TNF1TPS 32xE1/T1 tributary board(With Protection)
TMB1TPS 32xE1/T1 tributary board

Board type and description	Qty
TMB1EGS401 4-port Gigabit Ethernet Switching Processing Board(1000BASE-SX,850-LC)
TMB1EGS402 4-port Gigabit Ethernet Switching Processing Board(1000BASE-LX,1310-LC)
TMB1EGS403 4-port Gigabit Ethernet Switching Processing Board(1000BASE-T(RJ45)SFP)
TMB1EFS801 8-Port 100M Fast Ethernet Processing Board with LAN Switch
TNF1EFS8 8-Port 100M Fast Ethernet Processing Board with LAN Switch
TNF1EGS4 4-port Gigabit Ethernet Switching Processing Board
TMB1EGS4 4-port Gigabit Ethernet Switching Processing Board

Board type and description	Qty
TNZ5EG10 10*GE(SFP) Ethernet Processing Board
NZ7EG10 10*GE(SFP) Ethernet Processing Board
TNZ5EX4 4*10GE(XFP) Ethernet Processing Board
TNZ5EC1 100GE Ethernet Processing Board
TNZ8EX4 4*10GE(SFP+) Ethernet Processing Board

OSN 1800V Part List
Full Name *
Email *
Company Name
Inquiry Details *

OSN 1800V chassis with fan	1
