HUAWEI OptiX Equipments Config Tool

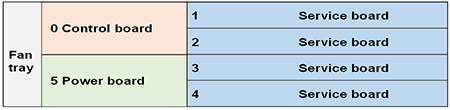

Slot Type Slot No.
Control board slot 0
Power board slot 5
Service board slot 1~4

Configuration Model: MA5616 chassis with Fan + 1pcs power boards + 1pcs control boards + Variable service boards

Required Item

Board type and description	Qty
PAIA Power Board, No Power Backup
PAIB AC Power Board, Power Backup
PAIC AC Power Board, No Power Backup

Board type and description	Qty
CCUD Multi-Service Centralized Control Unit Board

Board type and description	Qty
CALE 32-channel ADSL2+ and 32-port POTS Combined Subscriber Line Card(with Splitter)
ADPE 64-Channel ADSL2+ Board(with 600 ohm Splitter)
CVLC 32-port VDSL2 and 32-port POTS Combined Subscriber Line Card(with Splitter)
VCLE 32-Channel VDSL2 Board(with 600 ohm Splitter)
