HUAWEI OptiX Equipments Config Tool

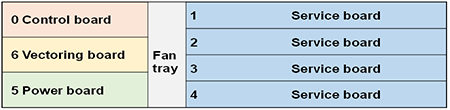

Slot Type Slot No.
Control board slot 0
Power board slot 5
Vectoring processing board slot 6
Service board slot 1~4

Slot Type	Slot No.
Control board slot	0
Power board slot	5
Vectoring processing board slot	6
Service board slot	1~4

Configuration Model: MA5818 chassis with Fan + 1pcs power boards + 1pcs control boards + Variable service boards+ VP board

Required Item

Board type and description	Qty
H831PAMA 550W AC Power Board, NO Power Backup
H831PAMB 550W AC Power Board, Power Backup
H831PDMB MA5818 DC Power Board

Board type and description	Qty
H831CCMBD Multi-Service Centralized Control Unit Board(With H836ASDJ Sub-Board)
H831CCMB Multi-Service Centralized Control Unit Board

Board type and description	Qty
H838D0ASPB01 64-port POTS Subscriber Board
H83DCSME 48-port SuperVector and 48-port POTS Combined Subscriber Line Card(with Splitter)
H83DSDMM1 48-port SuperVector Service Board
H83DFDSH 24 ports G.fast,with Melt function,with Port-Open function

Board type and description	Qty
H836VPQA Vector Centralized Processing Board
H836VPJB VD&G.FAST Vector Centralized Processing Board
H838VPED VD&SV Vector Centralized Processing Board
