OSN1800V OSN1800I E OSN1800II E OSN1800 II TP OSN 9800 M24 OSN 9800 M12

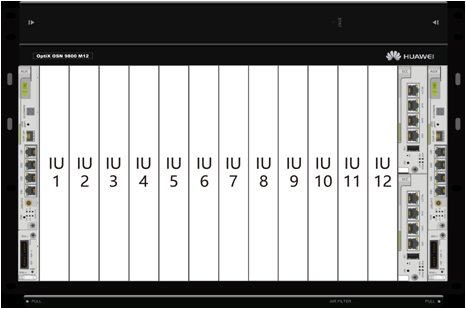

Configuration Model: OSN 9800 M12 chassis including fan and 2pcs TMF1PIU power boards +2pcs TMF1AUX auxiliary Board + 2pcs Control/cross boards + Variable service boards

Required Item

Subrack and chassis
System Control and AUX Unit
Line Board
Optical Transponder Units
General Service Processing Boards
MUX/DMUX Boards
ROADM Boards
Optical Amplifier Boards
OSC Boards
Optical Protection Boards
Spectrum Analyzer Boards
Variable Optical Attenuator Boards

Board type and description	Qty
TMFK1AFB01 Assembly SubRack (OSN 9800 M12)

Board type and description	Qty
TMF1SCC System Control and communication board
TMF1AUX System auxiliary Communication Board With Clock Processing Function

Board type and description	Qty
TNG1N206 6x 10 Gbit/s Line Service Processing Board
TNG1N210 10 x 10 Gbit/s Line Service Processing Board

Board type and description	Qty
TNG1M210D 10 x ANY-rate MUX 2 x OTU2 Wavelength Conversion board
TNG1M404DM 4 x 40 Gbit/s Service Multiplexing Into 2 x 100G Wavelength Conversion Board
TNG1M402 2 x 100 Gbit/s Service Multiplexing Into 1 x 200G/100G Programmable Wavelength Conversion Board
TNG1M520SM 20 x 10GE or 2 x 100GE Service Multiplexing into 1 x 200G/100G Programmable Wavelength Conversion Board.
TNG1M502DM 2 x 100Gbit/s Service Multiplexing Into 1 x 200G or 2 x 100G Programable Wavelength Conversion Board
TNG1M504DM 4 x 100Gbit/s Service Multiplexing Into 2 x 200G/100G Programable Wavelength Conversion Board
TNG2M604SM 4 x 100Gbit/s Service Multiplexing Into 1 x 400G/200G Programable Wavelength Conversion Board

Board type and description	Qty
TNG2A212 12*10G Any Service Processing General Board

Board type and description	Qty
TNG2UD40 40-port demultiplexer board (Super C-band)
TNG2UM40 40-channel multiplexing board (Super C-band)
TNG2UM40V 40-channel multiplexing board with VOA (Super C-band)
TNG3D48 48-channel demultiplexing board (Extended C-band)
TNG3M48 48-channel multiplexing board (Extended C-band)
TNG3M48V 48-channel multiplexing board with VOA (Extended C-band)
TNG2D60 60-port demultiplexer board (Super C-band)
TNG2M60 60-channel multiplexing board (Super C-band)
TNG2M60V 60-channel multiplexing board with VOA (Super C-band)
TNG2ITL06 Interleaver board (Super C-band)
TNG3ITL06 Interleaver board (Extended C-band)
TNG2UITL06 Interleaver board (Super C-band)

Board type and description	Qty
TNG3ADC0824 Add and drop unit with contentionless function (Extended C-band)
TNG2WSMD9 9-Port wavelength selective multiplexing and demultiplexing board (Super C-band)
TNG3WSMD9 9-port wavelength selective multiplexer and demultiplexer board (Extended C-band)
TNG2DWSS20 Dual 20-port wavelength selective multiplexing and demultiplexing board (Super C-band)
TNG3DWSS20 Dual 20-Port Wavelength Selective Switching multiplexing and demultiplexing Board (Extended C-band)
TNG2TMD20 Dual 20-Ports wavelength selective multiplexing and demultiplexing board (Super C-band)
TNG3TMD20 Dual 20-Port Wavelength Selective Switching multiplexing and demultiplexing Board (Extended C-band)

Board type and description	Qty
TNG2DAP Super C-band OA base board with 2 pluggable ports
TNG2DAPXF Super C-band optical amplifier board with 2 pluggable ports (XFIU embedded)
TNG3DAPXF Extended C-band optical amplifier board with 2 pluggable ports (XFIU embedded)
TNG2SRAPXF Super C-band Super Backward Raman and Pluggable Erbium Doped Fiber Amplifier Hybrid Unit
TNG3SRAPXF Extended C-band Super Backward Raman and Pluggable Erbium Doped Fiber Amplifier Hybrid Unit
TNG2WDAPXF OA base board with C-band pluggable port and L-band pluggable port, with C and L band XFIU

Board type and description	Qty
TNG2AST2 Two-Bidirectional optical supervisory channel and timing transmission unit

Board type and description	Qty
TNG2DCP Dual optical channel protect board (Super C-band)
TNG2OLP Optical line protection board (Super C-band)
TNG2WOLP Optical line protection board (Super C and L band)

Board type and description	Qty
TNG2OPM8 8 channel flexible bandwidth optical power monitor board (Super C-band)
TNG3OPM8 8 channel flexible bandwidth optical power monitor board (Extended C-band)
TNG3WMU wavelength monitoring unit (C band)

Board type and description	Qty
TNG2VA2 Double Channel Variable Optical Attenuator Board (Super C-band)

OSN 9800 M12 Part List
Full Name *
Email *
Company Name
Inquiry Details *

OSN 9800 M12 chassis with fan	1
