HUAWEI OptiX Equipments Config Tool

OSN1800V OSN1800I E OSN1800II E OSN1800 II TP OSN 9800 M24 OSN 9800 M12

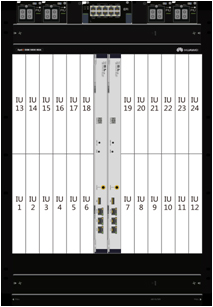

  • OSN 9800 M24 Configuration Tool
Configuration Model: OSN 9800 M24 chassis including fan and 4pcs TNG2PIU power boards +1 pcs TNG1EFI systerm interface board+ 2pcs Control/cross boards + Variable service boards
Required Item
  • Subrack and chassis
  • System Control and Centralized Cross Connect Unit
  • Line and Tributary Board
  • Packet Service Processing Boards
  • Optical Transponder Units
  • General Service Processing Boards
  • Turbo WDM Boards
  • TDM Boards
  • MUX/DMUX Boards
  • ROADM Boards
  • Optical Amplifier Boards
  • OSC Boards
  • Optical Protection Boards
  • Spectrum Analyzer Boards
  • Variable Optical Attenuator Boards
Board type and description Qty
TNGK1AFB01
Assembly SubRack (OSN 9800 M24)
Board type and description Qty
TNG3CXP01
Universal Cross Connect,System Control and Clock Processing Board
TNG1SXCL03
80G VC3/VC12 Low Order Universal Cross-connect Board
Board type and description Qty
TNG1T206
6 x 10 Gbit/s Tributary Service Processing Board
TNV6T220
20*10 Gbit/s Tributary Service Processing Board
TNV7T220
20*10 Gbit/s Tributary Service Processing Board
TNV3T210
10*10G Tributary Service Processing Board
TNV3T220
20*10G Tributary Service Processing Board
TNV3T230
30*10G Tributary Service Processing Board
TNG1T212
12 x 10 Gbit/s Tributary Service Processing Board
TNV1T210U
10 x 10 G/2.5G Universal Tributary Service Processing Board(SFP+,OTN & SDH & Packet).
TNG1T401
1 x 100 Gbit/s Tributary Service Processing Board
TNV3T401
1 x 100 Gbit/s Tributary Service Processing Board
TNV3T402
2 x 100 Gbit/s Tributary Service Processing Board
TNV7T402
2*100G Tributary Service Processing Board(QSFP28)
TNV8T402
2*100G Tributary Service Processing Board(QSFP28)
TNV8T404
4*100G Tributary Service Processing Board(QSFP28)
TNV5T401
 1*100G Tributary Service Processing Board(QSFP28)
TNV5T402
2*100G Tributary Service Processing Board(QSFP28)
TNV5T404
4*100G Tributary Service Processing Board(QSFP28)
TNV3T404
4 x 100 Gbit/s Tributary Service Processing Board (1:3 mode)
TNV1T410
10*100G Tributary Service Processing Board(QSFP28) (1:3 mode)
TNV1T502
2*200GE Tributary Service Processing Board
TNV1T601
1*400GE Tributary Service Processing Board
TNV2T601
1*400GE Tributary Service Processing Board
TNG1N206
6x 10 Gbit/s Line Service Processing Board
TNG1N210
10 x 10 Gbit/s Line Service Processing Board
TNV5N220
20 x 10 Gbit/s Line Service Processing Board.
TNG1N401
1 x 100 Gbit/s Line Service Processing Board
TNU2N401PF51
1 * 100G/200G Programmable Line Service Processing Board (1:3 mode)
TNU5N402
2 x 100 Gbit/s Line Service Processing Board
TNU6N402
2 x 100 Gbit/s Line Service Processing Board
TNU2N402PT51
2*100G/200G or 1*400G programmable line service processing board (1:3 mode)
TNU2N402PT52
2*100G/200G or 1*400G programmable line service processing board (1:3 mode)
TNU5N404
4 x 100 Gbit/s Line Service Processing Board.
TNU5N501P
1 x 100G/200G Programmable Line Service Processing Board
TNS2N220
20 x 10 Gbit/s Line Service Processing Board
TNS2N401
1 x 100Gbit/s Universal Line Service Processing Board.
TNS8N402
2*100G Programable Line Service Processing Board (CFP)
TNS7N404
4 x 100Gbit/s Universal Line Service Processing Board
TNS2N501C01
1*200G/100G Programmable Hybrid Line Service Processing Board (CFP, OTN & SDH)
TNS8N502
2*200G/2*100G Programable Line Service Processing Board (CFP)
TNU6N502
2*200G/2*100G Programable Line Service Processing Board (CFP)
TNU3N602T33
2*200G/400G Programable Line Service Processing Board
TNV6U210
10 x 10 Gbit/s Universal Line Service Processing Board(SFP+,OTN & SDH & Packet)
TNV6U220
20 x 10 Gbit/s Universal Line Service Processing Board(SFP+,OTN & SDH & Packet).
TNU5U401
1 x 100Gbit/s Universal Line Service Processing Board
TNU6U402
2 x 100Gbit/s Universal Line Service Processing Board
TNU6U501
1*200G/100G Programable Hybrid Line Service Processing Board (CFP,OTN & SDH & Packet).
TNU2N402PF51
2*100G/200G or 1*400G programmable line service processing board (1:3 mode)
Board type and description Qty
TNV3E224
24 x GE Packet Service Processing Board
TNV3E402
2 x 100G Packet Service Processing Board
Board type and description Qty
TNG1M210D
10 x ANY-rate MUX 2 x OTU2 Wavelength Conversion board
TNG1M404DM
4 x 40 Gbit/s Service Multiplexing Into 2 x 100G Wavelength Conversion Board
TNG1M402
2 x 100 Gbit/s Service Multiplexing Into 1 x 200G/100G Programmable Wavelength Conversion Board
TNG1M520SM
20 x 10GE or 2 x 100GE Service Multiplexing into 1 x 200G/100G Programmable Wavelength Conversion Board.
TNG1M502DM
2 x 100Gbit/s Service Multiplexing Into 1 x 200G or 2 x 100G Programable Wavelength Conversion Board
TNG1M504DM
4 x 100Gbit/s Service Multiplexing Into 2 x 200G/100G Programable Wavelength Conversion Board
TNG2M604SM
4 x 100Gbit/s Service Multiplexing Into 1 x 400G/200G Programable Wavelength Conversion Board
Board type and description Qty
TNG2A212
12*10G Any Service Processing General Board
TNU1G402
2 x 100 Gbit/s General Service Processing Board
TNU1G404
4 x 100 Gbit/s General Service Processing Board (1:3 mode)
TNV3G220
20 x 10 Gbit/s General Service Processing Board
Board type and description Qty
TNU5NP200E
1 x 100G PID Universal Line Service Processing Extended Board
TNU5NP400E
1 x 200G Turbo WDM Line Service Processing Extended Board
Board type and description Qty
TNV3S216
16*STM-N(N=1,4,16,64 aggregate capacity <= 160G)optical interface board
TNV4S216
16 x STM-N(N=1, 4, 16), 8 x STM-64, aggregate capacity <= 80G optical interface board
TNV1EMS20
20-port Ethernet Service Processing Board
Board type and description Qty
TNG2UD40
40-port demultiplexer board (Super C-band)
TNG2UM40
40-channel multiplexing board (Super C-band)
TNG2UM40V
40-channel multiplexing board with VOA (Super C-band)
TNG3D48
48-channel demultiplexing board (Extended C-band)
TNG3M48
48-channel multiplexing board (Extended C-band)
TNG3M48V
48-channel multiplexing board with VOA (Extended C-band)
TNG2D60
60-port demultiplexer board (Super C-band)
TNG2M60
60-channel multiplexing board (Super C-band)
TNG2M60V
60-channel multiplexing board with VOA (Super C-band)
TNG2ITL06
 Interleaver board (Super C-band)
TNG3ITL06
Interleaver board (Extended C-band)
TNG2UITL06
Interleaver board (Super C-band)
Board type and description Qty
TNG3ADC0824
Add and drop unit with contentionless function (Extended C-band)
TNG2WSMD9
9-Port wavelength selective multiplexing and demultiplexing board (Super C-band)
TNG3WSMD9
9-port wavelength selective multiplexer and demultiplexer board (Extended C-band)
TNG2DWSS20
Dual 20-port wavelength selective multiplexing and demultiplexing board (Super C-band)
TNG3DWSS20
Dual 20-Port Wavelength Selective Switching multiplexing and demultiplexing Board (Extended C-band)
TNG2TMD20
Dual 20-Ports wavelength selective multiplexing and demultiplexing board (Super C-band)
TNG3TMD20
Dual 20-Port Wavelength Selective Switching multiplexing and demultiplexing Board (Extended C-band)
Board type and description Qty
TNG2DAP
Super C-band OA base board with 2 pluggable ports
TNG2DAPXF
Super C-band optical amplifier board with 2 pluggable ports (XFIU embedded)
TNG3DAPXF
Extended C-band optical amplifier board with 2 pluggable ports (XFIU embedded)
TNG2SRAPXF
Super C-band Super Backward Raman and Pluggable Erbium Doped Fiber Amplifier Hybrid Unit
TNG3SRAPXF
Extended C-band Super Backward Raman and Pluggable Erbium Doped Fiber Amplifier Hybrid Unit
TNG2WDAPXF
OA base board with C-band pluggable port and L-band pluggable port, with C and L band XFIU
Board type and description Qty
TNG2AST2
Two-Bidirectional optical supervisory channel and timing transmission unit
Board type and description Qty
TNG2DCP
Dual optical channel protect board (Super C-band)
TNG2OLP
Optical line protection board (Super C-band)
TNG2WOLP
Optical line protection board (Super C and L band)
Board type and description Qty
TNG2OPM8
8 channel flexible bandwidth optical power monitor board (Super C-band)
TNG3OPM8
8 channel flexible bandwidth optical power monitor board (Extended C-band)
TNG3WMU
wavelength monitoring unit (C band)
Board type and description Qty
TNG2VA2
Double Channel Variable Optical Attenuator Board (Super C-band)
OSN 9800 M24 Part List
OSN 9800 M24 chassis with fan1
