HUAWEI OptiX Equipments Config Tool

Configuration Model: OSN 1800II Enhanced chassis including fan and power boards + 2pcs Control/cross boards + Variable service boards

Required Item

Board type and description	Qty

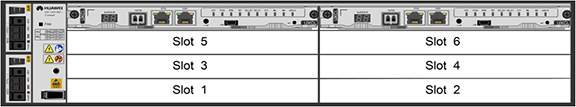

TNZK03AFB Packet Enhanced Assembly Chassis(2U,DC)

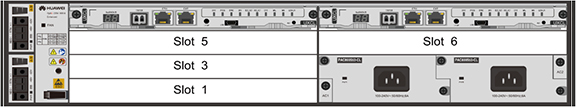

TNZK13AFB Packet Enhanced Assembly Chassis(2U,AC)

Board type and description	Qty
TNZ2UXCL Universal Cross Connect,System Control and Clock Processing Board

Board type and description	Qty
TNF1SL4D01 2xSTM-4(S-4.1,LC) Optical Interface Board-ESFP Optical Module
TNF1SL4D02 2xSTM-4(L-4.1,LC)Optical Interface Board-ESFP Optical Module
TNF1SL4D03 2xSTM-4(L-4.2,LC)Optical Interface Board-ESFP Optical Module
TNF1SL4D04 2xSTM-4Optical Interface Board(S-4.1,LC,Single Fibre Bidirectional,1490nm at TX1 & 1310nm at TX2)
TNF1SL1Q01 4xSTM-1(S-1.1,LC) Optical Interface Board-ESFP Optical Module
TNF1SL1Q02 4xSTM-1(L-1.1,LC)Optical Interface Board-ESFP Optical Module
TNF1SL1Q03 4xSTM-1(L-1.2,LC)Optical Interface Board-ESFP Optical Module
TNF1SL1Q04 4xSTM-1Optical Interface Board(S-1.1,LC,Single Fibre Bidirectional,1550nm at TX1 and TX3 & 1310nm at TX2 and TX4)
TNF1SL1Q05 4xSTM-1Optical Interface Board(L-1.1,LC,Single Fibre Bidirectional,1550nm at TX1 and TX3 & 1310nm at TX2 and TX4)
TNF5SLNO01 8STM-1/4+4STM-16 optical interface board
TNF8SLNO02 8STM-1/4+4STM-16 optical interface board

Board type and description	Qty
TNF1TPS 32xE1/T1 tributary board(With Protection)
TNF1SP3DA 42xE1/120ohm(T1/100ohm) Electrical Interface Board
TNF1SP3DB 42xE1/75ohm Electrical Interface Board

Board type and description	Qty
TMB1EGS401 4-port Gigabit Ethernet Switching Processing Board(1000BASE-SX,850-LC)
TMB1EGS402 4-port Gigabit Ethernet Switching Processing Board(1000BASE-LX,1310-LC)
TMB1EGS403 4-port Gigabit Ethernet Switching Processing Board(1000BASE-T(RJ45)SFP)
TMB1EFS801 8-Port 100M Fast Ethernet Processing Board with LAN Switch
TNF1EFS8 8-Port 100M Fast Ethernet Processing Board with LAN Switch
TNF1EGS4 4-port Gigabit Ethernet Switching Processing Board
TMB1EGS4 4-port Gigabit Ethernet Switching Processing Board

Board type and description	Qty
TNZ5EG10 10*GE(SFP) Ethernet Processing Board
NZ7EG10 10*GE(SFP) Ethernet Processing Board
TNZ5EX4 4*10GE(XFP) Ethernet Processing Board
TNZ8EX4 4*10GE(SFP+) Ethernet Processing Board

OSN 1800II Enhanced Part List
Full Name *
Email *
Company Name
Inquiry Details *

OSN 1800II Enhanced chassis with fan	1
