Configuration Model: OSN 1800II TP chassis including fan and power boards + 1pcs Control/cross boards + Variable service boards

Required Item

Subrack and chassis
Control-cross Board
OADM Board Unit(DWDM)
Semi-Active Multiplexer/Demultiplexer Unit--OSN1800 II TP for 5G fronthaul
Optical Multiplexer and Demultiplexer Board Unit
Optical Amplifying Board Unit
Spectrum Analyzer Board Unit

Board type and description	Qty

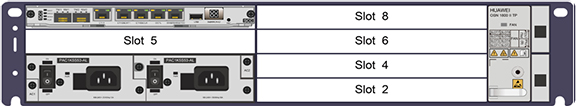

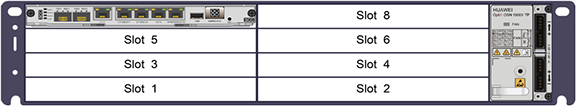

TMBK01AFB Assembly Chassis(OptiX OSN 1800 II TP,DC)
TMBK02AFB Assembly Chassis(OptiX OSN 1800 II TP,DC,with fiber storage)
TMBK03AFB Assembly Chassis(OptiX OSN 1800 II TP,AC)
TMBK04AFB Assembly Chassis(OptiX OSN 1800 II TP,AC,with fiber storage)

Board type and description	Qty
TMB1SCC System Control & Communication Board with OSC

Board type and description	Qty
TNF1EMR410 Enhanced 4-ch Add/Drop Multiplexer,100GHz(192.1/192.2/192.3/192.4THz)
TNF1EMR411 Enhanced 4-ch Add/Drop Multiplexer,100GHz(192.5/192.6/192.7/192.8THz)
TNF1EMR412 Enhanced 4-ch Add/Drop Multiplexer,100GHz(192.9/193.0/193.1/193.2THz)
TNF1EMR413 Enhanced 4-ch Add/Drop Multiplexer,100GHz(193.3/193.4/193.5/193.6THz)
TNF1EMR414 Enhanced 4-ch Add/Drop Multiplexer,100GHz(193.7/193.8/193.9/194.0THz)
TNF1EMR415 Enhanced 4-ch Add/Drop Multiplexer,100GHz(194.1/194.2/194.3/194.4THz)
TNF1EMR416 Enhanced 4-ch Add/Drop Multiplexer,100GHz(194.5/194.6/194.7/194.8THz)
TNF1EMR417 Enhanced 4-ch Add/Drop Multiplexer,100GHz(194.9/195.0/195.1/195.2THz)
TNF1EMR418 Enhanced 4-ch Add/Drop Multiplexer,100GHz(195.3/195.4/195.5/195.6THz)
TNF1EMR419 Enhanced 4-ch Add/Drop Multiplexer,100GHz(195.7/195.8/195.9/196.0THz)
TNF1EMR801 Enhanced 8-ch Optical Add/Drop Multiplexing Board,100GHz(192.1/192.2/192.3/192.4/192.5/192.6/192.7/192.8THz)
TNF1EMR802 Enhanced 8-ch Optical Add/Drop Multiplexing Board,100GHz(192.9/193.0/193.1/193.2/193.3/193.4/193.5/193.6THz)
TNF1EMR803 Enhanced 8-ch Optical Add/Drop Multiplexing Board,100GHz(193.7/193.8/193.9/194.0/194.1/194.2/194.3/194.4THz)
TNF1EMR804 Enhanced 8-ch Optical Add/Drop Multiplexing Board,100GHz(194.5/194.6/194.7/194.8/194.9/195.0/195.1/195.2THz)
TNF1EMR805 Enhanced 8-ch Optical Add/Drop Multiplexing Board,100GHz(195.3/195.4/195.5/195.6/195.7/195.8/195.9/196.0THz)
TNF1MB1 Bandpass filter 1-channel optical add/drop Multiplexing board
TMB1EX4001 Enhanced 40-Channel Multiplexing/Demultiplexing Board(C_ Even,196.00THz~192.10THz,100GHz,Thermal AWG,LC)
TMB1EX4002 Finished Board,OptiX OSN 1800,TMB1EX4002,Enhanced 40-Channel Multiplexing/Demultiplexing Board(C_Odd,196.05THz~192.15THz,100GHz,Thermal AWG,LC)
TNF1SBM803 8-ch Add/Drop Multiplexer,Sigle Fiber(A Side),DWDM
TNF1SBM804 8-ch Add/Drop Multiplexer,Sigle Fiber(B Side),DWDM

Board type and description	Qty
TMBMSBM6PINAPD 6-port 12-channel 25G Active Mux unit for Head-end(4 PCS 25G PIN + 2PCS APD SFP28,Without protection)
TMBMRSBM6PINAPD 6-port 12-channel 25G Passive Mux unit for Tail-end(4 pcs 25G PIN + 2 pcs APD SFP28,Without protection)
TMBMPSBM6APD 6-port 12-channel 25G Active Mux unit for Head-end(6 pcs 25G APD SFP28,With protection)
TMBMRPSBM6APD 6-port 12-channel 25G Passive Mux unit for Tail-end(6 pcs 25G APD SFP28,With protection)
TMBMDPSBM3APD Dual 3-Port 6-Channel Active Mux unit for Head-end(6 pcs 25G APD SFP28,With protection)
TMBMRPSBM3APD Dual 3-Port 6-Channel Passive Mux unit for Tail-end(3 pcs 25G APD SFP28,With protection)
TMBMDSBM3PIN Dual 3-Port 6-Channel Active Mux unit for Head-end(6 pcs 25G PIN SFP28,Without protection)
TMBMRSBM3PIN Dual 3-Port 6-Channel Passive Mux unit for Tail-end(3 pcs 25G PIN SFP28,Without protection)

Board type and description	Qty
TNF1DFIU03 Both East & West Directional Fiber Interface Board(Dual FIU subcard),C/1510nm
TNF1DFIU04 Fiber Interface Board(Single FIU subcard),C/1510nm
TNF1DSFIU01 Both East & West Directional Fiber Interface Board for Sync Timing(Dual SFIU subcard),C/1491&1511nm
TNF1DSFIU02 Fiber Interface Board for Sync Timing(Single FIU subcard),C/1491&1511nm
TNF2FIU01 Fiber Interface Unit (CWDM&DWDM),1310nm
TNF1SCS01 Sync Optical Channel Separator Board(1550nm/1310nm)
TMB1OLP Optical Line Protection Board
TNF1ITL06 Interleaver Board(C Band)
TNF1ITL06C Interleaver Board(C Band)
TNF1ITL08 Interleaver Board(C Band)
TNF1ITL08C Interleaver Board(C Band)

Board type and description	Qty
TNF2OBU02 C-BAND Optical Amplifier Unit(MAX -3dBm IN and 20dBm OUT,Gain 23dB,With EVOA)

Board type and description	Qty
TMB1OPM801 8-channel Optical Power Monitor Board

OSN 1800 II TP Part List
