Huawei CH140 Compute Node for E9000

Model:Huawei CH140 Compute Node for E9000
Brand: Huawei
Detail:
Huawei CH140 Compute Node for E9000, Intel Xeon E5-2600 and E5-2600 v2 series, 8 DDR3 DIMMs for each 2-socket compute node S-ERVER
Rating:
95%
4.8/5.0
4 Reviews
Availability: Item Backordered
Condition:New Factory Sealed
Warranty:3 years warranty
Shipping:
Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.
Ships to:
United States
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your webmoney.
  • Pay with your onafriq.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Support:
TZS, XAF, TZS payment.
  • Safe, Fast, 100% Genuine. Your Reliable IT Partner.
    Safe, Fast, 100% Genuine. Your Reliable IT Partner.
  • Best Price Assurance, Bulk Savings, Trusted Worldwide.
    Best Price Assurance, Bulk Savings, Trusted Worldwide.
Expertise Builds Trust

Expertise Builds Trust

  • 22 Years, 200+ Countries
  • 18000+ Customers/Projects
  • CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts
Ask an Expert Now
24/7 Online Service
  • +1-626-655-0998(USA)
  • +852-25925389(HK)
  • +852-25925411(HK)
Live Chat

Join Partner Network

  • Exclusive Discounts/Service
  • Credit Terms/Priority Supply
In  United States
Partner Today

Huawei CH140 Compute Node for E9000

Huawei CH140 Compute Node for E9000, Intel Xeon E5-2600 and E5-2600 v2 series, 8 DDR3 DIMMs for each 2-socket compute node S-ERVER

Overview
Specification
Reviews
Q&A
Warranty
Download
Stable Global Supply Chain for Thriving Businesses.
  • $4,000,000 Inventory
  • 500+ Reliable Vendors
  • Certified Partnerships
  • Collaborating with FedEx, UPS, DHL
100,000+ Diverse Products for All Your Needs
Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.
Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.
  • Projects and Technical Support
  • Easy Purchasing Supply
  • Product Lifecycle Protection
  • Exclusive F4 Team Support
Overview

Huawei CH140 Compute Node for E9000 Overview

Huawei CH140 Compute Node for E9000 Combines ultra-high-density computing with a large memory. It is optimized for enterprise service applications such as virtualization, cloud computing, and HPC. It’s powered by Intel Xeon E5-2600 and E5-2600 v2 family processors and Eight DIMM slots on a 2-socket compute node support a DDR3 memory capacity of up to 512 GB on a 2-socket compute node. This efficient compute node features dynamic energy-saving and power-capping technologies that manage and control power consumption with remarkably reduced low-load operating power. Carrier-class design, manufacturing, and components ensure high quality.

Quick Specs

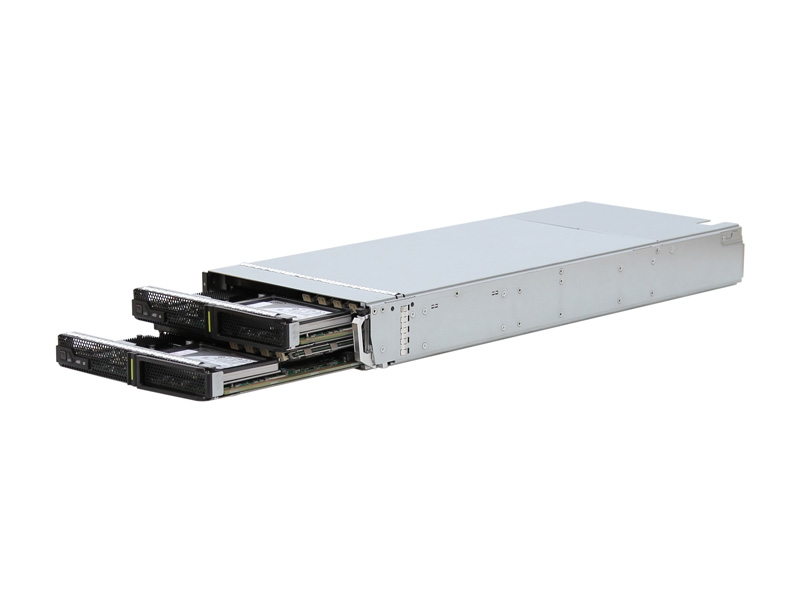

Figure 1 shows the appearance of Huawei CH140 Compute Node for E9000.

Huawei-CH140-Compute-Node-for-E9000 Appearance

Table 1 shows the Quick Specs.

Product Code

Huawei CH140 Compute Node for E9000

Form Factor

Two 2-socket twin compute nodes in a half-width slot

Number of Processors

1 or 2 in each 2-socket compute node

Processor Model

Intel® Xeon® E5-2600 and E5-2600 v2 series

Number of DIMMs

8 DDR3 DIMMs for each 2-socket compute node

Number of Hard Disks

One 2.5" SSD/SAS/SATA for each 2-socket compute node

PCIe Expansion

2 twin nodes share 2 PCIe x8 MEZZ modules

Operating Systems Supported

Microsoft Windows Server 2008/2012

Red Hat Enterprise Linux

SUSE Linux Enterprise Server

Oracle Linux

Oracle Solaris

CentOS

Huawei Fusionsphere

Citrix XenServer

VMware

Operating Temperature

5°C to 35°C

Dimensions

210mm(width) x 537.2mm(depth) x 60.46mm(height)

Product Details

Figure 2 shows the front panel of Huawei CH140 Compute Node for E9000.

the front panel of Huawei CH140 Compute Node for E9000

Note:

①

Customization label (with an ESN label)

②

Power button/indicator

③

UID button/indicator

④

Health indicator

⑤

Hard disk indicator

⑥

Spring

⑦

Ejector lever (child compute node)

⑧

Child compute node A

⑨

Child compute node B

⑩

Product model

Ejector lever

Ejector lever extension bar

Release button

-

-

Compare to Similar Items

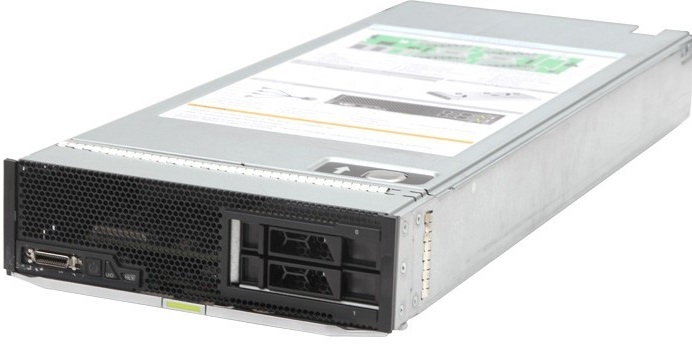

Table 3 shows the comparison of Huawei CH140 Compute Node for E9000 and Huawei CH121 Compute Node for E9000.

Product Code

Huawei CH140 Compute Node for E9000

Huawei CH121 Compute Node for E9000

Form Factor

Two 2-socket twin compute nodes in a half-width slot

Half-width 2-socket compute node

Number of Processors

1 or 2 in each 2-socket compute node

1 or 2

Processor Model

Intel® Xeon® E5-2600 and E5-2600 v2 series

Intel® Xeon® E5-2600 and E5-2600 v2 series

Number of DIMMs

8 DDR3 DIMMs for each 2-socket compute node

24 DDR3 DIMMs, providing a maximum memory capacity of 768 GB

Number of Hard Disks

One 2.5" SSD/SAS/SATA for each 2-socket compute node

2 x 2.5" SAS/SATA HDDs or SSDs

PCIe Expansion

2 twin nodes share 2 PCIe x8 MEZZ modules

2 PCIe x16 mezz modules

1 standard PCIe x8 full-height half-length card

Get more information

Do you have any question about the Huawei CH140 Compute Node for E9000

Contact us now via Live Chat or sales@router-switch.com.

Quality Certifications

  • ISO 14001
  • ISO 9001
  • RoHS
  • REACH
  • CE
  • FCC
Specification

Huawei CH140 Compute Node for E9000 Specification

CH140 Compute Node Specifications

Form Factor

Two 2-socket twin compute nodes in a half-width slot

Number of Processors

1 or 2 in each 2-socket compute node

Processor Model

Intel Xeon E5-2600 and E5-2600 v2 series

Number of DIMMs

8 DDR3 DIMMs for each 2-socket compute node

Number of Hard Disks

One 2.5-inch SSD/SAS/SATA for each 2-socket compute node

RAID Support

N/A

PCIe Expansion

2 twin nodes share 2 PCIe x 8 Mezz modules

OS Support

Microsoft Windows Server 2008/2012
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
Oracle Linux
CentOS
Citrix XenServer
Vmware

Operating Temperature

5°C to 35°C

Dimensions

Height: 60.46 mm (2.38 in)
Width: 210 mm (8.27 in)
Depth: 537.2 mm (21.15 in)

Quality Certifications

Q&A

Questions & Answers

What should I check if the Huawei CH140 Compute Node is not powering on?

Ensure the node is properly seated in the chassis and check the power source and connections.

What accessories are available for the Huawei CH140 Compute Node?

Available accessories include additional DDR3 memory modules and compatible Intel Xeon processors.

How does the Huawei CH140 compare to other compute nodes?

The CH140 offers a balance of performance and memory capacity, making it competitive within its category.

Is the Huawei CH140 Compute Node compatible with other E9000 nodes?

Yes, the CH140 is compatible with other compute nodes in the E9000 chassis, facilitating mixed deployments.
