Huawei CH121 Compute Node for E9000

Huawei CH121 Compute Node for E9000, Intel Xeon E5-2600 and E5-2600 v2 series, 24 DDR3 DIMMs, Virtualization, Cloud computing and HPC S-ERVER

Overview
Specification
Reviews
Q&A
Warranty
Download
Stable Global Supply Chain for Thriving Businesses.
  • $4,000,000 Inventory
  • 500+ Reliable Vendors
  • Certified Partnerships
  • Collaborating with FedEx, UPS, DHL
100,000+ Diverse Products for All Your Needs
Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.
Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.
  • Projects and Technical Support
  • Easy Purchasing Supply
  • Product Lifecycle Protection
  • Exclusive F4 Team Support
Overview

Huawei CH121 Compute Node for E9000 Overview

Huawei CH121 compute node combines dense computing capabilities with an ultra-large memory capacity. It’s optimized for enterprise service applications such as virtualization, cloud computing, and HPC, and employs Intel Xeon processors. This efficient compute node features dynamic energy-saving and power-capping technologies that manage and control power consumption with remarkably reduced low-load operating power. Carrier-class design, manufacturing, and components ensure high quality.

Quick Specs

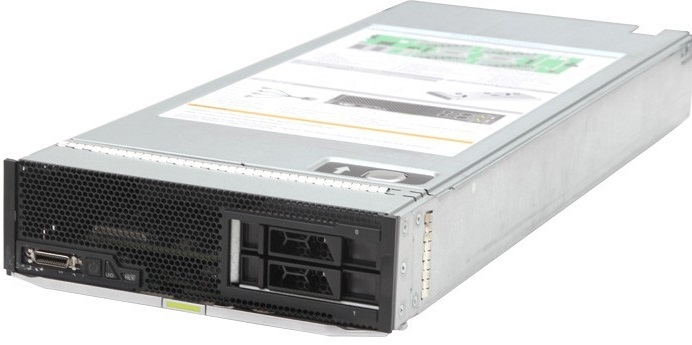

Figure 1 shows the appearance of Huawei CH121 Compute Node for E9000.

Huawei CH121 Compute Node for E9000 Appearance

Table 1 shows the Quick Specs.

Product Code

Huawei CH121 Compute Node for E9000

Form Factor

Half-width 2-socket compute node

Number of Processors

1 or 2

Processor Model

Intel® Xeon® E5-2600 and E5-2600 v2 series

Number of DIMMs

24 DDR3 DIMMs, providing a maximum memory capacity of 768 GB

Number of Hard Disks

2 x 2.5" SAS/SATA HDDs or SSDs

RAID Support

RAID 0 and 1

PCIe Expansion

2 PCIe x16 mezz modules

1 standard PCIe x8 full-height half-length card

Operating Systems Supported

Microsoft Windows Server 2008/2012

Red Hat Enterprise Linux

SUSE Linux Enterprise Server

Oracle Linux

Oracle Solaris

CentOS

Huawei Fusionsphere

Citrix XenServer

VMware

Operating Temperature

5°C to 40°C

Dimensions

210mm(width) x 537.2mm(depth) x 60.46mm(height)

Product Details

Figure 2 shows the front panel of Huawei CH121 Compute Node for E9000.

the front panel of Huawei CH121 Compute Node for E9000

Note:

①

Customization label (with an ESN label)

②

High-density port

③

Power button/indicator

④

UID button/indicator

⑤

HLY indicator

⑥

Spring

⑦

Ejector lever

⑧

Hard disk

⑨

Hard disk fault indicator

⑩

Hard disk active indicator

Product model

-

-

Compare to Similar Items

Table 3 shows the comparison of Huawei CH121 Compute Node for E9000 and Huawei CH140 Compute Node for E9000.

Product Code

Huawei CH121 Compute Node for E9000

Huawei CH140 Compute Node for E9000

Form Factor

Half-width 2-socket compute node

Two 2-socket twin compute nodes in a half-width slot

Number of Processors

1 or 2

1 or 2 in each 2-socket compute node

Processor Model

Intel® Xeon® E5-2600 and E5-2600 v2 series

Intel® Xeon® E5-2600 and E5-2600 v2 series

Number of DIMMs

24 DDR3 DIMMs, providing a maximum memory capacity of 768 GB

8 DDR3 DIMMs for each 2-socket compute node

Number of Hard Disks

2 x 2.5" SAS/SATA HDDs or SSDs

One 2.5" SSD/SAS/SATA for each 2-socket compute node

PCIe Expansion

2 PCIe x16 mezz modules

1 standard PCIe x8 full-height half-length card

2 twin nodes share 2 PCIe x8 MEZZ modules

Get more information

Do you have any question about the Huawei CH121 Compute Node for E9000

Contact us now via Live Chat or [email protected].

Quality Certifications

  • ISO 14001
  • ISO 9001
  • RoHS
  • REACH
  • CE
  • FCC
Specification

Huawei CH121 Compute Node for E9000 Specification

CH121 Compute Node Specifications

Form Factor

Half-width 2-socket compute node

Number of Processors

1 or 2

Processor Model

Intel Xeon E5-2600 and E5-2600 v2 series

Number of DIMMs

24 DDR3 DIMMs, providing a maximum memory capacity of 1.5 TB

Number of Hard Disks

2 x 2.5-inch SSDs, SAS HDDs, or SATA HDDs

RAID Support

RAID 0 and 1

PCIe Expansion

2 PCIe x16 Mezz modules
1 standard PCIe x8 full-height half-length card

OS Support

Microsoft Windows Server 2008/2012
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
Oracle Linux
CentOS
Citrix XenServer
Vmware

Operating Temperature

5°C to 40°C

Dimensions

Height: 60.46 mm (2.38 in)
Width: 210 mm (8.27 in)
Depth: 537.2 mm (21.15 in)

Quality Certifications

Q&A

Questions & Answers

What accessories are available for the Huawei CH121 Compute Node?

Accessories include additional DDR3 DIMMs, compatible storage drives, network interface cards, and power modules to enhance performance and connectivity.

How does the Huawei CH121 Compare with other similar products?

The Huawei CH121 offers a competitive edge with its extensive memory support and powerful Intel Xeon processors, making it suitable for intensive workloads.

Is virtualization supported on Huawei CH121 Compute Node?

Yes, the Huawei CH121 Compute Node supports virtualization technologies, making it ideal for creating virtualized environments in data centers.

Are the products sold on router-switch.com authentic?

Yes, router-switch.com only sells 100% genuine products from authorized brands. As a multi-brand authorized distributor, all items are sourced through official channels and include valid manufacturer warranties. Customers may verify authorization via brand websites or request certification documents.
