Overview

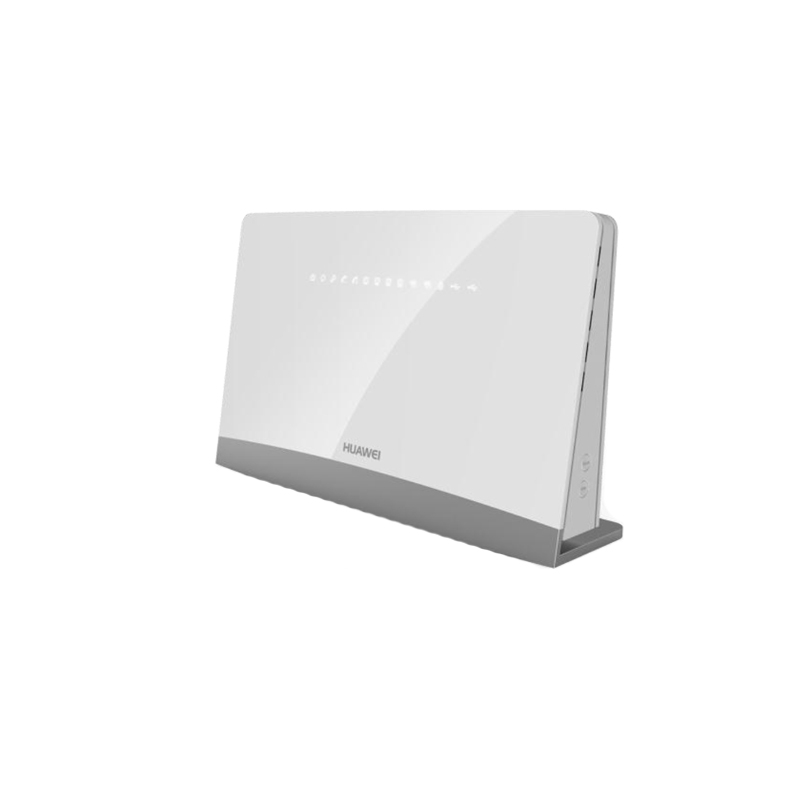

Huawei HN8M038055Q Overview

The Huawei HN8M038055Q is an advanced XG-PON terminal designed for premium home and SOHO broadband, delivering 10Gbps downlink over fiber with integrated dual-band 2.4G&5G Wi‑Fi. Targeting Asian and European FTTH deployments, this Video Terminal combines 4 GE, 1 10GE LAN and powerful NAT/IPv6 routing to support UHD video, cloud services and smart home devices. For distributors and small integrators, OMCI/TR-069 management, smart Wi-Fi coverage and IPTV video quality diagnosis simplify mass rollouts and reduce onsite maintenance.

Product Highlights

10Gbps DL

XG-PON Speed

4GE+10G

Wired Ports

3x3 MIMO

Dual-Band Wi

Product Applications Scenarios

Service Providers

XG-PON and advanced OMCI/TR069 let ISPs deliver 10G FTTH, cut truck rolls by up to 30% and assure IPTV quality end-to-end.

Enterprise Network

Acts as a high-speed fiber CPE for branch offices, combining routing, Wi‑Fi and VoIP to simplify WAN access and lower CapEx.

Media & Entertainment

10Gbps downlink, multicast and QoS ensure smooth 4K streaming, cloud gaming and OTT services with minimal buffering.

Product Features Comparison


Model	HN8M038055Q, Huawei HN8M Series XG-PON Terminal, SC/UPC, UK Adapter, English Docs	HN8M8055QJS1, Huawei HN8055Q XG-PON Terminal, SC/UPC, Japan Standard Adapter, Japanese Documents	HG8M128245Q, Huawei HG8245Q GPON Terminal, SC/APC, American Standard Adapter, English	H35M8045ATT2, Huawei EchoLife HG8045A GPON Terminal, 1×SC/UPC, 5dBi Antenna, US Adapter
Brand	Huawei	Huawei	Huawei	Huawei
Routing Throughput	n/a	n/a	n/a	n/a
Interface Configuration	Ports: 4GE+110GE+2.4G&5G Wi-Fi + 2USB	Ports: 4GE+110GE+2.4G&5G Wi-Fi + 2USB	Ports: 2POTS+4GE+2.4G/5G Wi-Fi +2USB	Ports: 4FE + Wi-Fi
Supported Protocol	Layer 3 Features: • PPPoE/Static IP/DHCP • NAT/NAPT • Port forwarding • ALG, UPnP • DDNS/DNS server/DNS client • IPv6/IPv4 dual stack, and DS-Lite • Static/Default routes • Multiple services on one WAN port	Layer 3 Features: • PPPoE/Static IP/DHCP • NAT/NAPT • Port forwarding • ALG, UPnP • DDNS/DNS server/DNS client • IPv6/IPv4 dual stack, and DS-Lite • Static/Default routes • Multiple services on one WAN port	Layer 3 Features: • PPPoE/Static IP/DHCP • NAT/NAPT • Port forwarding • ALG, UPnP • DDNS/DNS server/DNS client • IPv6/IPv4 dual stack, and DS-Lite • Static/Default routes • Multiple services on one WAN port	Layer 3 Features: ·PPPoE/Static IP/DHCP ·NAT/NAPT ·Port forwarding ·ALG, UPnP ·DDNS/DNS server/DNS client ·IPv6/IPv4 dual stack, and DS-Lite ·Static/Default routes ·Multiple services on one WAN port
VPN Capability	n/a	n/a	n/a	n/a
Integrated Features	Smart interconnection: • Smart Wi-Fi coverage • Any port any service • Parental control; Smart service: • Smart Wi-Fi sharing: Portal/802.1x authentication SoftGRE-based sharing; Smart O&M: • IPTV video quality diagnosis • Variable-length OMCI messages • Active/Passive rogue ONT detection and isolation • PPPoE/DHCP simulation testing • Wi-Fi emulation	Smart interconnection: • Smart Wi-Fi coverage • Any port any service • Parental control; Smart service: • Smart Wi-Fi sharing: Portal/802.1x authentication SoftGRE-based sharing; Smart O&M: • IPTV video quality diagnosis • Variable-length OMCI messages • Active/Passive rogue ONT detection and isolation • PPPoE/DHCP simulation testing • Wi-Fi emulation	Smart interconnection: • Smart Wi-Fi coverage (V300R015C10) • SIP/H.248 auto-negotiation • Any port any service • Parental control (V300R015C00) • L2/L3(IPv4) forwarding: 1G uplink, 2G downlink	Smart interconnection: ·Smart Wi-Fi coverage (V300R015C10) ·Any port any service ·Parental control (V300R015C00)

Optional Add-ons

Model Number	Description
HG8M128245Q	Huawei HG8245Q GPON Terminal, ideal companion ONT for non‑XG‑PON service tiers
VPC600-12X-00	Huawei VPC600 HD video camera for integrating high-quality video endpoints over HN8M networks
H35M8045AEU2	Huawei EchoLife HG8045A GPON Wi‑Fi terminal, deployable as supplementary wireless CPE

Quality Certifications

Specification

Huawei HN8M038055Q Specification

Model

HN8M038055Q

Brand

Huawei

Dimensions (H x W x D)

238×190×26mm (Without the base)

Operating temperature

0°C to +40°C

Operating humidity

5% RH to 95% RH (non-condensing)

Power adapter input

100–240 V AC, 50–60 Hz

System power supply

12 V DC, 3 A

Ports

4*GE+1*10GE+2.4G&5G Wi-Fi + 2USB

XG-PON Port

• Class N1/N2a • Receiver sensitivity: -28dBm • Wavelengths: US 1260-1280nm, DS 1575-1580nm • WBF • Flexible mapping between GEM Port and TCONT • SN/Password/SN+Password/Bi-directional authentication based on OMCI • Bi-directional FEC • SR-DBA and NSR-DBA • 2.5Gbps uplink, 10Gbps downlink

Ethernet Port

• Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit on the number of learned MAC addresses • MAC address learning

WLAN

• IEEE 802.11 b/g/n(2.4G) • IEEE 802.11 a/n/ac(5G) • 3 × 3 MIMO • Antenna gain: 2 dBi • WMM • Multiple SSIDs • WPS • 2.4G/5G concurrent

POTS Port

• Maximum REN: 4 • G.711A/μ, G.729a/b and G.722 encoding/decoding • T.30/T.38/G.711 fax mode • DTMF • Emergency calls (with the SIP protocol)

USB Port

• USB3.0 • FTP-based network storage • File/Print sharing based on SAMBA • DLNA DMS/UPnP AV (media server)

Smart interconnection

• Smart Wi-Fi coverage • Any port any service • Parental control

Smart service

• Smart Wi-Fi sharing: Portal/802.1x authentication SoftGRE-based sharing

Smart O&M

• IPTV video quality diagnosis • Variable-length OMCI messages • Active/Passive rogue ONT detection and isolation • PPPoE/DHCP simulation testing • Wi-Fi emulation

Layer 3 Features

• PPPoE/Static IP/DHCP • NAT/NAPT • Port forwarding • ALG, UPnP • DDNS/DNS server/DNS client • IPv6/IPv4 dual stack, and DS-Lite • Static/Default routes • Multiple services on one WAN port

Multicast

• IGMP v2/v3 proxy/snooping • MLD v1/v2 snooping • Multicast services through Wi-Fi

QoS

• Ethernet port rate limitation • 802.1p priority • SP/WRR/SP+WRR

Security

• SPI firewall • Filtering based on MAC/IP addresses

Common O&M

• OMCI/Web UI/TR069 • Dual-system software backup and rollback

Power Saving

• COC V5 • Dynamic power saving • Scheduled Wi-Fi shutdown

Weight

850 kg
