HG8M8010HUS1 Overview

HG8M8010HUS1, one of the Huawei HG8010H Series, is HG8010H GPON Terminal, American Standard Adapter, English, SC/APC.

Quick Specs

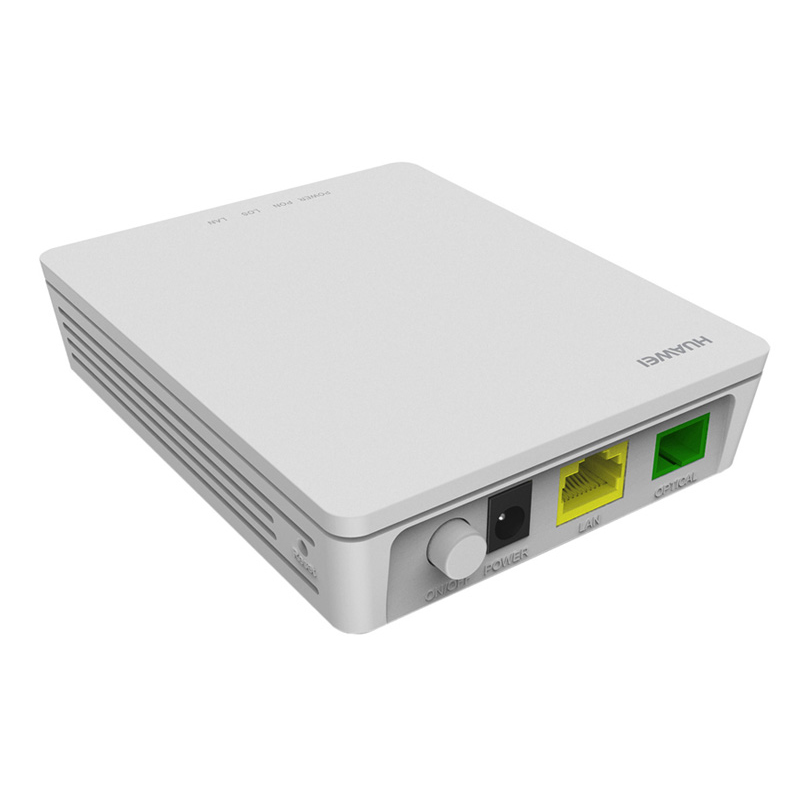

Figure 1 shows the appearance of HG8010H for reference.

HG8010H Appearance

Table 1 shows the Quick Specs.

Part Number

02310SYC

Model

HG8M8010HUS1

Description

HG8010H GPON Terminal, American Standard Adapter, English, SC/APC

Discount Category

Main Equipment

Product Line

Networking

Sub Product Family

ONT-e

Product Series

HG8010H

UOM

PCS

Net Dimension (D*W*H mm)

115 x 94 x 27 (V300R015C00 and earlier)
82 x 90 x 27 (V300R015C10)

Product Details

Figure 2 shows the ports of HG8010H for reference.

HG8010H Ports

Note:

No.

Port/Button

①

ON/OFF button

②

Power Connector

③

LAN Ports

④

Optical Port

Compare to Similar Items

Table 2 shows the similar items.

Model

H35M8245HEU1

HG8M8010HUS1

Type

Huawei HG8245H GPON Terminal

Huawei HG8010H GPON Terminal

Dimensions (H x W x D)

176 mm x 138.5 mm x 28 mm (without an external antenna)

115 x 94 x 27 (V300R015C00 and earlier)
82 x 90 x 27 (V300R015C10)

Ports

4 GE + 2 POTS + 1 USB + Wi-Fi

1 GE + 1 Optical Port

Network-side Ports

GPON

GPON

Get more information

Do you have any question about the HG8M8010HUS1

Contact us now via Live Chat or sales@router-switch.com.

Quality Certifications

  • ISO 14001
  • ISO 9001
  • RoHS
  • REACH
  • CE
  • FCC
Specification

HG8M8010HUS1 Specification

HG8010H Specification

Dimensions (H x W x D) (mm)

115 x 94 x 27 (V300R015C00 and earlier)
82 x 90 x 27 (V300R015C10)

Weight

< 500 g

Operating temperature

0°C to +40°C

Operating humidity

5% RH to 95% RH (non-condensing)

Power adapter input

100–240 V AC, 50–60 Hz

System power supply

11–14 V DC, 0.5 A

Static power consumption

3 W

Maximum power consumption

3.5 W

Ports

1GE

Indicators

POWER/PON/LOS/LAN

GPON Port

• Class B+
• Receiver sensitivity: -27dBm
• Wavelengths: US 1310 nm, DS 1490 nm
• Wavelength blocking filter (WBF)
• Flexible mapping between GEM Port and TCONT
• GPON: consistent with the SN or password
authentication defined in G.984.3
• Bi-directional FEC
• SR-DBA and NSR-DBA

Ethernet Port

• Ethernet port-based VLAN tags and tag removal
• 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
• QinQ VLAN
• Limit on the number of learned MAC addresses
• MAC address learning
• Transparent transmission of IPv6 packets at Layer 2

Smart O&M

• Variable-length OMCI messages
• Active/Passive rogue ONT detection
and isolation
• PPPoE/DHCP simulation testing

QoS

• Ethernet port rate limitation
• 802.1p priority
• SP/WRR/SP+WRR
• Broadcast packet rate limitation
• Flow mapping based on the VLAN ID,
port ID, or/and 802.1p

Power Saving

• Indicator power saving
• Power consumption reduction of idle
components in power-saving state
• COCv4

Security

• MAC address filtering

Common O&M

• OMCI/Web UI
• Dual-system software backup and
rollback
• 802.1ag Ethernet OAM
• Optical link measurement and diagnosis
• Loopback check

Multicast

• IGMP v2/v3 snooping
• MLD v1/v2 snooping
• Fast leave
• VLAN tag translation, transparent
transmission, and removal for
downstream multicast packets
• IGMP/MLD protocol packet rate limitation

Quality Certifications

Q&A

Questions & Answers

What are common troubleshooting steps for the HG8010H GPON Terminal?

Common issues often include connectivity problems. Check the fiber cable connection, ensure the SC/APC port is clean, and power cycle the device. Consult the manual for additional troubleshooting tips.

What accessories are available for the HG8010H GPON Terminal?

Accessories include power adapters, fiber optical cables, and wall-mount kits, which can enhance installation flexibility.

How does the HG8010H GPON Terminal compare to similar products?

The HG8010H GPON Terminal offers competitive features such as an English interface and American Standard Adapter, making it user-friendly and versatile compared to other models.

Are there any specific maintenance tips for the HG8010H GPON Terminal?

Regularly check and clean the SC/APC port to ensure optimal performance. Keep the firmware updated and periodically review the device settings as per the user manual.
