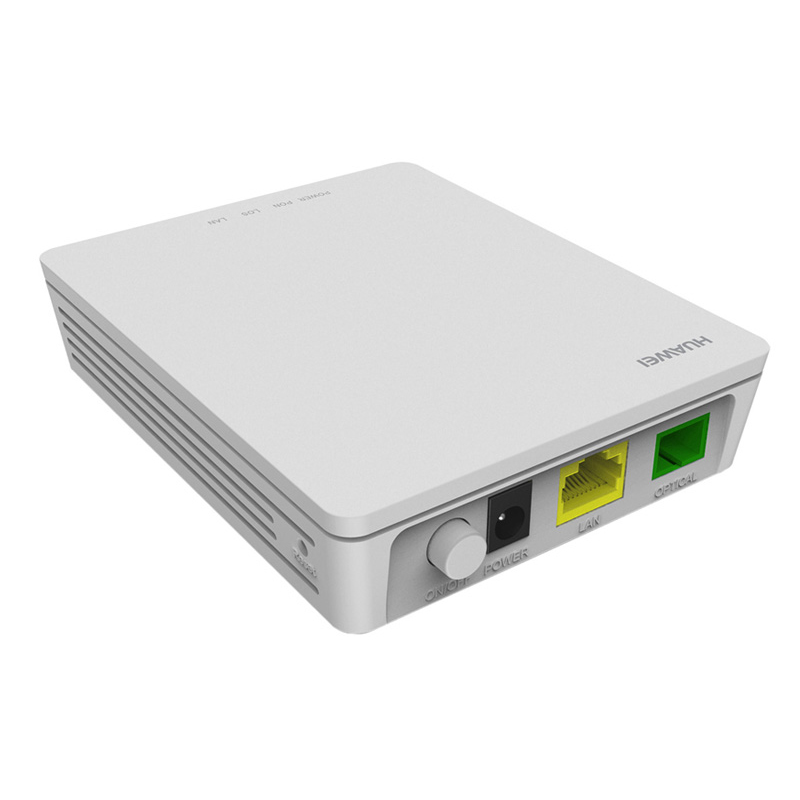

HG8M8010HUK1, Huawei HG8010H GPON Terminal, 1xGPON port/UK adapter/SC-APC

Brand: Huawei
Model: HG8M8010HUK1

$333.00

100% Genuine

Original, factory-verified

3-Year Warranty

Extended, enterprise-grade

24 Years Expertise

Proven, deployment-focused

Condition

Original New

Certified Expertise Builds Trust

CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert

Faster Delivery, Globally Ready
20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.
48H Worldwide Shipping
10+ Global Warehouses
Keep Projects On Time
Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.
Track Your Order

Leading Global Distributor
Since 2002
A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

Worry-Free Coverage with RSCare
3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.
Cisco SmartNet
HPE Foundation Care
Dell ProSupport
Juniper Care
Fortinet Support
Your Trusted Genuine Source
Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.
100% Authentic Products
100,000+ Multi-Brand SKUs Available

HG8M8010HUK1, Huawei HG8010H GPON Terminal, 1xGPON port/UK adapter/SC-APC

100% Genuine Ready to Ship

$333.00

Overview

Huawei HG8M8010HUK1 Overview

The Huawei HG8M8010HUK1 is a compact GPON terminal designed for fiber-to-the-home access in residential and small business networks. It features one Class B+ GPON interface with -27dBm receiver sensitivity and a single 1GE Ethernet port supporting VLAN tagging, QinQ, and Layer 2 IPv6 transparency. With low 3.5W maximum power consumption, MAC address filtering security, and OMCI/Web UI management, this HG8010H series ONT simplifies deployment for service providers and delivers stable gigabit last-mile connectivity.

Product Highlights

3.5W

Low Power

1GE

Gig Port

-27dBm

GPON Sens

Product Applications Scenarios

Service Providers

HG8M8010HUK1 enables cost-effective GPON CPE for ISPs, simplifying mass FTTH rollouts while lowering truck rolls through OMCI-based remote management and rapid fault isolation.

Enterprise Network

Used as a fiber access ONT, it delivers dedicated 1GE backhaul for branch offices, improving WAN bandwidth and QoS for voice, video, and cloud applications.

Edge & IoT

The compact ONT provides stable GPON-to-Ethernet conversion for edge gateways or IoT aggregators, reducing latency and ensuring reliable uplink connectivity.

Product Features Comparison


Model	HG8M8010HUK1, Huawei HG8010H GPON Terminal, 1×GPON port/UK adapter/SC-APC	HG8M8010HEU6, Huawei HG8010H GPON Terminal, SC/APC, EU Adapter, English	HG8M168010H, Huawei HG8010H GPON Terminal, SC/APC, European Standard Adapter, English Document	HG8M8010HIL1, Huawei HG8010H GPON Terminal, SC/APC, UK Standard Adapter, English
Brand	Huawei	Huawei	Huawei	Huawei
Dimensions (H x W x D) (mm)	115 x 94 x 27 (V300R015C00 and earlier) 82 x 90 x 27 (V300R015C10)	115 x 94 x 27 (V300R015C00 and earlier) 82 x 90 x 27 (V300R015C10)	115 x 94 x 27 (V300R015C00 and earlier) 82 x 90 x 27 (V300R015C10)	115 x 94 x 27 (V300R015C00 and earlier) 82 x 90 x 27 (V300R015C10)
Operating temperature	0°C to +40°C	0°C to +40°C	0°C to +40°C	0°C to +40°C
Operating humidity	5% RH to 95% RH (non-condensing)	5% RH to 95% RH (non-condensing)	5% RH to 95% RH (non-condensing)	5% RH to 95% RH (non-condensing)
Power adapter input	100–240 V AC, 50–60 Hz	100–240 V AC, 50–60 Hz	100–240 V AC, 50–60 Hz	100–240 V AC, 50–60 Hz
System power supply	11–14 V DC, 0.5 A	11–14 V DC, 0.5 A	11–14 V DC, 0.5 A	11–14 V DC, 0.5 A
Static power consumption	3W	3W	3W	3W
Maximum power consumption	3.5W	3.5W	3.5W	3.5W
Ports	1GE	1GE	1GE	1GE
Indicators	POWER/PON/LOS/LAN	POWER/PON/LOS/LAN	POWER/PON/LOS/LAN	POWER/PON/LOS/LAN
GPON Port	• Class B+ • Receiver sensitivity: -27dBm • Wavelengths: US 1310 nm, DS 1490 nm • Wavelength blocking filter (WBF) • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA and NSR-DBA	• Class B+ • Receiver sensitivity: -27dBm • Wavelengths: US 1310 nm, DS 1490 nm • Wavelength blocking filter (WBF) • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA and NSR-DBA	• Class B+ • Receiver sensitivity: -27dBm • Wavelengths: US 1310 nm, DS 1490 nm • Wavelength blocking filter (WBF) • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA and NSR-DBA	• Class B+ • Receiver sensitivity: -27dBm • Wavelengths: US 1310 nm, DS 1490 nm • Wavelength blocking filter (WBF) • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA and NSR-DBA
Ethernet Port	• Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit on the number of learned MAC addresses • MAC address learning • Transparent transmission of IPv6 packets at Layer 2	• Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit on the number of learned MAC addresses • MAC address learning • Transparent transmission of IPv6 packets at Layer 2	• Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit on the number of learned MAC addresses • MAC address learning • Transparent transmission of IPv6 packets at Layer 2	• Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit on the number of learned MAC addresses • MAC address learning • Transparent transmission of IPv6 packets at Layer 2
Smart O&M	• Variable-length OMCI messages • Active/Passive rogue ONT detection and isolation • PPPoE/DHCP simulation testing	• Variable-length OMCI messages • Active/Passive rogue ONT detection and isolation • PPPoE/DHCP simulation testing	• Variable-length OMCI messages • Active/Passive rogue ONT detection and isolation • PPPoE/DHCP simulation testing	• Variable-length OMCI messages • Active/Passive rogue ONT detection and isolation • PPPoE/DHCP simulation testing
QoS	• Ethernet port rate limitation • 802.1p priority • SP/WRR/SP+WRR • Broadcast packet rate limitation • Flow mapping based on the VLAN ID, port ID, or/and 802.1p	• Ethernet port rate limitation • 802.1p priority • SP/WRR/SP+WRR • Broadcast packet rate limitation • Flow mapping based on the VLAN ID, port ID, or/and 802.1p	• Ethernet port rate limitation • 802.1p priority • SP/WRR/SP+WRR • Broadcast packet rate limitation • Flow mapping based on the VLAN ID, port ID, or/and 802.1p	• Ethernet port rate limitation • 802.1p priority • SP/WRR/SP+WRR • Broadcast packet rate limitation • Flow mapping based on the VLAN ID, port ID, or/and 802.1p
Power Saving	• Indicator power saving • Power consumption reduction of idle components in power-saving state • COCv4	• Indicator power saving • Power consumption reduction of idle components in power-saving state • COCv4	• Indicator power saving • Power consumption reduction of idle components in power-saving state • COCv4	• Indicator power saving • Power consumption reduction of idle components in power-saving state • COCv4
Security	• MAC address filtering	• MAC address filtering	• MAC address filtering	• MAC address filtering
Common O&M	• OMCI/Web UI • Dual-system software backup and rollback • 802.1ag Ethernet OAM • Optical link measurement and diagnosis • Loopback check	• OMCI/Web UI • Dual-system software backup and rollback • 802.1ag Ethernet OAM • Optical link measurement and diagnosis • Loopback check	• OMCI/Web UI • Dual-system software backup and rollback • 802.1ag Ethernet OAM • Optical link measurement and diagnosis • Loopback check	• OMCI/Web UI • Dual-system software backup and rollback • 802.1ag Ethernet OAM • Optical link measurement and diagnosis • Loopback check
Multicast	• IGMP v2/v3 snooping • MLD v1/v2 snooping • Fast leave • VLAN tag translation, transparent transmission, and removal for downstream multicast packets • IGMP/MLD protocol packet rate limitation	• IGMP v2/v3 snooping • MLD v1/v2 snooping • Fast leave • VLAN tag translation, transparent transmission, and removal for downstream multicast packets • IGMP/MLD protocol packet rate limitation	• IGMP v2/v3 snooping • MLD v1/v2 snooping • Fast leave • VLAN tag translation, transparent transmission, and removal for downstream multicast packets • IGMP/MLD protocol packet rate limitation	• IGMP v2/v3 snooping • MLD v1/v2 snooping • Fast leave • VLAN tag translation, transparent transmission, and removal for downstream multicast packets • IGMP/MLD protocol packet rate limitation
Routing Throughput	n/a	n/a	n/a	n/a
Interface Configuration	n/a	n/a	n/a	n/a
Supported Protocol	n/a	n/a	n/a	n/a
VPN Capability	n/a	n/a	n/a	n/a
Integrated Features	n/a	n/a	n/a	n/a

Optional Add-ons

Model Number	Description
HG8M8010aPO1	Huawei HG8010a GPON Terminal, SC/APC, EU adapter for additional single-port FTTH drops
H35M8040HNC1	Huawei HG8040H GPON ONT with 4GE ports for users needing more LAN interfaces
VPC620-4X-02	Huawei VPC620 HD video camera for pairing with Huawei video conferencing endpoints

Quality Certifications

Specification

Huawei HG8M8010HUK1 Specification

Model

HG8M8010HUK1

Brand

Huawei

Dimensions (H x W x D) (mm)

115 x 94 x 27 (V300R015C00 and earlier) 82 x 90 x 27 (V300R015C10)

Operating temperature

0°C to +40°C

Operating humidity

5% RH to 95% RH (non-condensing)

Power adapter input

100–240 V AC, 50–60 Hz

System power supply

11–14 V DC, 0.5 A

Static power consumption

Maximum power consumption

3.5W

Ports

1GE

Indicators

POWER/PON/LOS/LAN

GPON Port

• Class B+ • Receiver sensitivity: -27dBm • Wavelengths: US 1310 nm, DS 1490 nm • Wavelength blocking filter (WBF) • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA and NSR-DBA

Ethernet Port

• Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit on the number of learned MAC addresses • MAC address learning • Transparent transmission of IPv6 packets at Layer 2

Smart O&M

• Variable-length OMCI messages • Active/Passive rogue ONT detection and isolation • PPPoE/DHCP simulation testing

QoS

• Ethernet port rate limitation • 802.1p priority • SP/WRR/SP+WRR • Broadcast packet rate limitation • Flow mapping based on the VLAN ID, port ID, or/and 802.1p

Power Saving

• Indicator power saving • Power consumption reduction of idle components in power-saving state • COCv4

Security

• MAC address filtering

Common O&M

• OMCI/Web UI • Dual-system software backup and rollback • 802.1ag Ethernet OAM • Optical link measurement and diagnosis • Loopback check

Multicast

• IGMP v2/v3 snooping • MLD v1/v2 snooping • Fast leave • VLAN tag translation, transparent transmission, and removal for downstream multicast packets • IGMP/MLD protocol packet rate limitation

Get more information

Discover unbeatable prices and fast shipping for the HG8M8010HUK1, Huawei HG8010H GPON Terminal, 1×GPON port/UK adapter/SC-APC . Access the detailed HG8M8010HUK1, Huawei HG8010H GPON Terminal, 1×GPON port/UK adapter/SC-APC datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

Quality Certifications

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What accessories are available for the HG8010H GPON Terminal?

The HG8010H typically comes with a power adapter and an SC/APC optical fiber patch cord; additional accessories may include wall mounts or protective sleeves.

How does the HG8010H GPON Terminal compare to similar products?

Compared to similar products, the HG8010H stands out for its compact design, energy efficiency, and reliable GPON access.

Is the HG8010H GPON Terminal suitable for high bandwidth applications?

Yes, the HG8010H supports 2.5G downstream and 1.25G upstream, making it suitable for high-speed internet and bandwidth-intensive applications.

Are the products sold on router-switch.com authentic?

Yes, router-switch.com only sells 100% genuine products from authorized brands. As a multi-brand authorized distributor, all items are sourced through official channels and include valid manufacturer warranties. Customers may verify authorization via brand websites or request certification documents.

Learn More

What makes the HG8010H GPON Terminal cost-effective?

The HG8010H GPON Terminal offers high-performance GPON access with a low power consumption design, making it a cost-effective solution for ISPs.

What are the key characteristics of the HG8010H GPON Terminal?

The HG8010H is a UK standard adapter, providing reliable GPON access with a SC/APC interface, supporting 2.5G downstream and 1.25G upstream.

In what scenarios is the HG8010H GPON Terminal applicable?

The HG8010H is ideal for residential and small business broadband access, offering high-speed internet connectivity over GPON networks.

How easy is it to install the HG8010H GPON Terminal?

The HG8010H features a plug-and-play design with SC/APC connectors, simplifying installation for system integrators.

Does the HG8010H GPON Terminal require regular upgrades?

The HG8010H may require firmware updates to ensure optimal performance and security; always check the manufacturer's recommendations.

Are there alternative products to the HG8010H GPON Terminal?

Alternative GPON terminals from Huawei include the HG8245H and the HG8546M, offering similar features with additional functionalities.

What common issues can occur with the HG8010H GPON Terminal?

Common issues include connectivity problems, which can often be resolved by checking the SC/APC connection and ensuring firmware is up to date.
