HG8M8010aPO1, Huawei HG8010a GPON Terminal, SC/APC, European Adapter, English Document

Brand: Huawei
Model: HG8M8010aPO1

$306.00

100% Genuine

Original, factory-verified

3-Year Warranty

Extended, enterprise-grade

24 Years Expertise

Proven, deployment-focused

Condition

Original New

Certified Expertise Builds Trust

CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert

Faster Delivery, Globally Ready
20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.
48H Worldwide Shipping
10+ Global Warehouses
Keep Projects On Time
Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.
Track Your Order

Leading Global Distributor
Since 2002
A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

Worry-Free Coverage with RSCare
3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.
Cisco SmartNet
HPE Foundation Care
Dell ProSupport
Juniper Care
Fortinet Support
Your Trusted Genuine Source
Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.
100% Authentic Products
100,000+ Multi-Brand SKUs Available

HG8M8010aPO1, Huawei HG8010a GPON Terminal, SC/APC, European Adapter, English Document

100% Genuine Ready to Ship

$306.00

Overview

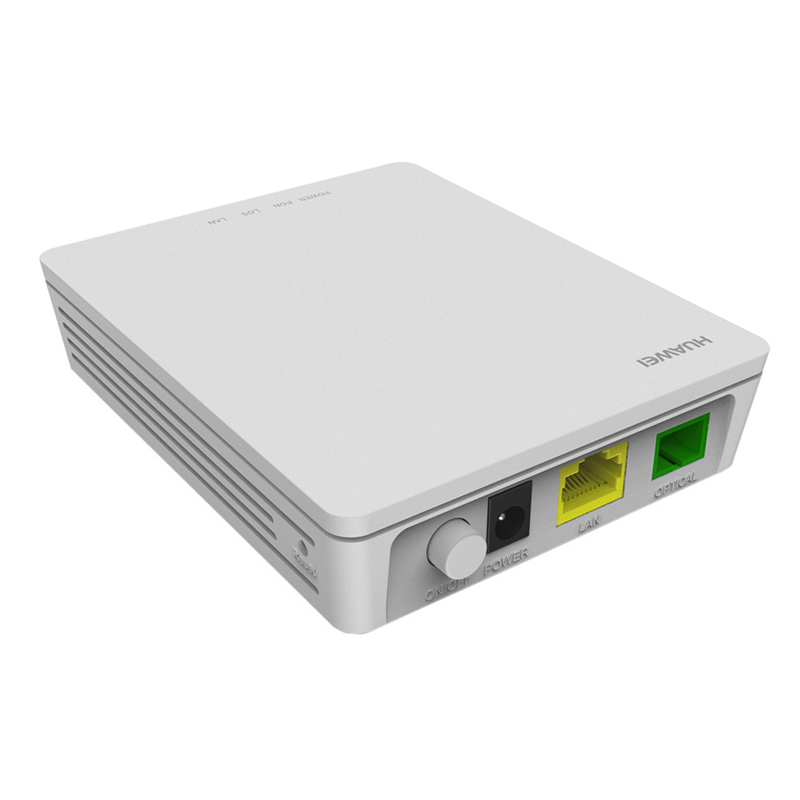

Huawei HG8M8010aPO1 Overview

The Huawei HG8M8010aPO1 is a compact GPON terminal designed for European FTTH deployments. With a single GPON interface and one Gigabit Ethernet LAN port, it delivers reliable high-speed access for residential and small office users. The SC/APC optical connector ensures low-loss fiber connections, while the European standard power adapter supports 110-240 V AC input with maximum 6W consumption. English documentation simplifies rollout for distributors and integrators across European networks.

Product Highlights

1 GPON

PON Port

1GE

LAN Port

6W Max

Low Power

Product Applications Scenarios

Service Providers

Enables European ISPs to deliver stable FTTH GPON access with simple CPE, cutting on-site installation time and reducing support tickets by streamlining ONT deployment.

Enterprise Network

Provides a dedicated GPON uplink and Gigabit LAN handoff for branch or SOHO offices, improving last-mile bandwidth while keeping power and space requirements minimal.

Edge & IoT

Delivers fiber-based IP connectivity to edge gateways or IoT aggregators, ensuring consistent low-latency backhaul without complex configuration at the customer edge.

Product Features Comparison


Model	HG8M8010aPO1, Huawei HG8010a GPON Terminal, SC/APC, European Adapter, English Document	HG8M8010HIL1, Huawei HG8010H GPON Terminal, SC/APC, UK Standard Adapter, English	H35M8012HNOS, Huawei EchoLife HG8012H GPON Terminal, SC/APC, European Plug Adapter	H35M8040HPC1, Huawei HG8040H GPON Terminal, UK Standard Adapter/English/SC APC
Brand	Huawei	Huawei	Huawei	Huawei
Ports	1 Ethernet Port (10/100/1000Mbps)	1GE	1GE + 1CATV	4GE
GPON Port	1 GPON port, SC/APC	GPON Port	GPON Port	GPON Port
Power Consumption	Maximum 6W	Maximum power consumption: 3.5W	Maximum power consumption: 6W	Maximum power consumption: 7.5W
Dimensions	100mm × 82mm × 28mm	115 x 94 x 27 / 82 x 90 x 27 mm	134mm x 115mm x 30mm	176mm x 138.5mm x 28mm
Operating Temperature	0°C to 40°C	0°C to +40°C	0°C to +40°C	0°C to +40°C
Operating Humidity	5% to 95% (non-condensing)	5% RH to 95% RH (non-condensing)	5% RH to 95% RH (non-condensing)	5% RH to 95% RH (non-condensing)
Power Adapter Input	110-240 V AC, European Standard Adapter	100–240 V AC, 50–60 Hz	100–240 V AC, 50–60 Hz	100–240 V AC, 50–60 Hz
Indicators	PWR, LOS, PON, LAN	POWER/PON/LOS/LAN	POWER/PON/LOS/LAN/CATV	POWER/PON/LOS/LAN
Certification	CE, RoHS	n/a	n/a	n/a

Optional Add-ons

Model Number	Description
HUAWEI-SC-APC-PATCH1M	Huawei SC/APC single-mode patch cord, 1m, for HG8010a GPON terminal uplink.
HUAWEI-EU-12V1A-ADP	Huawei 12V 1A European standard AC power adapter compatible with HG8010 series.
HUAWEI-ONT-WALLKIT	Huawei wall-mount kit for compact GPON ONT units including HG8010a.

Quality Certifications

Specification

Huawei HG8M8010aPO1 Specification

Model

HG8M8010aPO1

Brand

Huawei

HG8M8010aPO1 Specifications Brand

Huawei

Type

GPON Terminal

Connector Type

SC/APC

Get PON (GPON) Interface

1 GPON port

LAN Interface

1 Ethernet Port (10/100/1000Mbps)

Power Adapter

European Standard Adapter

Input Voltage

110-240 V AC

Power Consumption

Maximum 6W

Indicators

PWR, LOS, PON, LAN

Dimensions

100mm 掳 82mm 掳 28mm

Operating Temperature

0掳C to 40掳C

Operating Humidity

5% to 95% (non-condensing)

Storage Temperature

40掳C to 70掳C

Certification

CE, RoHS

Color

White

Mounting

Desktop or Wall Mountable

System Requirement

Complies with Poland Orange

Documentation

English Document

Get more information

Discover unbeatable prices and fast shipping for the HG8M8010aPO1, Huawei HG8010a GPON Terminal, SC/APC, European Adapter, English Document . Access the detailed HG8M8010aPO1, Huawei HG8010a GPON Terminal, SC/APC, European Adapter, English Document datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

Quality Certifications

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What accessories are available for the HG8010a GPON Terminal?

Standard accessories include the European standard power adapter and an English documentation guide.

How does the HG8010a GPON Terminal compare with similar products?

The HG8010a stands out for its specific compatibility with Poland Orange networks and its cost-efficient design.

Is the HG8010a GPON Terminal compatible with other European networks?

While primarily designed for Poland Orange, the HG8010a may work with other European networks using similar standards.

Are the products sold on router-switch.com authentic?

Yes, router-switch.com only sells 100% genuine products from authorized brands. As a multi-brand authorized distributor, all items are sourced through official channels and include valid manufacturer warranties. Customers may verify authorization via brand websites or request certification documents.

Learn More

How cost-effective is the HG8010a GPON Terminal?

The HG8010a GPON Terminal offers excellent cost efficiency, providing high-speed internet access at an affordable price.

What are the key features of HG8010a GPON Terminal?

The HG8010a GPON Terminal features SC/APC connectors, a European standard adapter, and is specifically designed for Poland Orange.

What are the application scenarios for the HG8010a GPON Terminal?

The HG8010a GPON Terminal is ideal for residential high-speed internet access, specifically tailored for users in Poland.

How do I install the HG8010a GPON Terminal?

Installation is straightforward; connect the SC/APC port to your network and use the European adapter to power the unit.

Does the HG8010a GPON Terminal require software upgrades?

The HG8010a GPON Terminal may require firmware updates, which can usually be performed via the web interface.

Are there alternative products to the HG8010a GPON Terminal?

Alternative GPON terminals include models like Huawei EchoLife HG8245H and ZTE F601, which offer different features and capabilities.

What common troubleshooting steps are there for the HG8010a GPON Terminal?

Common troubleshooting involves verifying the SC/APC connector is securely in place and checking the power supply from the European adapter.
