How cost-effective is the H901XGHD?

The H901XGHD offers a high port density, which reduces the need for additional hardware, making it cost-effective.

What are the main features of the H901XGHD?

The H901XGHD features 8 XG-PON ports, high throughput, low latency, and robust performance.

What are the application scenarios for the H901XGHD?

The H901XGHD is ideal for large-scale enterprise networks and ISPs requiring high-speed data transfer.

How do I install the H901XGHD on the MA5800 chassis?

Slide the H901XGHD into the designated slot in the MA5800 chassis and secure it with screws.

Does the H901XGHD require any upgrades?

Firmware updates may be needed periodically to enhance performance and security.

Are there alternative products to the H901XGHD?

Alternatives include other PON boards in the Huawei MA5800 series with different port configurations.

What common troubleshooting steps are there for the H901XGHD?

Check connections, ensure power is supplied, and verify firmware version to resolve common issues.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

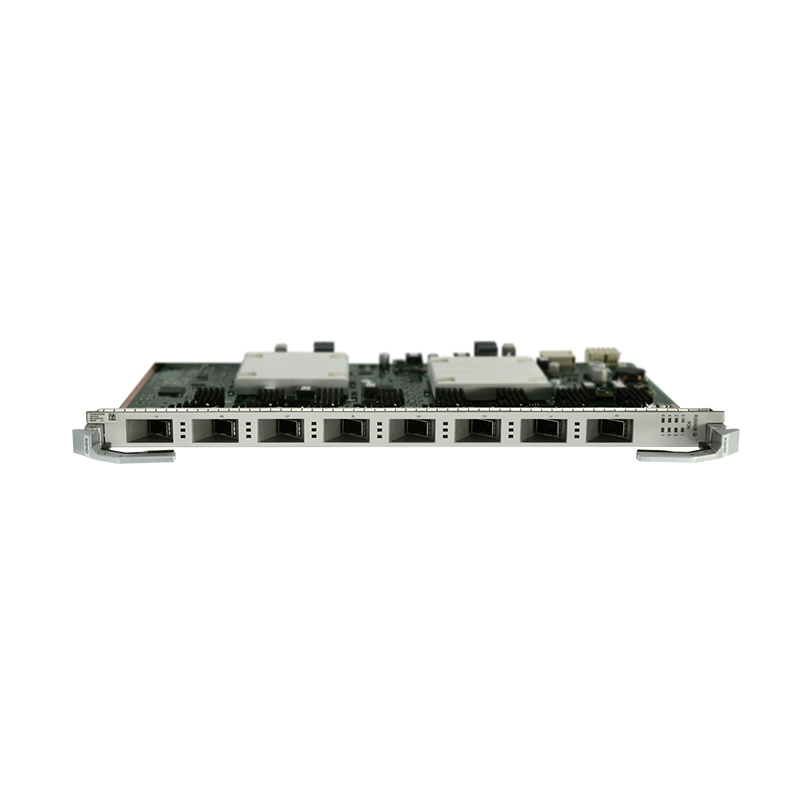

H901XGHD, Huawei SmartAX MA5800 OLT Board, 8xXG-PON ports

Name: H901XGHD, Huawei SmartAX MA5800 OLT Board, 8xXG-PON ports
SKU: H901XGHD
Rating: 4 (1 reviews)

Brand: Huawei
Model: H901XGHD

Rating:

80%

4/5.0

1 Review

11 Questions

100% Genuine

Original, factory-verified

3-Year Warranty

Extended, enterprise-grade

24 Years Expertise

Proven, deployment-focused

Condition

Original New

Certified Expertise Builds Trust

CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert

Talk to an Expert

Faster Delivery, Globally Ready
20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.
48H Worldwide Shipping
10+ Global Warehouses
Keep Projects On Time
Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.
Track Your Order

Leading Global Distributor
Since 2002
A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

Worry-Free Coverage with RSCare
3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.
Cisco SmartNet
HPE Foundation Care
Dell ProSupport
Juniper Care
Fortinet Support
Your Trusted Genuine Source
Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.
100% Authentic Products
100,000+ Multi-Brand SKUs Available

H901XGHD, Huawei SmartAX MA5800 OLT Board, 8xXG-PON ports

100% Genuine Ready to Ship

Overview

Huawei H901XGHD Overview

The Huawei H901XGHD is a carrier-grade 8-port XG-PON OLT interface board for SmartAX MA5800 series, designed to deliver high-capacity fiber access in FTTx and aggregation networks. Each XG-PON SC/APC port supports up to 2.5Gbps downstream and 1.25Gbps upstream over distances up to 20km, with split ratios up to 1:128 for dense subscriber coverage. With full line-rate forwarding, multi-service support including VOIP, HSI, IPTV, CATV and mobile backhaul, plus enhanced QoS and OMCI/TR-069 management, it enables scalable, converged broadband in Asia, Europe, Africa and North America.

Product Highlights

2.5Gbps

Down Speed

1:128

Split Ratio

8 Ports

XG-PON

Product Applications Scenarios

Service Providers

Enables high-density XG-PON access with up to 1:128 split ratio, cutting last-mile fiber costs by up to 40% while maintaining SLA-grade QoS for broadband, voice, and IPTV bundles.

Enterprise Network

Delivers scalable 10G-ready fiber aggregation for campuses, supporting converged VOIP, HSI, and video, reducing cabling complexity and simplifying centralized management.

Public Infrastructure

Ideal for municipal FTTx, smart city backhaul, and public Wi-Fi offload, extending up to 20km to remote sites while preserving bandwidth and service quality.

Product Features Comparison


Model	H901XGHD, Huawei SmartAX MA5800 OLT Board, 8×XG-PON ports	H80D00GPBH52, Huawei MA5800 OLT Board, 8-port GPON/Class C+ SFP/Enhanced board	H80-GICE0, Huawei H80 Series Interface Card, 4×GE/FE Electrical Ports	EH1D2S24XEC0, Huawei EH1D2S Switch Card, 24x100/1000BASE-X SFP/2x10GBASE-X XFP
Brand	Huawei	Huawei	Huawei	Huawei
Module Type	8-port XG-PON OLT Interface Board	n/a	n/a	n/a
Port Configuration	8 Ports	n/a	n/a	24-Port 100/1000BASE-X and 2-Port 10GBASE-X
Supported Speed	XG-PON	n/a	n/a	Up to 10Gbps
Compatible Platform	Huawei SmartAX MA5800 Series OLT	n/a	n/a	Huawei Network Switches
Installation Type	Plug and play	Plug-in Card	n/a	Interface Card

Optional Add-ons

Model Number	Description
H80D00GPBH52	Huawei 8-port GPON service board for MA5800 OLT, complements XG-PON deployment.
H80-GICE0	Huawei H80 series 4×GE/FE electrical uplink card for MA5800 aggregation.
H83MMA562022	Huawei xPON remote optical access unit for extending MA5800-based FTTx coverage.

Quality Certifications

Specification

Huawei H901XGHD Specification

Model

H901XGHD

Brand

Huawei

H901XGHD Specifications Brand

Huawei

Type

8-port XG-PON OLT Interface Board

Port Quantity

8 Ports

Compatible Equipment

Huawei SmartAX MA5800 Series OLT

Network Interface

XG-PON

Port Type

SC/APC

Operational Distance

Up to 20km

Downstream Speed

2.5Gbps

Upstream Speed

1.25Gbps

Split Ratio

Up to 1:128

Operating Temperature

40掳C to +65掳C

Operating Humidity

5% to 95% (non-condensing)

Power Consumption

Typically 55W

Supported Protocols

GPON, EPON, XG-PON1, XGS-PON, 10G EPON

Optical Module

Class B+/C+/C++

Forwarding Capability

Full line-rate forwarding

Service Support

VOIP, HSI, IPTV, CATV, Mobile Backhaul, etc.

Quality of Service (QoS)

Enhanced QoS features

Installation Mode

Plug and play

Automatic Configuration

Supported

Automatic Upgrade

Supported

Management

OMCI and TR-069

Get more information

Discover unbeatable prices and fast shipping for the H901XGHD, Huawei SmartAX MA5800 OLT Board, 8×XG-PON ports . Access the detailed H901XGHD, Huawei SmartAX MA5800 OLT Board, 8×XG-PON ports datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

Quality Certifications

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What accessories are available for the H901XGHD?

Accessories include fiber optic cables, transceivers, and power modules compatible with the MA5800 chassis.

How does the H901XGHD compare to similar products?

The H901XGHD offers superior port density and performance compared to many similar interface boards.

Can the H901XGHD be integrated with existing networks?

Yes, it's compatible with existing Huawei MA5800 series equipment and can be integrated seamlessly.
